GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

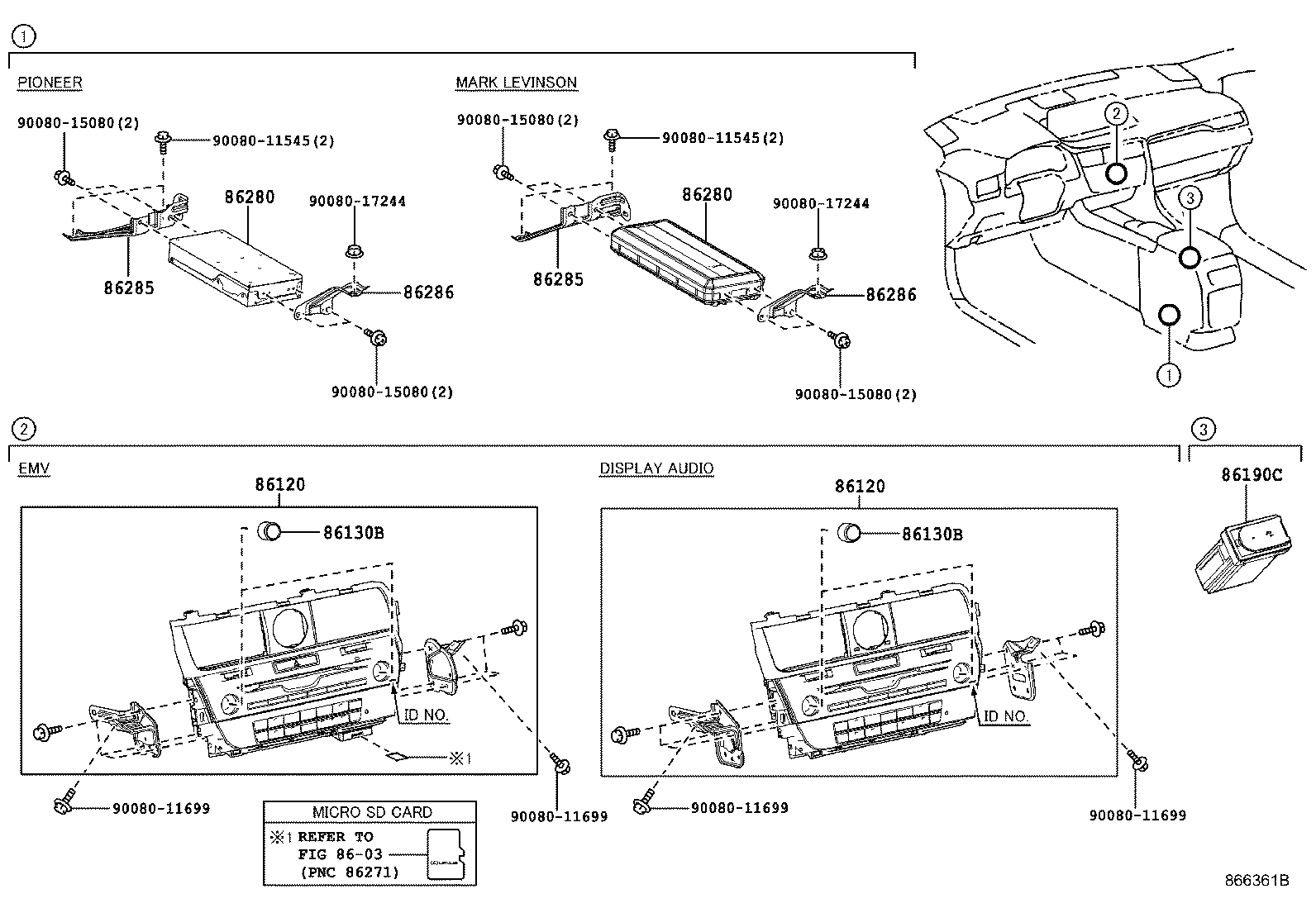

ILLUST NO. 1 OF 2(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86804-0E170 |
GYL25 PIONEER,ID=P11035,CANADA SPEC |
1 | ||
| 86804-0E180 |
GYL25 PIONEER,ID=P11068,CANADA SPEC&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E200 |
GYL25 PIONEER,ID=P11072,CANADA SPEC&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E230 |
GYL2# PIONEER,ID=P11036 |
1 | ||
| 86804-0E240 |
GYL2# PIONEER,ID=P11069,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E250 |
GYL2# PIONEER,ID=P11039,SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E190 |
GYL25 PIONEER,ID=P11038,CANADA SPEC&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E370 |
GYL25 PIONEER,ID=P11557,SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E400 |
GYL25 PIONEER,ID=P11550,CANADA SPEC |
1 | ||
| 86804-0E260 |
GYL2# PIONEER,ID=P11073,SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E340 |
GYL25 PIONEER,ID=P11551 |
1 | ||
| 86804-0E360 |
GYL25 PIONEER,ID=P11555,SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E410 |
GYL25 PIONEER,ID=P11552,CANADA SPEC&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E350 |
GYL25 PIONEER,ID=P11553,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E420 |
GYL25 PIONEER,ID=P11554,CANADA SPEC&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E470 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86140-0E300 |
GGL2#,GYL25 PIONEER,ID=P11755 |
1 | ||
| 86804-0E440 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E430 |
GYL25 PIONEER,ID=P11556,CANADA SPEC&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E480 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E490 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E510 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E500 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E520 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86140-0E290 |
GGL25,GYL25 PIONEER,ID=P11754,CANADA SPEC |
1 | ||
| 86804-0E450 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E530 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E460 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E540 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E550 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86804-0E170 |
GYL25 PIONEER,ID=P11035,CANADA SPEC |
1 | ||
| 86804-0E180 |
GYL25 PIONEER,ID=P11068,CANADA SPEC&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E200 |
GYL25 PIONEER,ID=P11072,CANADA SPEC&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E230 |
GYL2# PIONEER,ID=P11036 |
1 | ||
| 86804-0E240 |
GYL2# PIONEER,ID=P11069,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E250 |
GYL2# PIONEER,ID=P11039,SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E190 |
GYL25 PIONEER,ID=P11038,CANADA SPEC&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E370 |
GYL25 PIONEER,ID=P11557,SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E400 |
GYL25 PIONEER,ID=P11550,CANADA SPEC |
1 | ||
| 86804-0E260 |
GYL2# PIONEER,ID=P11073,SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E340 |
GYL25 PIONEER,ID=P11551 |
1 | ||
| 86804-0E360 |
GYL25 PIONEER,ID=P11555,SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E410 |
GYL25 PIONEER,ID=P11552,CANADA SPEC&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E350 |
GYL25 PIONEER,ID=P11553,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E420 |
GYL25 PIONEER,ID=P11554,CANADA SPEC&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86804-0E470 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86140-0E300 |
GGL2#,GYL25 PIONEER,ID=P11755 |
1 | ||
| 86804-0E440 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E430 |
GYL25 PIONEER,ID=P11556,CANADA SPEC&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E480 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E490 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E510 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E500 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E520 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86140-0E290 |
GGL25,GYL25 PIONEER,ID=P11754,CANADA SPEC |
1 | ||
| 86804-0E450 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E530 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86804-0E460 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E540 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86804-0E550 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86130B - KNOB, RECEIVER SWITCH | ||||
| 90010-22112 |
GGL2#,GYL25 |
2 | ||
| 86130B - KNOB, RECEIVER SWITCH | ||||
| 90010-22112 |
GGL2#,GYL25 |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-0E100 |
GGL2#,GYL25 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0E150 |
GYL2# SPEAKER-12SPEAKER |
1 | ||
| 86280-0WD30 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E140 |
GYL25 SPEAKER-12SPEAKER |
1 | ||
| 86280-0WD30 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0E070 |
GYL25 |
1 | ||
| 86280-0E130 |
GYL2# |
1 | ||
| 86280-0WD31 |
GGL2#,GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0WD30 |
GYL2# SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86280-0E130 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0WD31 |
GGL2#,GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E130 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0E150 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E150 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0E150 |
GYL2# SPEAKER-12SPEAKER |
1 | ||
| 86280-0WD30 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E140 |
GYL25 SPEAKER-12SPEAKER |
1 | ||
| 86280-0WD30 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0E070 |
GYL25 |
1 | ||
| 86280-0E130 |
GYL2# |
1 | ||
| 86280-0WD31 |
GGL2#,GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0WD30 |
GYL2# SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86280-0E130 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0WD31 |
GGL2#,GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E130 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86280-0E150 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86280-0E150 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-0E070 |
GYL2# SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86285-48170 |
GYL25 SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86285-48170 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86285-48170 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86285-0E030 |
GGL2#,GYL25 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-0E070 |
GYL2# SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86285-48170 |
GYL25 SPEAKER-15SPEAKER & *MAR |
1 | ||
| 86285-48170 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86285-48170 |
GYL25 AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86285-0E030 |
GGL2#,GYL25 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-0E030 |
GGL2#,GYL25 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-0E030 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11699 | ||||
| 90080-15080 | ||||
| 90080-17244 | ||||
| Linked diagrams | ||||
| 8603 | ||||

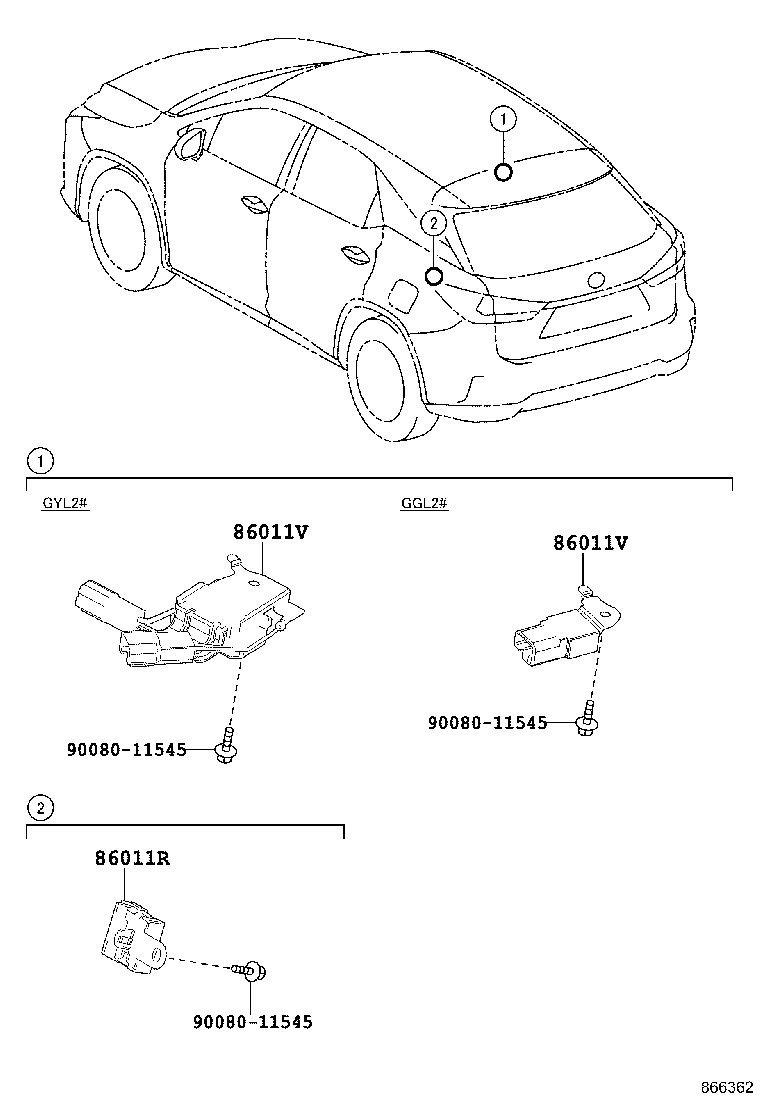

ILLUST NO. 2 OF 2(1510- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
GGL2#,GYL25 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-05378 |
GYL25 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-05378 |
GYL25 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
