GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

Click highlighted areas on diagram

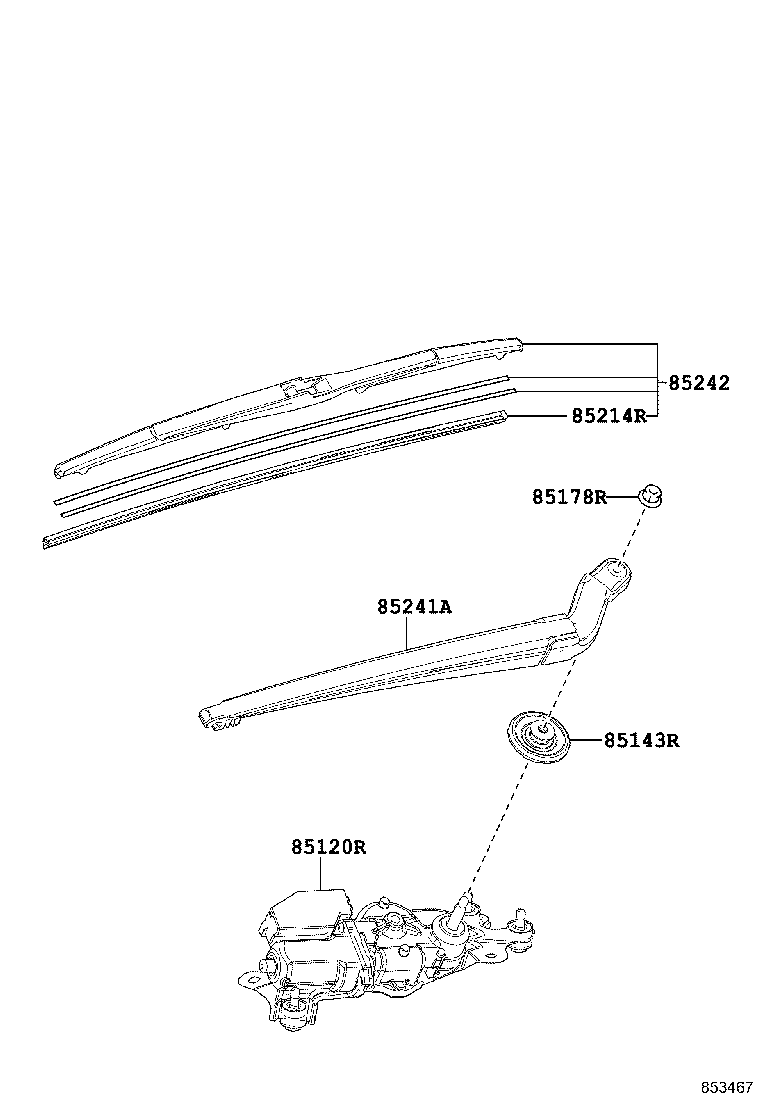

diagram 85120R 85143R 85178R 85214R 85241A 85242
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-0E110

GGL2#,GYL25

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-0E010

GGL2#,GYL25

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06205

GGL2#,GYL25

 1
85214R - RUBBER, REAR WIPER
85214-0E050

GGL2#,GYL25

 1
85241A - ARM, REAR WIPER
85241-0E020

GGL2#,GYL25

 1
85242 - BLADE, RR WIPER
85242-0E100

GGL2#,GYL25

 1
