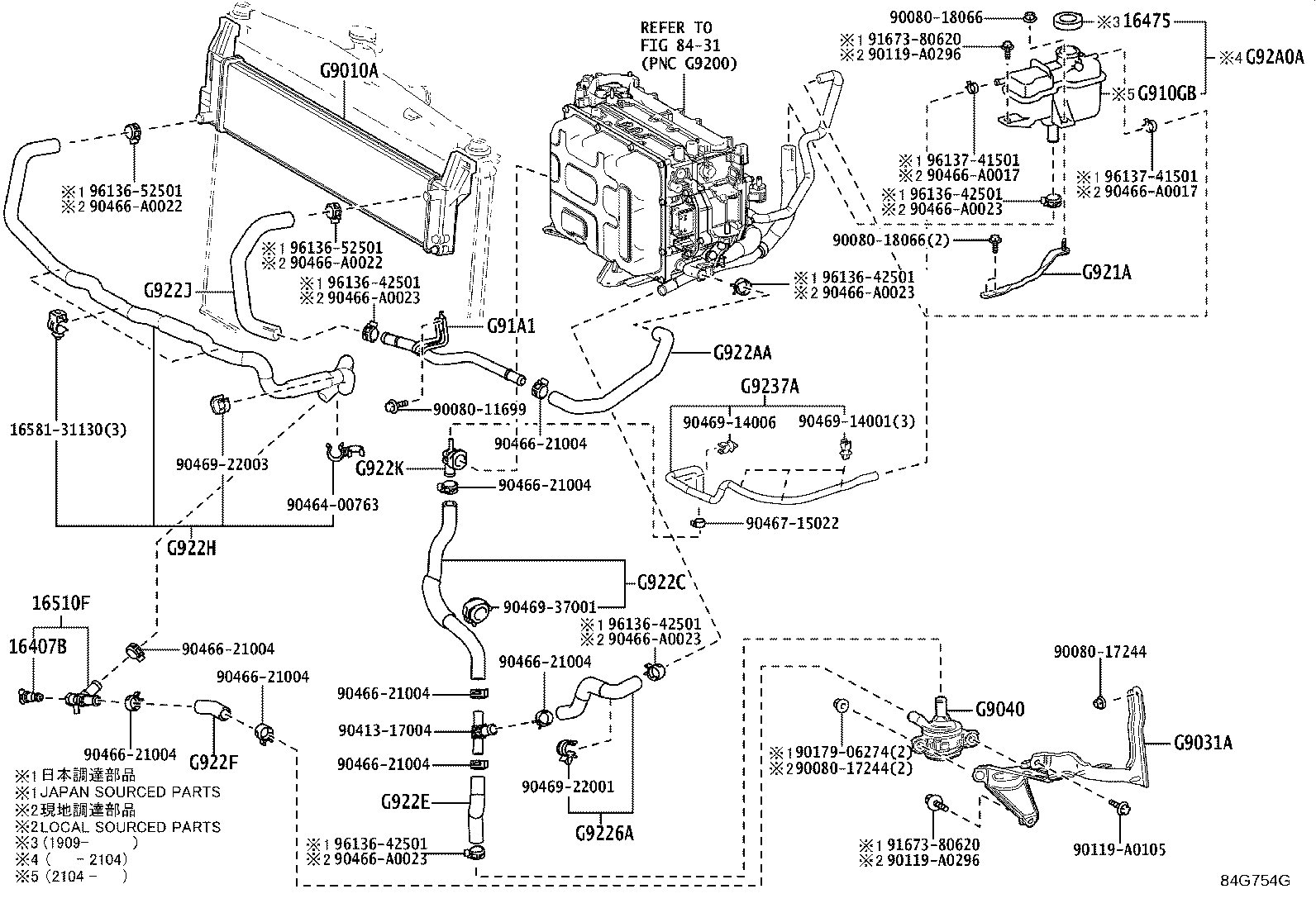

Toyota Lexus rx450h/350(nap GYL25 INVERTER COOLING

Part #	Description	Period	Qty
16407B - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010	2GRFXS..GYL25	10/2015 - 09/2019	1
16510F - COCK ASSY, DRAIN
90910-09134	2GRFXS..GYL25	10/2015 - 09/2019	1
G9010A - RADIATOR ASSY
G9010-48071	GYL25	10/2015 - 09/2019	1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-0E010	GYL25	10/2015 - 09/2019	1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-52020	GYL25	10/2015 - 09/2019	1
G91A1 - PIPE, INVERTER COOLING, INLET
G91A1-0E010	GYL25	10/2015 - 09/2019	1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G91H2-0E010	GYL25	10/2015 - 09/2019	1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-0E010	GYL25	10/2015 - 09/2019	1
G922AA - HOSE, INVERTER COOLING INLET, NO.1
G922A-0E020	GYL25	10/2015 - 09/2019	1
G922C - HOSE, INVERTER COOLING OUTLET, NO.1
G922C-0E010	GYL25	10/2015 - 09/2019	1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-0E010	GYL25	10/2015 - 09/2019	1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-0E020	GYL25	10/2015 - 09/2019	1
G922H - HOSE, HYBRID RADIATOR INLET
G922H-0E020	GYL25	10/2015 - 09/2019	1
G922J - HOSE, HYBRID RADIATOR OUTLET
G922J-0E020	GYL25	10/2015 - 09/2019	1
G922K - CONNECTOR, HYBRID WATER HOSE
G922K-48012	GYL25	10/2015 - 09/2019	1
G9237A - HOSE, INVERTER DRAIN
G9237-0E020	GYL25	10/2015 - 09/2019	1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-0E010	GYL25	10/2015 - 09/2019	1
Common parts
16581-31130
90080-11699
90080-17244
90080-18066
90119-A0105
90119-A0296
90179-06274
90413-17004
90464-00763
90466-21004
90466-A0017
90466-A0022
90466-A0023
90467-15022
90469-14001
90469-14006
90469-22001
90469-22003
90469-37001
91673-80620
96136-42501
96136-52501
96137-41501
Linked diagrams
8431

GYL25L-CWXGBA (2015)

(1510- )GYL2#
