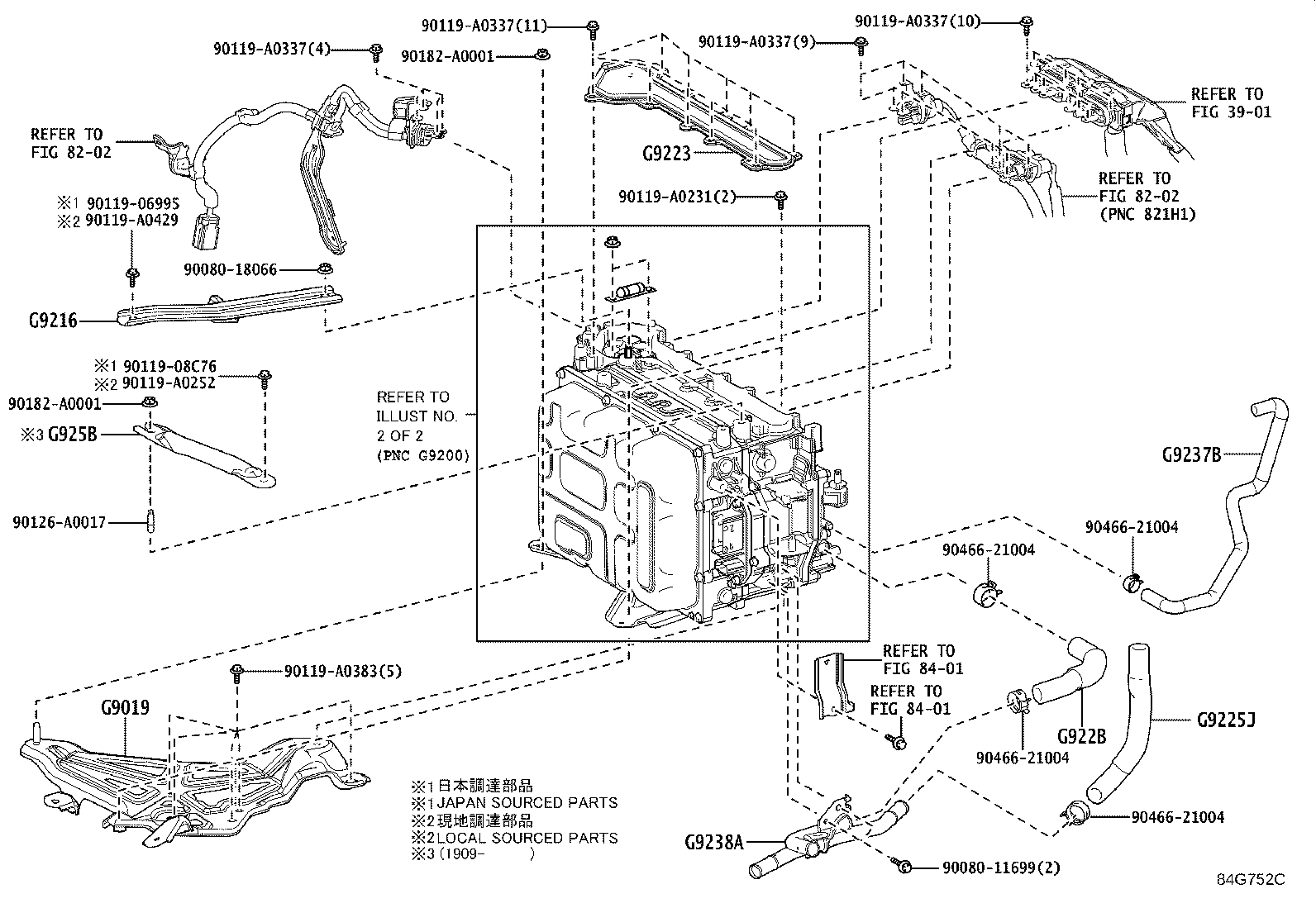

Toyota Lexus rx450h/350(nap GYL25 HV INVERTER

Part #	Description	Period	Qty
G9019 - BRACKET SUB-ASSY, INVERTER TRAY
G9019-48010	GYL25	10/2015 - 09/2019	1
G9216 - BRACKET, INVERTER, NO.3
G9016-0E010	GYL2#	10/2015 - 08/2016	1
G9016-48010	GYL25	09/2016 - 09/2019	1
G9223 - COVER, INVERTER TERMINAL
G9223-48041	GYL25	10/2015 - 09/2019	1
G9225J - HOSE, INVERTER COOLING, NO.1
G9225-48050	GYL25	10/2015 - 09/2019	1
G922B - HOSE, INVERTER COOLING INLET, NO.2
G922B-48010	GYL25	10/2015 - 09/2019	1
G9237B - HOSE, INVERTER DRAIN
G9237-48020	GYL25	10/2015 - 09/2019	1
G9238A - PIPE, INVERTER COOLING
G9238-48090	GYL25	10/2015 - 09/2019	1
Common parts
90080-11699
90080-18066
90119-06995
90119-08C76
90119-A0231
90119-A0252
90119-A0337
90119-A0383
90119-A0429
90126-A0017
90182-A0001
90466-21004
Linked diagrams
3901
8202
8401

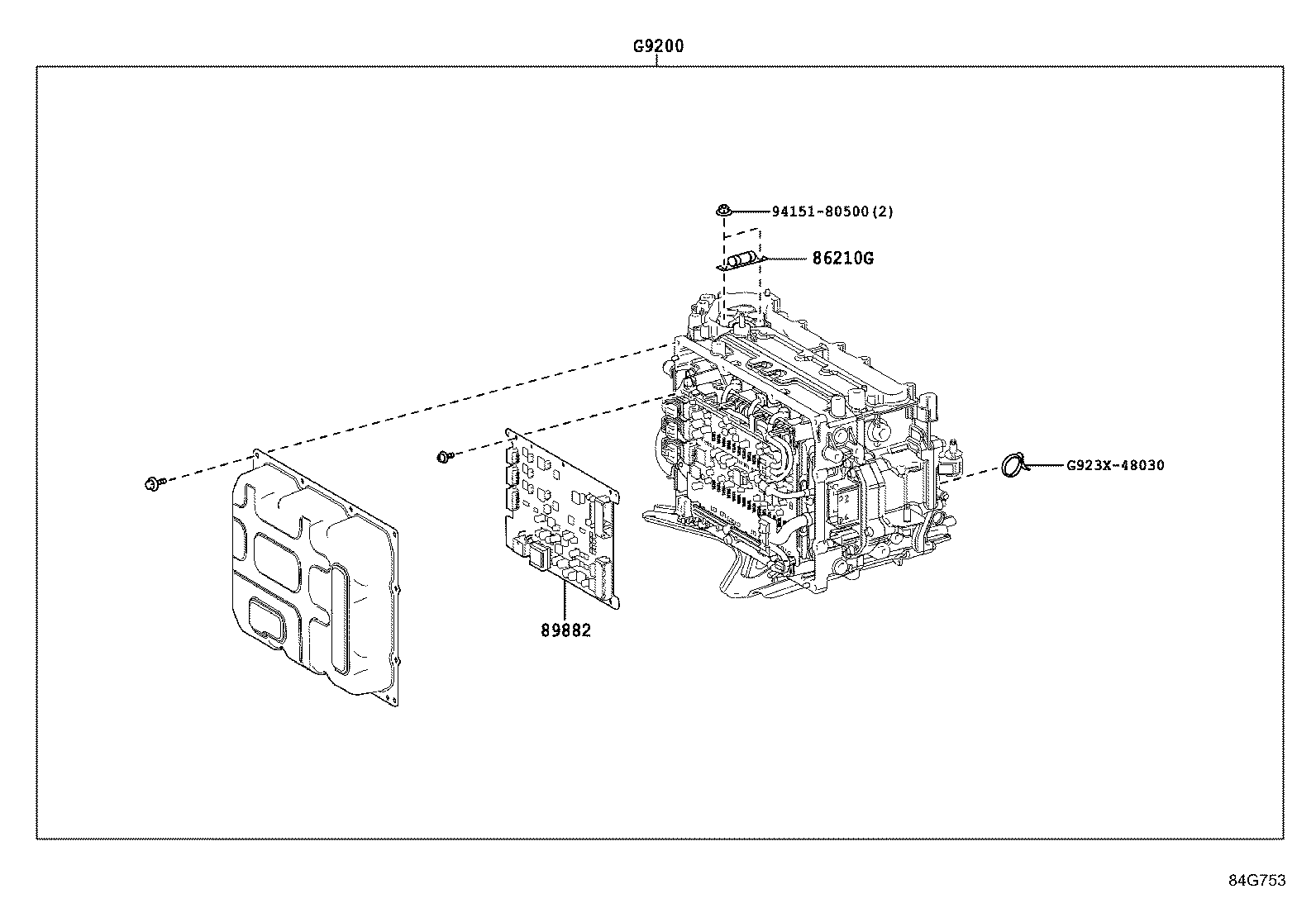

Part #	Description	Period	Qty
86210G - FUSE, HIGH VOLTAGE
90982-11050	GYL25	10/2015 - 09/2019	1
89882 - COMPUTER, MOTOR GENERATOR CONTROL
89882-48120	GYL25	10/2015 - 09/2019	1
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-48240	GYL25	10/2015 - 09/2019	1
Common parts
94151-80500
G923X-48030

GYL25L-CWXGBA (2015)
