Toyota Lexus rx450h/350(nap GYL25 ABS & VSC

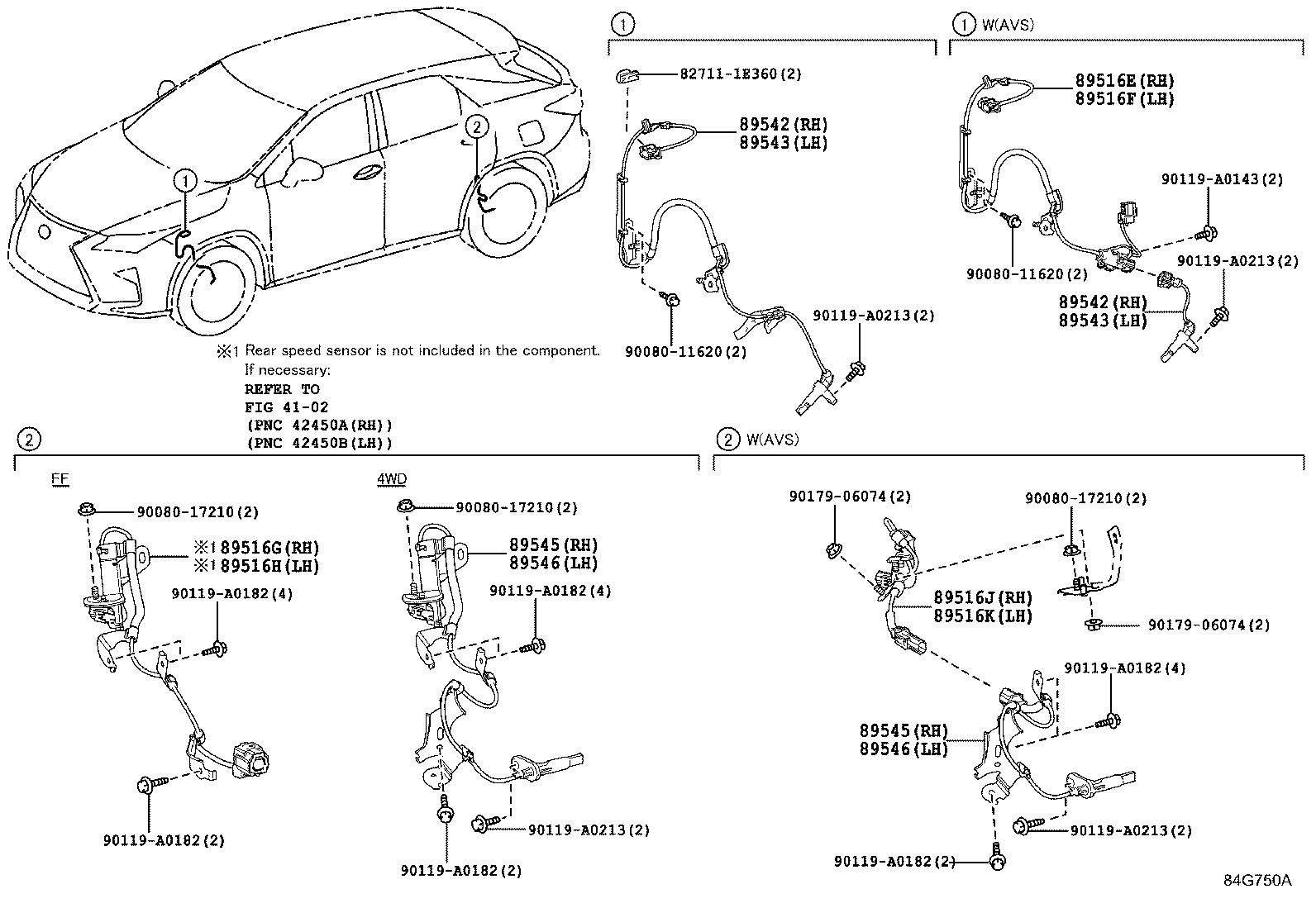

Part #	Description	Period	Qty
89516E - WIRE, SKID CONTROL SENSOR, FRONT RH
89516-48170	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
89516F - WIRE, SKID CONTROL SENSOR, FRONT LH
89516-48180	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
89516J - WIRE, SKID CONTROL SENSOR, REAR RH NO.2
89516-48190	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
89516K - WIRE, SKID CONTROL SENSOR, REAR LH NO.2
89516-48200	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
89542 - SENSOR, SPEED, FRONT RH
89542-0E060	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89542-48060	GGL2#,GYL25	03/2016 - 09/2019	1
89542-48070	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89542-0E050	GGL2#,GYL2#	10/2015 - 02/2016	1
89542 - SENSOR, SPEED, FRONT RH
89542-0E060	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89542-48060	GGL2#,GYL25	03/2016 - 09/2019	1
89542-48070	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89542-0E050	GGL2#,GYL2#	10/2015 - 02/2016	1
89543 - SENSOR, SPEED, FRONT LH
89543-48070	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89543-0E060	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89543-0E050	GGL2#,GYL2#	10/2015 - 02/2016	1
89543-48060	GGL2#,GYL25	03/2016 - 09/2019	1
89543 - SENSOR, SPEED, FRONT LH
89543-48070	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89543-0E060	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89543-0E050	GGL2#,GYL2#	10/2015 - 02/2016	1
89543-48060	GGL2#,GYL25	03/2016 - 09/2019	1
89545 - SENSOR, SPEED, REAR RH
89545-0E100	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89545-48100	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89545-48090	GGL25,GYL25	03/2016 - 09/2019	1
89545-0E110	GGL25,GYL25	10/2015 - 02/2016	1
89545 - SENSOR, SPEED, REAR RH
89545-0E100	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89545-48100	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89545-48090	GGL25,GYL25	03/2016 - 09/2019	1
89545-0E110	GGL25,GYL25	10/2015 - 02/2016	1
89546 - SENSOR, SPEED, REAR LH
89546-48100	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89546-0E110	GGL25,GYL25	10/2015 - 02/2016	1
89546-0E100	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89546-48090	GGL25,GYL25	03/2016 - 09/2019	1
89546 - SENSOR, SPEED, REAR LH
89546-48100	GGL25,GYL25 "F SPORT"*(F)	03/2016 - 09/2019	1
89546-0E110	GGL25,GYL25	10/2015 - 02/2016	1
89546-0E100	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 02/2016	1
89546-48090	GGL25,GYL25	03/2016 - 09/2019	1
Common parts
82711-1E360
90080-11620
90080-17210
90119-A0143
90119-A0182
90119-A0213
90179-06074
Linked diagrams
4102

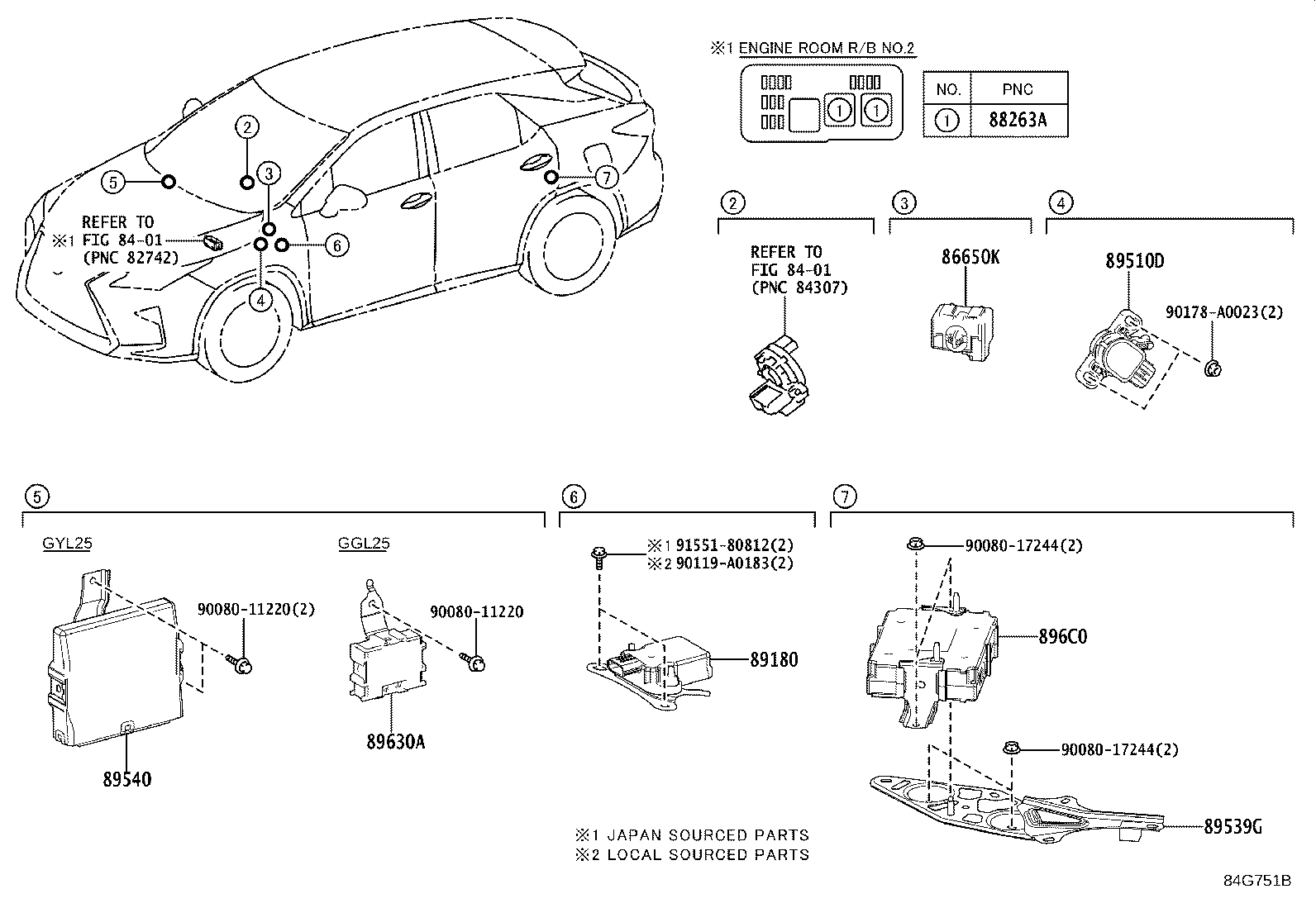

Part #	Description	Period	Qty
86650K - BUZZER ASSY, SKID CONTROL
86652-48020	GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)	10/2015 - 12/2017	1
86652-48020	GGL2#,GYL25	12/2017 - 09/2019	1
88263A - RELAY, SKID CONTROL
88263-21010	GYL25	10/2015 - 09/2019	2
89180 - SENSOR ASSY, YAWRATE
89180-48080	GYL25	10/2015 - 09/2019	1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47050	GYL25	10/2015 - 09/2019	1
89539G - BRACKET, COMPUTER
89539-48080	GYL25	10/2015 - 09/2019	1
89540 - COMPUTER ASSY, SKID CONTROL
895B0-48030	GYL25	10/2015 - 12/2017	1
895B0-48410	GYL25	09/2018 - 09/2019	1
895B0-48031	GYL25	12/2017 - 09/2018	1
896C0 - SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET
896C0-48020	GYL25	10/2015 - 09/2019	1
Common parts
90080-11220
90080-17244
90119-A0183
90178-A0023
91551-80812
Linked diagrams
8401

GYL25L-CWXGBA (2015)

ILLUST NO. 1 OF 2(1510- )

ILLUST NO. 2 OF 2(1510-1909)
