GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

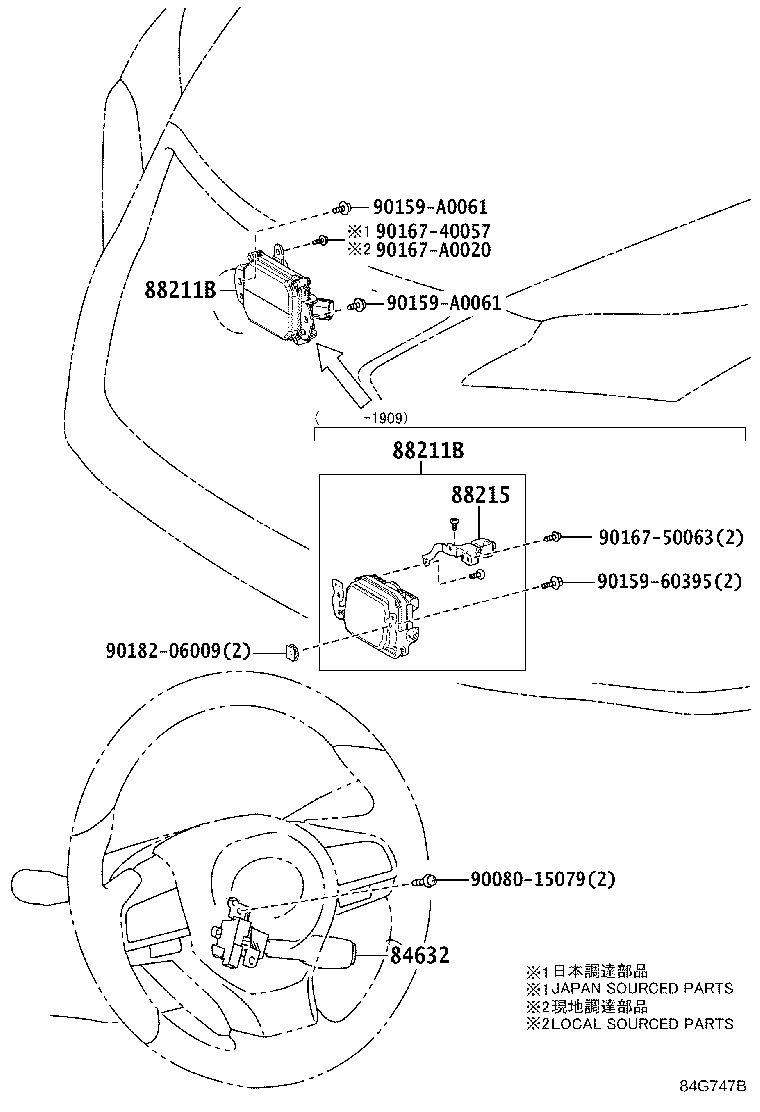

Click highlighted areas on diagram

diagram 84632 88211B 88211B 88215 9008015079 9015960395 90159A0061 90159A0061 9016740057 9016750063 90167A0020 9018206009
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-0E040

GGL2#,GYL25

 1
84632-0E010

GGL2#,GYL25

 1
84632-0E040

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-06020

GGL2#,GYL25

 1
88210-06020

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-06020

GGL2#,GYL25

 1
88210-06020

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
88215 - BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1
88201-48010

GGL2#,GYL25

 1
88201-48010

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
Common parts
90080-15079
90159-60395
90159-A0061
90167-40057
90167-50063
90167-A0020
90182-06009
