GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

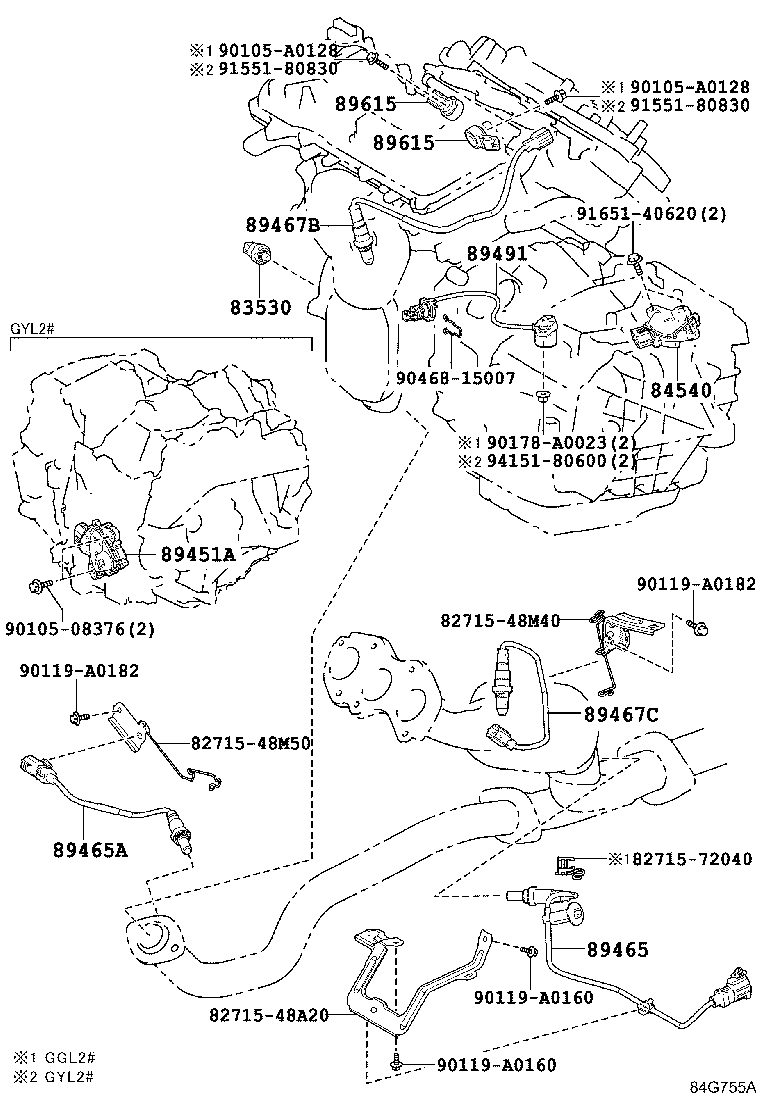

ILLUST NO. 1 OF10(1510- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GGL2#,GYL25 (J),DENSO |
1 | ||
| 83530-0E010 |
GGL2#,GYL25 (L),DENSO |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52040 |
GYL25 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0E230 |
GYL25 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0E210 |
GGL2#,GYL25 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0E240 |
GGL2#,GYL25 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0E250 |
GGL2#,GYL25 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48020 |
GGL2#,GYL2# |
1 | ||
| 89491-48021 |
GGL2#,GYL25 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GYL25 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GYL25 |
2 | ||
| Common parts | ||||
| 82715-48A20 | ||||
| 82715-48M40 | ||||
| 82715-48M50 | ||||
| 82715-72040 | ||||
| 90105-08376 | ||||
| 90105-A0128 | ||||
| 90119-A0160 | ||||
| 90119-A0182 | ||||
| 90178-A0023 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91651-40620 | ||||
| 94151-80600 | ||||

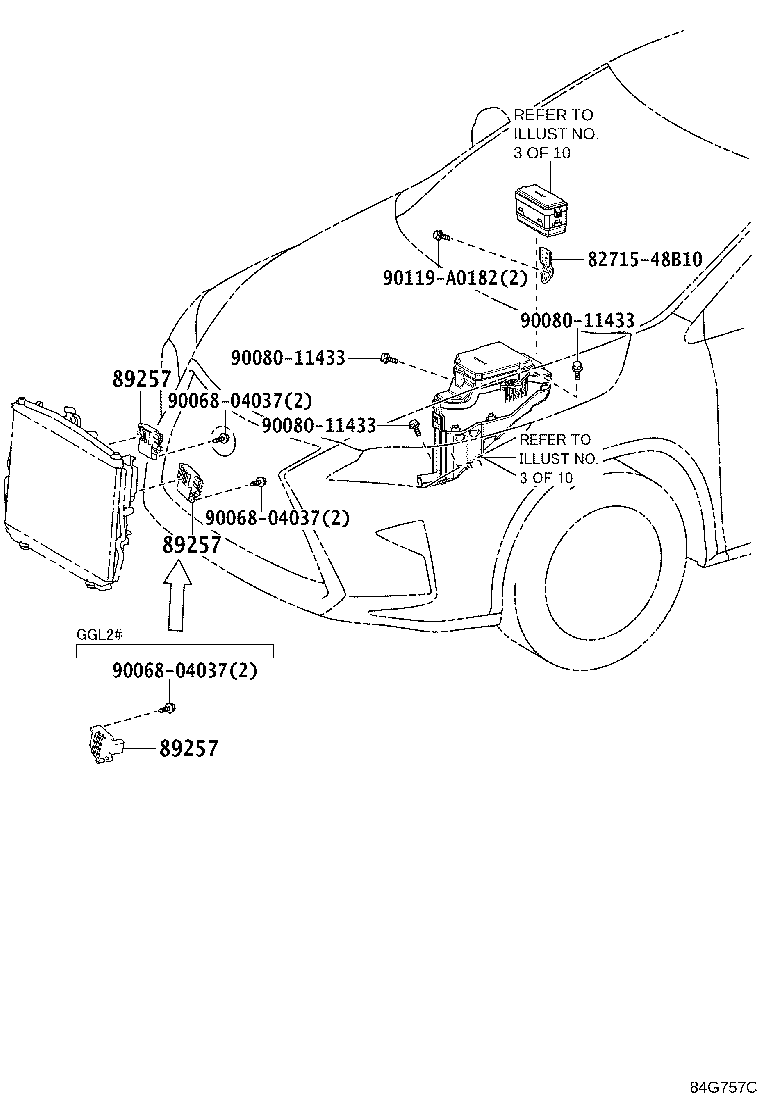

ILLUST NO. 2 OF10(1510- )
ENGINE ROOM(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GYL25 |
2 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GYL25 |
2 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GYL25 |
2 | ||
| Common parts | ||||
| 82715-48B10 | ||||
| 90068-04037 | ||||
| 90080-11433 | ||||
| 90119-A0182 | ||||

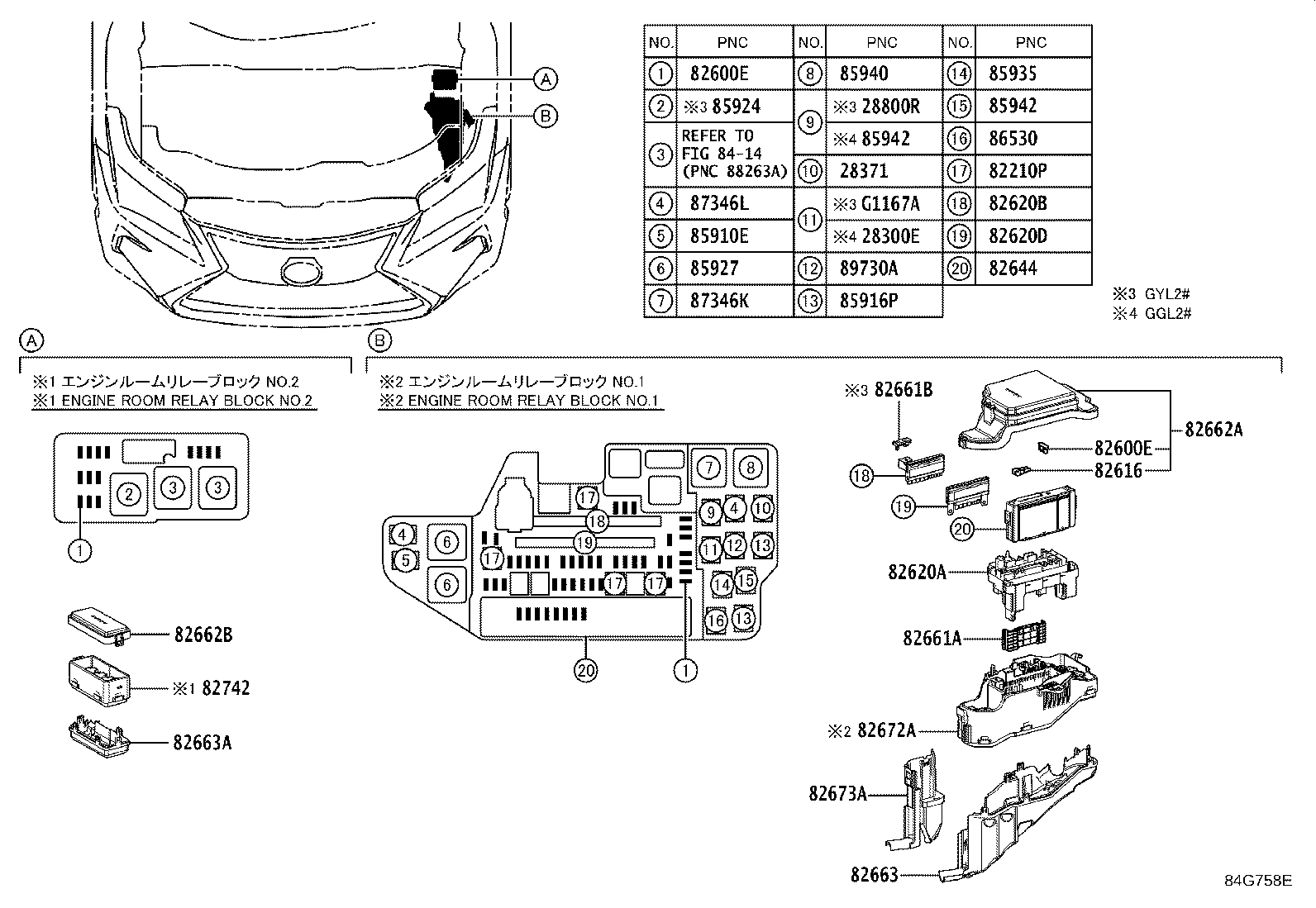

ILLUST NO. 3 OF10(1510- )
ENGINE ROOM(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87026 |
2GR#..GGL2#,GYL25 |
1 | ||
| 28800R - RELAY, BATTERY FAN | ||||
| 90080-87026 |
2GRFXS..GYL25 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08298 |
GGL2#,GYL25 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08296 |
GGL2#,GYL25 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
GGL2#,GYL25 100A,TERM.:MALE,BLUE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09019 |
GGL2#,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGL2#,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC |
1 | ||
| 90982-09024 |
GGL2#,GYL25 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC |
1 | ||
| 90982-09022 |
GGL2#,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE &WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE &WITH(*AHB) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90982-09019 |
GGL2#,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGL2#,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC |
1 | ||
| 90982-09024 |
GGL2#,GYL25 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC |
1 | ||
| 90982-09022 |
GGL2#,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN,COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE &WITH(*AHB&*AFLS) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE &WITH(*AHB) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE& WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS& *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN,"VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GGL2#,GYL25 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48230 |
GYL25 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48240 |
GYL25 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48220 |
GGL2#,GYL25 |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48010 |
GGL2#,GYL25 |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 82644-48020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48020 |
GYL25 PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 82644-48020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GYL25 PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48020 |
GYL25 PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82644-48020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 82644-48020 |
GYL25 PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACKSONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "VERSION L"*(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACKSONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "VERSION L"*(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82644-48020 |
GYL25 "VERSION L"*(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-48170 |
GGL2#,GYL25 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-48100 |
GYL25 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0E280 |
GYL25 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0E120 |
GYL25 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-48110 |
GYL25 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-48120 |
GYL25 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-48240 |
GYL25 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48100 |
GGL2#,GYL25 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-48030 |
GYL25 |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90080-87026 |
GGL2#,GYL25 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC |
2 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90080-87024 |
GYL25 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87024 |
GYL25 |
2 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90080-87026 |
GGL2#,GYL25 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90080-87024 |
GGL2#,GYL25 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90080-87026 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 90080-87026 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
GGL2#,GYL25 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87026 |
GYL25 |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
GYL25 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
GGL2#,GYL25 |
1 | ||
| G1167A - RELAY (FOR OIL PUMP MOTOR) | ||||
| 90987-02027 |
GYL25 (J),DENSO |
1 | ||
| 90080-87026 |
GYL25 (L),DENSO |
1 | ||
| Linked diagrams | ||||
| 8414 | ||||

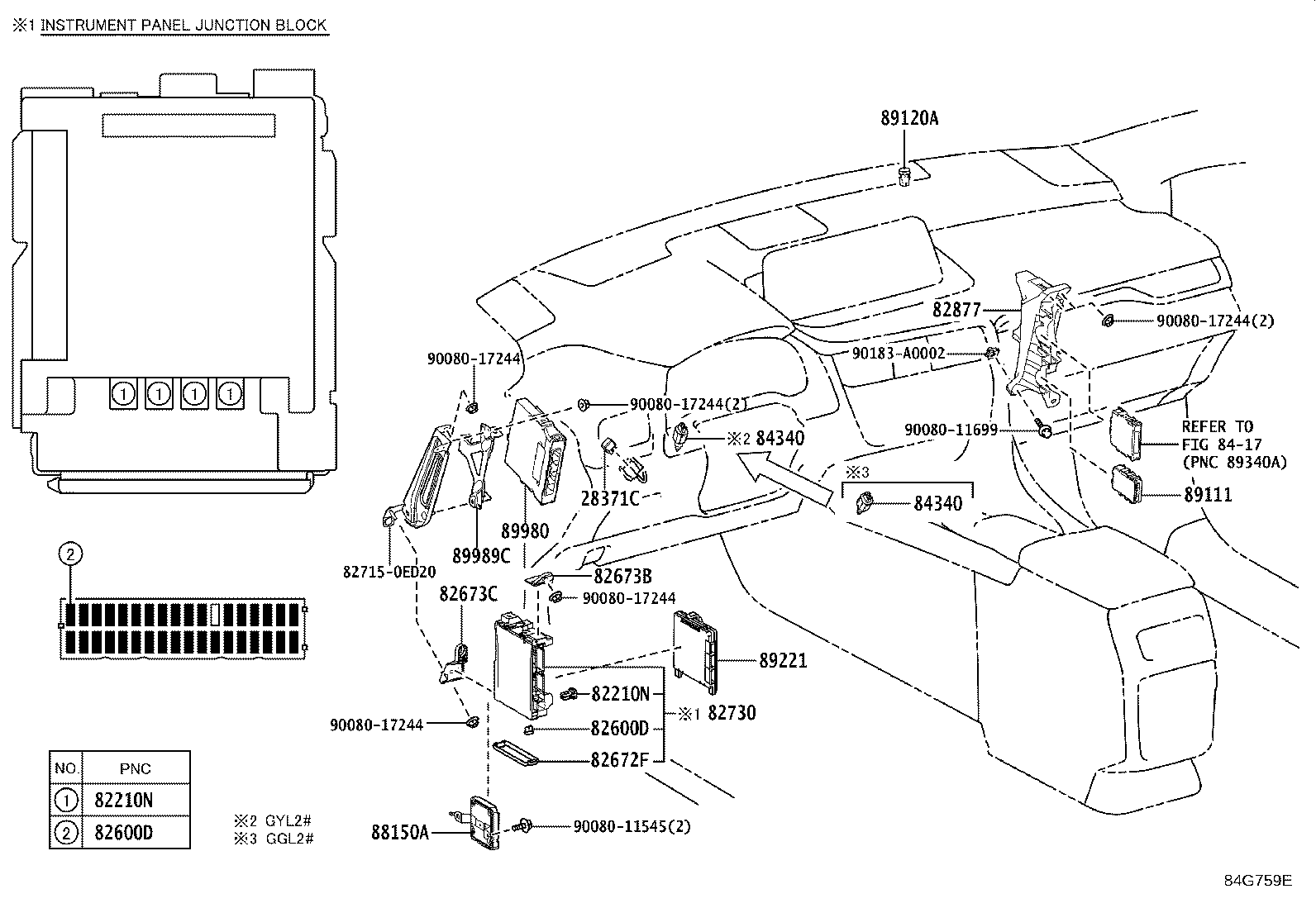

ILLUST NO. 4 OF10(1510-1909)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87026 |
2GR#..GGL2#,GYL25 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GGL2#,GYL25 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GGL2#,GYL25 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
GGL2#,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGL2#,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GGL2#,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
GGL2#,GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GGL2#,GYL25 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GGL2#,GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GGL2#,GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GGL2#,GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GGL2#,GYL25 15A,MINI FUSE,BLUE |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-0E130 |
GGL2#,GYL25 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E100 |
GGL2#,GYL25 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E110 |
GGL2#,GYL25 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0EB00 |
GYL25 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-0E040 |
GGL2#,GYL2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
GGL2#,GYL25 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
GGL2#,GYL25 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-0E020 |
GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 88150-0E021 |
GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 88150-0E022 |
GYL25 |
1 | ||
| 88150-0E021 |
GYL25 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-48140 |
GYL25 |
1 | ||
| 89111-48141 |
GYL25 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GGL2#,GYL25 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0E221 |
GGL25,GYL25 CANADA SPEC |
1 | ||
| 89220-0E241 |
GGL2#,GYL2# HAWAII SPEC |
1 | ||
| 89220-0E251 |
GGL2#,GYL2# |
1 | ||
| 89220-0E231 |
GGL2#,GYL2# USA DEPENDANCY SPEC |
1 | ||
| 89220-0E252 |
GGL2#,GYL25 |
1 | ||
| 89220-0E242 |
GGL2#,GYL25 HAWAII SPEC |
1 | ||
| 89220-0E190 |
GGL25,GYL25 CANADA SPEC |
1 | ||
| 89220-0E520 |
GGL2#,GYL25 USA DEPENDANCY SPEC |
1 | ||
| 89220-0E222 |
GGL25,GYL25 CANADA SPEC |
1 | ||
| 89220-0E530 |
GGL2#,GYL25 HAWAII SPEC |
1 | ||
| 89220-0E232 |
GGL2#,GYL25 USA DEPENDANCY SPEC |
1 | ||
| 89220-0E540 |
GGL2#,GYL25 |
1 | ||
| 89980 - COMPUTER ASSY, HYBRID VEHICLE CONTROL | ||||
| 89981-0E020 |
GYL25 |
1 | ||
| 89981-0E180 |
GYL25 |
1 | ||
| 89981-0E051 |
GYL25 |
1 | ||
| 89981-0E050 |
GYL25 |
1 | ||
| 89981-0E060 |
GYL25 |
1 | ||
| 89989C - BRACKET, COMPUTER, NO.3 | ||||
| 89987-0E010 |
GYL25 |
1 | ||
| 89269-48020 |
GYL25 |
1 | ||
| Common parts | ||||
| 82715-0ED20 | ||||
| 90080-11545 | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90183-A0002 | ||||
| Linked diagrams | ||||
| 8417 | ||||

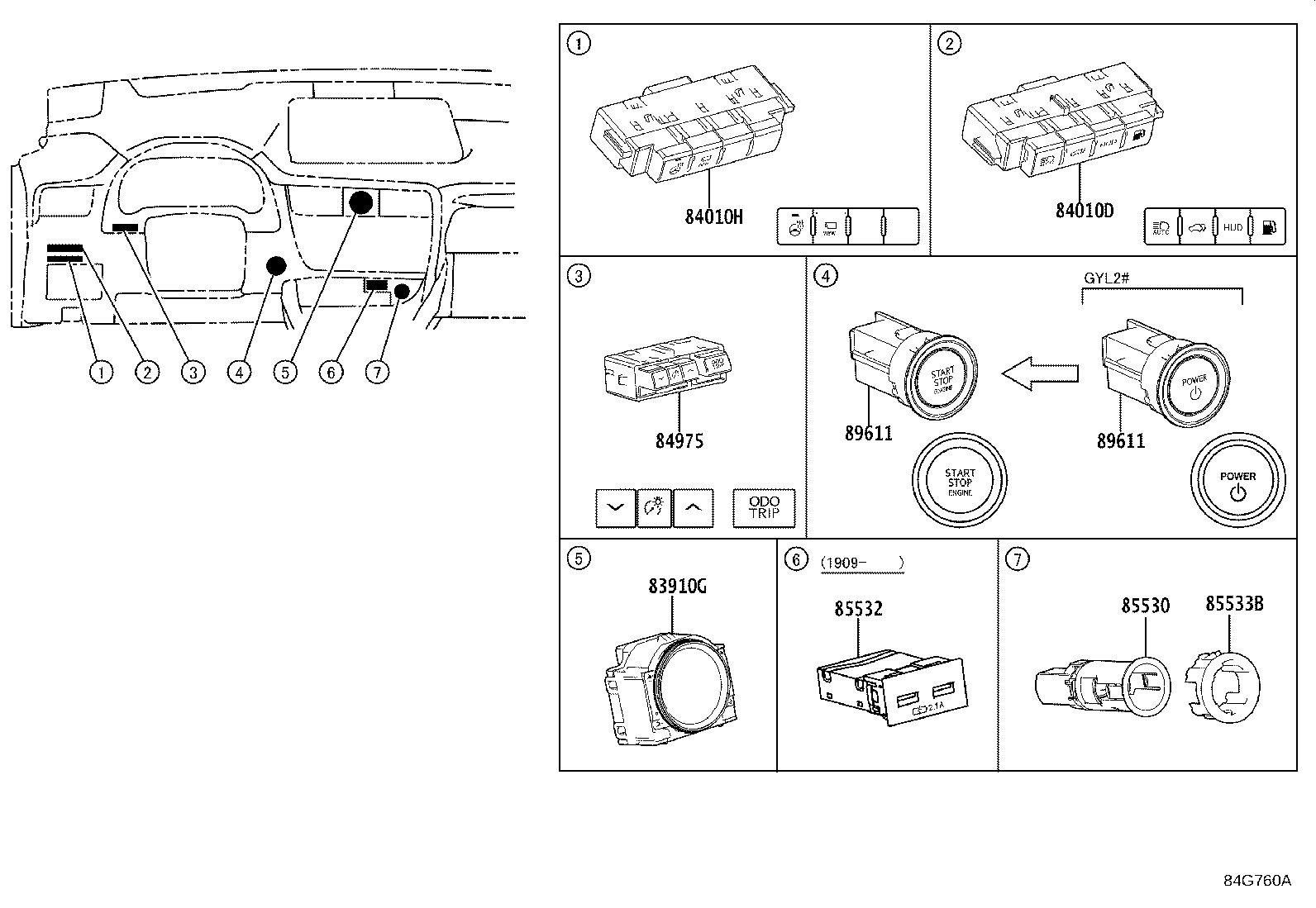

ILLUST NO. 5 OF10(1510- )
INSTRUMENT PANEL(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-48100 |
GYL25 |
1 | ||
| 83910-48110 |
GYL25 |
1 | ||
| 83910-48100 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 83910-48101 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83910-48111 |
GGL2#,GYL25 |
1 | ||
| 83910-48100 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83910-48101 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0E090 |
GYL25 |
1 | ||
| 84010-0E080 |
GYL25 HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E160 |
GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 84010-0E120 |
GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)&HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E120 |
GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS)&HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E120 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E160 |
GYL25 |
1 | ||
| 84010-0E160 |
GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 84010-0E160 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 84010-0E120 |
GYL25 HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E121 |
GYL25 HEAD UP DISPLAY-WITH |
1 | ||
| 84010-0E161 |
GYL25 |
1 | ||
| 84010H - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0E130 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E150 |
GGL2#,GYL25 STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84010-0E130 |
GGL2#,GYL25 STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E150 |
GGL2#,GYL25 STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84010-0E130 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E130 |
GGL2#,GYL25 STEERING WHEEL-BAMBOO,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E140 |
GGL2#,GYL25 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E130 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E131 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E141 |
GGL2#,GYL25 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E131 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E130 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E131 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E150 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84010-0E131 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-0E150 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84010-0E150 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84010-0E150 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84010-0E151 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84010-0E151 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84010-0E151 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84010-0E151 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-0E010 |
GGL2#,GYL25 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-48120 |
GGL2#,GYL25 |
1 | ||
| 85533B - LENS, POWER OUTLET SOCKET | ||||
| 85533-48020 |
GGL2#,GYL25 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0E062 |
GYL25 |
1 | ||
| 89611-0E061 |
GYL2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0E062 |
GYL25 |
1 | ||
| 89611-0E061 |
GYL2# |
1 | ||

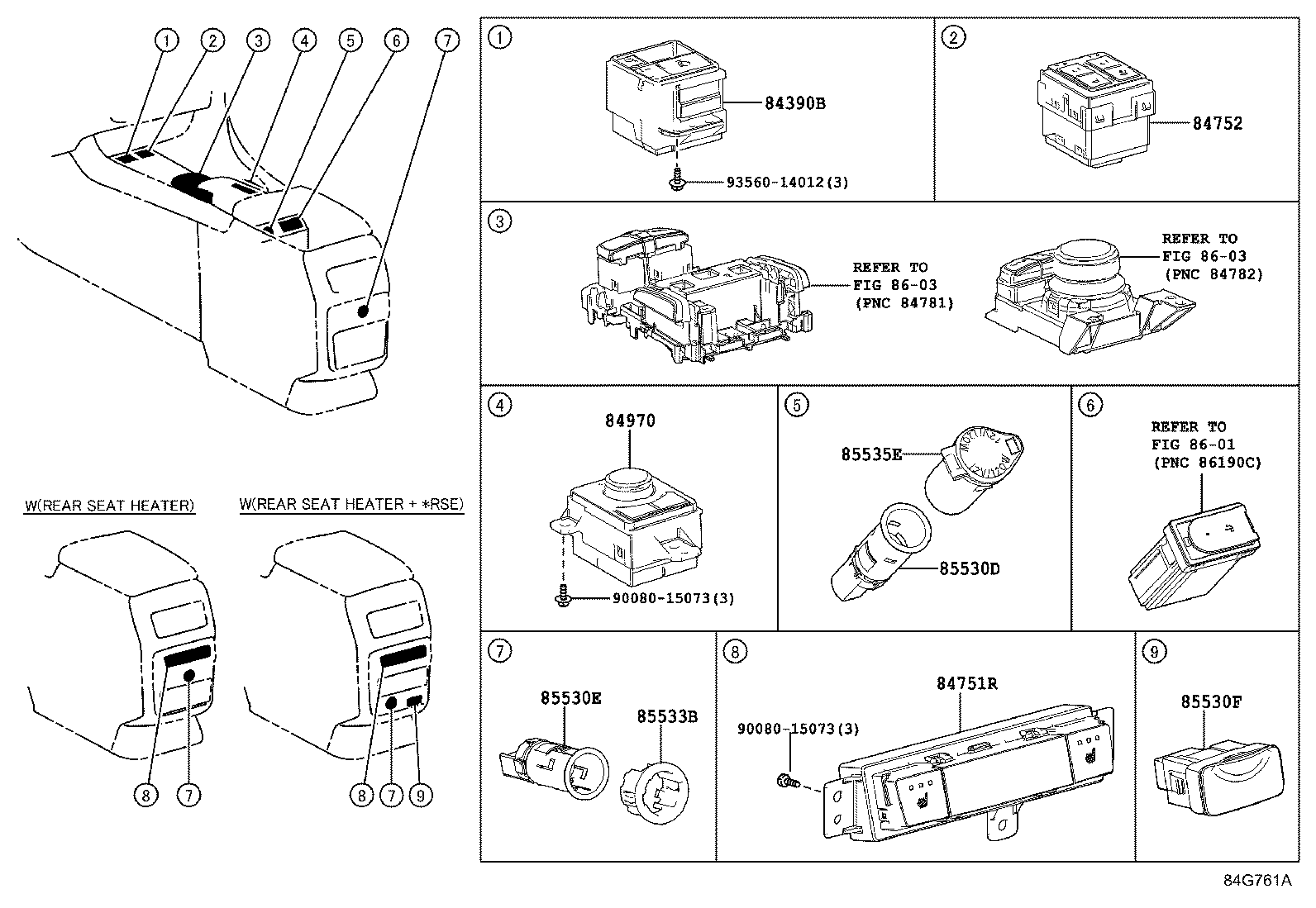

ILLUST NO. 6 OF10(1510-1909)
INSTRUMENT PANEL(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-0E010 |
GGL2#,GYL25 |
1 | ||
| 84751R - SWITCH, SEAT HEATER(REAR) | ||||
| 84752-48040 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-0E010 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 84752-0E010 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 84752-48020 |
GYL25 SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 84752-0E010 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 84752-0E010 |
GYL25 |
1 | ||
| 84752-0E010 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 84752-0E010 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 84752-0E010 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0E020 |
GYL25 |
1 | ||
| 84970-0E010 |
GYL25 "F SPORT"*(F) |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-06030 |
GGL2#,GYL25 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-48120 |
GGL2#,GYL25 |
1 | ||
| 85530F - SOCKET ASSY, POWER OUTLET, REAR NO.2 | ||||
| 85530-78010C0 |
GGL2#,GYL25 TELEVISION & DVD PLAYER-WITH(*RSE),BLACK |
1 | ||
| 85533B - LENS, POWER OUTLET SOCKET | ||||
| 85533-48020 |
GGL2#,GYL25 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0E060C0 |
GGL2#,GYL25 BLACK |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||

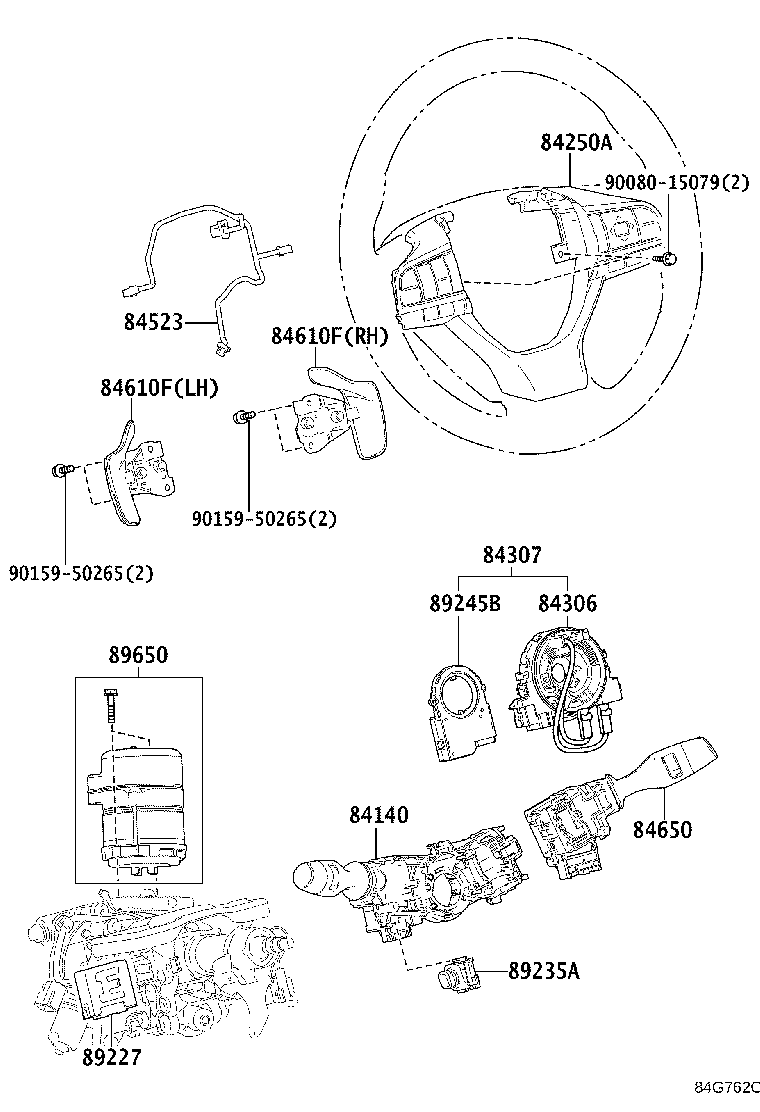

ILLUST NO. 7 OF10(1510- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0E170 |
GGL2#,GYL25 |
1 | ||
| 84140-0E180 |
GGL25,GYL25 CANADA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-06B50 |
GGL2#,GYL25 |
1 | ||
| 84250-0E320 |
GGL2#,GYL2# |
1 | ||
| 84250-06B60 |
GGL2#,GYL25 |
1 | ||
| 84250-0E340 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84250-06B60 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-06010 |
GGL2#,GYL25 |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-0E110 |
GGL2#,GYL2# |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL25,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84308-0E100 |
GGL2#,GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84308-06020 |
GGL2#,GYL25 |
1 | ||
| 84308-06010 |
GGL2#,GYL25 STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84308-06010 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-0E210 |
GGL2#,GYL2# |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-BAMBOO,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-ENGINEERED WOOD,WITH(STEERING HEATER) |
1 | ||
| 84307-06200 |
GGL2#,GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84307-06210 |
GGL2#,GYL25 |
1 | ||
| 84307-06200 |
GGL2#,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL2#,GYL2# PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-LEATHER,WITH(STEERING HEATER) |
1 | ||
| 84307-0E200 |
GGL25,GYL25 PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-48020 |
GGL25,GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH) |
1 | ||
| 84523-48020 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER) |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-48050 |
GGL25,GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH),LH |
1 | ||
| 84610-48060 |
GGL25,GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH),RH |
1 | ||
| 84610-48050 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),LH |
1 | ||
| 84610-48060 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-48050 |
GGL25,GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH),LH |
1 | ||
| 84610-48060 |
GGL25,GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH),RH |
1 | ||
| 84610-48050 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),LH |
1 | ||
| 84610-48060 |
GGL25,GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0E150 |
GYL25 |
1 | ||
| 84652-0E160 |
GYL25 CANADA SPEC |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-0E040 |
GGL2#,GYL25 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GGL2#,GYL25 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0E010 |
GGL2#,GYL25 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0E080 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 89650-0E070 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90159-50265 | ||||
ILLUST NO. 8 OF10(1510- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-08030E1 |
GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08030C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-08030C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 84921-08030C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08030E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08030C0 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08030E1 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08030C0 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08030E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-08010C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08010E1 |
GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08010C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-08010E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08010C0 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08010C0 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08010C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 84921-08010E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08010E1 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-08040C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08040E1 |
GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08040C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-08040C0 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08040C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 84921-08040C0 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08040E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08040E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08040E1 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-08020E1 |
GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08020C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-08020C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 84921-08020C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08020E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08020C0 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921-08020E1 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08020E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-08020C0 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-08010E1 |
GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-08010C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 84920-08010E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-22010E0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-08010C0 |
GYL25 BLACK,TRIM1#,2# |
2 | ||
| 84920-08010E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-22010C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
2 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-08010E1 |
GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-08010C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 84920-08010E1 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-22010E0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-08010C0 |
GYL25 BLACK,TRIM1#,2# |
2 | ||
| 84920-08010E1 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
2 | ||
| 84920-22010C0 |
GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4# |
2 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-0E040 |
GGL2#,GYL25 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-0E070 |
GYL25 |
1 | ||
| 84070-0E070 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84070-0E070 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84922-08020 |
GYL25 |
1 | ||
| 84070-0E070 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-0E070 |
GYL25 |
1 | ||
| 84070-0E070 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84070-0E070 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84922-08020 |
GYL25 |
1 | ||
| 84070-0E070 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 84923G - SWITCH, REAR POWER SEAT, NO.1, RH | ||||
| 84923-78020 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT) |
1 | ||
| 84923H - SWITCH, REAR POWER SEAT, NO.1, LH | ||||
| 84923-78010 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT) |
1 | ||
| 84928 - SWITCH, SEAT VARIABLE CUSHION | ||||
| 84928-0E020C0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84928-0E010C0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84928-0E020E0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5#,LH |
1 | ||
| 84928-0E010E0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5#,RH |
1 | ||
| 84928 - SWITCH, SEAT VARIABLE CUSHION | ||||
| 84928-0E020C0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84928-0E010C0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84928-0E020E0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5#,LH |
1 | ||
| 84928-0E010E0 |
GGL2#,GYL2# "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5#,RH |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-0E010 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT) |
2 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-0E010 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT) |
2 | ||
| Common parts | ||||
| 90080-16089 | ||||
| 90084-16012 | ||||
ILLUST NO. 9 OF10(1510- )
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48121 |
GYL25 |
1 | ||
| 83320-48120 |
GYL25 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48121 |
GYL25 |
1 | ||
| 83320-48120 |
GYL25 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0E090 |
GYL25 PREMIUM PACKAGE |
1 | ||
| 84040-0E090 |
GGL2#,GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84040-0E090 |
GGL2#,GYL25 PREMIUM PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84040-0E090 |
GGL2#,GYL25 "F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84040-0E100 |
GYL25 |
1 | ||
| 84040-0E090 |
GYL25 |
1 | ||
| 84040-0E090 |
GGL2#,GYL25 "VERSION L"*(L)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84040-0E090 |
GYL25 "VERSION L"*(L) |
1 | ||
| 84040-0E090 |
GYL25 "F SPORT"*(F) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0E080 |
GGL2#,GYL25 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0E080 |
GGL2#,GYL25 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0E080 |
GGL2#,GYL25 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0E080 |
GGL2#,GYL25 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E090 |
GGL2#,GYL25 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E100 |
GGL2#,GYL25 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E100 |
GGL2#,GYL25 |
2 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-0E060 |
GYL25 |
1 | ||
| 84927-0E060 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84927-0E060 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 84927-0E060 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E110 |
GGL2#,GYL25 LH |
1 | ||
| 89430-0E120 |
GGL2#,GYL25 RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E110 |
GGL2#,GYL25 LH |
1 | ||
| 89430-0E120 |
GGL2#,GYL25 RH |
1 | ||
| 89461 - SENSOR, VAPOR PRESSURE | ||||
| 89461-48020 |
GYL25 |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90166-60005 | ||||
| 90166-A0008 | ||||
| 90189-06227 | ||||
ILLUST NO.10 OF10(1510-1909)
FLOOR,LUGGAGE & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-0P010 |
2GRFXS..GYL25 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-31010 |
2GRFXS..GYL25 |
1 | ||
| 82189B - WIRE, BACK DOOR, NO.4 | ||||
| 82189-48020 |
GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09019 |
GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09019 |
GYL25 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GYL25 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GYL25 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GYL25 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GYL25 30A,MINI FUSE,GRN |
1 | ||
| 82620E - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48111 |
GYL25 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52130 |
GYL25 |
1 | ||
| 84190 - SWITCH ASSY, FOLD SEAT | ||||
| 84190-48010C0 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84190-48010E0 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-0E080 |
GGL2#,GYL25 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0E200 |
GGL2#,GYL2# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-48110 |
GGL2#,GYL25 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0E060E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 85535-0E060C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90080-87026 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-48140 |
GGL2#,GYL25 TELEVISION & DVD PLAYER-WITH(*RSE) |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90080-87026 |
GGL2#,GYL25 TELEVISION & DVD PLAYER-WITH(*RSE) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0E041 |
GYL2# |
1 | ||
| 88162-0E061 |
GGL2#,GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0E060 |
GYL25 |
1 | ||
| 88162-0E060 |
GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0E061 |
GGL2#,GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0E041 |
GYL2# |
1 | ||
| 88162-0E060 |
GYL25 |
1 | ||
| 88162-0E060 |
GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-48010 |
GYL25 |
1 | ||
| 891A0 - SENSOR ASSY, REAR EMBLEM | ||||
| 891A0-48050 |
GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 891A0-48080 |
GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 891A0-48120 |
GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0E070 |
GGL2#,GYL2# |
1 | ||
| 89222-0E090 |
GGL2#,GYL2# |
1 | ||
| 89222-0E121 |
GGL2#,GYL25 |
1 | ||
| 89222-0E120 |
GGL2#,GYL25 |
1 | ||
| 89222-0E110 |
GGL2#,GYL25 |
1 | ||
| 89222-0E091 |
GGL2#,GYL25 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-0R020 |
GGL2#,GYL25 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-08010 |
GGL2#,GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
GYL25 |
1 | ||
| 89747-52010 |
GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| Common parts | ||||
| 82711-43020 | ||||
| 90080-11545 | ||||
| 90080-17244 | ||||
| 90080-17245 | ||||
| 90105-A0082 | ||||
| 90119-A0182 | ||||
| 90178-A0112 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
