Toyota Lexus rx450h/350(nap GYL25 METER

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-48W80	GYL25 "F SPORT"*(F)	08/2016 - 11/2016	1
83800-0EA61	GYL25	12/2016 - 12/2017	1
83800-48W81	GYL25 "F SPORT"*(F)	12/2016 - 09/2017	1
83800-48W91	GYL25 CANADA SPEC&"F SPORT"*(F)	12/2016 - 09/2017	1
83800-0EA71	GYL25 CANADA SPEC	12/2016 - 12/2017	1
83800-48W82	GYL25 YAZAKI,"F SPORT"*(F)	09/2017 - 12/2017	1
83800-48W92	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	09/2017 - 12/2017	1
83800-0EB60	GYL25 DENSO	12/2017 - 09/2019	1
83800-0EB70	GYL25 DENSO,CANADA SPEC	12/2017 - 09/2019	1
83800-4D060	GYL25 YAZAKI,"F SPORT"*(F)	12/2017 - 05/2019	1
83800-4D070	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	12/2017 - 05/2019	1
83800-4D061	GYL25 YAZAKI,"F SPORT"*(F)	06/2019 - 09/2019	1
83800-4D071	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	06/2019 - 09/2019	1
83800-0E740	GYL2#	10/2015 - 08/2016	1
83800-0E750	GYL25 CANADA SPEC	10/2015 - 08/2016	1
83800-48U40	GYL25 CANADA SPEC&"F SPORT"*(F)	10/2015 - 08/2016	1
83800-0EA70	GYL25 CANADA SPEC	08/2016 - 11/2016	1
83800-0EA60	GYL25	08/2016 - 11/2016	1
83800-48U30	GYL25 "F SPORT"*(F)	10/2015 - 08/2016	1
83800-48W90	GYL25 CANADA SPEC&"F SPORT"*(F)	08/2016 - 11/2016	1
83100 - METER ASSY, COMBINATION
83800-48W80	GYL25 "F SPORT"*(F)	08/2016 - 11/2016	1
83800-0EA61	GYL25	12/2016 - 12/2017	1
83800-48W81	GYL25 "F SPORT"*(F)	12/2016 - 09/2017	1
83800-48W91	GYL25 CANADA SPEC&"F SPORT"*(F)	12/2016 - 09/2017	1
83800-0EA71	GYL25 CANADA SPEC	12/2016 - 12/2017	1
83800-48W82	GYL25 YAZAKI,"F SPORT"*(F)	09/2017 - 12/2017	1
83800-48W92	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	09/2017 - 12/2017	1
83800-0EB60	GYL25 DENSO	12/2017 - 09/2019	1
83800-0EB70	GYL25 DENSO,CANADA SPEC	12/2017 - 09/2019	1
83800-4D060	GYL25 YAZAKI,"F SPORT"*(F)	12/2017 - 05/2019	1
83800-4D070	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	12/2017 - 05/2019	1
83800-4D061	GYL25 YAZAKI,"F SPORT"*(F)	06/2019 - 09/2019	1
83800-4D071	GYL25 YAZAKI,CANADA SPEC&"F SPORT"*(F)	06/2019 - 09/2019	1
83800-0E740	GYL2#	10/2015 - 08/2016	1
83800-0E750	GYL25 CANADA SPEC	10/2015 - 08/2016	1
83800-48U40	GYL25 CANADA SPEC&"F SPORT"*(F)	10/2015 - 08/2016	1
83800-0EA70	GYL25 CANADA SPEC	08/2016 - 11/2016	1
83800-0EA60	GYL25	08/2016 - 11/2016	1
83800-48U30	GYL25 "F SPORT"*(F)	10/2015 - 08/2016	1
83800-48W90	GYL25 CANADA SPEC&"F SPORT"*(F)	08/2016 - 11/2016	1
83138G - GLASS, COMBINATION METER
83852-0E710	GGL2#,GYL2#	10/2015 - 09/2019	1
83852-48T30	GGL25,GYL25 CANADA SPEC&"F SPORT"*(F)	10/2015 - 09/2019	1
83852-48T30	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
83138G - GLASS, COMBINATION METER
83852-0E710	GGL2#,GYL2#	10/2015 - 09/2019	1
83852-48T30	GGL25,GYL25 CANADA SPEC&"F SPORT"*(F)	10/2015 - 09/2019	1
83852-48T30	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
Common parts
90080-15073
90159-50327

Part #	Description	Period	Qty
83108 - MIRROR SUB-ASSY, METER
83108-0E010	GGL2#,GYL2# HEAD UP DISPLAY-WITH	10/2015 - 08/2016	1
83108-0E030	GGL2#,GYL25 HEAD UP DISPLAY-WITH	12/2017 - 09/2018	1
83108-0E031	GGL2#,GYL25 HEAD UP DISPLAY-WITH	10/2018 - 09/2019	1
83108-0E020	GGL2#,GYL25 HEAD UP DISPLAY-WITH	08/2016 - 08/2017	1
83108-0E021	GGL2#,GYL25 HEAD UP DISPLAY-WITH	08/2017 - 12/2017	1
83161 - CASE, COMBINATION METER MIRROR, NO.1
83161-0E010	GGL2#,GYL25 HEAD UP DISPLAY-WITH	10/2015 - 08/2017	1
83161-0E011	GGL2#,GYL25 HEAD UP DISPLAY-WITH	08/2017 - 09/2019	1
Common parts
90159-50327
93568-55014

GYL25L-CWXGBA (2015)

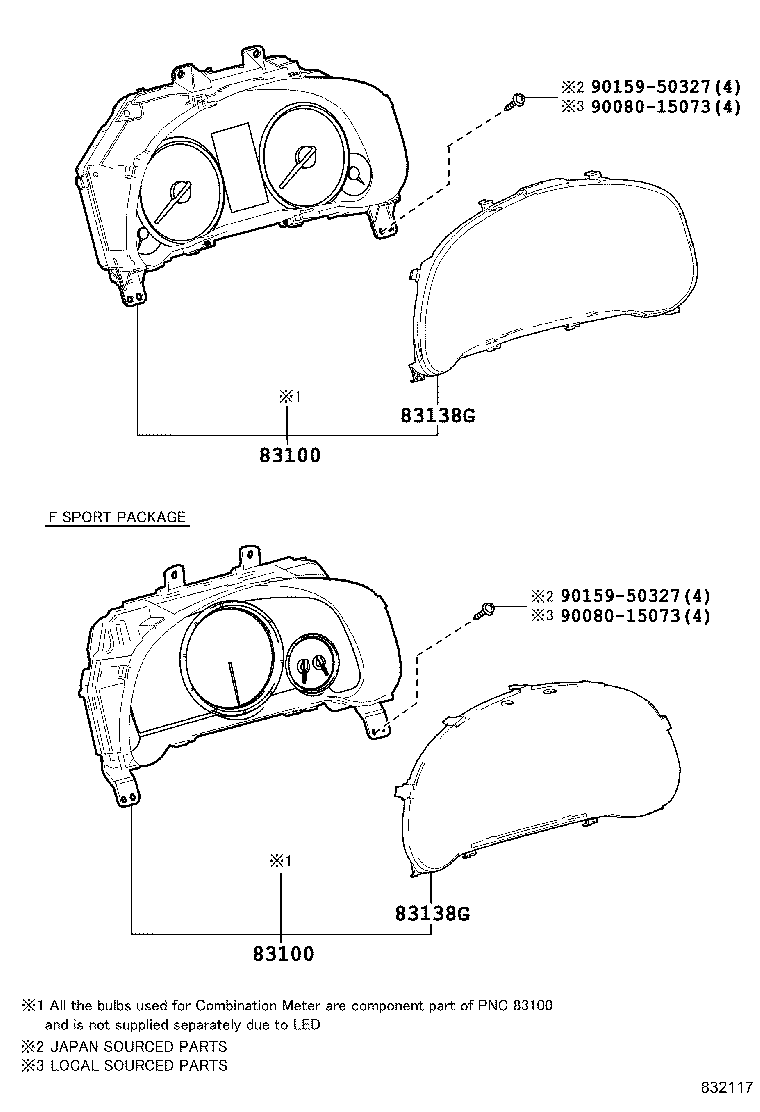

ILLUST NO. 1 OF 2(1510- )

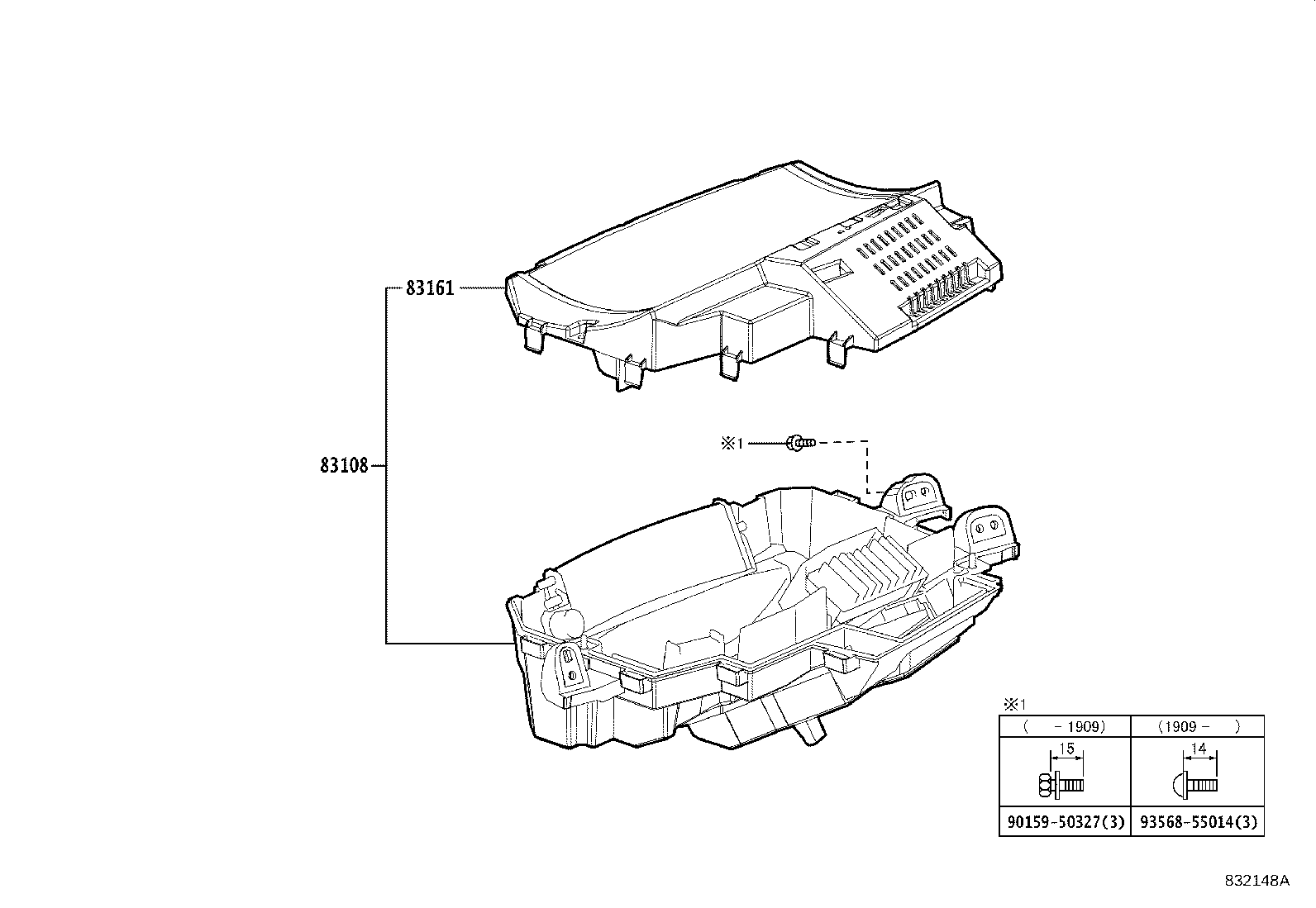

ILLUST NO. 2 OF 2(1510- )
