Toyota Lexus rx450h/350(nap GYL25 WIRING & CLAMP

GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019

Engine 2GRFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

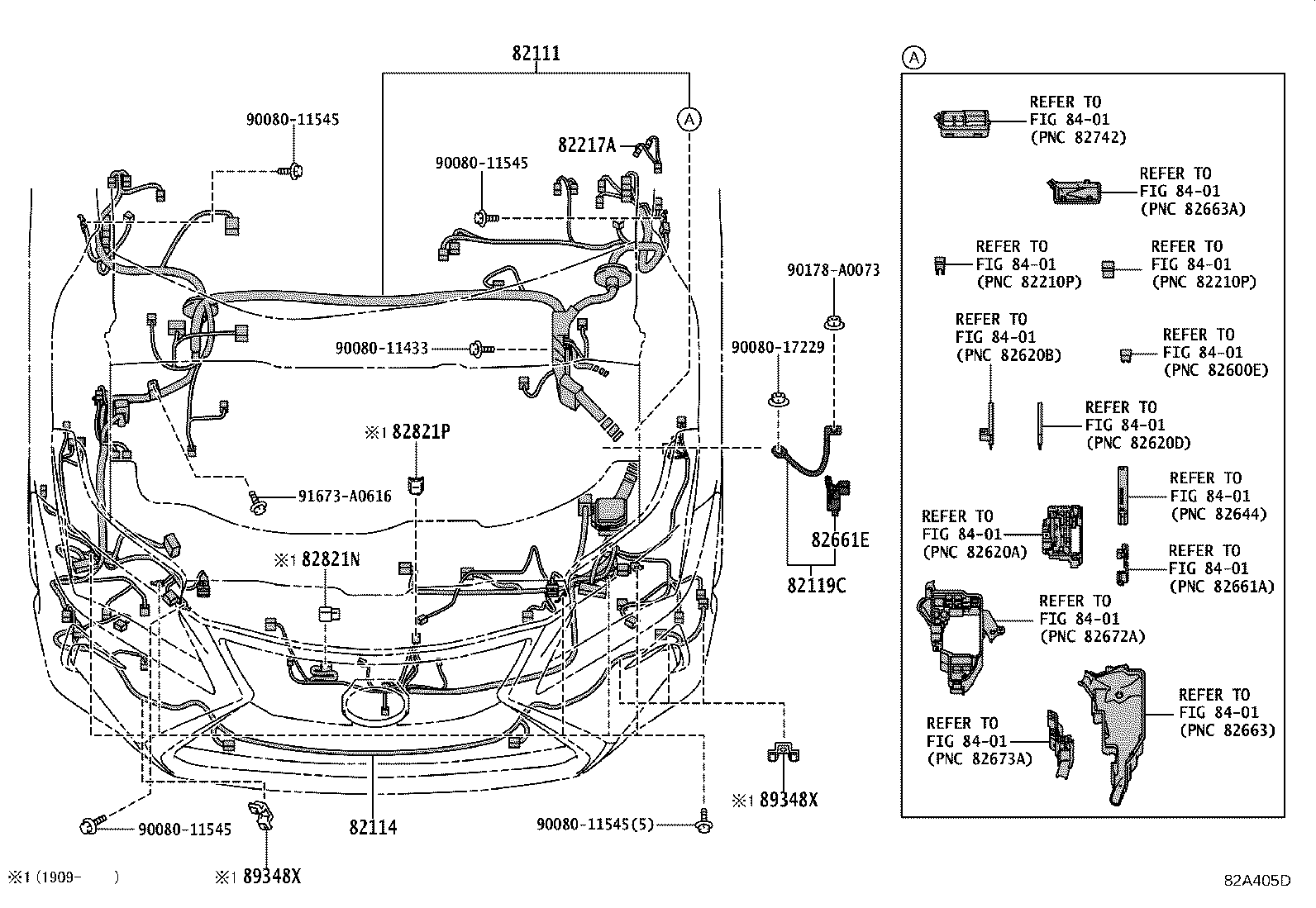

ILLUST NO. 1 OF10(1510- )GYL2#

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0EE20	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)	10/2015 - 08/2016	1
82111-0EE40	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)	10/2015 - 08/2016	1
82111-0EE40	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	10/2015 - 08/2016	1
82111-0EE40	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	10/2015 - 08/2016	1
82111-0EE40	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 08/2016	1
82111-0EE40	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 08/2016	1
82111-0EF20	GYL25 COLD AREA SPEC	10/2015 - 08/2016	1
82111-0EF20	GYL25 HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 08/2016	1
82111-0EF20	GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 08/2016	1
82111-0EF10	GYL25	10/2015 - 08/2016	1
82111-0EE21	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)	08/2016 - 12/2017	1
82111-0EE41	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB)	08/2016 - 12/2017	1
82111-0EE41	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	08/2016 - 12/2017	1
82111-0EE41	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	08/2016 - 12/2017	1
82111-0EE41	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	08/2016 - 12/2017	1
82111-0EE41	GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	08/2016 - 12/2017	1
82111-0EF21	GYL25 HEADLAMP-LED TRIPLE BEAM TYPE	08/2016 - 12/2017	1
82111-0EE42	GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	12/2017 - 05/2018	1
82111-0EF21	GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE	08/2016 - 12/2017	1
82111-0EE42	GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	12/2017 - 05/2018	1
82111-0EF11	GYL25	08/2016 - 12/2017	1
82111-0EF21	GYL25 COLD AREA SPEC	08/2016 - 12/2017	1
82111-0EE22	GYL25	12/2017 - 05/2018	1
82111-0EE42	GYL25 COLD AREA SPEC	12/2017 - 05/2018	1
82111-0EE22	GYL25 PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	12/2017 - 09/2019	1
82111-0EE22	GYL25 "F SPORT"*(F)	05/2018 - 09/2019	1
82111-0EE42	GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	12/2017 - 09/2019	1
82111-0EE42	GYL25 "F SPORT"*(F)&COLD AREA SPEC	05/2018 - 09/2019	1
82111-0EE22	GYL25 "VERSION L"(L)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "F SPORT"(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&*AFLS)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "VERSION L"(L)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "VERSION L"(L)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "VERSION L"(L)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)&CLEARANCE & BACKSONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "F SPORT"(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "F SPORT"(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&*AFLS)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "VERSION L"(L)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EW60	GYL25	05/2018 - 09/2019	1
82111-0EE42	GYL25 PREMIUM PACKAGE&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 PREMIUM PACKAGE&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)&CLEARANCE & BACKSONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EW70	GYL25 COLD AREA SPEC	05/2018 - 09/2019	1
82111-0EE42	GYL25 PREMIUM PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 PREMIUM PACKAGE&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)	05/2018 - 09/2019	1
82111-0EW70	GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	05/2018 - 09/2019	1
82111-0EW70	GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "VERSION L"(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(*PVM)	05/2018 - 09/2019	1
82111-0EE42	GYL25 "F SPORT"(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)	05/2018 - 09/2019	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-0E030	GYL25	10/2015 - 09/2019	1
82114-0E050	GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
82119C - WIRE, ENGINE ROOM, NO.5
82119-0E040	GYL25	10/2015 - 09/2019	1
82217A - WIRE, FRONT WINDOW DEFOGGER
82217-0E080	GGL2#,GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)&HEAD UP DISPLAY-WITH	10/2015 - 12/2017	1
82217-0E080	GYL25 COLD AREA SPEC&HEAD UP DISPLAY-WITH	10/2015 - 09/2019	1
82217-0E080	GYL25 COLD AREA SPEC	10/2015 - 09/2019	1
82217-0E080	GGL2#,GYL25 COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(PBA & PB)	10/2015 - 12/2017	1
82661E - COVER, RELAY BLOCK, SIDE NO.2
82661-48150	GYL25	10/2015 - 09/2019	1
82821N - COVER, CONNECTOR
82821-48310	GYL25	12/2017 - 09/2019	1
82821-48310	GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM	12/2017 - 09/2019	1
Common parts
90080-11433
90080-11545
90080-17229
90178-A0073
91673-A0616
Linked diagrams
8401

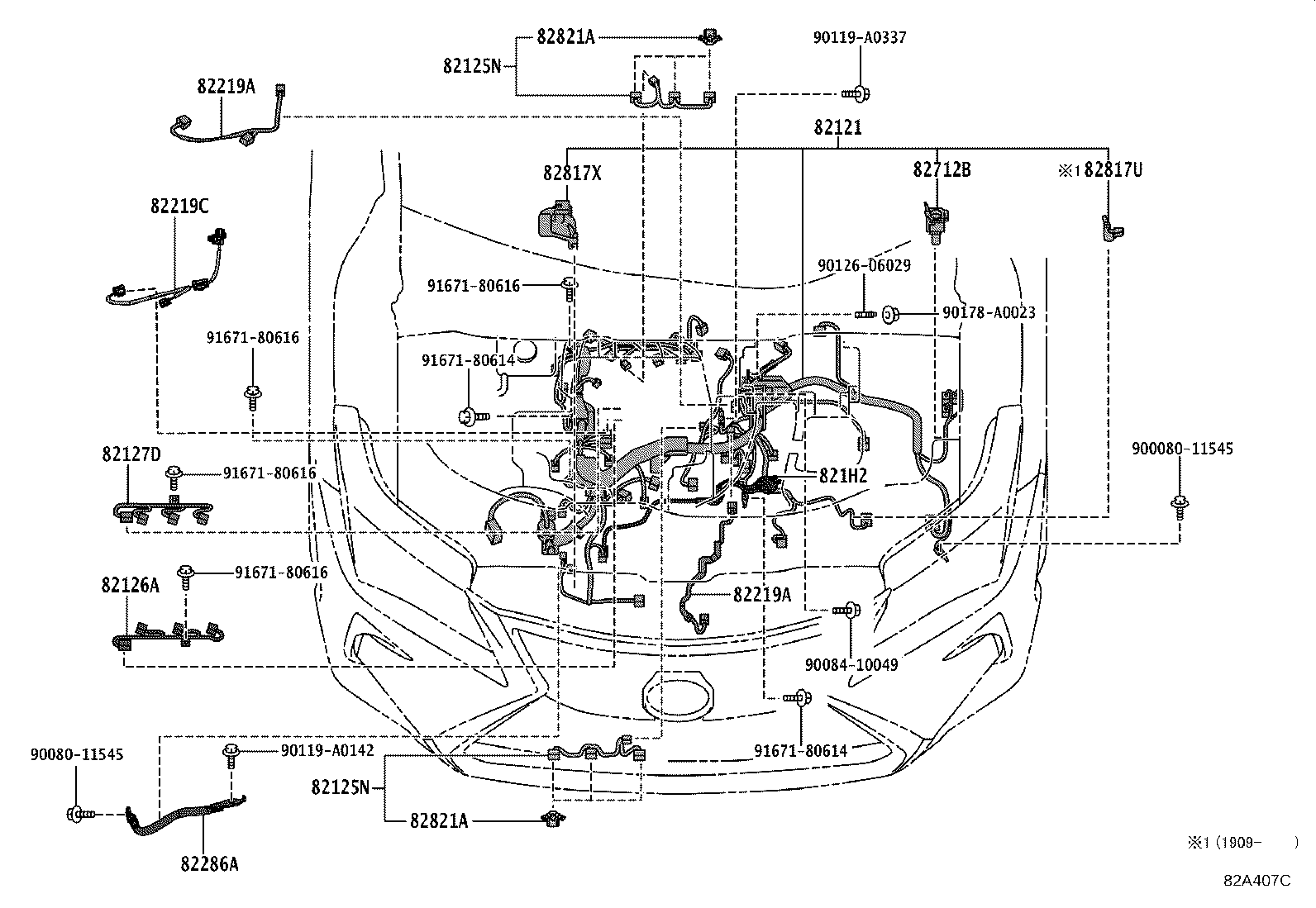

ILLUST NO. 2 OF10(1510- )GYL2#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0E290	GYL25	10/2015 - 09/2019	1
82125N - WIRE, ENGINE, NO.5
82125-48060	GYL25	10/2015 - 09/2019	2
82125N - WIRE, ENGINE, NO.5
82125-48060	GYL25	10/2015 - 09/2019	2
82126A - WIRE, ENGINE, NO.6
82126-48020	GYL25	10/2015 - 09/2019	1
82127D - WIRE, ENGINE, NO.7
82127-48020	GYL25	10/2015 - 09/2019	1
821H2 - WIRE, HV AIR CONDITIONER
821H2-0E010	GYL25	10/2015 - 09/2019	1
82219A - WIRE, SENSOR
82219-48030	GGL2#,GYL25 (J)	10/2015 - 09/2019	1
82219A - WIRE, SENSOR
82219-48030	GGL2#,GYL25 (J)	10/2015 - 09/2019	1
82219C - WIRE, SENSOR
82219-48020	GGL2#,GYL25 (J)	10/2015 - 09/2019	1
82286A - WIRE, EARTH, NO.2
82286-0E070	GYL25	10/2015 - 09/2019	1
82712B - SUPPORT, WIRING HARNESS
82712-48120	GYL25	10/2015 - 09/2019	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-48A10	GGL2#,GYL25	10/2015 - 09/2019	1
82821A - COVER, CONNECTOR
82821-48240	GYL25	10/2015 - 09/2019	6
82821A - COVER, CONNECTOR
82821-48240	GYL25	10/2015 - 09/2019	6
Common parts
90080-11545
90084-10049
90119-A0142
90119-A0337
90126-06029
90178-A0023
91671-80614
91671-80616

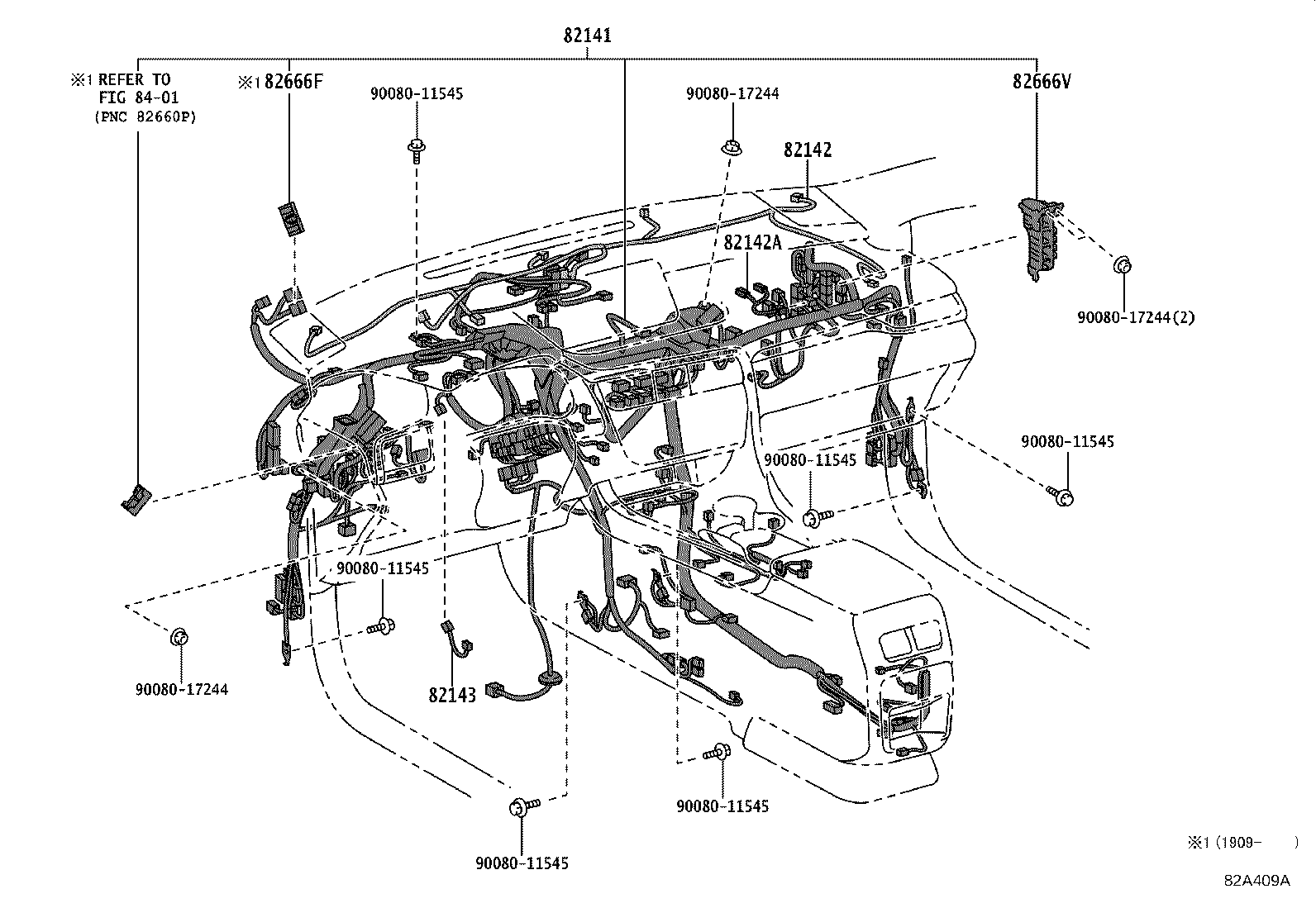

ILLUST NO. 3 OF10(1510- )GYL2#

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-0EC90	GYL2# HAWAII SPEC	10/2015 - 08/2016	1
82141-0ED10	GYL25 CANADA SPEC&BACK MONITOR-WITH(*PVM)	10/2015 - 08/2016	1
82141-0EC90	GYL2# USA DEPENDANCY SPEC	10/2015 - 08/2016	1
82141-0ED00	GYL2#	10/2015 - 08/2016	1
82141-0ED20	GYL2# BACK MONITOR-WITH(*PVM)	10/2015 - 08/2016	1
82141-0ED10	GYL2# HAWAII SPEC&BACK MONITOR-WITH(*PVM)	10/2015 - 08/2016	1
82141-0ED30	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	10/2015 - 08/2016	1
82141-0EC90	GYL25 CANADA SPEC	10/2015 - 08/2016	1
82141-0ED30	GYL2# USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	10/2015 - 08/2016	1
82141-0ED50	GYL2# HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	10/2015 - 08/2016	1
82141-0ED50	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	10/2015 - 08/2016	1
82141-0ED10	GYL2# USA DEPENDANCY SPEC&BACK MONITOR-WITH(*PVM)	10/2015 - 08/2016	1
82141-0ED30	GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	10/2015 - 08/2016	1
82141-0ED30	GYL2# HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	10/2015 - 08/2016	1
82141-0ED50	GYL2# USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	10/2015 - 08/2016	1
82141-0ED50	GYL2# STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	10/2015 - 08/2016	1
82141-0ED11	GYL25 HAWAII SPEC&BACK MONITOR-WITH(*PVM)	08/2016 - 12/2017	1
82141-0ED21	GYL25 BACK MONITOR-WITH(*PVM)	08/2016 - 12/2017	1
82141-0EC91	GYL25 USA DEPENDANCY SPEC	08/2016 - 12/2017	1
82141-0ED11	GYL25 USA DEPENDANCY SPEC&BACK MONITOR-WITH(*PVM)	08/2016 - 12/2017	1
82141-0ED01	GYL25	08/2016 - 12/2017	1
82141-0ED51	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	08/2016 - 12/2017	1
82141-0ED31	GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	08/2016 - 12/2017	1
82141-0EC91	GYL25 CANADA SPEC	08/2016 - 12/2017	1
82141-0ED51	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	08/2016 - 12/2017	1
82141-0ED31	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	08/2016 - 12/2017	1
82141-0ED31	GYL25 HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	08/2016 - 12/2017	1
82141-0EC91	GYL25 HAWAII SPEC	08/2016 - 12/2017	1
82141-0ED31	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)&BACK MONITOR-WITH(PVM)	08/2016 - 12/2017	1
82141-0ED51	GYL25 HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	08/2016 - 12/2017	1
82141-0ED11	GYL25 CANADA SPEC&BACK MONITOR-WITH(*PVM)	08/2016 - 12/2017	1
82141-0ED51	GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	08/2016 - 12/2017	1
82141-0ED02	GYL25 AUDIO-*EMV & DVD	12/2017 - 09/2019	1
82141-0EC92	GYL25 CANADA SPEC&AUDIO-*EMV & DVD	12/2017 - 09/2019	1
82141-0EC92	GYL25 USA DEPENDANCY SPEC&AUDIO-*EMV & DVD	12/2017 - 09/2019	1
82141-0EC92	GYL25 HAWAII SPEC&AUDIO-*EMV & DVD	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFICALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACKMONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 CANADA SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSSTRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM& WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM& WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEATHEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM& WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM& WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEATHEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATIONLAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACKMONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 USA DEPENDANCY SPEC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD& W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM &REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD& W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT &REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0EM90	GYL25 CANADA SPEC	12/2017 - 09/2019	1
82141-0ED12	GYL25 HAWAII SPEC&STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFICALERT)	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATIONLAMP)&DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS&SEAT HEATER-WITH(FRONT & REAR)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0EM90	GYL25 USA DEPENDANCY SPEC	12/2017 - 09/2019	1
82141-0ED22	GYL25 STEERING WHEEL-HARD MAPLE,WITH(STEERING HEATER)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR)&SEAT HEATER-WITH(FRONT ONLY)&AUDIO-EMV & DVD&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	12/2017 - 09/2019	1
82141-0EN00	GYL25	12/2017 - 09/2019	1
82141-0EM90	GYL25 HAWAII SPEC	12/2017 - 09/2019	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-0E630	GGL2#,GYL25 HEAD UP DISPLAY-WITH&SPEAKER-12SPEAKER	10/2015 - 09/2019	1
82142-0E600	GGL2#,GYL25	10/2015 - 09/2019	1
82142-0E610	GGL2#,GYL25 SPEAKER-12SPEAKER	10/2015 - 09/2019	1
82142-0E620	GGL2#,GYL25 HEAD UP DISPLAY-WITH	10/2015 - 09/2019	1
82142-0E610	GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR	10/2015 - 09/2019	1
82142-0E630	GGL2#,GYL25 HEAD UP DISPLAY-WITH&SPEAKER-15SPEAKER & *MAR	10/2015 - 09/2019	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0E050	GGL2#,GYL25	10/2015 - 09/2019	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-0E060	GGL2#,GYL25	10/2015 - 09/2019	1
82666V - HOLDER, CONNECTOR NO.15
82666-48400	GGL2#,GYL25	10/2015 - 09/2019	1
Common parts
90080-11545
90080-17244
Linked diagrams
8401

ILLUST NO. 4 OF10(1510- )

Click highlighted areas on diagram

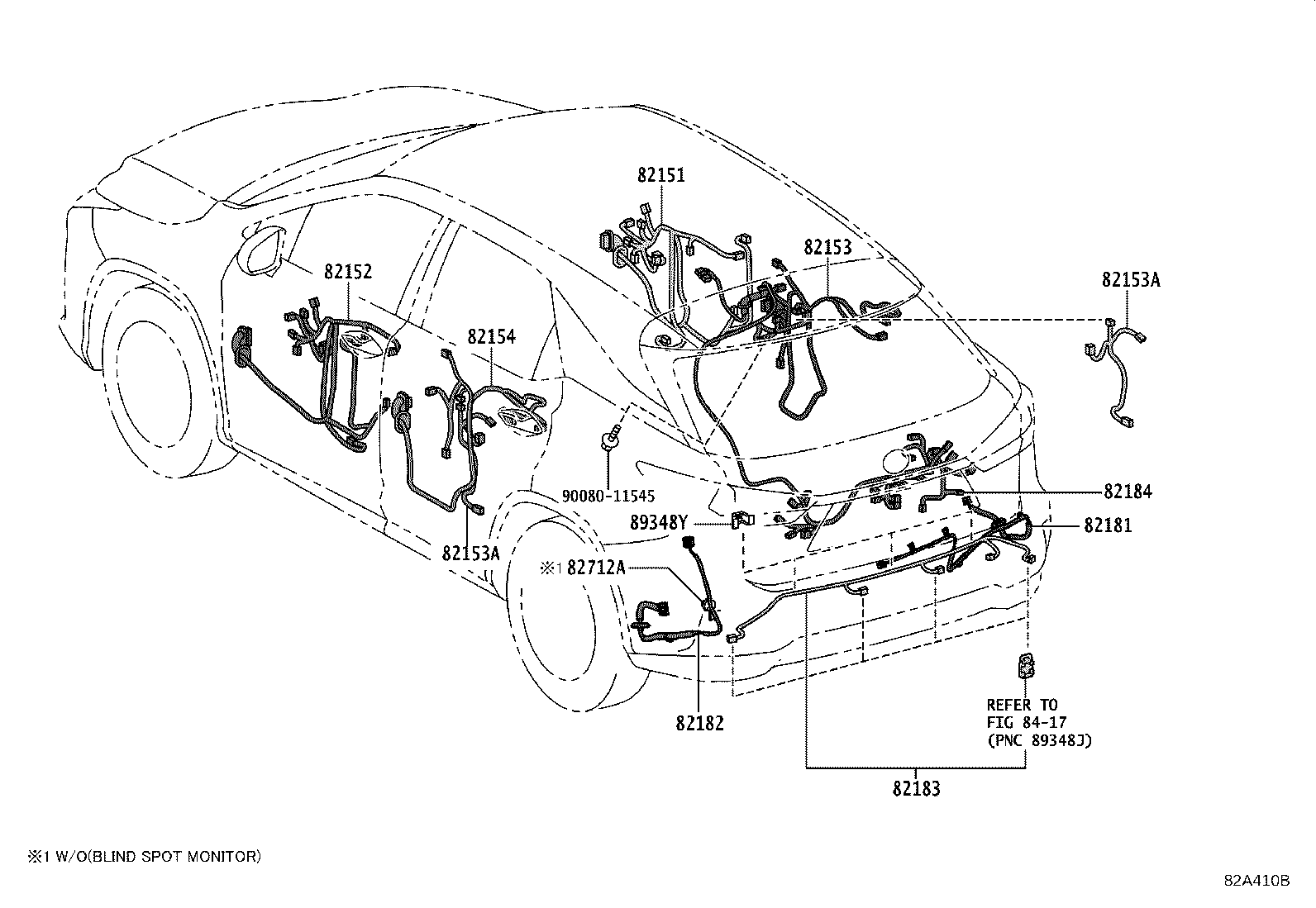

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0E330	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82151-0E330	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82151-0E330	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82151-0E330	GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 09/2019	1
82151-0E290	GYL25 BACK MONITOR-WITH(*PVM)	10/2015 - 09/2019	1
82151-0E340	GGL2#,GYL25	10/2015 - 09/2019	1
82151-0E330	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82151-0E330	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82152 - WIRE, FRONT DOOR, LH
82152-0E300	GYL25	10/2015 - 09/2019	1
82152-0E310	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82152-0E290	GYL25 BACK MONITOR-WITH(*PVM)	10/2015 - 09/2019	1
82152-0E310	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82152-0E310	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&BACK MONITOR-WITH(PVM)	10/2015 - 09/2019	1
82152-0E310	GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 09/2019	1
82152-0E310	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82152-0E310	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82153 - WIRE, REAR DOOR, NO.1
82153-0E120	GGL25,GYL25 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82153-0E060	GGL2#,GYL25	10/2015 - 09/2019	1
82153-0E120	GGL2#,GYL25 DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82153A - WIRE, REAR DOOR, RH
82157-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
82157-0E010	GGL25,GYL25 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	2
82157-0E010	GGL2#,GYL25 DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	2
82153A - WIRE, REAR DOOR, RH
82157-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
82157-0E010	GGL25,GYL25 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	2
82157-0E010	GGL2#,GYL25 DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	2
82154 - WIRE, REAR DOOR, NO.2
82154-0E120	GGL2#,GYL25 DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82154-0E120	GGL25,GYL25 DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)	10/2015 - 09/2019	1
82154-0E060	GGL2#,GYL25	10/2015 - 09/2019	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-0E200	GYL25	10/2015 - 09/2019	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-0E060	GYL25	10/2015 - 09/2019	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-0E060	GYL25 CLEARANCE & BACK SONAR-WITH(ICS & RCTB)	12/2017 - 09/2019	1
82183-0E060	GYL25	10/2015 - 12/2017	1
82183-0E060	GYL25 CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)	12/2017 - 09/2019	1
82184 - WIRE, BACK DOOR, NO.1
82184-0E470	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)&HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2016	1
82184-0E470	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 09/2016	1
82184-0E471	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)&HEADLAMP-LED TRIPLE BEAM TYPE	10/2016 - 09/2019	1
82184-0E471	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE	10/2016 - 09/2019	1
82184-0E490	GGL2#,GYL25	10/2015 - 09/2016	1
82184-0E470	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 09/2016	1
82184-0E471	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)	10/2016 - 09/2019	1
82184-0E470	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2016	1
82184-0E470	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)	10/2015 - 09/2016	1
82184-0E471	GGL2#,GYL25 AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2016 - 09/2019	1
82184-0E471	GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2016 - 09/2019	1
82184-0E491	GGL2#,GYL25	10/2016 - 09/2019	1
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	GYL25 CLEARANCE & BACK SONAR-WITH(ICS & RCTB)	12/2017 - 09/2019	3
89348-50050	GYL25	10/2015 - 12/2017	3
89348-50050	GYL25 CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)	12/2017 - 09/2019	3
Common parts
90080-11545
Linked diagrams
8417

ILLUST NO. 5 OF10(1510- )GYL2#

Click highlighted areas on diagram

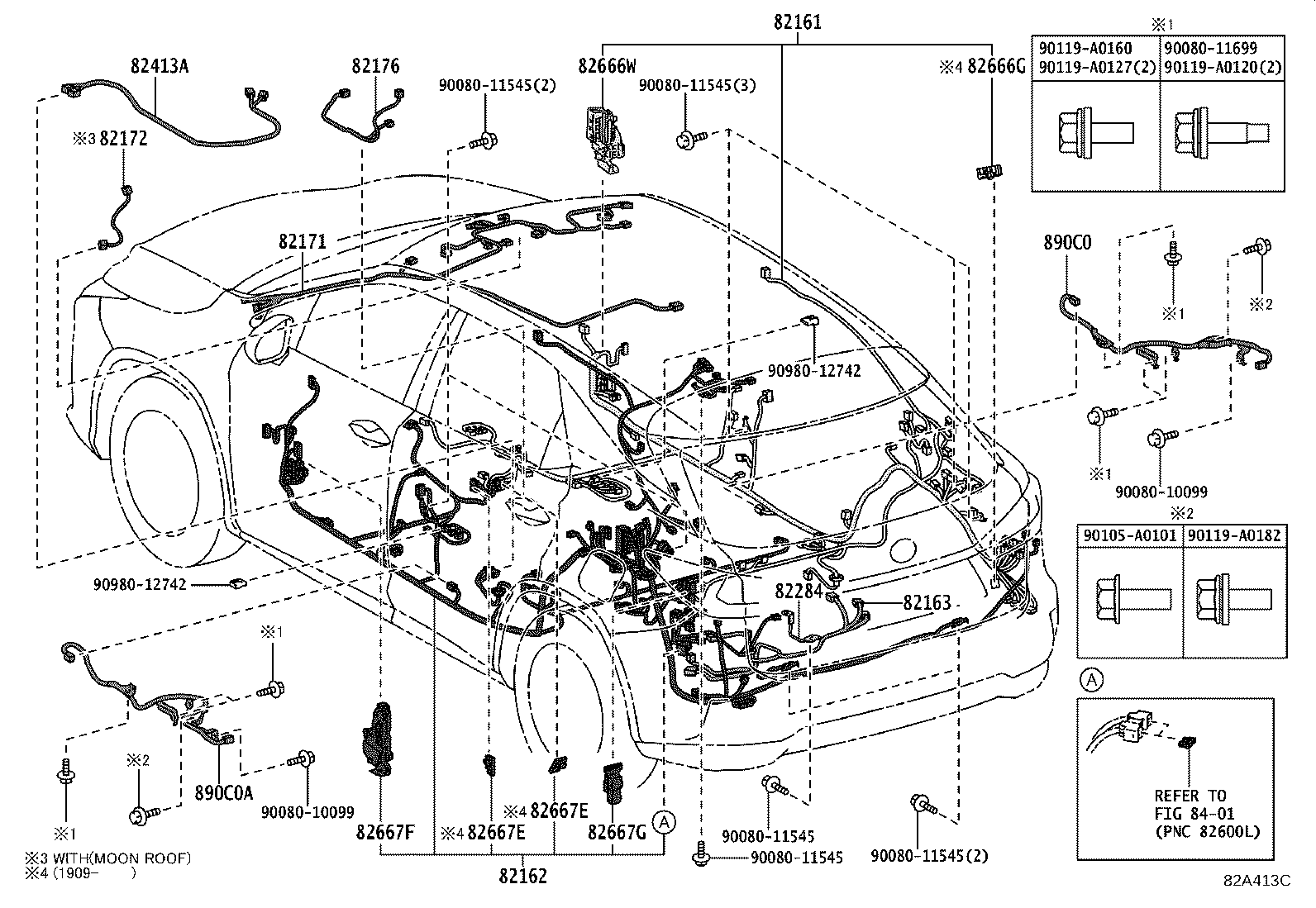

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-0EC70	GYL2# SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 08/2016	1
82161-0EC72	GYL25 "VERSION L"*(L)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	05/2018 - 09/2019	1
82161-0EC62	GYL25 ANTI-THEFT SYSTEM-WITH(SIREN)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC80	GYL2# DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	10/2015 - 08/2016	1
82161-0EC60	GYL2#	10/2015 - 08/2016	1
82161-0EC81	GYL25 DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE)	08/2016 - 12/2017	1
82161-0EC61	GYL25	08/2016 - 12/2017	1
82161-0EC71	GYL25 SEAT HEATER-WITH(FRONT & REAR)	08/2016 - 12/2017	1
82161-0EC62	GYL25	12/2017 - 05/2018	1
82161-0EC72	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82161-0EC72	GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82161-0EC62	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC62	GYL25 "VERSION L"(L)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 ANTI-THEFT SYSTEM-WITH(SIREN)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "VERSION L"(L)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE& BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC62	GYL25 "F SPORT"(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 "VERSION L"*(L)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITH(ICS & RCTB)&BACK MONITOR-WITH(PVM)&LANE CHANGE ASSIST-WITH(BSM & REAR CROSS TRAFFIC ALERT)	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC72	GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&ANTI-THEFT SYSTEM-WITH(SIREN)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EC72	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)&WIRELESS CHARGER-WITH	05/2018 - 09/2019	1
82161-0EK30	GYL25	05/2018 - 09/2019	1
82162 - WIRE, FLOOR, NO.2
82162-0E850	GYL2# SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 08/2016	1
82162-0E860	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 08/2016	1
82162-0E840	GYL2#	10/2015 - 08/2016	1
82162-0E851	GYL25 SEAT HEATER-WITH(FRONT & REAR)	08/2016 - 12/2017	1
82162-0E861	GYL25 "VERSION L"(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	08/2016 - 12/2017	1
82162-0E841	GYL25	08/2016 - 12/2017	1
82162-0E842	GYL25	12/2017 - 05/2018	1
82162-0E852	GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82162-0E852	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82162-0E852	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82162-0E852	GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82162-0E842	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	05/2018 - 09/2019	1
82162-0E842	GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	05/2018 - 09/2019	1
82162-0EJ80	GYL25	05/2018 - 09/2019	1
82163 - WIRE, FLOOR, NO.3
82163-0E160	GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"(F)&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&*AFLS)	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2019	1
82163-0E060	GYL25	10/2015 - 09/2019	1
82163-0E160	GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	10/2015 - 09/2019	1
82163-0E160	GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 09/2019	1
82163-0E150	GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
82163-0E160	GYL25 COLD AREA SPEC	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"*(F)&COLD AREA SPEC	10/2015 - 09/2019	1
82163-0E160	GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)	10/2015 - 09/2019	1
82163-0E160	GYL25 HEADLAMP-LED TRIPLE BEAM TYPE	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"(F)&COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&*AFLS)	10/2015 - 09/2019	1
82163-0E170	GYL25 "F SPORT"(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(AHB)	10/2015 - 09/2019	1
82163-0E160	GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(AHB&AFLS)	10/2015 - 09/2019	1
82171 - WIRE, ROOF, NO.1
82171-0EB00	GYL25	10/2015 - 12/2017	1
82171-0EB10	GYL25 MOON ROOF-WITH(PANORAMA ROOF)	10/2015 - 12/2017	1
82171-0EA41	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)	02/2017 - 12/2017	1
82171-0EA62	GYL25 MOON ROOF-WITH(PANORAMA ROOF)	12/2017 - 09/2019	1
82171-0EA61	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&MOON ROOF-WITH(PANORAMA ROOF)	02/2017 - 12/2017	1
82171-0EA12	GYL25	12/2017 - 09/2019	1
82171-0EA42	GYL25 MOON ROOF-WITH	12/2017 - 09/2019	1
82171-0EA40	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)	10/2015 - 02/2017	1
82171-0EA60	GYL25 PRE-COLLISION SYSTEM-WITH(PBA & PB)&MOON ROOF-WITH(PANORAMA ROOF)	10/2015 - 02/2017	1
82172 - WIRE, ROOF, NO.2
82172-0E070	GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF)	10/2015 - 09/2019	1
82176 - WIRE, REAR CONSOLE BOX
82176-0E170	GGL2#,GYL25	10/2015 - 09/2019	1
82284 - WIRE, EARTH
82284-0E010	GYL25	10/2015 - 09/2019	1
82413A - WIRE, FUEL TANK
82413-0E040	GYL25	10/2015 - 09/2019	1
82666W - HOLDER, CONNECTOR NO.16
82666-48410	GGL2#,GYL25	10/2015 - 09/2019	1
82667F - HOLDER, CONNECTOR, NO.21
82666-0E130	GGL2#,GYL25	10/2015 - 09/2019	1
82667G - HOLDER, CONNECTOR, NO.22
82666-0E110	GGL2#,GYL25	10/2015 - 09/2019	1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-0E010	GGL2#,GYL25	10/2015 - 09/2019	1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-0E030	GYL25	10/2015 - 09/2019	1
Common parts
90080-10099
90080-11545
90080-11699
90105-A0101
90119-A0120
90119-A0127
90119-A0160
90119-A0182
90980-12742
Linked diagrams
8401

ILLUST NO. 6 OF10(1510- )GYL2#

Click highlighted areas on diagram

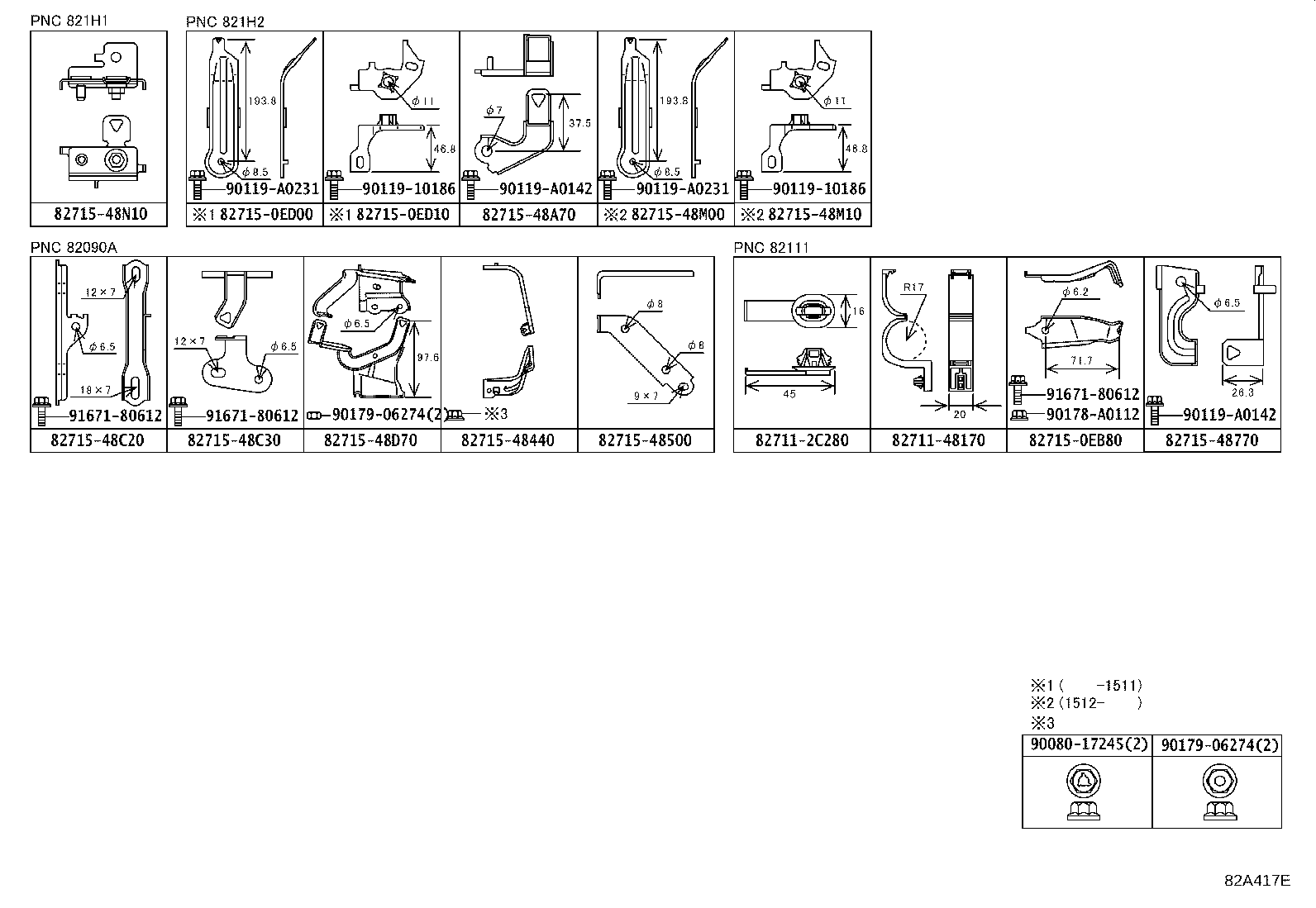

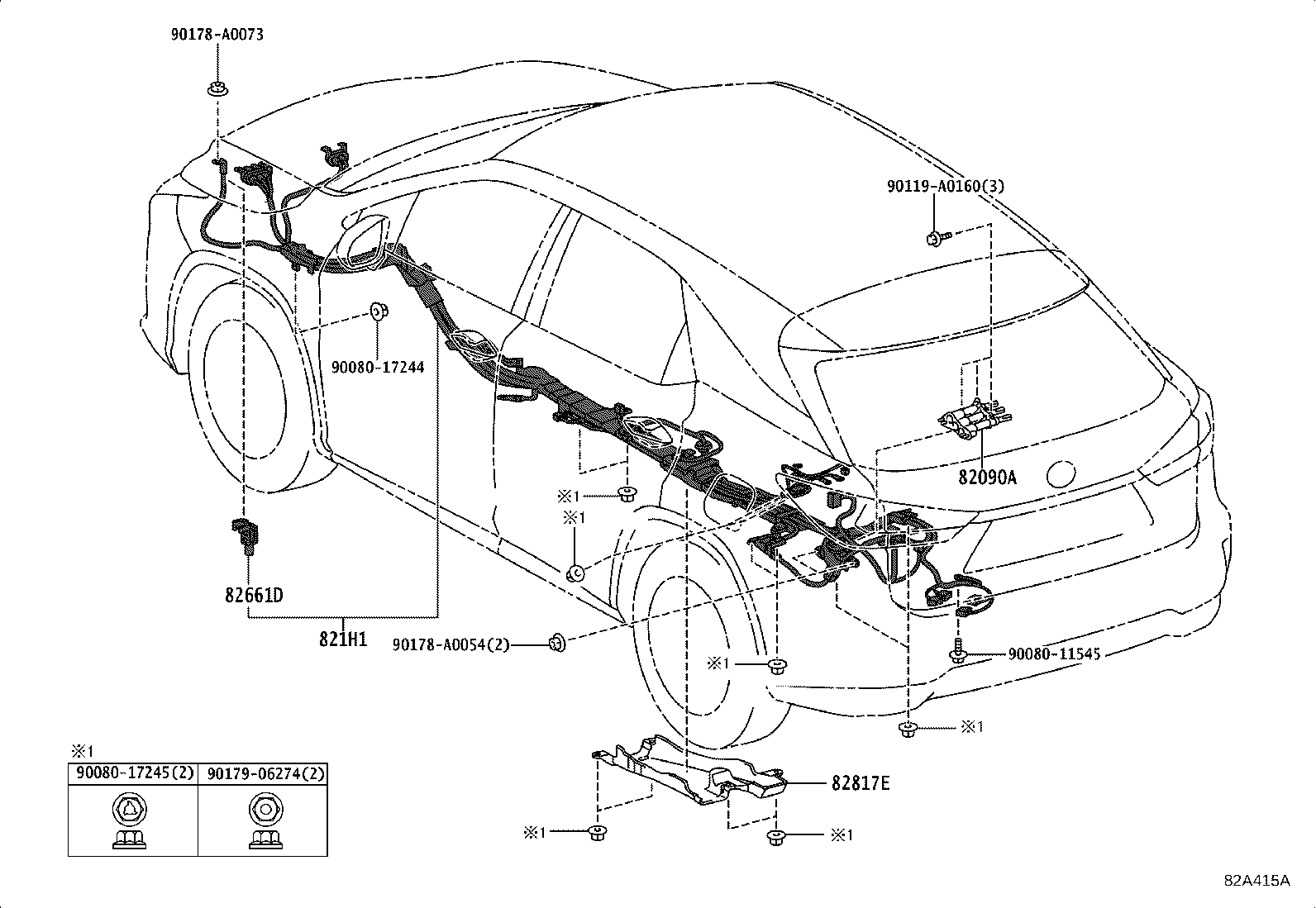

HIGH VOLTAGE CABLE

Part #	Description	Period	Qty
82090A - WIRE ASSY, EXTENSION
82090-48011	GYL25	04/2018 - 09/2019	1
82090-48010	GYL25	10/2015 - 03/2018	1
821H1 - WIRE, FLOOR UNDER
821H1-0E010	GYL25	10/2015 - 09/2019	1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-48160	GYL25	10/2015 - 09/2019	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0E340	GYL25	10/2015 - 09/2019	1
Common parts
90080-11545
90080-17244
90080-17245
90119-A0160
90178-A0054
90178-A0073
90179-06274

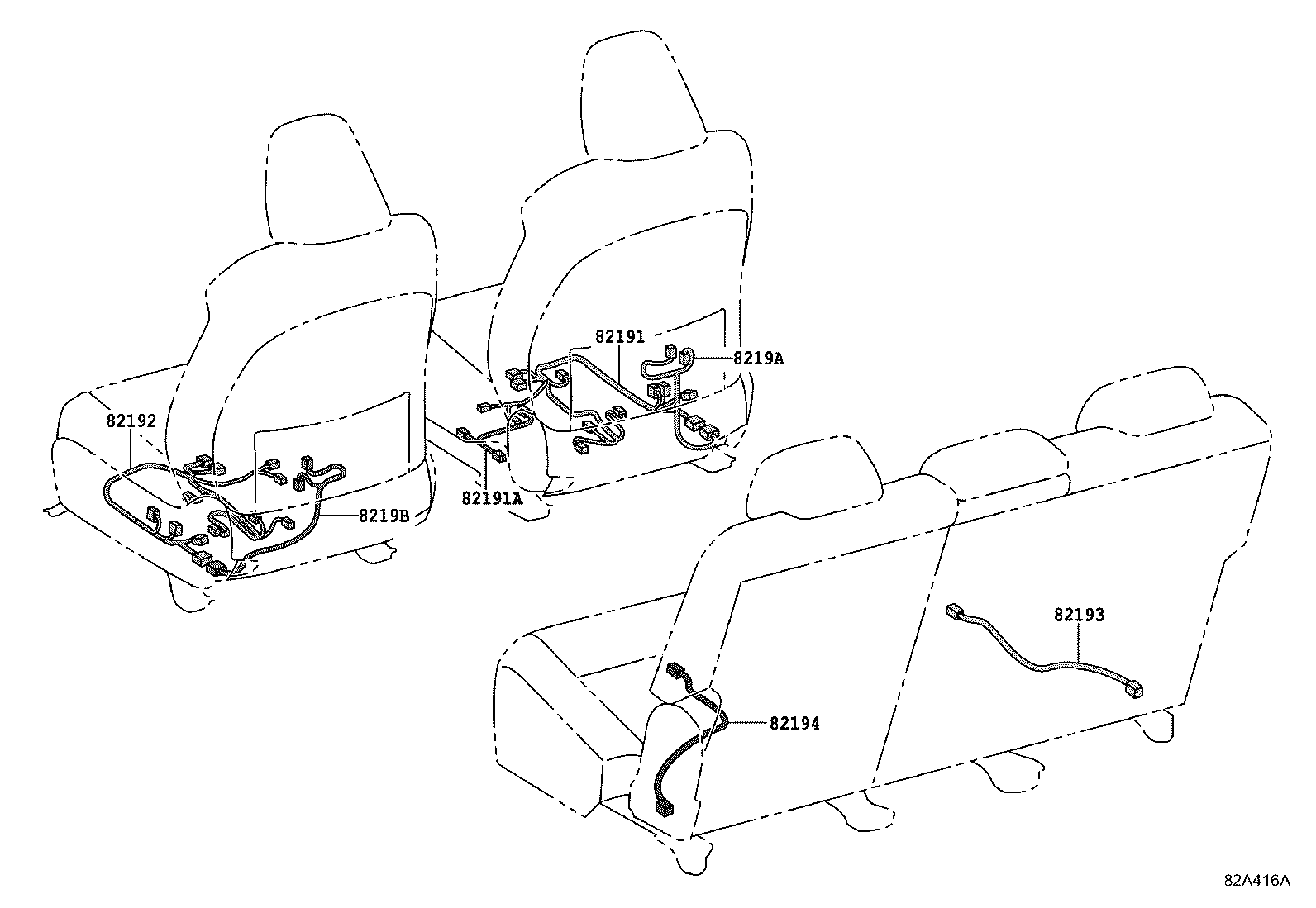

ILLUST NO. 7 OF10(1510- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-0E330	GYL25 "F SPORT"*(F)	10/2015 - 12/2017	1
82191-0E330	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82191-0E320	GYL25	10/2015 - 12/2017	1
82191-0E340	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
82191-0E340	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 12/2017	1
82191-0E320	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82191-0E330	GYL25 "F SPORT"*(F)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82191-0E290	GYL25	12/2017 - 09/2019	1
82191-0E340	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82191-0E330	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82191-0E340	GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82191-0E330	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82191-0E320	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82191-0E310	GYL25 SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82191-0E340	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82191-0E320	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82191-0E330	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82191A - WIRE, FRONT SEAT, RH
82191-0E300	GGL2#,GYL25	10/2015 - 09/2019	1
82192 - WIRE, FRONT SEAT, LH
82192-0E300	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82192-0E300	GYL25 "F SPORT"*(F)	10/2015 - 12/2017	1
82192-0E300	GYL25 "F SPORT"*(F)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82192-0E310	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
82192-0E310	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 12/2017	1
82192-0E310	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82192-0E280	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)	12/2017 - 09/2019	1
82192-0E270	GYL25 SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82192-0E290	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82192-0E290	GYL25	10/2015 - 12/2017	1
82192-0E260	GYL25	12/2017 - 09/2019	1
82192-0E290	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82192-0E300	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82192-0E290	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82192-0E310	GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82192-0E310	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82192-0E300	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
82192-0E300	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82193 - WIRE, REAR SEAT, RH
82193-0E020	GYL25 "F SPORT"*(F)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	2
82193-0E030	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
82193-0E030	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82193-0E030	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82193-0E030	GYL25 REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82193-0E020	GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	2
82193-0E020	GYL25 SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	2
82193-0E020	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	2
82193-0E020	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	2
82193-0E030	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82193-0E030	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82194 - WIRE, REAR SEAT, LH
82194-0E030	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
82194-0E030	GYL25 REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
82194-0E030	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82194-0E030	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
82194-0E030	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
82194-0E030	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 12/2017	1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-0E100	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
8219A-0E080	GYL25	10/2015 - 12/2017	1
8219A-0E090	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
8219A-0E090	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 12/2017	1
8219A-0E080	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219A-0E080	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219A-0E070	GYL25	12/2017 - 09/2019	1
8219A-0E080	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219A-0E090	GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
8219A-0E080	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219A-0E090	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219A-0E080	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219A-0E080	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-0E080	GYL25	10/2015 - 12/2017	1
8219B-0E100	GGL2#,GYL25 "VERSION L"(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
8219B-0E090	GGL2#,GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
8219B-0E090	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)	10/2015 - 12/2017	1
8219B-0E070	GYL25	12/2017 - 09/2019	1
8219B-0E080	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219B-0E080	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219B-0E080	GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219B-0E080	GYL25 PREMIUM PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219B-0E090	GGL2#,GYL25 "VERSION L"*(L)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)	10/2015 - 09/2019	1
8219B-0E090	GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT ONLY)	12/2017 - 09/2019	1
8219B-0E080	GYL25 "F SPORT"*(F)&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1
8219B-0E080	GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR)	12/2017 - 09/2019	1

ILLUST NO. 8 OF10(1510- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2C280
82711-48170
82715-0EB80
82715-0ED00
82715-0ED10
82715-48440
82715-48500
82715-48770
82715-48A70
82715-48C20
82715-48C30
82715-48D70
82715-48M00
82715-48M10
82715-48N10
90119-10186
90119-A0142
90119-A0231
90178-A0112
90179-06274
91671-80612

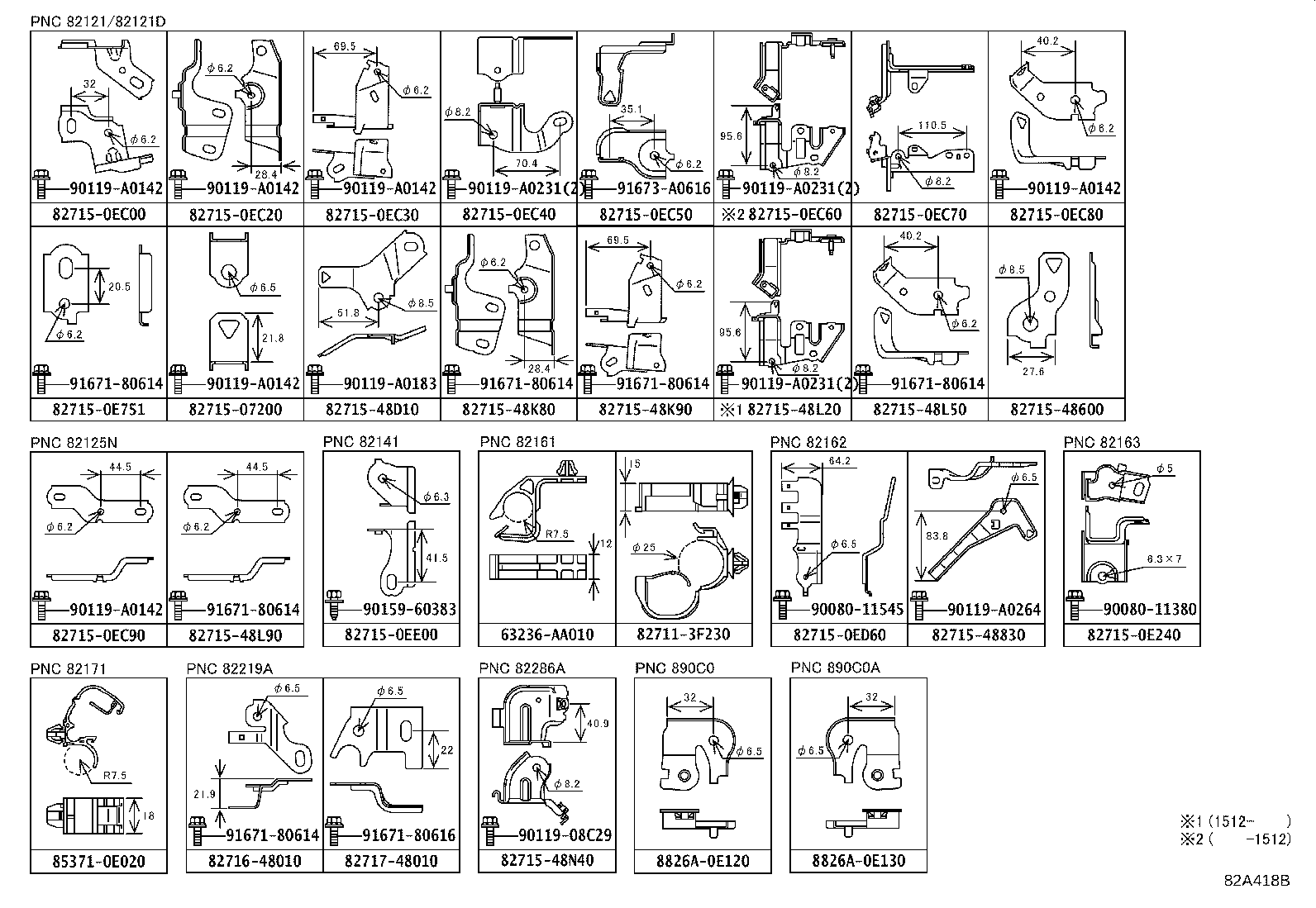

ILLUST NO. 9 OF10(1510- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
63236-AA010
82711-3F230
82715-07200
82715-0E240
82715-0E751
82715-0EC00
82715-0EC20
82715-0EC30
82715-0EC40
82715-0EC50
82715-0EC60
82715-0EC70
82715-0EC80
82715-0EC90
82715-0ED60
82715-0EE00
82715-48600
82715-48830
82715-48D10
82715-48K80
82715-48K90
82715-48L20
82715-48L50
82715-48L90
82715-48N40
82716-48010
82717-48010
85371-0E020
8826A-0E120
8826A-0E130
90080-11380
90080-11545
90119-08C29
90119-A0142
90119-A0183
90119-A0231
90119-A0264
90159-60383
91671-80614
91671-80616
91673-A0616

ILLUST NO.10 OF10(1510- )

Click highlighted areas on diagram

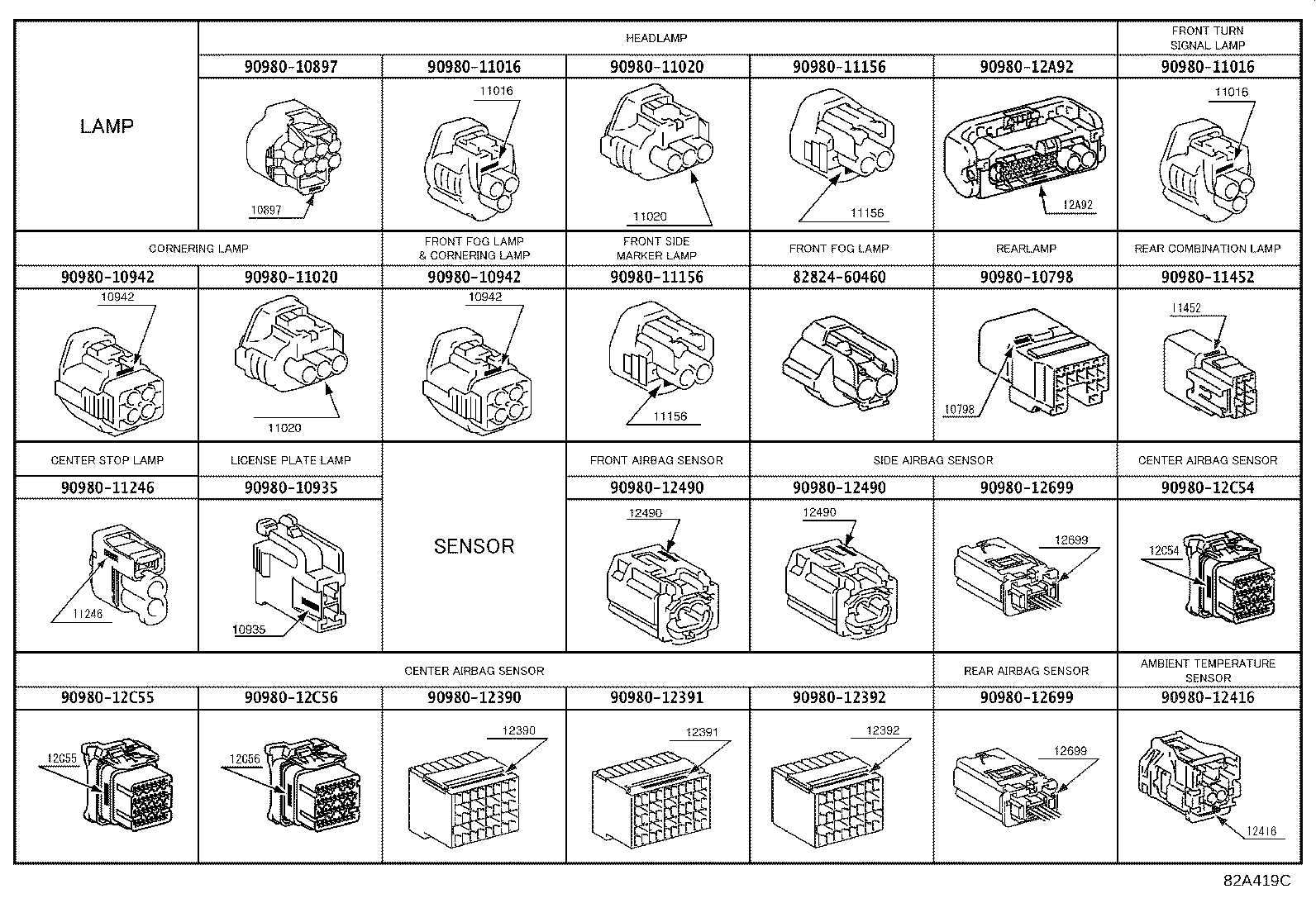

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10798
90980-10897
90980-10935
90980-10942
90980-11016
90980-11020
90980-11156
90980-11246
90980-11452
90980-12390
90980-12391
90980-12392
90980-12416
90980-12490
90980-12699
90980-12A92
90980-12C54
90980-12C55
90980-12C56

ILLUST NO.10 OF10(1510- )

Click highlighted areas on diagram

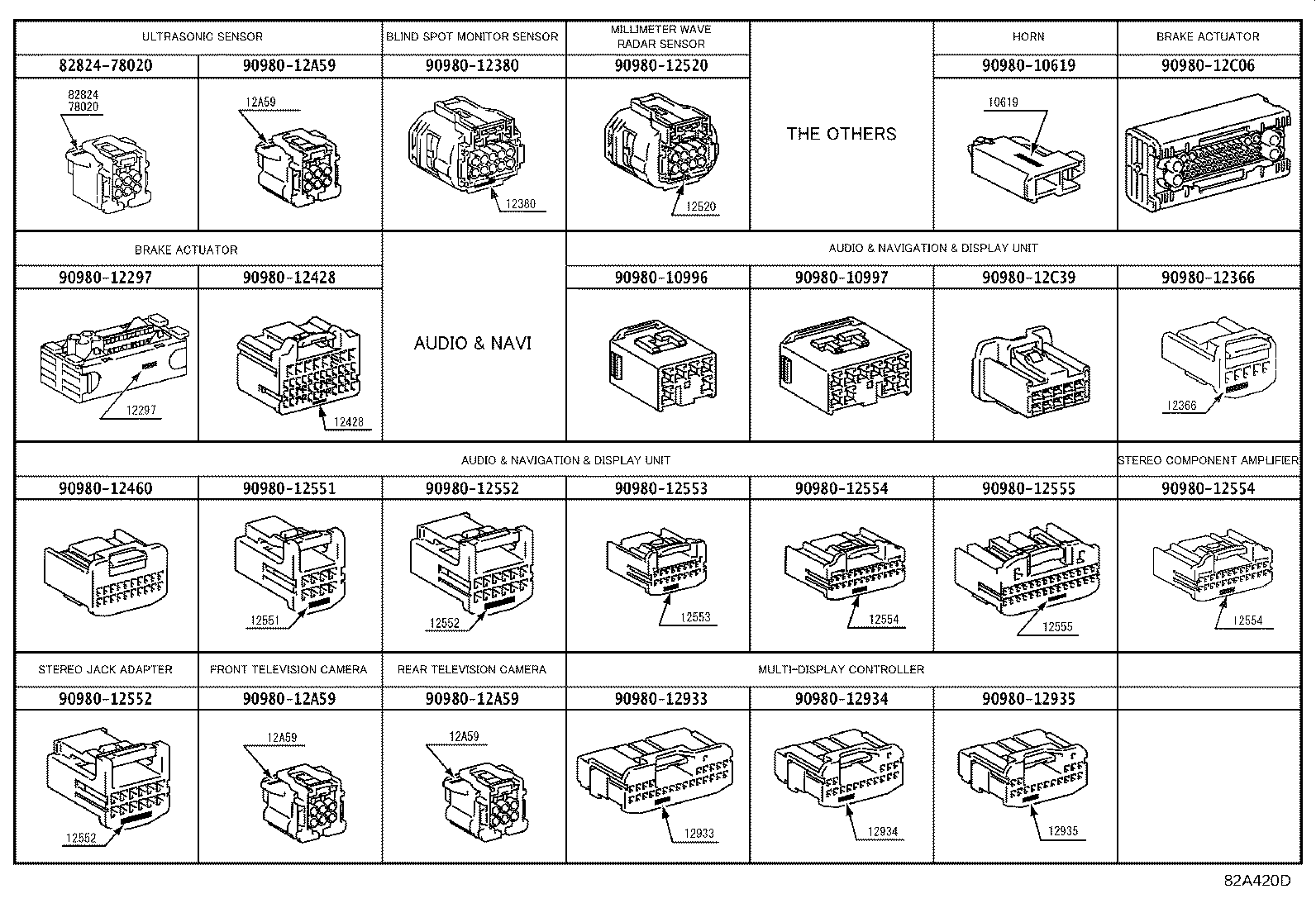

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
82824-78020
90980-10619
90980-10996
90980-10997
90980-12297
90980-12366
90980-12380
90980-12428
90980-12460
90980-12520
90980-12551
90980-12552
90980-12553
90980-12554
90980-12555
90980-12933
90980-12934
90980-12935
90980-12A59
90980-12C06
90980-12C39

GYL25L-CWXGBA (2015)

ILLUST NO. 1 OF10(1510- )GYL2#

ILLUST NO. 2 OF10(1510- )GYL2#

ILLUST NO. 3 OF10(1510- )GYL2#

ILLUST NO. 4 OF10(1510- )

ILLUST NO. 5 OF10(1510- )GYL2#

ILLUST NO. 6 OF10(1510- )GYL2#

ILLUST NO. 7 OF10(1510- )

ILLUST NO. 8 OF10(1510- )

ILLUST NO. 9 OF10(1510- )

ILLUST NO.10 OF10(1510- )

ILLUST NO.10 OF10(1510- )

Part Price Details
