GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1510- )GYL2#

Click highlighted areas on diagram

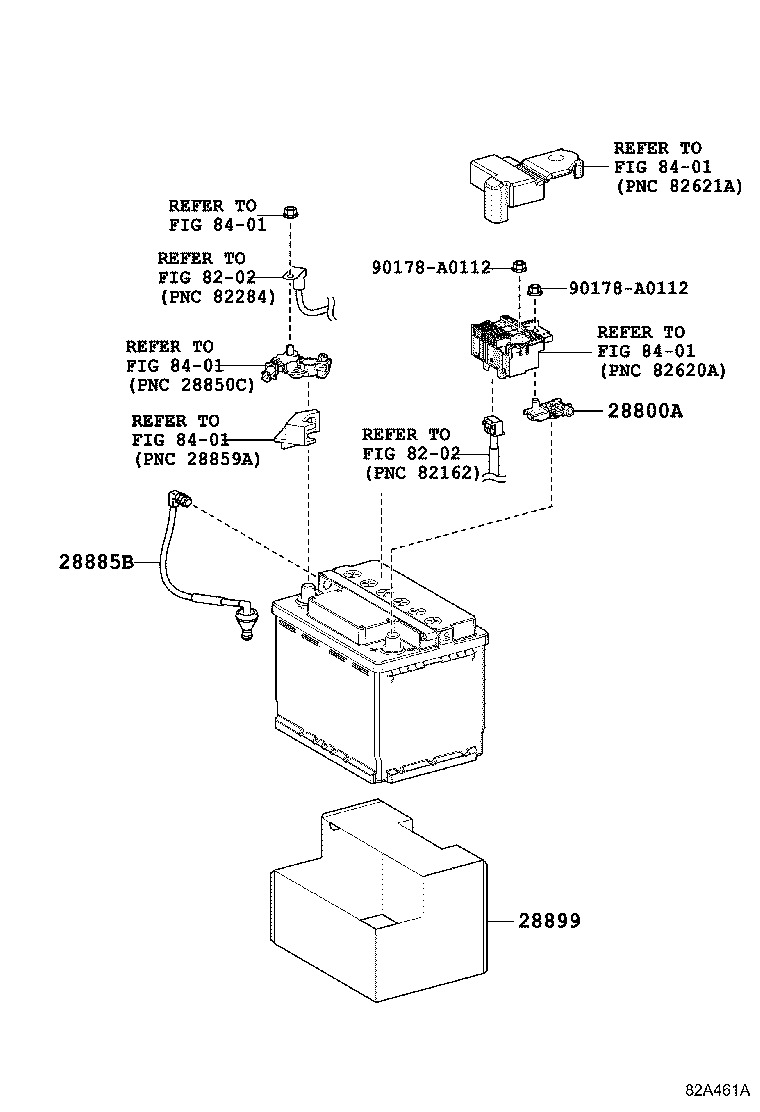

12V BATTERY

diagram 28800A 28885B 28899 8202 8202 8401 8401 8401 8401 8401 90178A0112 90178A0112
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2GRFXS..GYL25

 1
28885B - HOSE, BATTERY
28885-0P020

2GRFXS..GYL25

 1
28899 - INSULATOR, BATTERY
28899-0P030

2GRFXS..GYL25

 1
Common parts
90178-A0112
Linked diagrams
8202
8401

ILLUST NO. 3 OF 4(1510- )GYL2#

Click highlighted areas on diagram

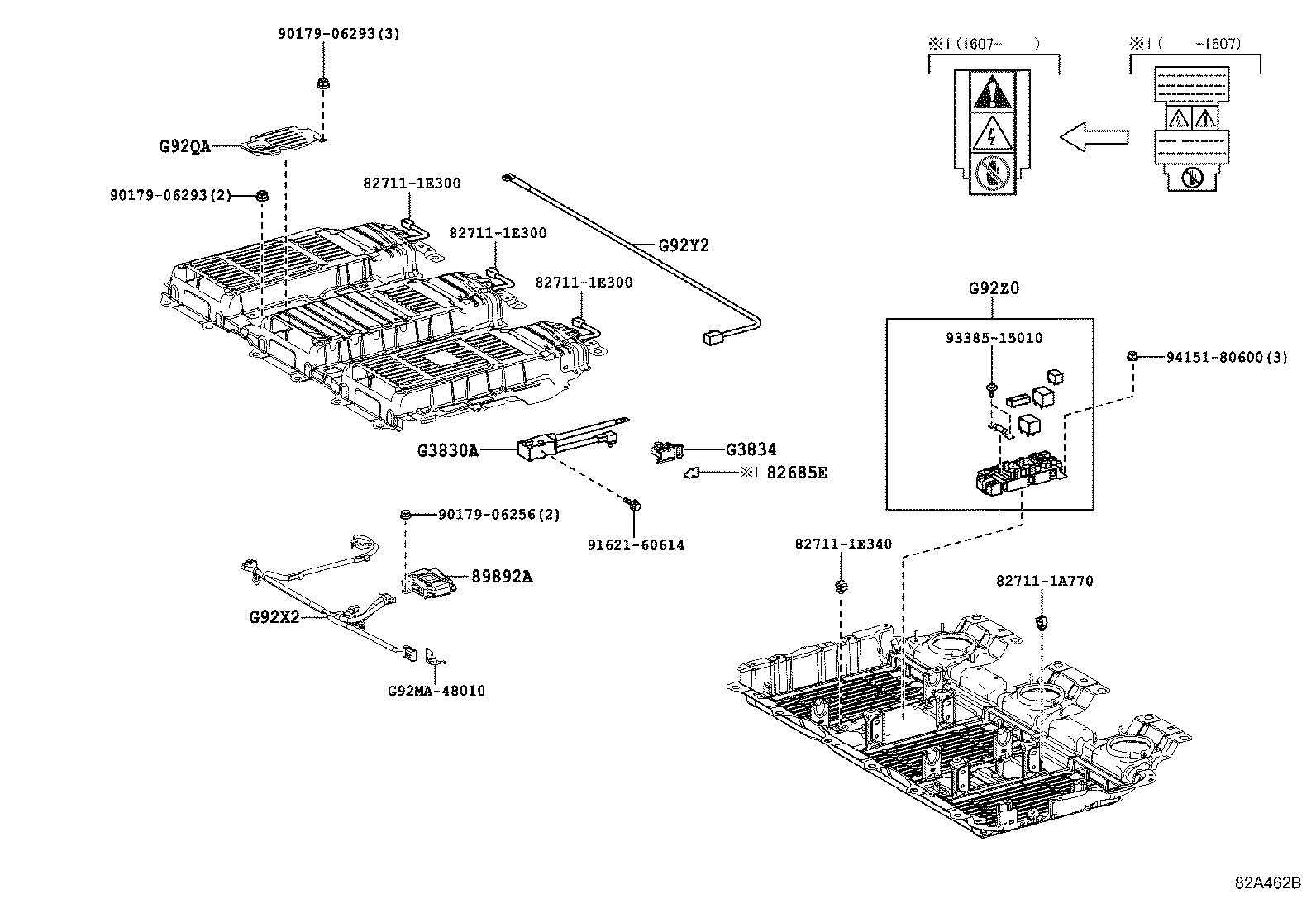

HV BATTERY

diagram 82685E 827111A770 827111E300 827111E300 827111E300 827111E340 89892A 9017906256 9017906293 9017906293 9162160614 9338515010 9415180600 G3830A G3834 G92MA48010 G92QA G92X2 G92Y2 G92Z0
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-50050

GYL2#

 1
82685-76020

GYL25

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-48040

GYL25

 1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-48040

GYL25

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

GYL25

 1
G92QA - PANEL, HV BATTERY SHIELD, NO.8
G92QA-48010

GYL25

 1
G92X2 - WIRE, HV BATTERY PACK, NO.2
G92X2-48030

GYL25

 1
G92Y2 - CABLE, HV BATTERY PACK, NO.2
G92Y2-48030

GYL25

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-58010

GYL25

 1
Common parts
82711-1A770
82711-1E300
82711-1E340
90179-06256
90179-06293
91621-60614
93385-15010
94151-80600
G92MA-48010

ILLUST NO. 2 OF 4(1510- )GYL2#

Click highlighted areas on diagram

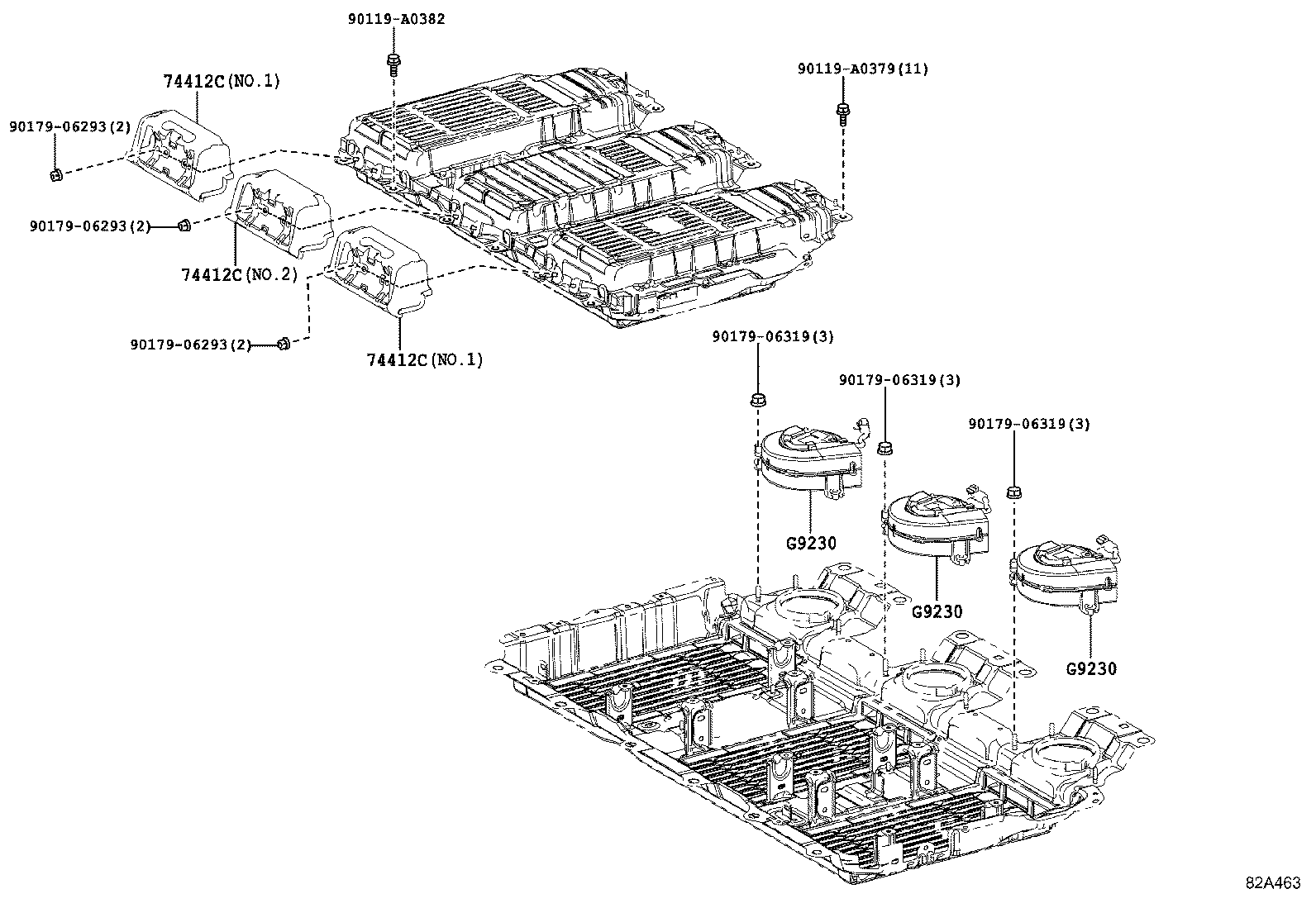

HV BATTERY

diagram 74412C 74412C 74412C 90119A0379 90119A0382 9017906293 9017906293 9017906293 9017906319 9017906319 9017906319 G9230 G9230 G9230
Part # Description Qty Price
74412C - DUCT, BATTERY CARRIER
74412-48030

GYL25

NO.1

 2
74412-48040

GYL25

NO.2

 1
74412C - DUCT, BATTERY CARRIER
74412-48030

GYL25

NO.1

 2
74412-48040

GYL25

NO.2

 1
74412C - DUCT, BATTERY CARRIER
74412-48030

GYL25

NO.1

 2
74412-48040

GYL25

NO.2

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48060

GYL25

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48060

GYL25

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48060

GYL25

 3
Common parts
90119-A0379
90119-A0382
90179-06293
90179-06319

ILLUST NO. 4 OF 4(1510- )GYL2#

Click highlighted areas on diagram

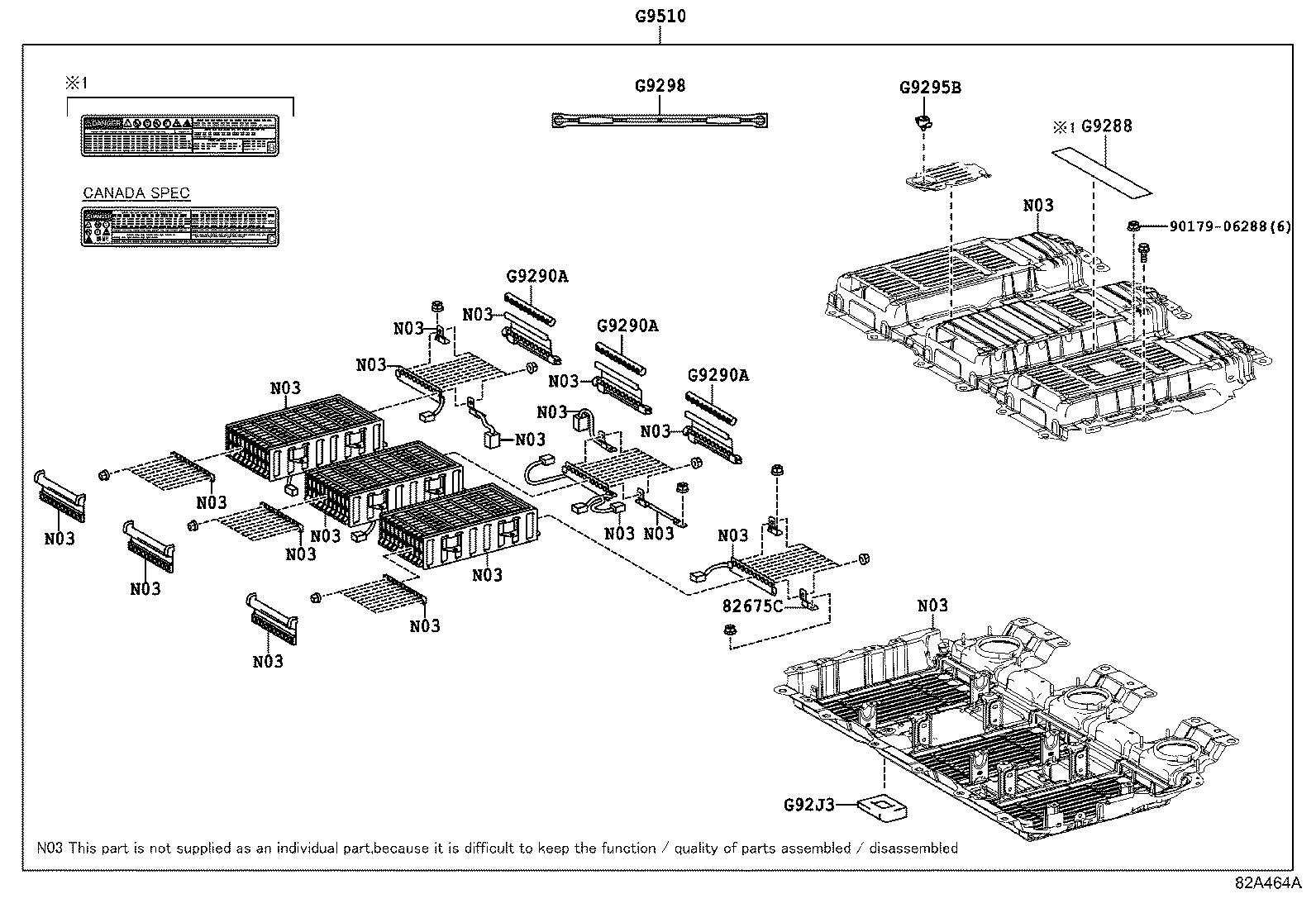

HV BATTERY

diagram 82675C 9017906288 G9288 G9290A G9290A G9290A G9295B G9298 G92J3 G9510
Part # Description Qty Price
82675C - TERMINAL, JUNCTION
82675-48060

GYL25

 1
G9288 - LABEL, BATTERY CHARGING NOTICE
G9288-50020

GYL25

 1
G9288-48030

GYL25

CANADA SPEC

 1
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-48030

GYL25

 3
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-48030

GYL25

 3
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-48030

GYL25

 3
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

GYL25

 2
G9298 - CLAMP, HV BATTERY
G9298-48010

GYL25

 2
G92J3 - SHEET, HV BATTERY CARRIER, NO.3
G92J3-48010

GYL25

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-48070

GYL25

 1
Common parts
90179-06288
