GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510-1909)

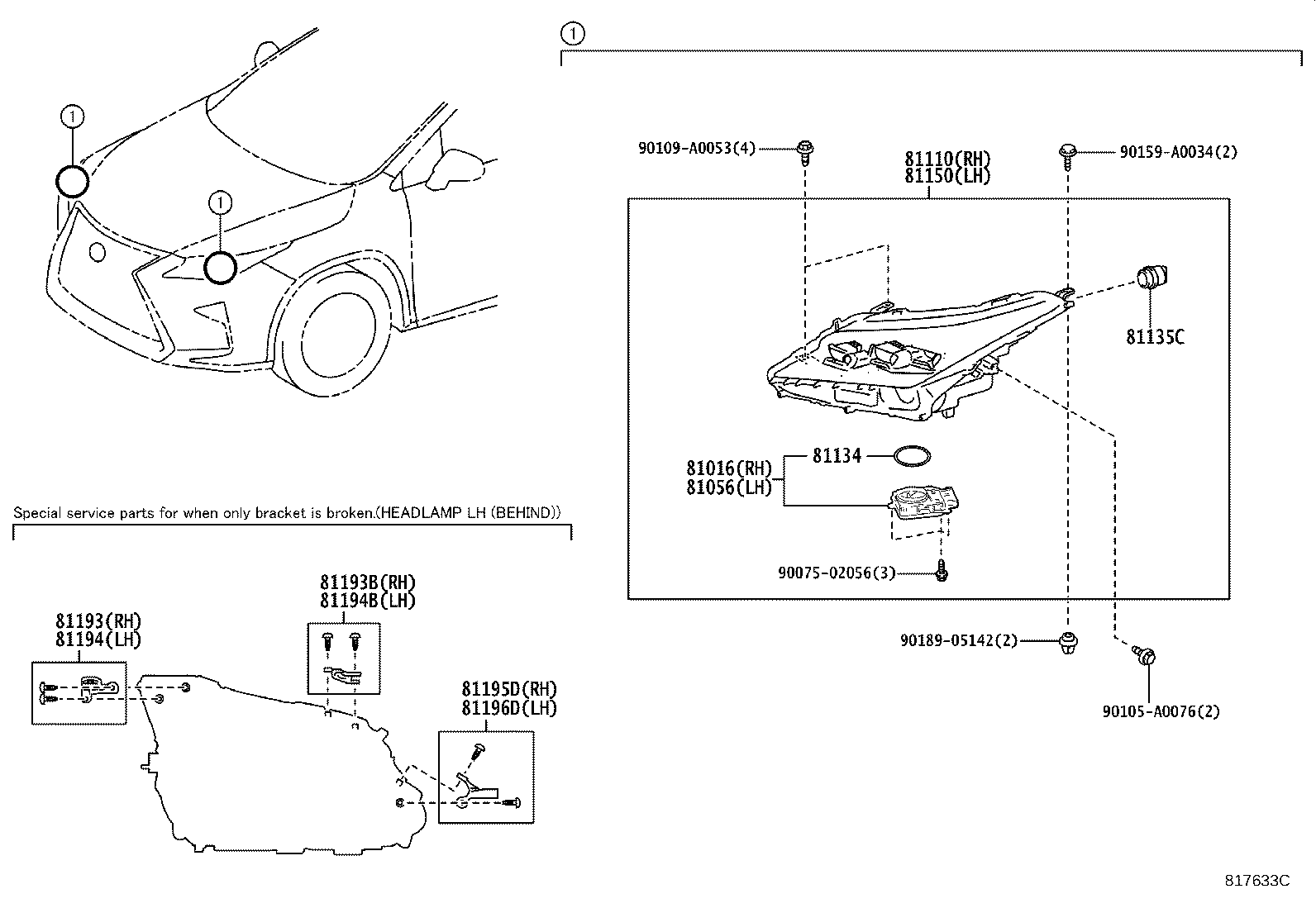

TRIPLE BEAM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-48C30 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81016-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-48C31 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-48C30 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81056-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81056-48C31 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81110-0E270 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81110-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81110-0E260 |
GGL2#,GYL25 |
1 | ||
| 81110-0E271 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81110-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-22B70 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 81135-22B70 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 81135-22B70 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 81135-22B70 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81150-0E270 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81150-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81150-0E271 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81150-0E260 |
GGL2#,GYL25 |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-48100 |
GGL2#,GYL25 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-48120 |
GGL2#,GYL25 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-48100 |
GGL2#,GYL25 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-48120 |
GGL2#,GYL25 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-48110 |
GGL2#,GYL25 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-48110 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-A0076 | ||||
| 90109-A0053 | ||||
| 90159-A0034 | ||||
| 90189-05142 | ||||
(1510-1909)

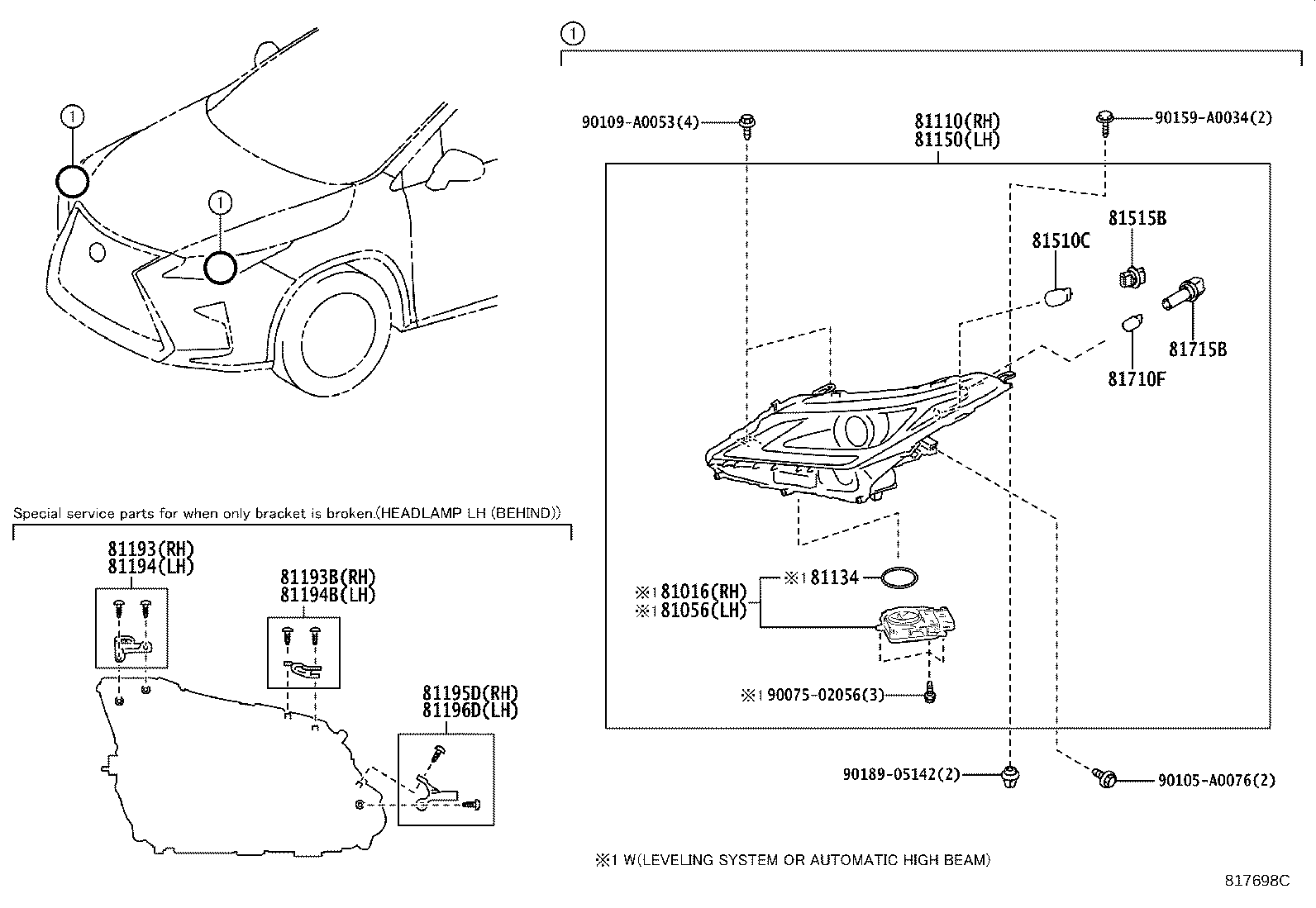

SINGLE BEAM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-48C30 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81016-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81016-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81016-48C31 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-48C30 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81056-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81056-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81056-48C31 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81056-48C80 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81110-0E270 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81110-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81110-0E260 |
GGL2#,GYL25 |
1 | ||
| 81110-0E271 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81110-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81110-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
2 | ||
| 90075-23003 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
2 | ||
| 90075-23003 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0E280 |
GGL2#,GYL25 HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81150-0E270 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81150-0E280 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB&*AFLS) |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81150-0E271 |
GGL2#,GYL25 COLD AREA SPEC |
1 | ||
| 81150-0E260 |
GGL2#,GYL25 |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 81150-0E290 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-48100 |
GGL2#,GYL25 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-48120 |
GGL2#,GYL25 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-48100 |
GGL2#,GYL25 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-48120 |
GGL2#,GYL25 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-48110 |
GGL2#,GYL25 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-48110 |
GGL2#,GYL25 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15024 |
GGL2#,GYL25 12V 28/8W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60083 |
GGL2#,GYL25 |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 90981-11069 |
GGL2#,GYL25 |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60077 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-A0076 | ||||
| 90109-A0053 | ||||
| 90159-A0034 | ||||
| 90189-05142 | ||||
