GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

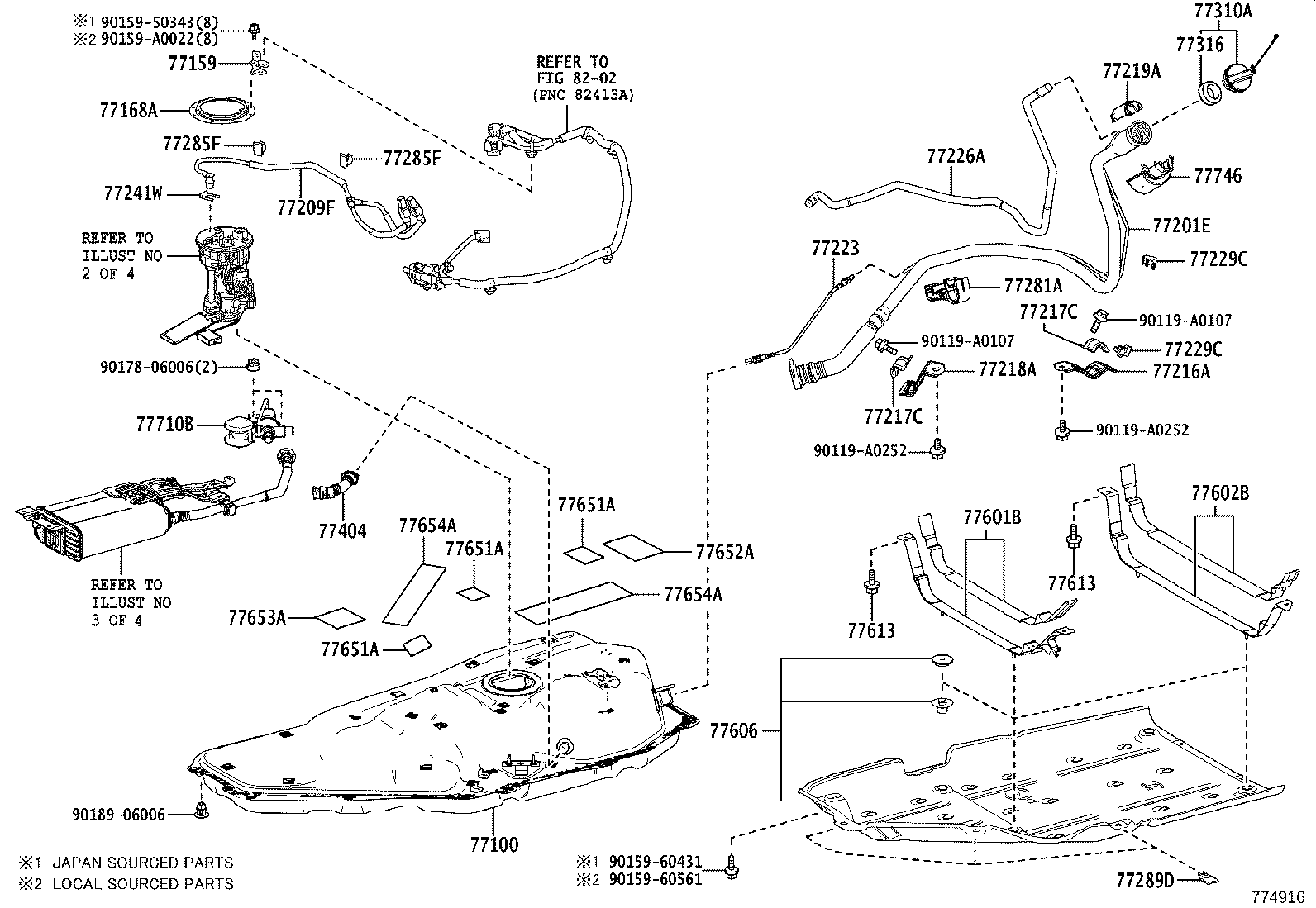

ILLUST NO. 1 OF 4(1510- )GYL2#
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0E110 |
GYL2# |
1 | ||
| 77001-0E111 |
GYL25 |
1 | ||
| 77159 - PLATE, SUCTION TUBE SUPPORT | ||||
| 77159-0E010 |
GYL25 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
GYL25 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0E120 |
GYL25 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0E100 |
GYL2# |
1 | ||
| 77209-0E101 |
GYL25 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0E040 |
GGL2#,GYL25 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E050 |
GGL2#,GYL25 |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E050 |
GGL2#,GYL25 |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0E060 |
GYL25 |
1 | ||
| 77219A - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-06110 |
GGL2#,GYL25 |
1 | ||
| 77223 - TUBE, FUEL TANK BREATHER, NO.3 | ||||
| 77203-0E010 |
GYL25 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0E090 |
GYL25 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
GGL2#,GYL25 |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-0E010 |
GGL2#,GYL25 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
GYL25 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-0E030 |
GGL2#,GYL25 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33110 |
GYL25 |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33110 |
GYL25 |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-48040 |
GYL25 |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53040 |
GYL25 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
GYL25 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-0E040 |
GYL25 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-0E040 |
GYL25 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0E040 |
GYL25 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0E050 |
GYL25 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
GGL2#,GYL25 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
GGL2#,GYL25 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL25 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL25 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL25 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-60060 |
GYL25 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
GYL25 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
GYL25 |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
GYL25 |
2 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-48020 |
GYL25 |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77745-06060 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90119-A0107 | ||||
| 90119-A0252 | ||||
| 90159-50343 | ||||
| 90159-60431 | ||||
| 90159-60561 | ||||
| 90159-A0022 | ||||
| 90178-06006 | ||||
| 90189-06006 | ||||
| Linked diagrams | ||||
| 8202 | ||||

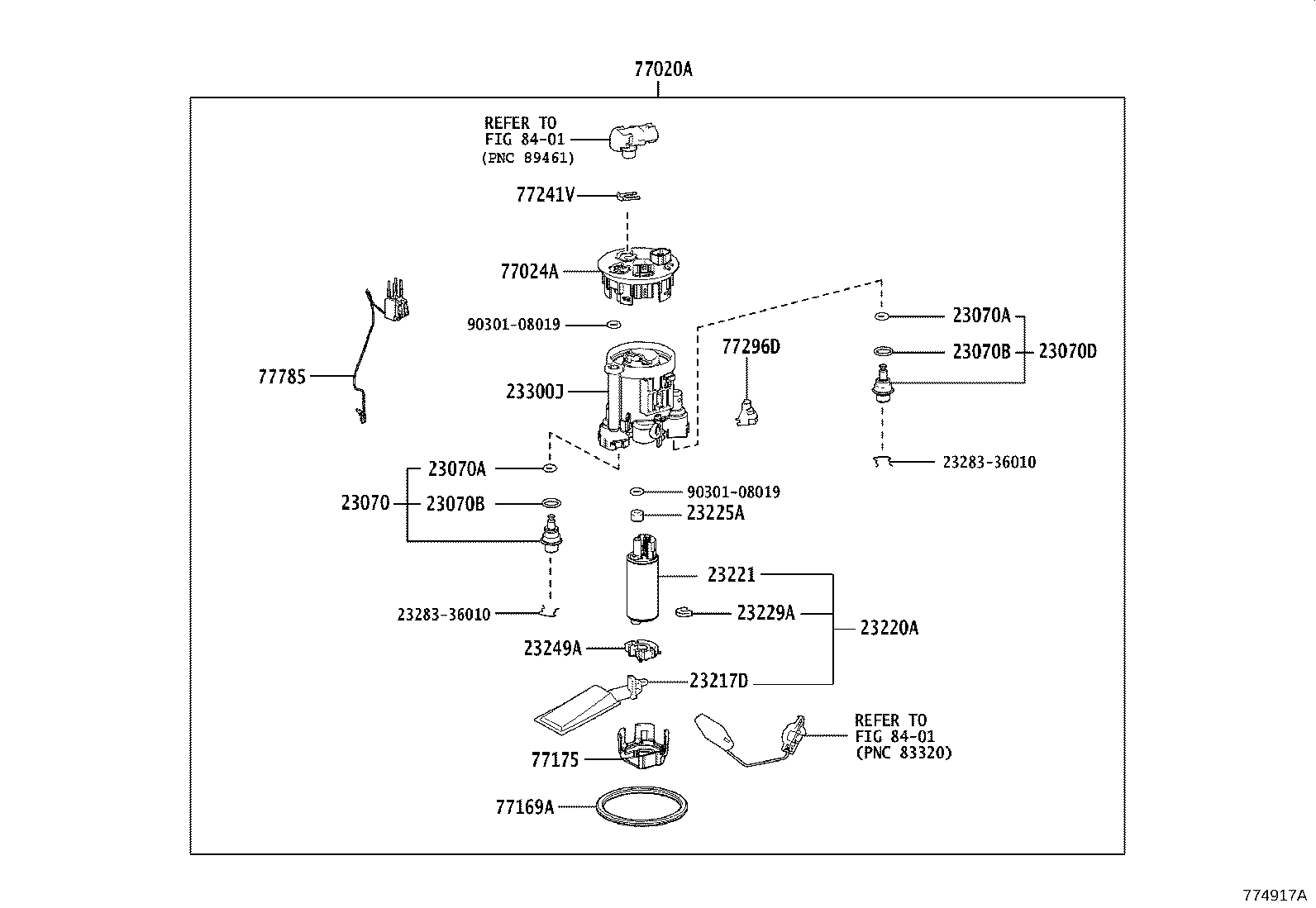

ILLUST NO. 2 OF 4(1510- )GYL2#
Click highlighted areas on diagram
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
2GR#..GGL2#,GYL2# |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-04013 |
2GR#..GGL2#,GYL2# |
2 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-04013 |
2GR#..GGL2#,GYL2# |
2 | ||
| 23070B - RING, O, NO.2(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
2GR#..GGL2#,GYL2# |
2 | ||
| 23070B - RING, O, NO.2(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
2GR#..GGL2#,GYL2# |
2 | ||
| 23070D - VALVE ASSY, FUEL MAIN, NO.2 | ||||
| 23070-31030 |
2GR#..GGL2#,GYL2# |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31090 |
2GRFXS..GYL25 |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31600 |
2GRFXS..GYL2# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
2GR#..GGL2#,GYL25 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
2GRFXS..GYL25 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2GRFXS..GYL25 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2GRFXS..GYL25 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31240 |
2GRFXS..GYL25 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-48260 |
GYL25 |
1 | ||
| 77020-48261 |
GYL25 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48090 |
GYL25 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33030 |
GYL25 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-48010 |
GYL25 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GYL25 |
1 | ||
| 77296D - PLATE, FUEL TUBE SUPPORT | ||||
| 77296-48010 |
GYL25 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48070 |
GYL25 |
1 | ||
| Common parts | ||||
| 23283-36010 | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1510- )GYL2#
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-0E040 |
GYL25 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0E140 |
GYL25 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-0E030 |
GYL25 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-0E120 |
GYL25 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0E060 |
GYL25 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0E060 |
GYL25 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-0E100 |
GYL25 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-0E070 |
GGL2#,GYL25 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E170 |
GYL25 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0E180 |
GYL25 |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 90949-01C53 |
GYL2# |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-0E050 |
GYL25 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-0E070 |
GYL25 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0E050 |
GYL25 |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF006 |
GGL2#,GYL25 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-47010 |
GYL25 |
1 | ||
| Common parts | ||||
| 90080-46350 | ||||
| 90119-A0264 | ||||
| 90466-A0006 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

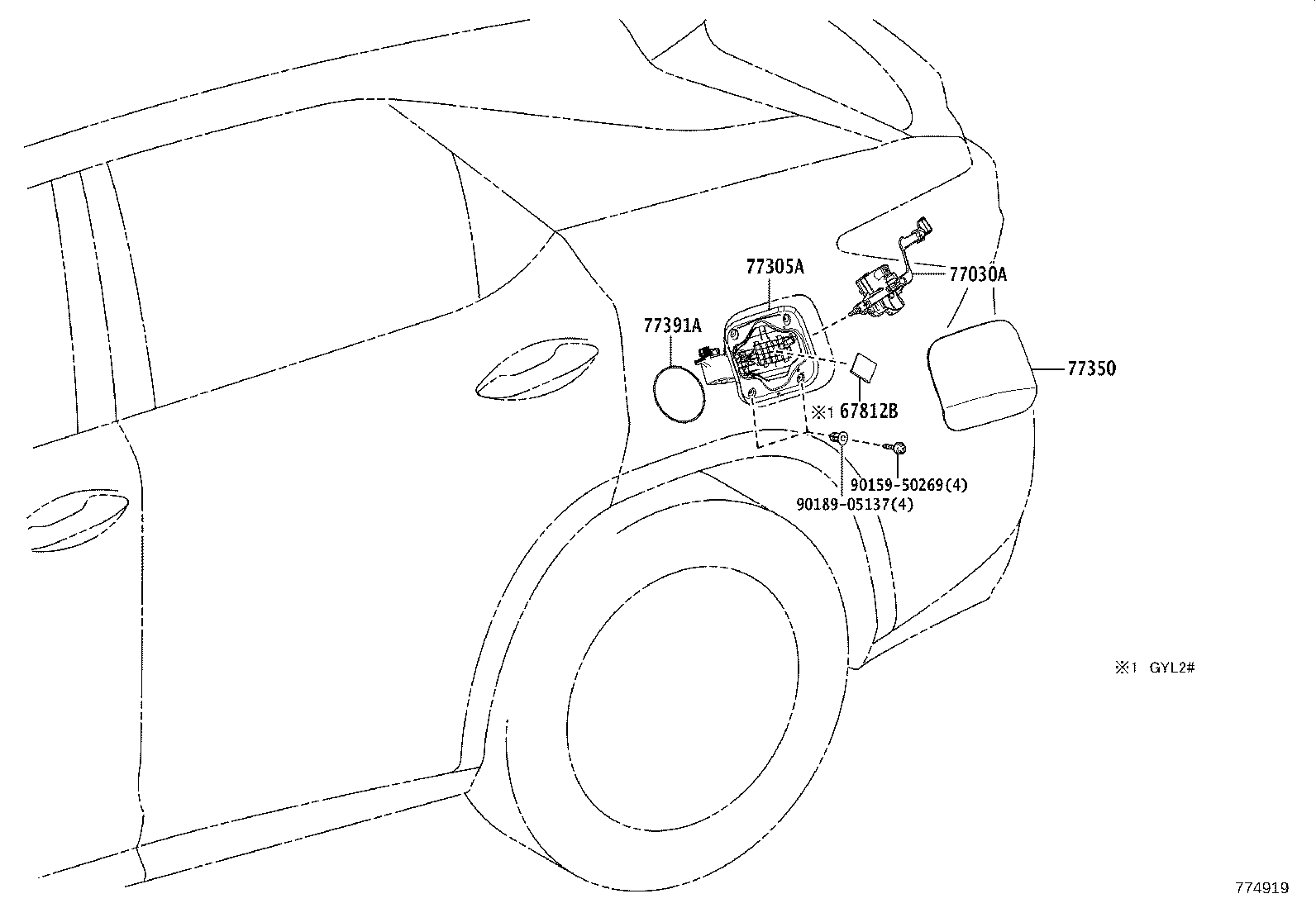

ILLUST NO. 4 OF 4(1510- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48081 |
GYL25 (J) |
1 | ||
| 77030-0E060 |
GYL25 (L) |
1 | ||
| 77030-48080 |
GYL25 (J) |
1 | ||
| 77030-0E061 |
GYL25 (L) |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0E021 |
GYL25 |
1 | ||
| 77305-0E020 |
GYL2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0E060 |
GGL2#,GYL25 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
