GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

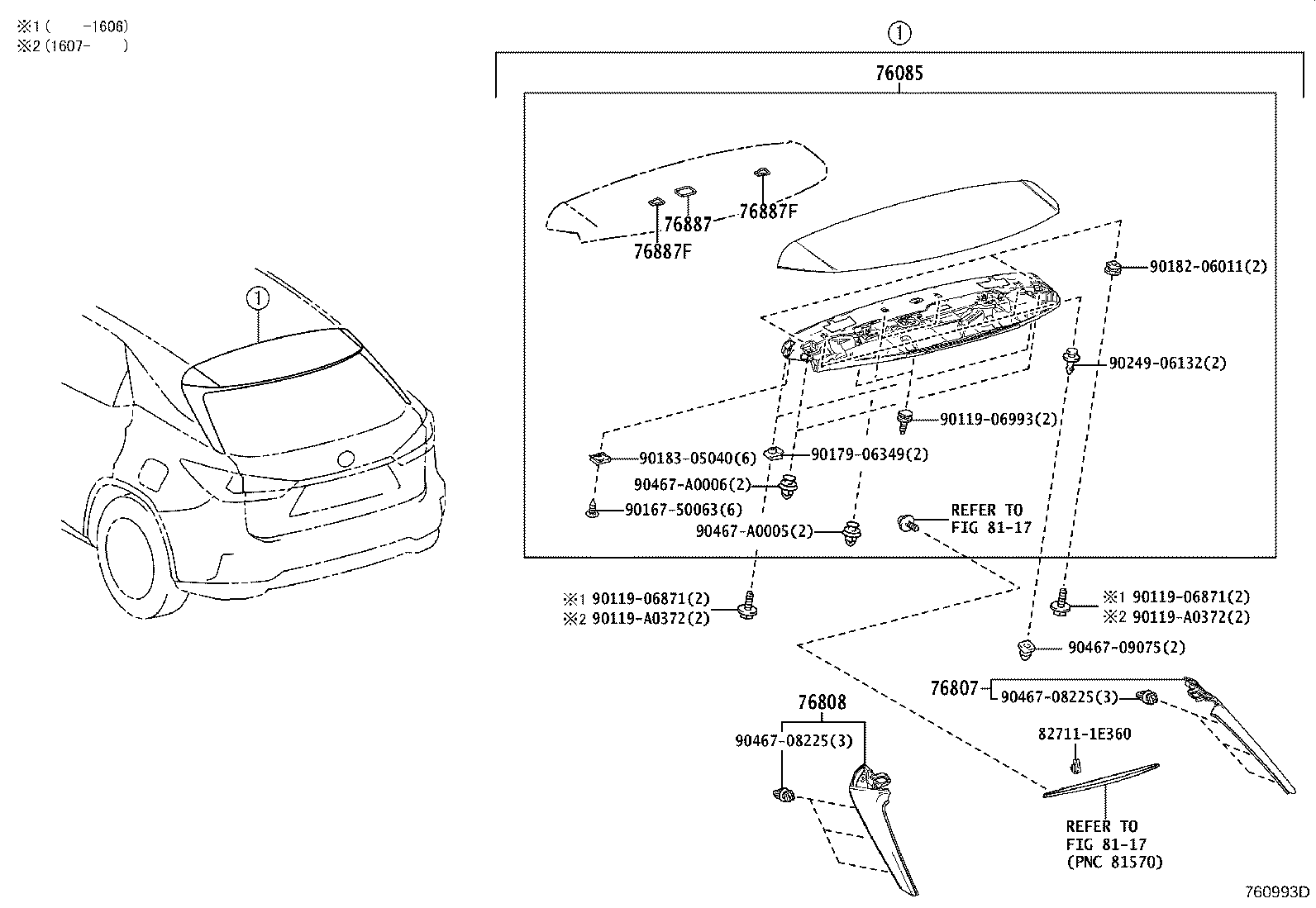

Click highlighted areas on diagram

diagram 76085 76807 76808 76887 76887F 76887F 8117 8117 827111E360 9011906871 9011906871 9011906993 90119A0372 90119A0372 9016750063 9017906349 9018206011 9018305040 9024906132 9046708225 9046708225 9046709075 90467A0005 90467A0006
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-0E916

GGL2#,GYL25

PAINT REQ.

 1
76807 - PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH
76807-0E010

GGL2#,GYL25

 1
76807-0E011

GGL2#,GYL25

 1
76808 - PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH
76808-0E011

GGL2#,GYL25

 1
76808-0E010

GGL2#,GYL25

 1
76887 - SEAL, REAR SPOILER
76887-0E030

GGL2#,GYL25

 1
76887F - SEAL, REAR SPOILER, NO.2
76887-0E040

GGL2#,GYL25

 2
76887F - SEAL, REAR SPOILER, NO.2
76887-0E040

GGL2#,GYL25

 2
Common parts
82711-1E360
90119-06871
90119-06993
90119-A0372
90167-50063
90179-06349
90182-06011
90183-05040
90249-06132
90467-08225
90467-09075
90467-A0005
90467-A0006
Linked diagrams
8117
