GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )GYL2#

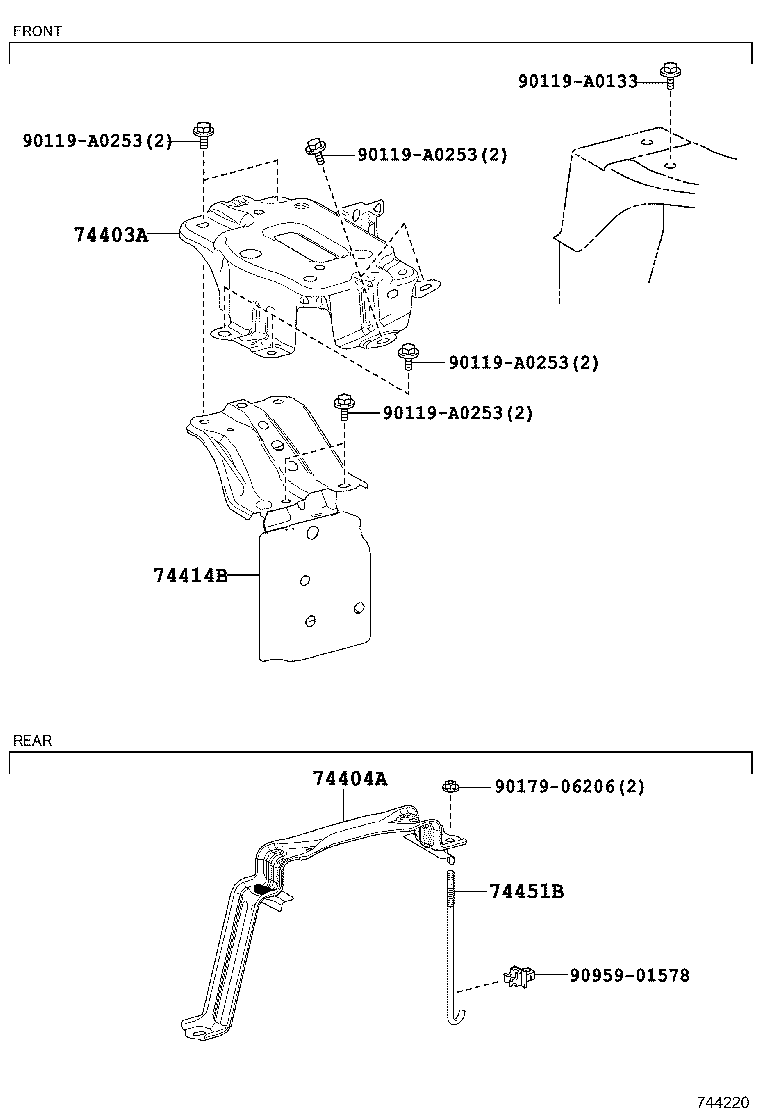

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403A - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-0E020 |
GYL25 |
1 | ||
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-0E080 |
GYL25 |
1 | ||
| 74414B - REINFORCEMENT, BATTERY BRACKET | ||||
| 74414-0E020 |
GYL25 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-0E010 |
GYL25 |
1 | ||
| Common parts | ||||
| 90119-A0133 | ||||
| 90119-A0253 | ||||
| 90179-06206 | ||||
| 90959-01578 | ||||
