GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

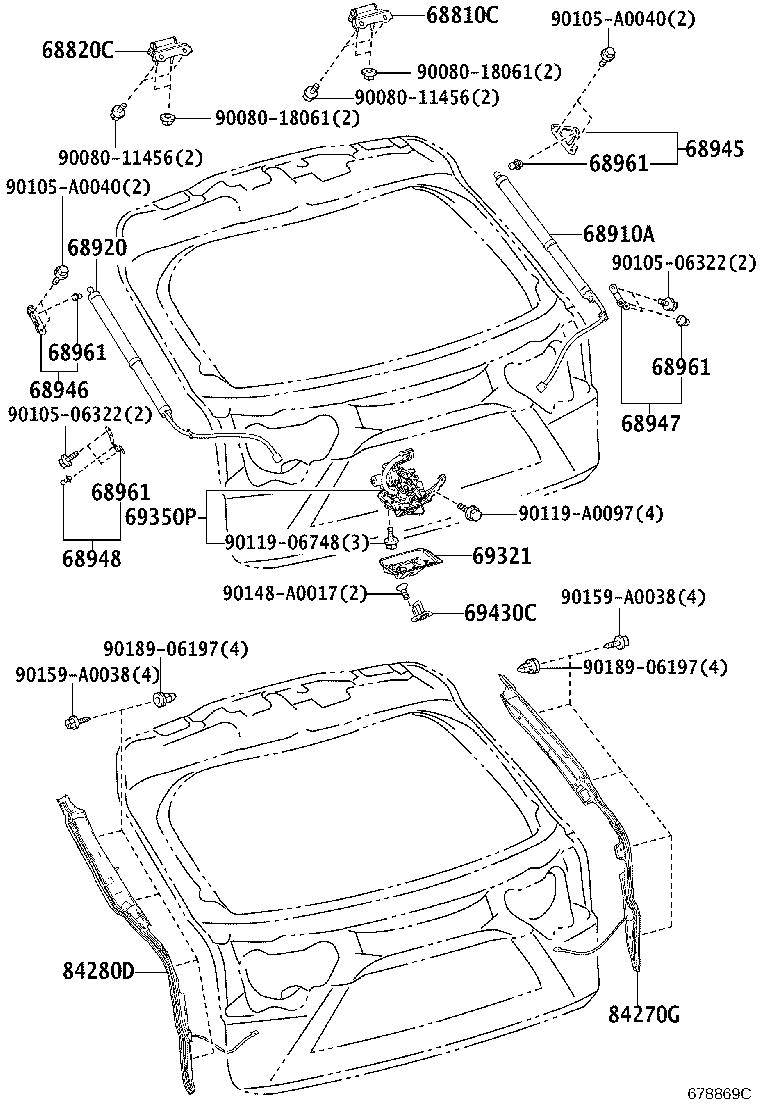

Click highlighted areas on diagram

diagram 68810C 68820C 68910A 68920 68945 68946 68947 68948 68961 68961 68961 68961 69321 69350P 69430C 84270G 84280D 9008011456 9008011456 9008018061 9008018061 9010506322 9010506322 90105A0040 90105A0040 9011906748 90119A0097 90148A0017 90159A0038 90159A0038 9018906197 9018906197
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-0E220

GGL2#,GYL25

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0E220

GGL2#,GYL25

 1
68910A - UNIT ASSY SET, POWER BACK DOOR, RH
68910-0E060

GGL2#,GYL25

 1
68910-0E061

GGL2#,GYL25

 1
68920 - UNIT ASSY SET, POWER BACK DOOR, LH
68920-0E040

GGL2#,GYL25

 1
68920-0E041

GGL2#,GYL25

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0E130

GGL2#,GYL25

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0E090

GGL2#,GYL25

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0E040

GGL2#,GYL25

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0E030

GGL2#,GYL25

 1
68961 - BOLT, BACK DOOR STAY
68961-0R010

GGL2#,GYL25

NO.2

 2
68961-0R020

GGL2#,GYL25

NO.1

 2
68961 - BOLT, BACK DOOR STAY
68961-0R010

GGL2#,GYL25

NO.2

 2
68961-0R020

GGL2#,GYL25

NO.1

 2
68961 - BOLT, BACK DOOR STAY
68961-0R010

GGL2#,GYL25

NO.2

 2
68961-0R020

GGL2#,GYL25

NO.1

 2
68961 - BOLT, BACK DOOR STAY
68961-0R010

GGL2#,GYL25

NO.2

 2
68961-0R020

GGL2#,GYL25

NO.1

 2
69321 - COVER, BACK DOOR LOCK
69321-0E070

GGL2#,GYL25

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0E110

GGL2#,GYL25

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0E040

GGL2#,GYL25

 1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-0E050

GGL2#,GYL2#

 1
84270-0E051

GGL2#,GYL25

 1
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-0E051

GGL2#,GYL25

 1
84280-0E050

GGL2#,GYL2#

 1
Common parts
90080-11456
90080-18061
90105-06322
90105-A0040
90119-06748
90119-A0097
90148-A0017
90159-A0038
90189-06197
