GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

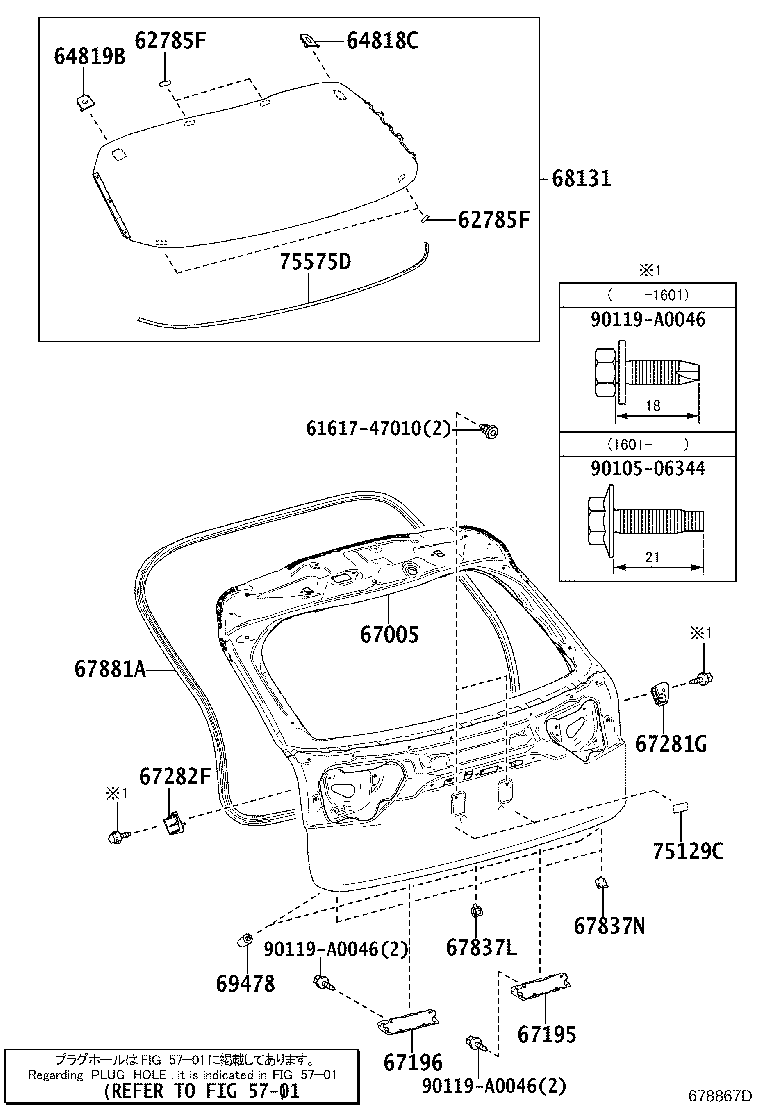

ILLUST NO. 1 OF 2(1510- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 6161747010 62785F 62785F 64818C 64819B 67005 67195 67196 67281G 67282F 67837L 67837N 67881A 68131 69478 75129C 75575D 9010506344 90119A0046 90119A0046 90119A0046
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

GGL2#,GYL25

 4
62785F - SPACER, BACK DOOR GLASS
62785-60030

GGL2#,GYL25

 4
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-0E070

GGL2#,GYL25

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-0E030

GGL2#,GYL25

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0E410

GGL2#,GYL2#

AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)

 1
67005-0E380

GGL2#,GYL25

AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)

 1
67005-0E420

GGL2#,GYL2#

 1
67005-0E390

GGL2#,GYL25

 1
67195 - REINFORCEMENT, BACK DOOR STAY, LOWER RH
67195-0E010

GGL2#,GYL25

 1
67196 - REINFORCEMENT, BACK DOOR STAY, LOWER LH
67195-0E010

GGL2#,GYL25

 1
67281G - STOPPER, BACK DOOR, LOWER RH
67281-0E040

GGL2#,GYL2#

 1
67281-0E041

GGL2#,GYL25

 1
67282F - STOPPER, BACK DOOR, LWR LH
67282-0E030

GGL2#,GYL2#

 1
67282-0E031

GGL2#,GYL25

 1
67837L - SEAL, DOOR DUST PROOF
67837-0E010

GGL2#,GYL25

 1
67837N - SEAL, BACK DOOR DUST PROOF
67837-0E100

GGL2#,GYL25

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-0E070

GGL2#,GYL25

 1
67881-0E071

GGL2#,GYL25

 1
68131 - GLASS, BACK DOOR
68105-0E110

GGL2#,GYL25

 1
69478 - CUSHION, BACK DOOR LOWER STOPPER
69478-48020

GGL2#,GYL2#

 2
75129C - CUSHION, REAR LICENCE PLATE
75129-AC010

GGL2#,GYL25

 2
75575D - MOULDING, BACK WINDOW, LOWER
75575-0E030

GGL2#,GYL25

 1
Common parts
61617-47010
90105-06344
90119-A0046
Linked diagrams
5701

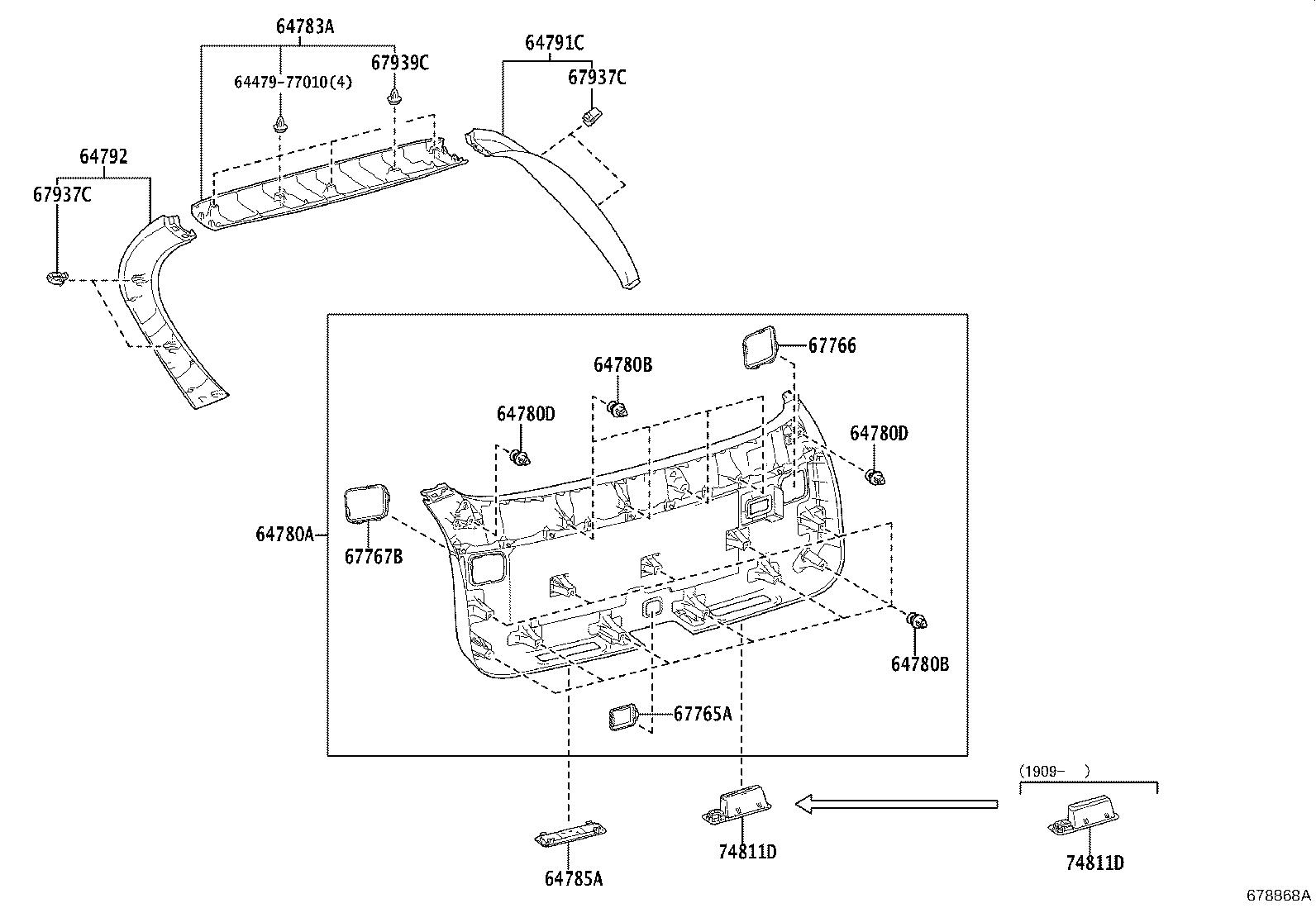

ILLUST NO. 2 OF 2(1510- )

Click highlighted areas on diagram

DOOR TRIM

diagram 6447977010 64780A 64780B 64780B 64780D 64780D 64783A 64785A 64791C 64792 67765A 67766 67767B 67937C 67937C 67939C 74811D 74811D
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-0E090E1

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
64780-0E090C1

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-09240

GGL2#,GYL25

 15
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-09240

GGL2#,GYL25

 15
64780D - RETAINER(FOR BACK DOOR TRIM BOARD)
64479-77010

GGL2#,GYL25

 2
64780D - RETAINER(FOR BACK DOOR TRIM BOARD)
64479-77010

GGL2#,GYL25

 2
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-0E110C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
64783-0E110E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
64785A - BASE, BACK DOOR TRIM
64785-0E020C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
64785-0E020E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
64791C - COVER, BACK DOOR TRIM, RH
64791-0E090C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
64791-0E090E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
64792 - COVER, BACK DOOR TRIM, LH
64792-0E090C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
64792-0E090E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-0E070C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
67765-0E070E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-0E070C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
67766-0E070E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
67767B - COVER, BACK DOOR SERVICE HOLE, NO.3
67767-0E030E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
67767-0E030C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241

GGL2#,GYL25

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241

GGL2#,GYL25

 4
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
67771-58020

GGL2#,GYL25

 1
74811D - HANDLE, DOOR PULL
69291-0E020E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
69291-0E020C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
74811D - HANDLE, DOOR PULL
69291-0E020E0

GGL2#,GYL25

NOBLE BROWN,TRIM0#,5#

 1
69291-0E020C0

GGL2#,GYL25

BLACK,TRIM1#,2#,3#,4#

 1
Common parts
64479-77010
