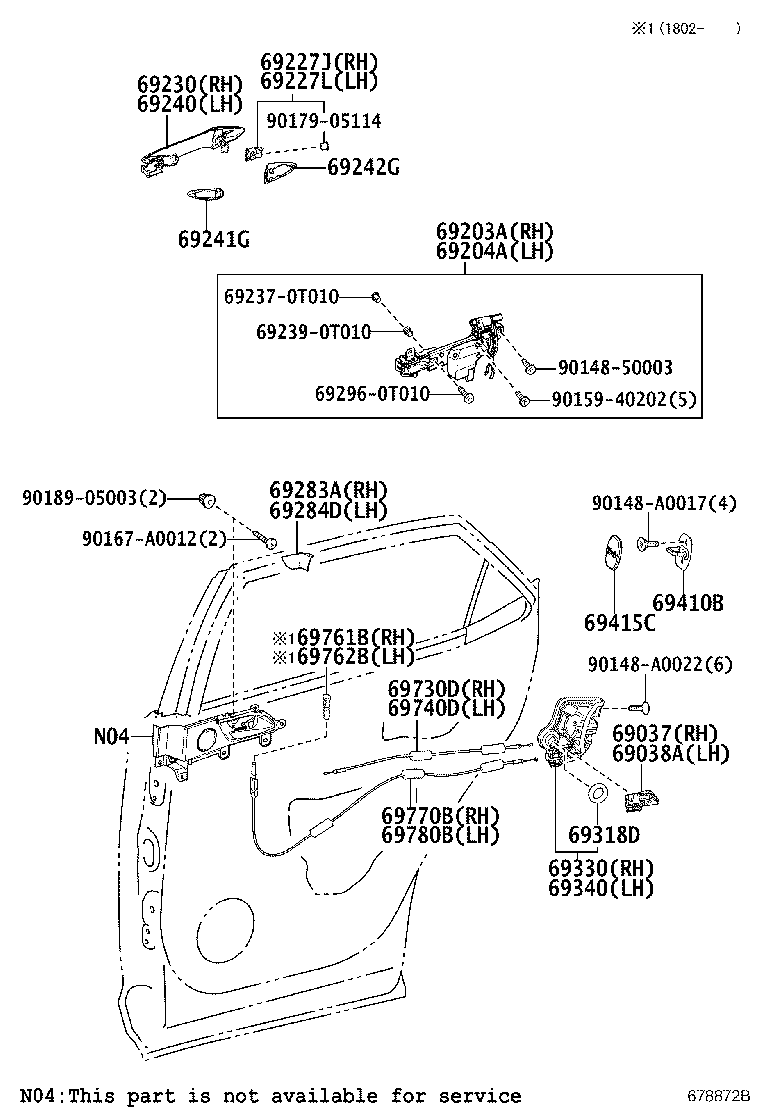

Toyota Lexus rx450h/350(nap GYL25 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-02030	GGL2#,GYL25	10/2015 - 09/2019	1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-02030	GGL2#,GYL25	10/2015 - 09/2019	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-0E080	GGL2#,GYL25 BLACK MATERIAL	10/2015 - 09/2019	1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69228-0E020	GGL2#,GYL25 BLACK MATERIAL	10/2015 - 09/2019	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-0E100E1	GGL2#,GYL25 AMBER CS.,4X2	10/2015 - 01/2019	1
69210-0E100B1	GGL2#,GYL25 PLATINUM SILVER ME.,1J4	10/2015 - 09/2019	1
69210-0E100C0	GGL2#,GYL25 BLACK,212	10/2015 - 09/2019	1
69210-0E100A1	GGL2#,GYL25 SONIC QUARTZ,085	10/2015 - 09/2019	1
69210-0E100A0	GGL2#,GYL25 WHITE NOVA GF.,083	10/2015 - 09/2019	1
69210-0E100E0	GGL2#,GYL25 SLEEK ECRU ME.,4U7	10/2015 - 09/2019	1
69210-0E100B2	GGL2#,GYL25 SONIC TITANIUM,1J7	08/2016 - 09/2019	1
69210-0E100J0	GGL2#,GYL25 DEEP BLUE MC.,8X5	10/2015 - 09/2019	1
69210-0E100D0	GGL2#,GYL25 RED MC.CS.,3R1	10/2015 - 09/2019	1
69210-0E100C1	GGL2#,GYL25 GRAPHITE BLACK GF.,223	10/2015 - 09/2019	1
69210-0E100B0	GGL2#,GYL25 MERCURY GRAY MC.,1H9	10/2015 - 09/2019	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-0E050A1	GGL2#,GYL25 SONIC QUARTZ,085	10/2015 - 09/2019	1
69220-0E050J0	GGL2#,GYL25 DEEP BLUE MC.,8X5	10/2015 - 09/2019	1
69220-0E050B2	GGL2#,GYL25 SONIC TITANIUM,1J7	08/2016 - 09/2019	1
69220-0E050B0	GGL2#,GYL25 MERCURY GRAY MC.,1H9	10/2015 - 09/2019	1
69220-0E050E1	GGL2#,GYL25 AMBER CS.,4X2	10/2015 - 01/2019	1
69220-0E050A0	GGL2#,GYL25 WHITE NOVA GF.,083	10/2015 - 09/2019	1
69220-0E050E0	GGL2#,GYL25 SLEEK ECRU ME.,4U7	10/2015 - 09/2019	1
69220-0E050D0	GGL2#,GYL25 RED MC.CS.,3R1	10/2015 - 09/2019	1
69220-0E050C0	GGL2#,GYL25 BLACK,212	10/2015 - 09/2019	1
69220-0E050C1	GGL2#,GYL25 GRAPHITE BLACK GF.,223	10/2015 - 09/2019	1
69220-0E050B1	GGL2#,GYL25 PLATINUM SILVER ME.,1J4	10/2015 - 09/2019	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0E070	GGL2#,GYL25 RH	10/2015 - 09/2019	1
69242-0E080	GGL2#,GYL25 LH	10/2015 - 09/2019	1
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69241-0E080	GGL2#,GYL25 RH	10/2015 - 09/2019	1
69242-0E090	GGL2#,GYL25 LH	10/2015 - 09/2019	1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-0E030C0	GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#	10/2015 - 09/2019	1
69283-0E030E0	GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#	10/2015 - 09/2019	1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-0E030C0	GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#	10/2015 - 09/2019	1
69284-0E030E0	GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#	10/2015 - 09/2019	1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-AA010	GGL2#,GYL25	10/2015 - 09/2019	2
69330 - LOCK ASSY, REAR DOOR, RH
69050-0E050	GGL2#,GYL25	10/2015 - 09/2019	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-0E050	GGL2#,GYL25	10/2015 - 09/2019	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33030	GGL2#,GYL25	10/2015 - 09/2019	2
69415C - COVER, DOOR LOCK STRIKER, REAR
69415-0E010	GGL2#,GYL25	10/2015 - 09/2019	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
69761B - BEZEL, REAR DOOR LOCK CONTROL KNOB, RH
69761-0E030	GGL2#,GYL25 4 SETS	02/2018 - 11/2018	1
69761-0E030	GGL2#,GYL25	11/2018 - 09/2019	1
69761-48040	GGL2#,GYL25 1 SET	02/2018 - 11/2018	1
69762B - BEZEL, REAR DOOR LOCK CONTROL KNOB, LH
69761-0E030	GGL2#,GYL25	11/2018 - 09/2019	1
69761-48040	GGL2#,GYL25 1 SET	02/2018 - 11/2018	1
69761-0E030	GGL2#,GYL25 4 SETS	02/2018 - 11/2018	1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0E070	GGL2#,GYL25	10/2015 - 02/2018	1
69770-0E071	GGL2#,GYL25	02/2018 - 09/2019	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0E071	GGL2#,GYL25	02/2018 - 09/2019	1
69770-0E070	GGL2#,GYL25	10/2015 - 02/2018	1
Common parts
69237-0T010
69239-0T010
69296-0T010
90148-50003
90148-A0017
90148-A0022
90159-40202
90167-A0012
90179-05114
90189-05003

GYL25L-CWXGBA (2015)

(1510- )
