GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

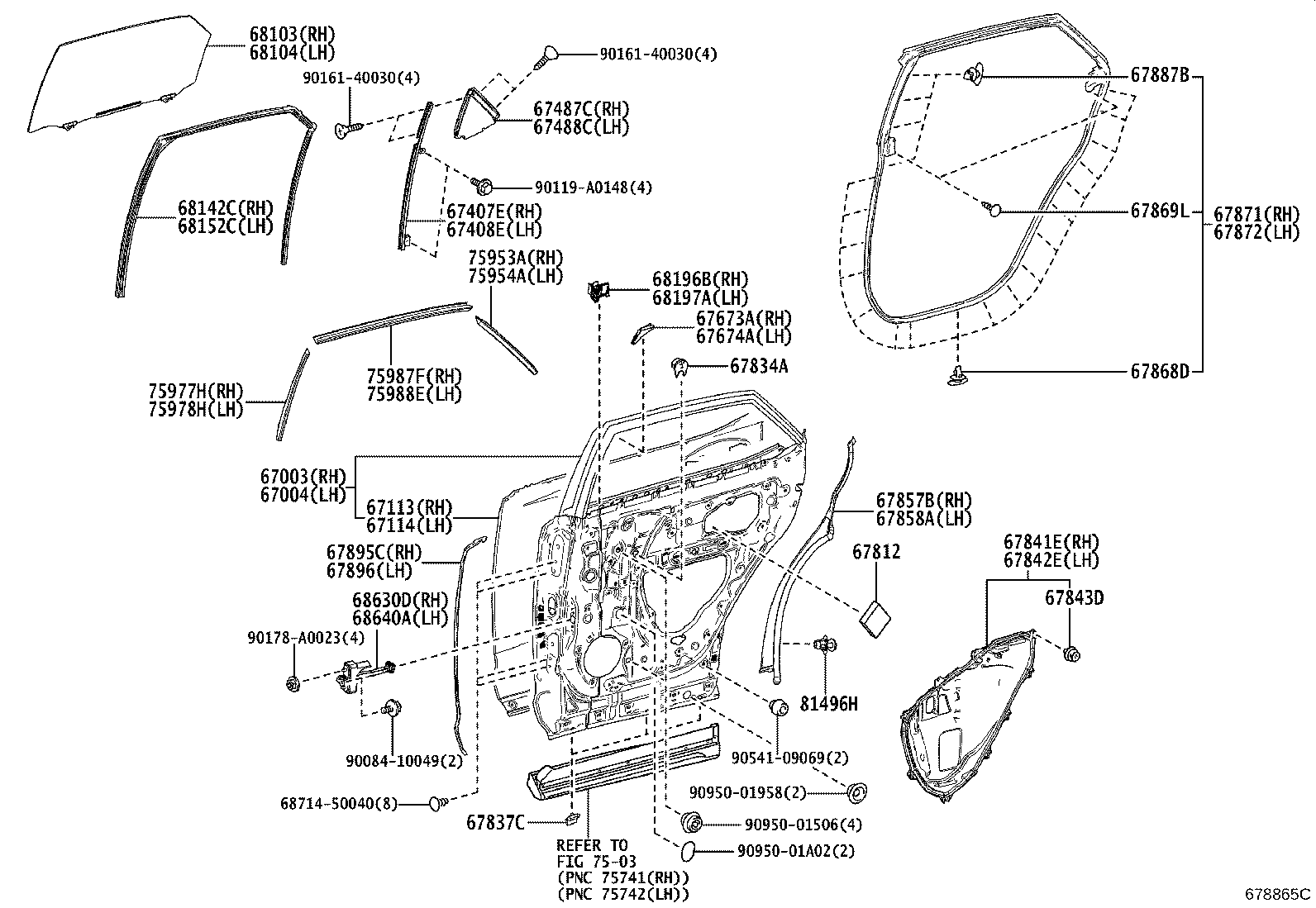

ILLUST NO. 1 OF 2(1510- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0E140 |
GGL2#,GYL25 |
1 | ||
| 67003-0E170 |
GGL2#,GYL2# "VERSION L"*(L) |
1 | ||
| 67003-0E150 |
GGL2#,GYL25 "VERSION L"*(L) |
1 | ||
| 67003-0E160 |
GGL2#,GYL2# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0E170 |
GGL2#,GYL2# "VERSION L"*(L) |
1 | ||
| 67004-0E150 |
GGL2#,GYL25 "VERSION L"*(L) |
1 | ||
| 67004-0E160 |
GGL2#,GYL2# |
1 | ||
| 67004-0E140 |
GGL2#,GYL25 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0E070 |
GGL2#,GYL25 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0E070 |
GGL2#,GYL25 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-0E070 |
GGL2#,GYL25 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-0E070 |
GGL2#,GYL25 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67470-0E010 |
GGL2#,GYL25 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67480-0E010 |
GGL2#,GYL25 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0E080 |
GGL2#,GYL25 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0E070 |
GGL2#,GYL25 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-AA040 |
GGL2#,GYL25 |
2 | ||
| 67811-30100 |
GGL2#,GYL25 |
2 | ||
| 67834A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67833-0E010 |
GGL2#,GYL25 |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0E060 |
GGL2#,GYL25 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0E080 |
GGL2#,GYL25 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0E080 |
GGL2#,GYL25 |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 90467-A0005 |
GGL2#,GYL25 |
18 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-0E060 |
GGL2#,GYL25 |
1 | ||
| 67857-0E062 |
GGL2#,GYL25 |
1 | ||
| 67857-0E061 |
GGL2#,GYL25 |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-0E041 |
GGL2#,GYL25 |
1 | ||
| 67858-0E042 |
GGL2#,GYL25 |
1 | ||
| 67858-0E040 |
GGL2#,GYL25 |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GGL2#,GYL25 |
36 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-20030 |
GGL2#,GYL25 |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0E070 |
GGL2#,GYL25 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0E070 |
GGL2#,GYL25 |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-48030 |
GGL2#,GYL25 |
8 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-0E050 |
GGL2#,GYL25 |
1 | ||
| 67895-0E051 |
GGL2#,GYL25 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-0E040 |
GGL2#,GYL25 |
1 | ||
| 67896-0E041 |
GGL2#,GYL25 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-0E080 |
GGL2#,GYL25 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-0E070 |
GGL2#,GYL25 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0E070 |
GGL2#,GYL25 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0E070 |
GGL2#,GYL25 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-0E010 |
GGL2#,GYL25 |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-0E010 |
GGL2#,GYL25 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-0E080 |
GGL2#,GYL25 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-0E080 |
GGL2#,GYL25 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-0E050 |
GGL2#,GYL25 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-0E050 |
GGL2#,GYL25 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-0E020 |
GGL2#,GYL25 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-0E020 |
GGL2#,GYL25 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-0E030 |
GGL2#,GYL25 "VERSION L"*(L) |
1 | ||
| 75987-0E020 |
GGL2#,GYL25 |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-0E020 |
GGL2#,GYL25 |
1 | ||
| 75988-0E030 |
GGL2#,GYL25 "VERSION L"*(L) |
1 | ||
| 81496H - GUIDE, REAR DOOR PANEL PROTECTOR | ||||
| 81496-50010 |
GGL2#,GYL2# |
2 | ||
| Common parts | ||||
| 68714-50040 | ||||
| 90084-10049 | ||||
| 90119-A0148 | ||||
| 90161-40030 | ||||
| 90178-A0023 | ||||
| 90541-09069 | ||||
| 90950-01506 | ||||
| 90950-01958 | ||||
| 90950-01A02 | ||||
| Linked diagrams | ||||
| 7503 | ||||

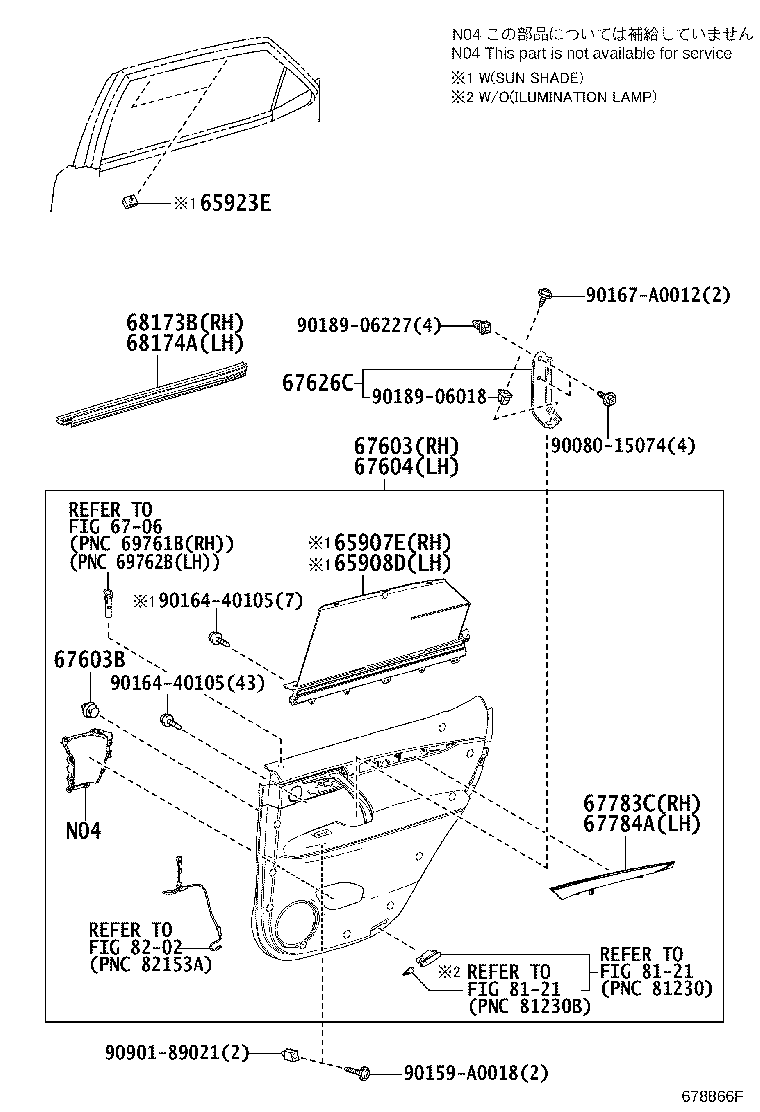

ILLUST NO. 2 OF 2(1510- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER |
1 | ||
| 65907-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 65907-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 65908-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER |
1 | ||
| 65908-0E030 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 65923E - HOOK, CURTAIN | ||||
| 65923-0E010 |
GGL2#,GYL25 "VERSION L"*(L) |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0E310C5 |
GYL2# BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67630-0E310C3 |
GYL2# BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67630-0E320C3 |
GYL2# SPEAKER-15SPEAKER & *MAR,BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67630-0E320C5 |
GYL2# SPEAKER-12SPEAKER,BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67630-0E320C5 |
GYL2# SPEAKER-15SPEAKER & *MAR,BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67630-0E52020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),BLACK/ BROWN,TRIM4# |
1 | ||
| 67630-0E520E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),BROWN,TRIM5# |
1 | ||
| 67630-0E53020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/BROWN,TRIM4# |
1 | ||
| 67630-0E320C3 |
GYL2# SPEAKER-12SPEAKER,BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67630-0E580C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E580C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E53020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ BROWN,TRIM4# |
1 | ||
| 67630-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E530E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BROWN,TRIM5# |
1 | ||
| 67630-0E650E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BROWN/ IVORY,TRIM0# |
1 | ||
| 67630-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E530E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BROWN,TRIM5# |
1 | ||
| 67630-0E700C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E580C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E700C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E640E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP),BROWN/ IVORY,TRIM0# |
1 | ||
| 67630-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E700C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E650E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BROWN/ IVORY,TRIM0# |
1 | ||
| 67630-0E62020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E62022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E63020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E630E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67630-0E63022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E62021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67630-0E620E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67630-0E630E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67630-0E630E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67630-0E63020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E620E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67630-0E63021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67630-0E63021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67630-0E630E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67630-0E63022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E500C6 |
GYL25 BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67630-0E510C6 |
GYL25 SPEAKER-12SPEAKER,BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67630-0E580C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E500C4 |
GYL25 BLACK,TRIM2# |
1 | ||
| 67630-0E580C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E510C4 |
GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM2# |
1 | ||
| 67630-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E510C6 |
GYL25 SPEAKER-15SPEAKER & *MAR,BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67630-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E700C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E700C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E510C4 |
GYL25 SPEAKER-12SPEAKER,BLACK,TRIM2# |
1 | ||
| 67630-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ SILVER,TRIM2# |
1 | ||
| 67630-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E700C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67630-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67630-0E780E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67630-0E780C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E790C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E780E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67630-0E790C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E780C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E790E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67630-0E790C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E580C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67630-0E790E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E790E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67630-0E780C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E790C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67630-0E511C4 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM2# |
1 | ||
| 67630-0E501C4 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 67630-0E501C6 |
GGL2#,GYL25 BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E790C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E790E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E790C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E581C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67630-0E511C6 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E591C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/SILVER,TRIM2# |
1 | ||
| 67630-0E591C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/SILVER,TRIM2# |
1 | ||
| 67630-0E591C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67630-0E511C6 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E581C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/SILVER,TRIM2# |
1 | ||
| 67630-0E591C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67630-0E621E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67630-0E591C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67630-0E621E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67630-0E63120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E591C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67630-0E511C4 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM2# |
1 | ||
| 67630-0E62121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67630-0E62120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E63120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E62122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E63121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67630-0E631E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67630-0E63122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E63122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E63121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67630-0E581C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67630-0E631E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67630-0E631E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67630-0E631E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67630-0E701C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E711C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E701C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E711C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E781C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E791C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E711C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67630-0E781E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67630-0E791C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E701C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67630-0E781E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E781C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E791E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67630-0E791C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67630-0E791C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E711C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67630-0E791C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E791E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E711C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67630-0E781C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLACK,TRIM2# |
1 | ||
| 67630-0E791E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67630-0E711C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67630-0E791C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67630-0E791E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-A0005 |
GGL2#,GYL2# |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0E320C3 |
GYL2# SPEAKER-12SPEAKER,BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67640-0E310C5 |
GYL2# BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67640-0E310C3 |
GYL2# BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67640-0E320C3 |
GYL2# SPEAKER-15SPEAKER & *MAR,BLACK / DK.BROWN,TRIM2# |
1 | ||
| 67640-0E320C5 |
GYL2# SPEAKER-15SPEAKER & *MAR,BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67640-0E320C5 |
GYL2# SPEAKER-12SPEAKER,BLACK/MOONSTONE/ DK.BROWN,TRIM1# |
1 | ||
| 67640-0E52020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),BLACK/ BROWN,TRIM4# |
1 | ||
| 67640-0E520E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),BROWN,TRIM5# |
1 | ||
| 67640-0E53020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ BROWN,TRIM4# |
1 | ||
| 67640-0E530E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BROWN,TRIM5# |
1 | ||
| 67640-0E530E7 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BROWN,TRIM5# |
1 | ||
| 67640-0E53020 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/BROWN,TRIM4# |
1 | ||
| 67640-0E580C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E700C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E580C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E650E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BROWN/ IVORY,TRIM0# |
1 | ||
| 67640-0E650E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BROWN/ IVORY,TRIM0# |
1 | ||
| 67640-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E580C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E700C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E700C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E640E0 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP),BROWN/ IVORY,TRIM0# |
1 | ||
| 67640-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E62021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67640-0E62022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E63021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67640-0E62020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E620E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67640-0E620E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67640-0E63022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E63021 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ BROWN/ DK.GRAY,TRIM4# |
1 | ||
| 67640-0E63020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E630E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67640-0E63020 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E630E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67640-0E63022 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E630E9 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/ DK.GRAY,TRIM5# |
1 | ||
| 67640-0E630E8 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/ IVORY/ DK.GRAY,TRIM0# |
1 | ||
| 67640-0E500C6 |
GYL25 BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67640-0E510C4 |
GYL25 SPEAKER-12SPEAKER,BLACK,TRIM2# |
1 | ||
| 67640-0E510C4 |
GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM2# |
1 | ||
| 67640-0E500C4 |
GYL25 BLACK,TRIM2# |
1 | ||
| 67640-0E510C6 |
GYL25 SPEAKER-12SPEAKER,BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67640-0E580C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E580C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E580C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E590C4 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ SILVER,TRIM3# |
1 | ||
| 67640-0E590C3 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ SILVER,TRIM2# |
1 | ||
| 67640-0E700C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E510C6 |
GYL25 SPEAKER-15SPEAKER & *MAR,BLACK / MOONSTONE,TRIM1# |
1 | ||
| 67640-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E710C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E710C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E780C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E710C2 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ DK.ROSE/ DK.GRAY,TRIM3# |
1 | ||
| 67640-0E700C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.GRAY,TRIM2# |
1 | ||
| 67640-0E780E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E590C5 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/ MOONSTONE/ SILVER,TRIM1# |
1 | ||
| 67640-0E790C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E780E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E780C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E700C1 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/ DK.GRAY,TRIM1# |
1 | ||
| 67640-0E790E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E790C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67640-0E790C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E780C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67640-0E790E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E511C6 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E581C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67640-0E790C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67640-0E790E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E511C4 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM2# |
1 | ||
| 67640-0E501C4 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 67640-0E581C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67640-0E790E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E591C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/SILVER,TRIM2# |
1 | ||
| 67640-0E790C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E511C4 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM2# |
1 | ||
| 67640-0E581C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/SILVER,TRIM2# |
1 | ||
| 67640-0E591C3 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/SILVER,TRIM2# |
1 | ||
| 67640-0E501C6 |
GGL2#,GYL25 BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E790C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E62120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E511C6 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E62121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67640-0E591C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67640-0E63121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67640-0E62122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E591C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67640-0E591C4 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.ROSE/SILVER,TRIM3# |
1 | ||
| 67640-0E591C5 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE/SILVER,TRIM1# |
1 | ||
| 67640-0E631E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67640-0E621E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67640-0E631E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67640-0E63121 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/BROWN/DK.GRAY,TRIM4# |
1 | ||
| 67640-0E631E8 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/IVORY/DK.GRAY,TRIM0# |
1 | ||
| 67640-0E701C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E701C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67640-0E701C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E631E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67640-0E711C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E63122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E711C1 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E621E9 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BROWN/DK.GRAY,TRIM5# |
1 | ||
| 67640-0E63120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E711C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E63122 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/MOON STONE/DK.GRAY,TRIM1# |
1 | ||
| 67640-0E711C0 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E63120 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK/DK.GRAY,TRIM2# |
1 | ||
| 67640-0E781C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E711C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67640-0E711C2 |
GGL2#,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/DK.ROSE/DK.GRAY,TRIM3# |
1 | ||
| 67640-0E781E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E781E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E791E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E791C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67640-0E791C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E781C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E791C0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-0E791C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E791C1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/MOON STONE,TRIM1# |
1 | ||
| 67640-0E791E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/IVORY,TRIM0# |
1 | ||
| 67640-0E791C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67640-0E791E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E791E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN/TOPAZ BROWN,TRIM5# |
1 | ||
| 67640-0E781C2 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/NOBLE BROWN,TRIM4# |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67645-0E030 |
GGL2#,GYL25 |
2 | ||
| 67783C - ORNAMENT, REAR DOOR TRIM, RH | ||||
| 67783-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67783-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP) |
1 | ||
| 67783-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67783-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67783-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP) |
1 | ||
| 67783-0E040 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP) |
1 | ||
| 67783-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67783-0E070 |
GYL2# |
1 | ||
| 67783-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP) |
1 | ||
| 67783-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 67783-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67783-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67783-0E080 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-0E080F1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM0# |
1 | ||
| 67783-0E080E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM1#,2# |
1 | ||
| 67783-0E080E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM4#,5# |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER |
1 | ||
| 67783-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67783-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 67783-0E080 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER |
1 | ||
| 67783-0E020 |
GYL25 |
1 | ||
| 67783-0E040 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 67784A - ORNAMENT, REAR DOOR TRIM, LH | ||||
| 67784-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP) |
1 | ||
| 67784-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E030 |
GYL2# DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67784-0E040 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP) |
1 | ||
| 67784-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67784-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP) |
1 | ||
| 67784-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67784-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN) |
1 | ||
| 67784-0E060 |
GYL2# DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67784-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP) |
1 | ||
| 67784-48090 |
GGL2#,GYL2# "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E070 |
GYL2# |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67784-0E080E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM1#,2# |
1 | ||
| 67784-0E080 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E040 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER |
1 | ||
| 67784-0E040B0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 67784-0E080E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM4#,5# |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH) |
1 | ||
| 67784-0E020 |
GYL25 |
1 | ||
| 67784-48090 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 67784-0E080F1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TRIM0# |
1 | ||
| 67784-0E080 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0E070 |
GGL2#,GYL25 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0E070 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90159-A0018 | ||||
| 90164-40105 | ||||
| 90167-A0012 | ||||
| 90189-06018 | ||||
| 90189-06227 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 8121 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
