GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )

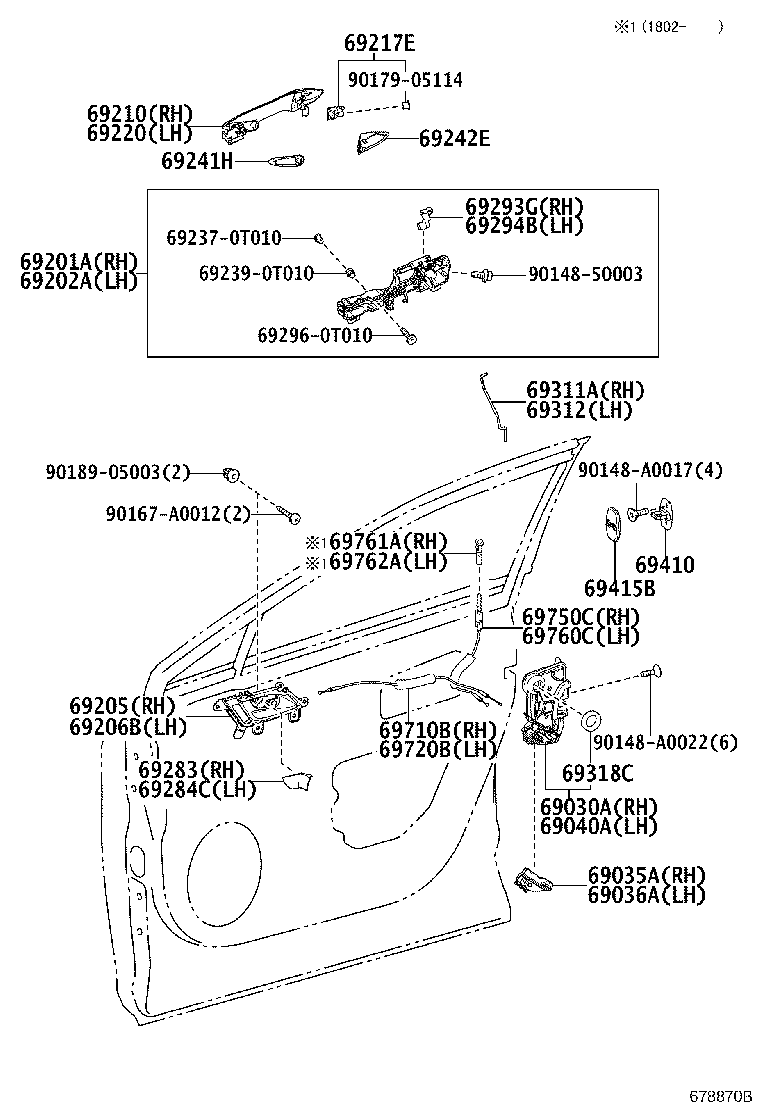

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-02380 |
GGL2#,GYL25 |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-02030 |
GGL2#,GYL25 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-02030 |
GGL2#,GYL25 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-02440 |
GGL2#,GYL25 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0E020 |
GGL2#,GYL25 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0E020 |
GGL2#,GYL25 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 67605-0E020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67605-0E020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 67606-0E030C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030E0 |
GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030C0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E020C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 67606-0E030E0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030C0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030C0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030E0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030C0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030E0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030C0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67606-0E030E0 |
GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-0E100E1 |
GGL2#,GYL25 AMBER CS.,4X2 |
1 | ||
| 69210-0E100A1 |
GGL2#,GYL25 SONIC QUARTZ,085 |
1 | ||
| 69210-0E100J0 |
GGL2#,GYL25 DEEP BLUE MC.,8X5 |
1 | ||
| 69210-0E100A0 |
GGL2#,GYL25 WHITE NOVA GF.,083 |
1 | ||
| 69210-0E100C0 |
GGL2#,GYL25 BLACK,212 |
1 | ||
| 69210-0E100B0 |
GGL2#,GYL25 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-0E100B2 |
GGL2#,GYL25 SONIC TITANIUM,1J7 |
1 | ||
| 69210-0E100D0 |
GGL2#,GYL25 RED MC.CS.,3R1 |
1 | ||
| 69210-0E100B1 |
GGL2#,GYL25 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-0E100E0 |
GGL2#,GYL25 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-0E100C1 |
GGL2#,GYL25 GRAPHITE BLACK GF.,223 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-0E100 |
GGL2#,GYL25 BLACK MATERIAL |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-0E050A0 |
GGL2#,GYL25 WHITE NOVA GF.,083 |
1 | ||
| 69220-0E050C0 |
GGL2#,GYL25 BLACK,212 |
1 | ||
| 69220-0E050D0 |
GGL2#,GYL25 RED MC.CS.,3R1 |
1 | ||
| 69220-0E050E1 |
GGL2#,GYL25 AMBER CS.,4X2 |
1 | ||
| 69220-0E050A1 |
GGL2#,GYL25 SONIC QUARTZ,085 |
1 | ||
| 69220-0E050B0 |
GGL2#,GYL25 MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-0E050B1 |
GGL2#,GYL25 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-0E050E0 |
GGL2#,GYL25 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-0E050J0 |
GGL2#,GYL25 DEEP BLUE MC.,8X5 |
1 | ||
| 69220-0E050B2 |
GGL2#,GYL25 SONIC TITANIUM,1J7 |
1 | ||
| 69220-0E050C1 |
GGL2#,GYL25 GRAPHITE BLACK GF.,223 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-0E080 |
GGL2#,GYL25 LH |
1 | ||
| 69241-0E070 |
GGL2#,GYL25 RH |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0E090 |
GGL2#,GYL25 LH |
1 | ||
| 69241-0E080 |
GGL2#,GYL25 RH |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 69283-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 69284-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GGL2#,GYL25 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GGL2#,GYL25 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0E070 |
GGL2#,GYL25 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0E060 |
GGL2#,GYL25 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-AA010 |
GGL2#,GYL25 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33030 |
GGL2#,GYL25 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-0E010 |
GGL2#,GYL25 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0E070 |
GGL2#,GYL25 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0E070 |
GGL2#,GYL25 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0E070 |
GGL2#,GYL25 |
1 | ||
| 69750-0E071 |
GGL2#,GYL25 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-0E071 |
GGL2#,GYL25 |
1 | ||
| 69750-0E070 |
GGL2#,GYL25 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-0E030 |
GGL2#,GYL25 4 SETS |
1 | ||
| 69761-0E030 |
GGL2#,GYL25 |
1 | ||
| 69761-48040 |
GGL2#,GYL25 1 SET |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69761-0E030 |
GGL2#,GYL25 |
1 | ||
| 69761-0E030 |
GGL2#,GYL25 4 SETS |
1 | ||
| 69761-48040 |
GGL2#,GYL25 1 SET |
1 | ||
| Common parts | ||||
| 69237-0T010 | ||||
| 69239-0T010 | ||||
| 69296-0T010 | ||||
| 90148-50003 | ||||
| 90148-A0017 | ||||
| 90148-A0022 | ||||
| 90167-A0012 | ||||
| 90179-05114 | ||||
| 90189-05003 | ||||
