GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

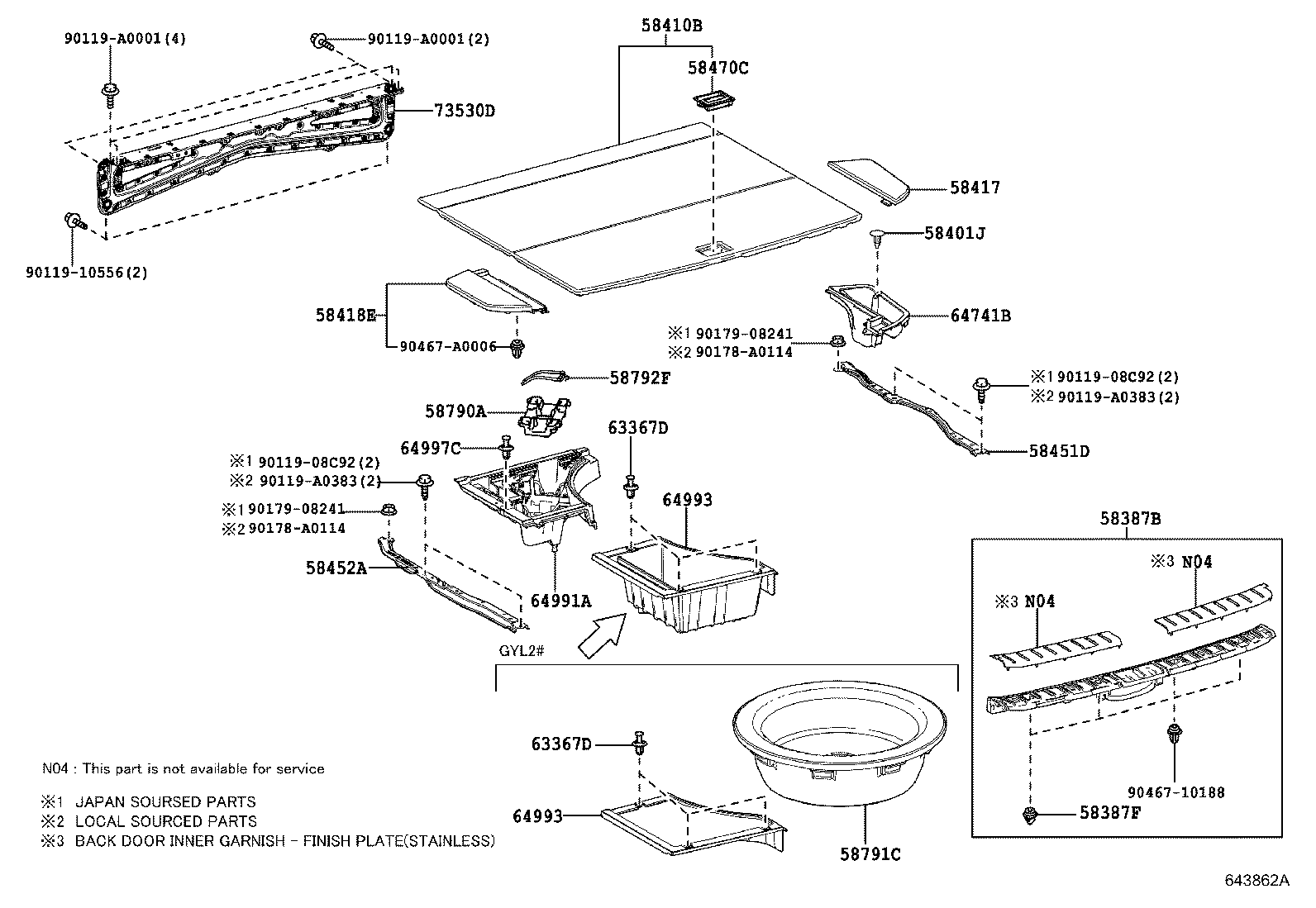

ILLUST NO. 2 OF 2(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-0E080E0 |
GGL2#,GYL25 DOOR INNER GARNISH-FINISHPLATE(STAINLESS),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58387-0E070E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58387-0E070C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-0E080C0 |
GGL2#,GYL25 DOOR INNER GARNISH-FINISHPLATE(STAINLESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-09240 |
GGL2#,GYL25 |
3 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 63399-78010 |
GGL2#,GYL25 |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0E070C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58410-0E070E1 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-0E050C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58417-0E050E1 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-0E090C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58418-0E090E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58451D - REINFORCEMENT, DECK BOARD, NO.1 | ||||
| 58451-0E020 |
GGL2#,GYL25 |
1 | ||
| 58452A - REINFORCEMENT, DECK BOARD, NO.2 | ||||
| 58452-0E020 |
GGL2#,GYL25 |
1 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-78020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58470-78020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58790A - CARRIER ASSY, JACK | ||||
| 58790-0E070 |
GGL2#,GYL25 |
1 | ||
| 58791C - CARRIER, JACK | ||||
| 58790-0E050 |
GYL25 |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-0E010 |
GGL2#,GYL25 |
1 | ||
| 63367D - CLIP(FOR DECK FLOOR BOX) | ||||
| 63399-78010 |
GGL2#,GYL25 |
3 | ||
| 63367D - CLIP(FOR DECK FLOOR BOX) | ||||
| 63399-78010 |
GGL2#,GYL25 |
3 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-0E050 |
GGL2#,GYL25 |
1 | ||
| 64991A - BOX, DECK FLOOR, FR | ||||
| 64991-0E030 |
GGL2#,GYL25 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-0E150 |
GYL25 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-0E150 |
GYL25 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 63399-78010 |
GGL2#,GYL25 |
1 | ||
| 73530D - PANEL ASSY, REAR SEAT SUB FLOOR | ||||
| 73530-0E030 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90119-08C92 | ||||
| 90119-10556 | ||||
| 90119-A0001 | ||||
| 90119-A0383 | ||||
| 90178-A0114 | ||||
| 90179-08241 | ||||
| 90467-10188 | ||||
| 90467-A0006 | ||||

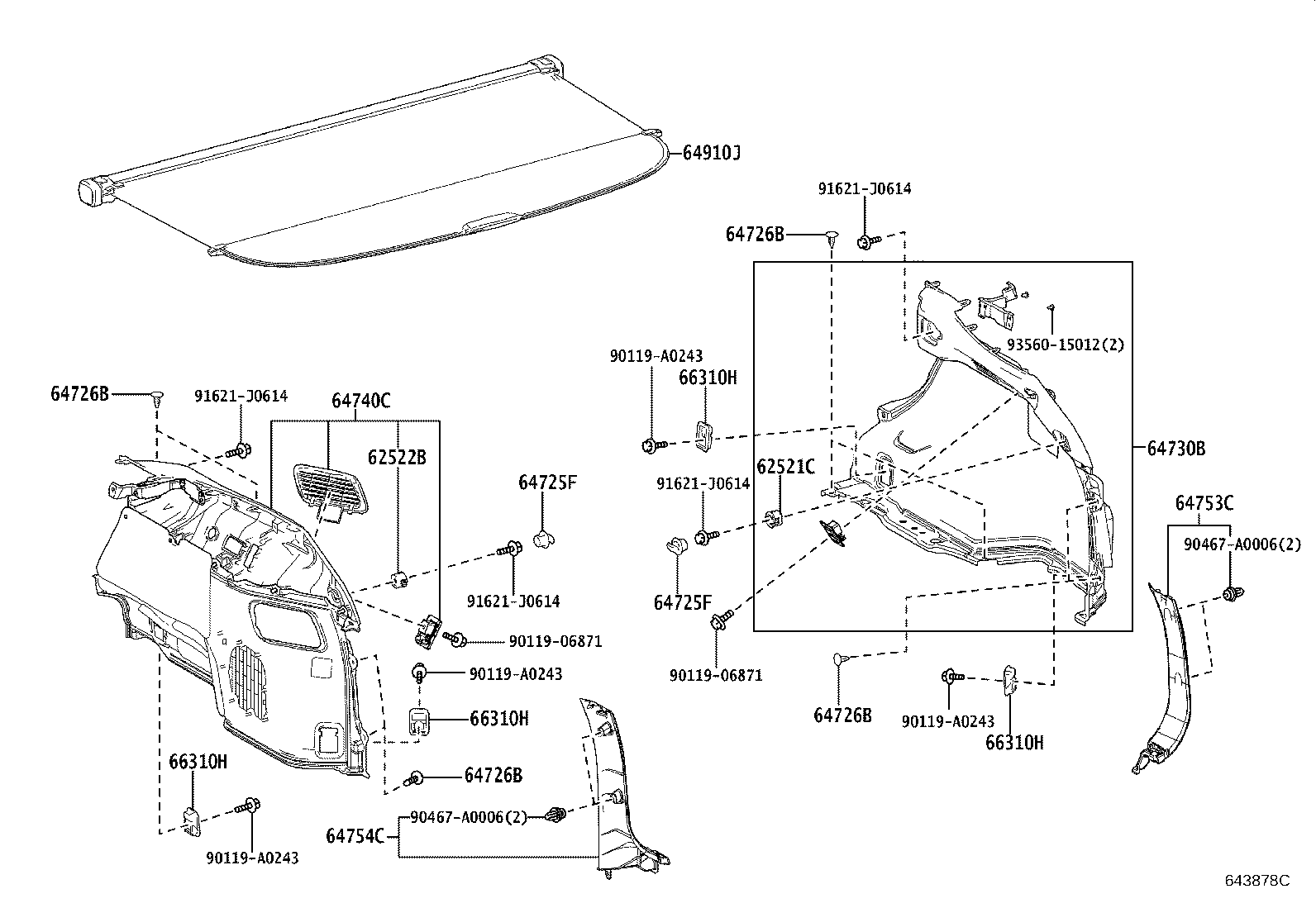

ILLUST NO. 1 OF 2(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62521C - COVER, QUARTER TRIM RH | ||||
| 62521-48020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62521-48020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62522B - COVER, QUARTER TRIM LH | ||||
| 62521-48020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62521-48020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0E050E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 64725-0E050C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0E050E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 64725-0E050C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK |
8 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK |
8 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK |
8 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK |
8 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0E100C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64730-0E100E1 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64730-0E110E1 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64730-0E110C1 |
GGL2#,GYL25 REAR SEAT-FOLDING(POWER SEAT),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0E100C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64740-0E110C2 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64740-0E110C2 |
GGL2#,GYL25 SPEAKER-12SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64740-0E100E1 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64740-0E110E1 |
GGL2#,GYL25 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64740-0E110E1 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64753C - PLATE, REAR FLOOR FINISH SIDE, RH | ||||
| 64753-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64753-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64754C - PLATE, REAR FLOOR FINISH SIDE, LH | ||||
| 64754-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64754-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-0E100E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 64910-0E100C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011E4 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011E4 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011E4 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011C1 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 66310-30011E4 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
4 | ||
| Common parts | ||||
| 90119-06871 | ||||
| 90119-A0243 | ||||
| 90467-A0006 | ||||
| 91621-J0614 | ||||
| 93560-15012 | ||||
