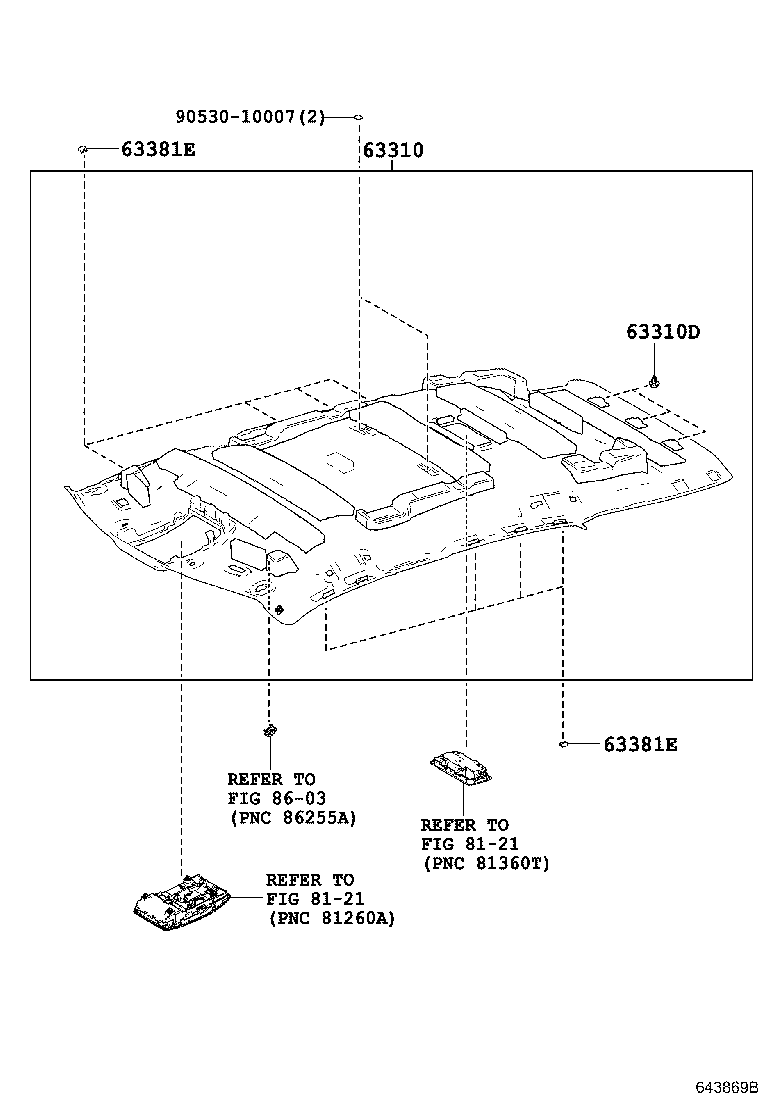

GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )GGL2# ; (1712- )GYL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0E430A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E420B1 |
GYL25 MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E420C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E430C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E431A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421B1 |
GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E431C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E412B1 |
GGL2#,GYL25 MOON STONE,TRIM1#,2# |
1 | ||
| 63310-0E430B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E422B1 |
GGL2#,GYL25 MOON ROOF-WITH,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E432C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E432A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E431B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E420A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E422C0 |
GGL2#,GYL25 MOON ROOF-WITH,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E422A0 |
GGL2#,GYL25 MOON ROOF-WITH,ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E432B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E421C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09240 |
GGL2#,GYL25 |
3 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||

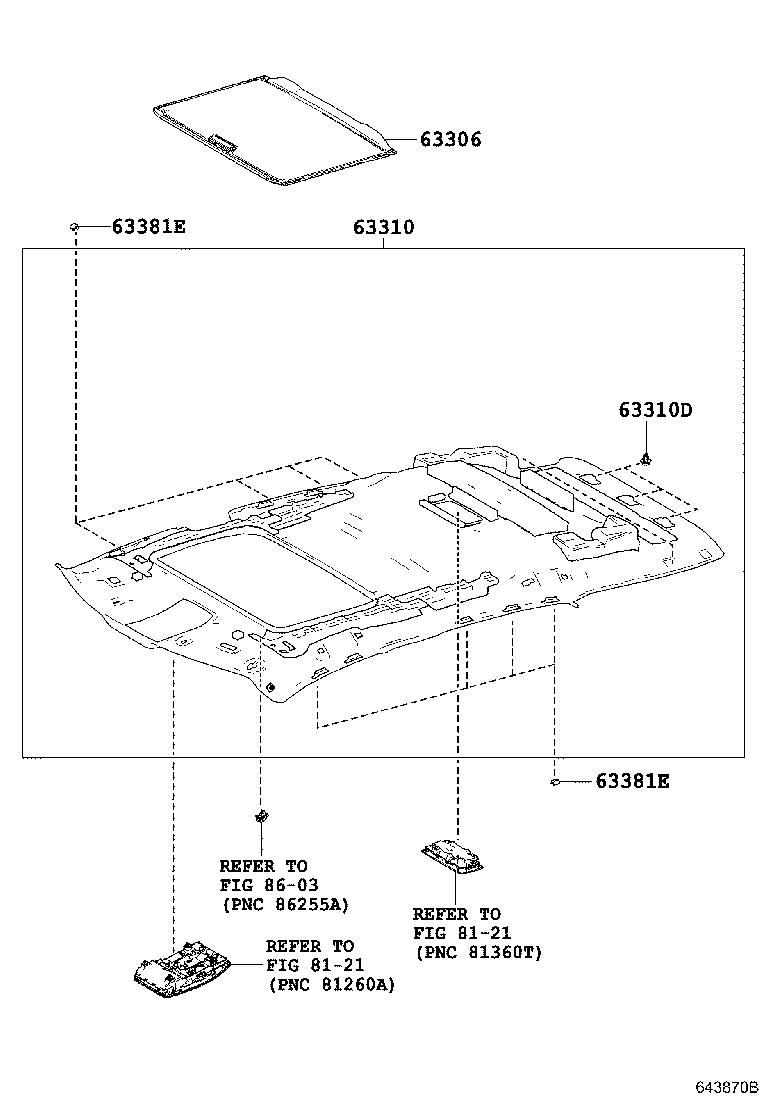

(1510- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0E100A0 |
GYL2# ECRU,TRIM0#,5# |
1 | ||
| 63306-0E100C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100B2 |
GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63306-0E090B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63306-0E090A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63306-0E090C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100A0 |
GYL25 MOON ROOF-WITH,ECRU,TRIM0#,5# |
1 | ||
| 63306-0E100C0 |
GYL25 MOON ROOF-WITH,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100B2 |
GYL25 MOON ROOF-WITH,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0E430A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E420B1 |
GYL25 MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E420C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E430C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E431A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421B1 |
GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E431C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E412B1 |
GGL2#,GYL25 MOON STONE,TRIM1#,2# |
1 | ||
| 63310-0E430B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E422B1 |
GGL2#,GYL25 MOON ROOF-WITH,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E432C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E432A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E431B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E420A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E422C0 |
GGL2#,GYL25 MOON ROOF-WITH,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E422A0 |
GGL2#,GYL25 MOON ROOF-WITH,ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E432B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E421C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09240 |
GGL2#,GYL25 |
3 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||

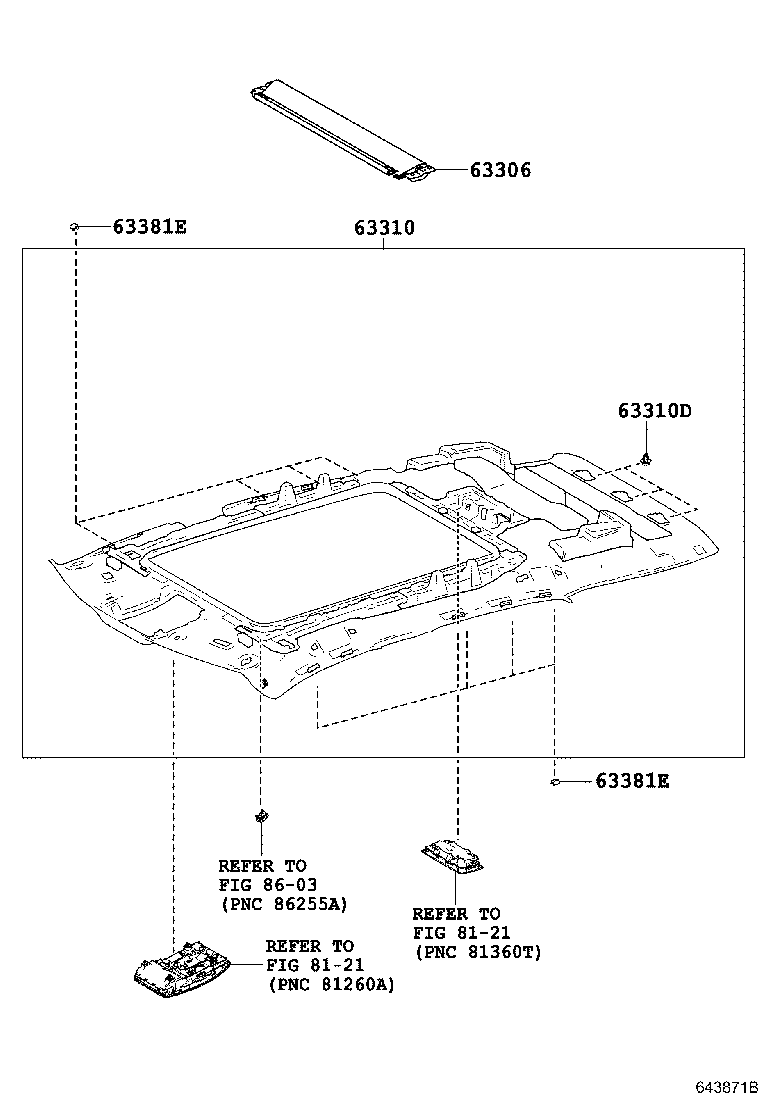

(1510- )GGL2#,GYL25
PANORAMA ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0E100A0 |
GYL2# ECRU,TRIM0#,5# |
1 | ||
| 63306-0E100C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100B2 |
GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63306-0E090B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63306-0E090A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63306-0E090C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100A0 |
GYL25 MOON ROOF-WITH,ECRU,TRIM0#,5# |
1 | ||
| 63306-0E100C0 |
GYL25 MOON ROOF-WITH,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63306-0E100B2 |
GYL25 MOON ROOF-WITH,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0E430A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E420B1 |
GYL25 MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E420C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E430C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E431A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421B1 |
GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E431C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E412B1 |
GGL2#,GYL25 MOON STONE,TRIM1#,2# |
1 | ||
| 63310-0E430B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63310-0E422B1 |
GGL2#,GYL25 MOON ROOF-WITH,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 63310-0E432C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E432A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63310-0E431B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E420A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E422C0 |
GGL2#,GYL25 MOON ROOF-WITH,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310-0E422A0 |
GGL2#,GYL25 MOON ROOF-WITH,ECRU,TRIM0#,5# |
1 | ||
| 63310-0E421A0 |
GYL25 ECRU,TRIM0#,5# |
1 | ||
| 63310-0E432B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63310-0E421C0 |
GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09240 |
GGL2#,GYL25 |
3 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0E030 |
GGL2#,GYL25 |
8 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
