GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0E020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62111-0E020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0E020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62112-0E020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GGL2#,GYL25 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GGL2#,GYL25 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
GGL2#,GYL25 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
GGL2#,GYL25 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0E090 |
GGL2#,GYL25 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90080-11628 |
GGL2#,GYL25 |
12 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90080-11628 |
GGL2#,GYL25 |
12 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0E090 |
GGL2#,GYL25 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
GGL2#,GYL25 |
4 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-0E090A1 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62210-0E090C1 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62210-0E090B2 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-0E100B2 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62220-0E100A1 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62220-0E100C1 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-48030 |
GGL2#,GYL25 |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 62217-13010 |
GGL2#,GYL25 |
2 | ||
| 62217J - CLIP, CENTER PILLER GARNISH | ||||
| 62217-13010 |
GGL2#,GYL25 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0E070 |
GGL2#,GYL25 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-0E070 |
GGL2#,GYL25 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0E070 |
GGL2#,GYL25 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0E070 |
GGL2#,GYL25 |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-0E100B2 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62410-0E100A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62410-0E100C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-0E100C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62420-0E100B2 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62420-0E100A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0E080E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62413-0E080C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0E070E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62414-0E070C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-0E160B1 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62470-0E170B1 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62470-0E160A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62470-0E170A0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,ECRU,TRIM0#,5# |
1 | ||
| 62470-0E170C0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62470-0E160C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
GGL2#,GYL25 |
16 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
GGL2#,GYL25 |
16 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-0E160B1 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62480-0E160A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 62480-0E160C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62480-0E170A0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,ECRU,TRIM0#,5# |
1 | ||
| 62480-0E170B1 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 62480-0E170C0 |
GGL2#,GYL25 SPEAKER-15SPEAKER & *MAR,BLACK,TRIM14,15,25,26,3# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
GGL2#,GYL25 |
2 | ||
| 62525B - PAD, QUARTER TRIM, UPPER RH | ||||
| 62525-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62525-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62526C - PAD, QUARTER TRIM, UPPER LH | ||||
| 62526-0E010C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62526-0E010E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-A0001C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 90467-A0001C1 |
GGL2#,GYL25 BLACK |
4 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-A0001C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 90467-A0001C1 |
GGL2#,GYL25 BLACK |
4 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-0E240E0 |
GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62551-0E240C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62551G - CLIP | ||||
| 62911-0E010 |
GGL2#,GYL25 |
4 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-0E130E0 |
GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 62552-0E130C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-0E020 |
GGL2#,GYL25 |
2 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-0E020 |
GGL2#,GYL25 |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-0E120 |
GGL2#,GYL25 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-0E120 |
GGL2#,GYL25 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-0E040E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67910-0E040C0 |
GYL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 67910-0E040C0 |
GYL2# DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,4# |
1 | ||
| 67910-0E070E0 |
GGL2#,GYL2# DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67910-0E080C0 |
GGL25,GYL25 DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS,BLACK,TRIM1#,2#,3# |
1 | ||
| 67910-0E070C0 |
GYL2# DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,4# |
1 | ||
| 67910-0E040E0 |
GGL2#,GYL2# DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-0E040C0 |
GYL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 67920-0E040E0 |
GGL2#,GYL2# DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67920-0E040E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67920-0E070E0 |
GGL2#,GYL2# DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67920-0E070C0 |
GYL2# DOOR SCUFF PLATE-WITH(FRONT:ILLUMINATED(LED)&REAR),BLACK,TRIM1#,2#,4# |
1 | ||
| 67920-0E080C0 |
GGL25,GYL25 DOOR SCUFF PLATE-WITH(FRONT & REAR) & F-SPORTS,BLACK,TRIM1#,2#,3# |
1 | ||
| 67920-0E040C0 |
GYL2# DOOR SCUFF PLATE-W(FRONT:ILLUMINATED(LED)&REAR)&ACCESSORY,BLACK,TRIM1#,2#,4# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-0E020 |
GGL2#,GYL25 |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-0E020 |
GGL2#,GYL25 |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67930-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-0E030E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 67940-0E030C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10188 | ||||
| 90467-10216 | ||||
| 90467-18017 | ||||

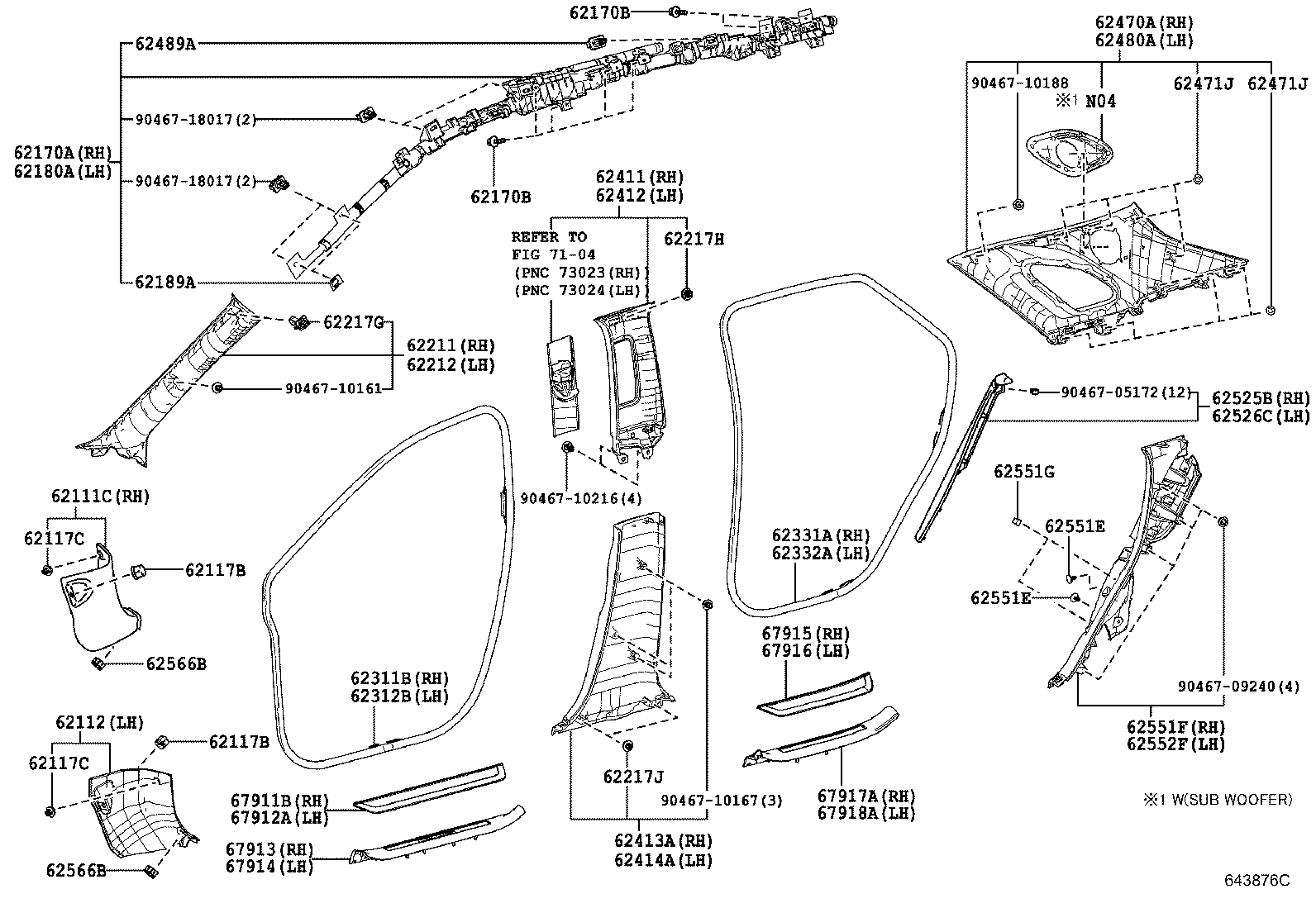

| Linked diagrams | ||||
| 7104 | ||||
