GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

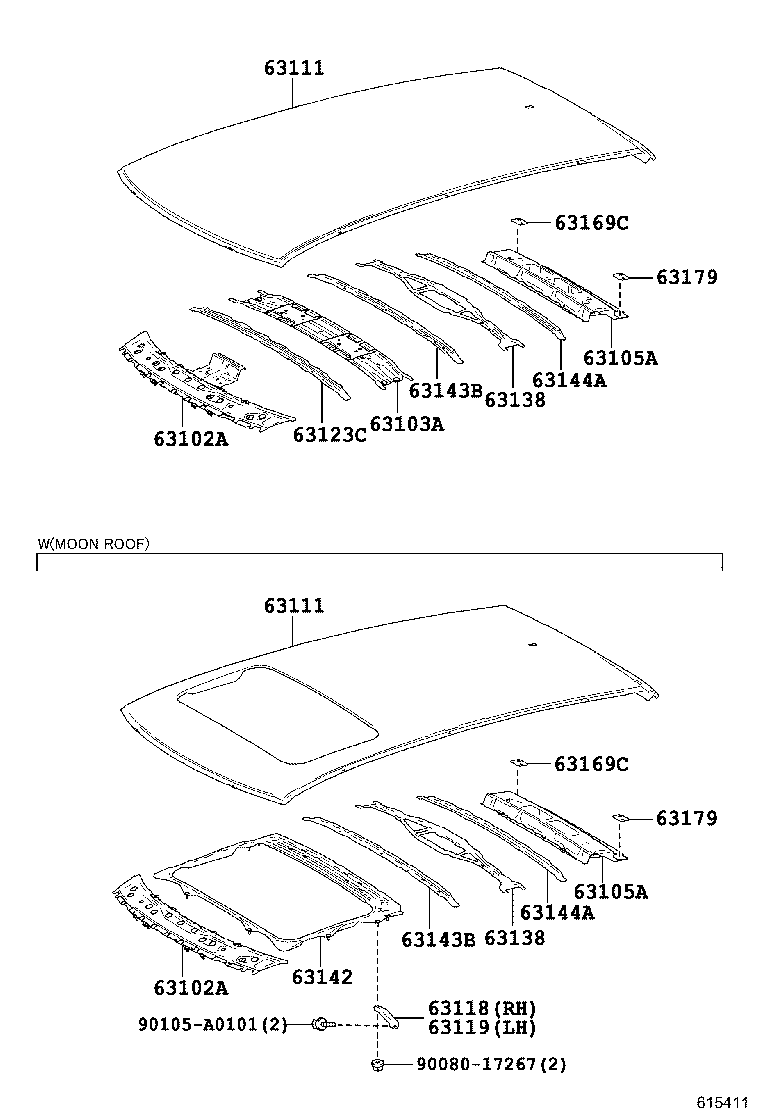

ILLUST NO. 1 OF 3(1510- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E911 |
GYL25 |
1 | ||
| 63102-0E180 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E180 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E910 |
GYL25 |
1 | ||
| 63102-0E911 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E911 |
GYL25 |
1 | ||
| 63102-0E180 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E180 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E910 |
GYL25 |
1 | ||
| 63102-0E911 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-0E070 |
GYL25 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E070 |
GGL2#,GYL25 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E070 |
GGL2#,GYL25 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E250 |
GYL25 |
1 | ||
| 63111-0E260 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E240 |
GYL25 |
1 | ||
| 63111-0E250 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63111-0E260 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E250 |
GYL25 |
1 | ||
| 63111-0E260 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E240 |
GYL25 |
1 | ||
| 63111-0E250 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63111-0E260 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0E060 |
GYL25 |
1 | ||
| 63118-0E060 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-0E060 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63118-0E060 |
GYL25 |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-0E070 |
GYL25 |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-0E040 |
GGL2#,GYL25 |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-0E040 |
GGL2#,GYL25 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-0E090 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63142-0E080 |
GYL25 |
1 | ||
| 63142-0E090 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0E090 |
GGL2#,GYL25 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0E090 |
GGL2#,GYL25 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0E080 |
GGL2#,GYL25 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0E080 |
GGL2#,GYL25 |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-0E020 |
GGL2#,GYL25 |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-0E020 |
GGL2#,GYL25 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E020 |
GGL2#,GYL25 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E020 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-17267 | ||||
| 90105-A0101 | ||||

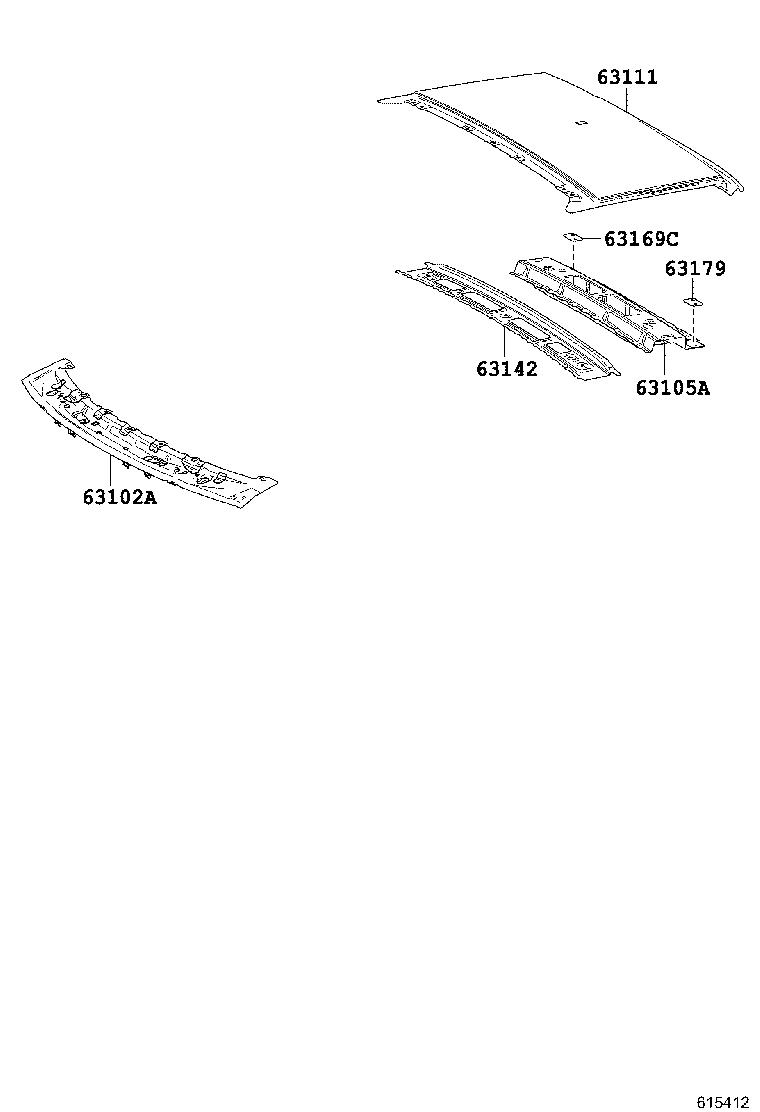

ILLUST NO. 1 OF 3(1510- )
ROOF PANEL(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0E911 |
GYL25 |
1 | ||
| 63102-0E180 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E180 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-0E910 |
GYL25 |
1 | ||
| 63102-0E911 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0E070 |
GGL2#,GYL25 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0E250 |
GYL25 |
1 | ||
| 63111-0E260 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-0E240 |
GYL25 |
1 | ||
| 63111-0E250 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63111-0E260 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-0E090 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63142-0E080 |
GYL25 |
1 | ||
| 63142-0E090 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-0E020 |
GGL2#,GYL25 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E020 |
GGL2#,GYL25 |
1 | ||

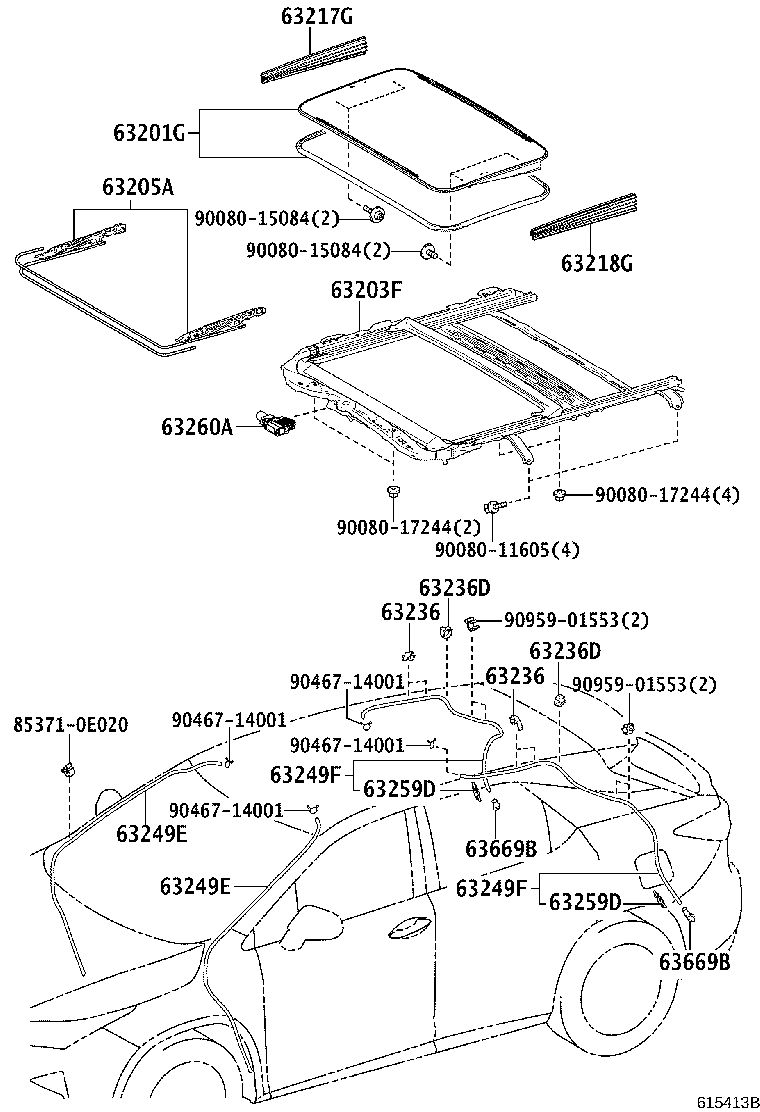

ILLUST NO. 2 OF 3(1510- )
SLIDING ROOF(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E120 |
GYL2# |
1 | ||
| 63201-0E101 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63201-0E100 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63201-0E120 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0E110B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63203-0E110C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63203-0E110A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63203-0E110B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63203-0E120 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63203-0E120 |
GYL2# |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-0E040 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63205-0E040 |
GYL25 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E070 |
GYL25 |
1 | ||
| 63217-0E070 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-0E070 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63217-0E070 |
GYL25 |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-AA010 |
GYL25 |
4 | ||
| 63236-AA010 |
GYL25 MOON ROOF-WITH |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-AA010 |
GYL25 |
4 | ||
| 63236-AA010 |
GYL25 MOON ROOF-WITH |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-3F230 |
GYL25 |
2 | ||
| 82711-3F230 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-3F230 |
GYL25 |
2 | ||
| 82711-3F230 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E080 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63249-0E080 |
GYL25 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0E080 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63249-0E080 |
GYL25 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63257-0E030 |
GYL25 |
2 | ||
| 63257-0E030 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63257-0E030 |
GYL25 |
2 | ||
| 63257-0E030 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63259D - SEAL, SLIDING ROOF, NO.2 | ||||
| 63259-48010 |
GYL25 |
2 | ||
| 63259-48010 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63259D - SEAL, SLIDING ROOF, NO.2 | ||||
| 63259-48010 |
GYL25 |
2 | ||
| 63259-48010 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E100 |
GYL25 |
1 | ||
| 63260-0E100 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-06030 |
GYL25 |
2 | ||
| 63669-06030 |
GYL25 MOON ROOF-WITH |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-06030 |
GYL25 |
2 | ||
| 63669-06030 |
GYL25 MOON ROOF-WITH |
2 | ||
| Common parts | ||||
| 85371-0E020 | ||||
| 90080-11605 | ||||
| 90080-15084 | ||||
| 90080-17244 | ||||
| 90467-14001 | ||||
| 90959-01553 | ||||

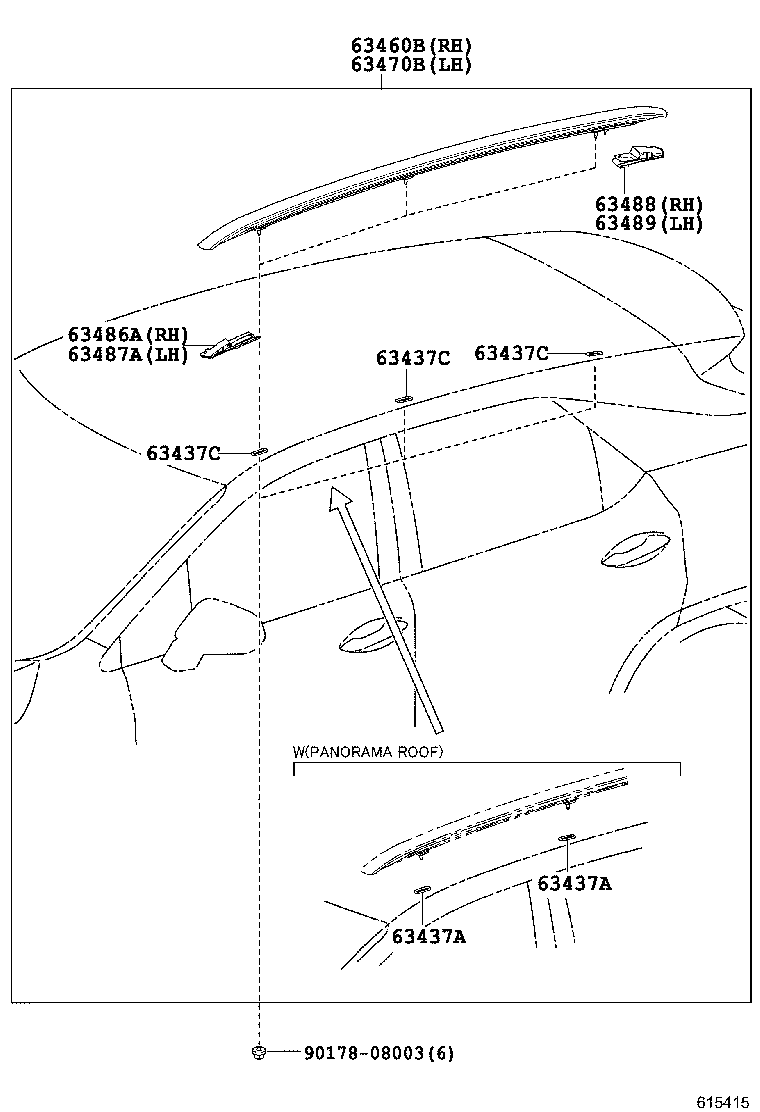

ILLUST NO. 3 OF 3(1510- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E080 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-0E080 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-0E070 |
GYL25 |
6 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
6 | ||
| 63437-0E070 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-0E070 |
GYL25 |
6 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
6 | ||
| 63437-0E070 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-0E070 |
GYL25 |
6 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
6 | ||
| 63437-0E070 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-0E180 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-0E170 |
GYL25 |
1 | ||
| 63460-0E170 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63460-0E180 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-0E170 |
GYL25 |
1 | ||
| 63470-0E180 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-0E180 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-0E170 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-0E080 |
GYL25 |
1 | ||
| 63486-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63486-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-0E070 |
GYL25 |
1 | ||
| 63487-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63487-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63488-0E080 |
GYL25 |
1 | ||
| 63488-0E080 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-0E070 |
GYL25 |
1 | ||
| 63489-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH |
1 | ||
| 63489-0E070 |
GGL2#,GYL25 ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| Common parts | ||||
| 90178-08003 | ||||

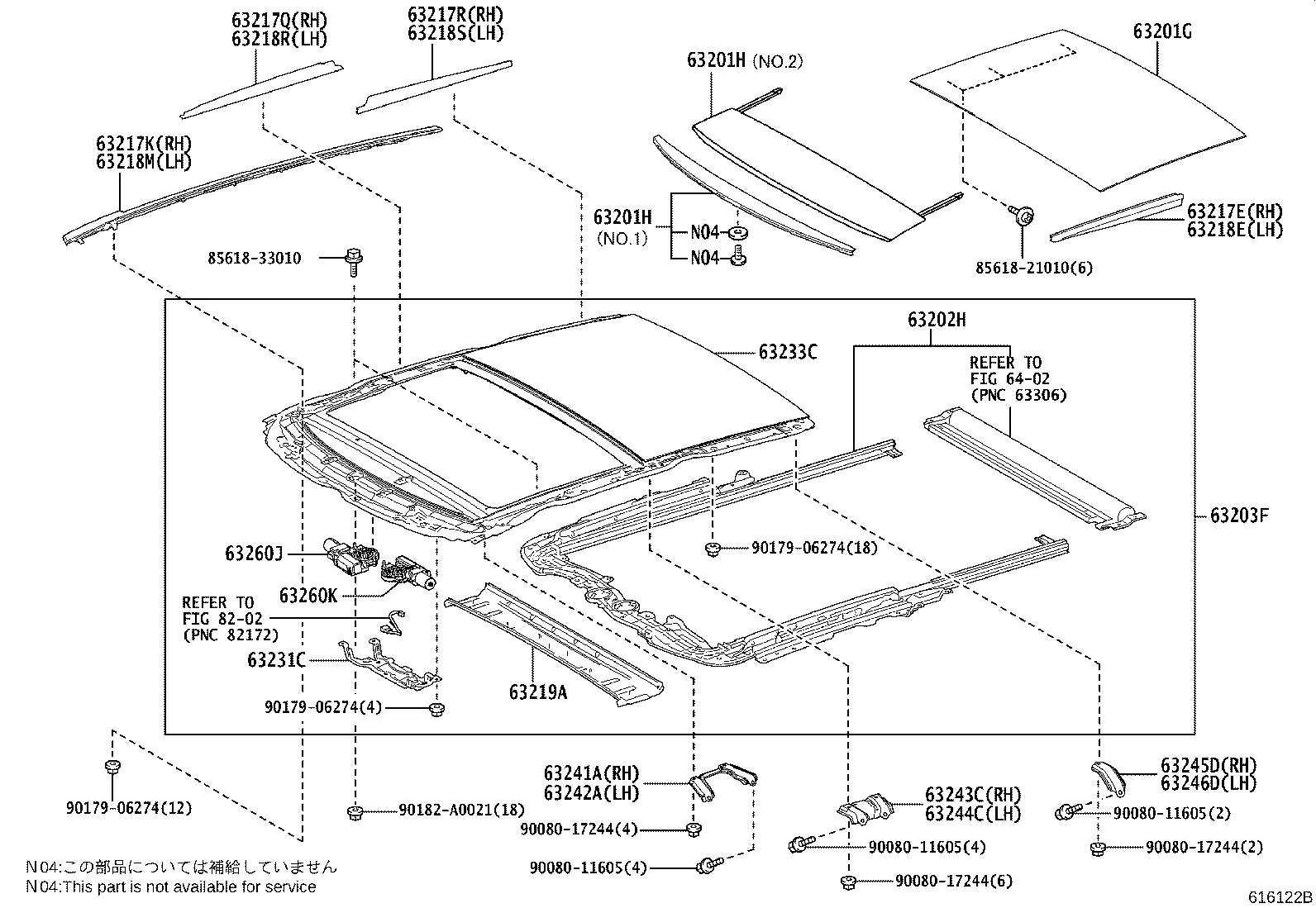

ILLUST NO. 2 OF 3(1510- )
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0E120 |
GYL2# |
1 | ||
| 63201-0E101 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63201-0E100 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63201-0E120 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-0E110 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.1 |
1 | ||
| 63201-0E090 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63201-0E091 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-0E110 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.1 |
1 | ||
| 63201-0E090 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63201-0E091 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),NO.2 |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-0E100B0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63202-0E100C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63202-0E100A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0E110B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,11,12,13,20,21,22,23,24,4# |
1 | ||
| 63203-0E110C0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM14,15,25,26,3# |
1 | ||
| 63203-0E110A0 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),ECRU,TRIM0#,5# |
1 | ||
| 63203-0E110B1 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF),MOON STONE,TRIM10,12,20,23,4# |
1 | ||
| 63203-0E120 |
GYL25 MOON ROOF-WITH |
1 | ||
| 63203-0E120 |
GYL2# |
1 | ||
| 63217E - GARNISH, SLIDING ROOF, FRONT RH | ||||
| 63217-0E090 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-48100 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-48091 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E080 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217Q - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E050 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-0E051 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E060 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217-0E061 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218E - GARNISH, SLIDING ROOF, FRONT LH | ||||
| 63218-0E090 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218-48091 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218-48100 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0E070 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218R - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0E051 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218-0E050 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218S - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0E060 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218-0E061 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-0E010 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-0E100 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-0E090 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0E080 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-0E050 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-0E070 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-0E040 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-0E070 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-0E070 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E110 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260K - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0E121 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260-0E120 |
GGL2#,GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| Common parts | ||||
| 85618-21010 | ||||
| 85618-33010 | ||||
| 90080-11605 | ||||
| 90080-17244 | ||||
| 90179-06274 | ||||
| 90182-A0021 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
