GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

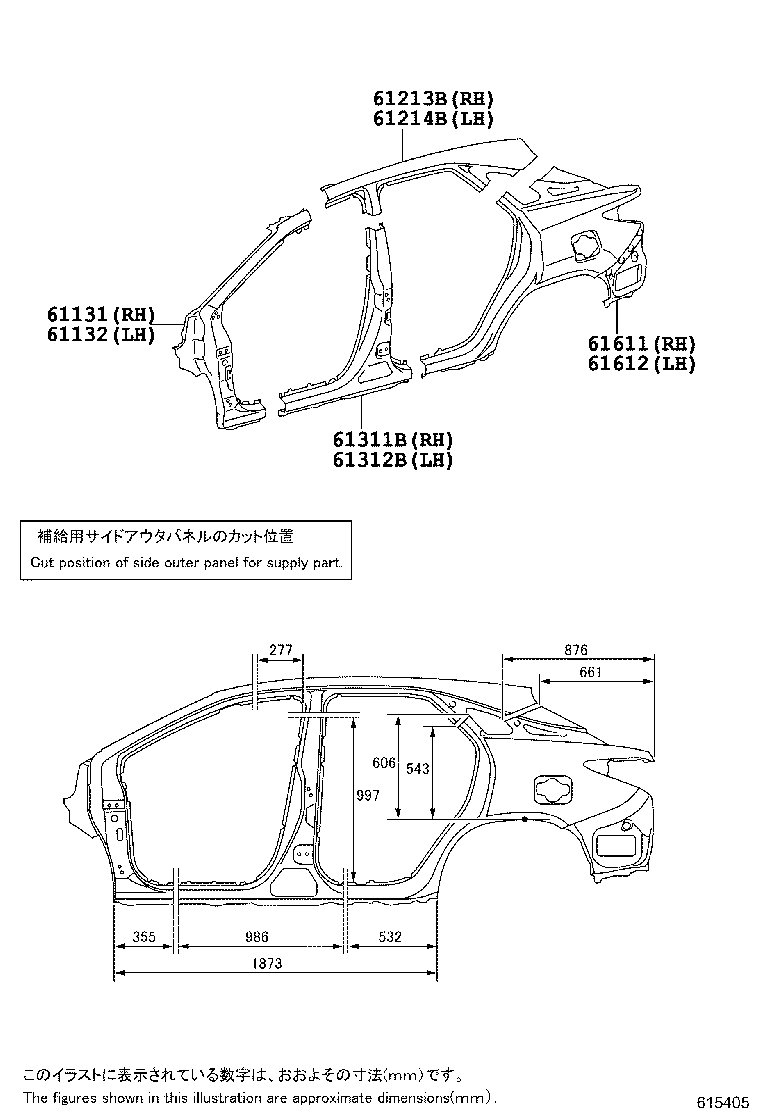

ILLUST NO. 1 OF 2(1510- )
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0E080 |
GGL2#,GYL25 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0E080 |
GGL2#,GYL25 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0E090 |
GGL2#,GYL25 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0E090 |
GGL2#,GYL25 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-0E070 |
GGL2#,GYL25 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-0E070 |
GGL2#,GYL25 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-0E050 |
GYL25 |
1 | ||
| 61601-0E061 |
GYL25 |
1 | ||
| 61601-0E051 |
GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 61601-0E051 |
GYL25 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-0E051 |
GYL25 LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 61602-0E050 |
GYL25 |
1 | ||
| 61602-0E061 |
GYL25 |
1 | ||
| 61602-0E051 |
GYL25 |
1 | ||

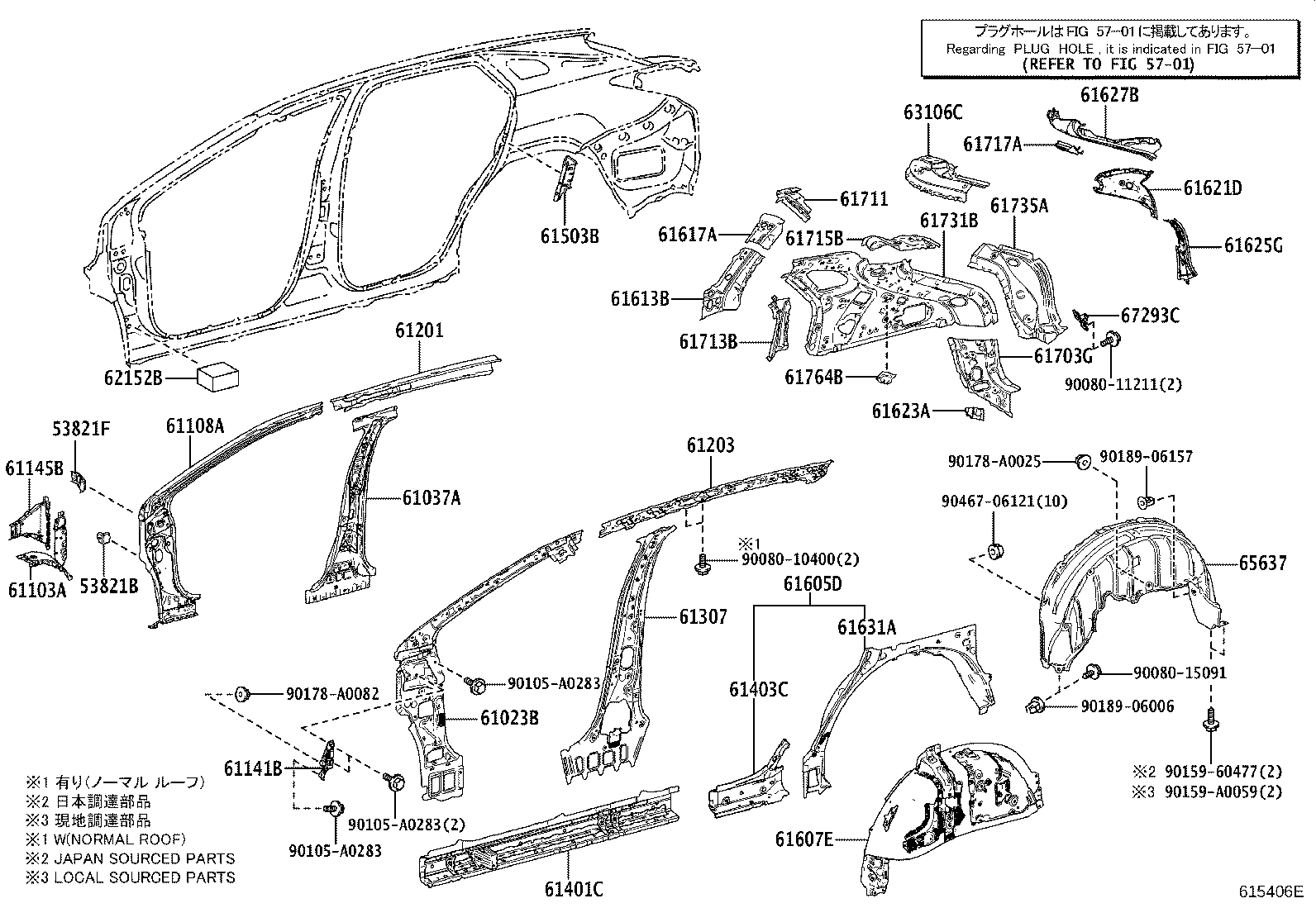

ILLUST NO. 2 OF 2(1510- )
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-0E020 |
GGL2#,GYL25 |
1 | ||
| 53821F - BRACKET, FRONT FENDER, REAR NO.2 RH | ||||
| 53821-0E080 |
GGL2#,GYL25 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0E070 |
GGL2#,GYL25 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0E906 |
GGL2#,GYL25 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-0E060 |
GGL2#,GYL25 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0E906 |
GGL2#,GYL25 |
1 | ||
| 61141B - GUSSET, FRONT BODY PILLAR, UPPER RH | ||||
| 61141-0E050 |
GGL2#,GYL25 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-0E070 |
GGL2#,GYL25 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-0E903 |
GGL2#,GYL25 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-0E070 |
GYL25 MOON ROOF-WITH |
1 | ||
| 61203-0E070 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61203-0E060 |
GYL25 |
1 | ||
| 61203-0E070 |
GYL25 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-0E070 |
GGL2#,GYL25 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-0E905 |
GGL2#,GYL25 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0E010 |
GGL2#,GYL2# |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-0E070 |
GGL2#,GYL25 |
1 | ||
| 61605D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-0E040 |
GGL2#,GYL2# |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0E070 |
GGL2#,GYL25 |
1 | ||
| 61613B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61613-0E070 |
GGL2#,GYL25 |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-0E030 |
GGL2#,GYL25 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-0E070 |
GGL2#,GYL25 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-0E040 |
GGL2#,GYL25 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-0E050 |
GGL2#,GYL25 |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-0E070 |
GGL2#,GYL25 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0E070 |
GGL2#,GYL2# |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-0E050 |
GGL2#,GYL25 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-0E070 |
GGL2#,GYL25 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-0E050 |
GGL2#,GYL25 |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-0E090 |
GGL2#,GYL25 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-0E060 |
GGL2#,GYL25 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-0E070 |
GGL2#,GYL25 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-0E070 |
GGL2#,GYL25 |
1 | ||
| 61764B - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61765-0E050 |
GGL2#,GYL25 |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-0E070 |
GGL2#,GYL25 |
2 | ||
| 63106C - GUIDE SUB-ASSY, ROOF HEADLINING, REAR RH | ||||
| 63106-0E010 |
GGL2#,GYL25 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-0E060 |
GGL2#,GYL25 |
1 | ||
| 67293C - CUSHION, BACK DOOR STOPPER | ||||
| 67294-48010 |
GGL2#,GYL25 LH |
1 | ||
| 67293-48080 |
GGL2#,GYL25 RH |
1 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 90080-11211 | ||||
| 90080-15091 | ||||
| 90105-A0283 | ||||
| 90159-60477 | ||||
| 90159-A0059 | ||||
| 90178-A0025 | ||||
| 90178-A0082 | ||||
| 90189-06006 | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5701 | ||||

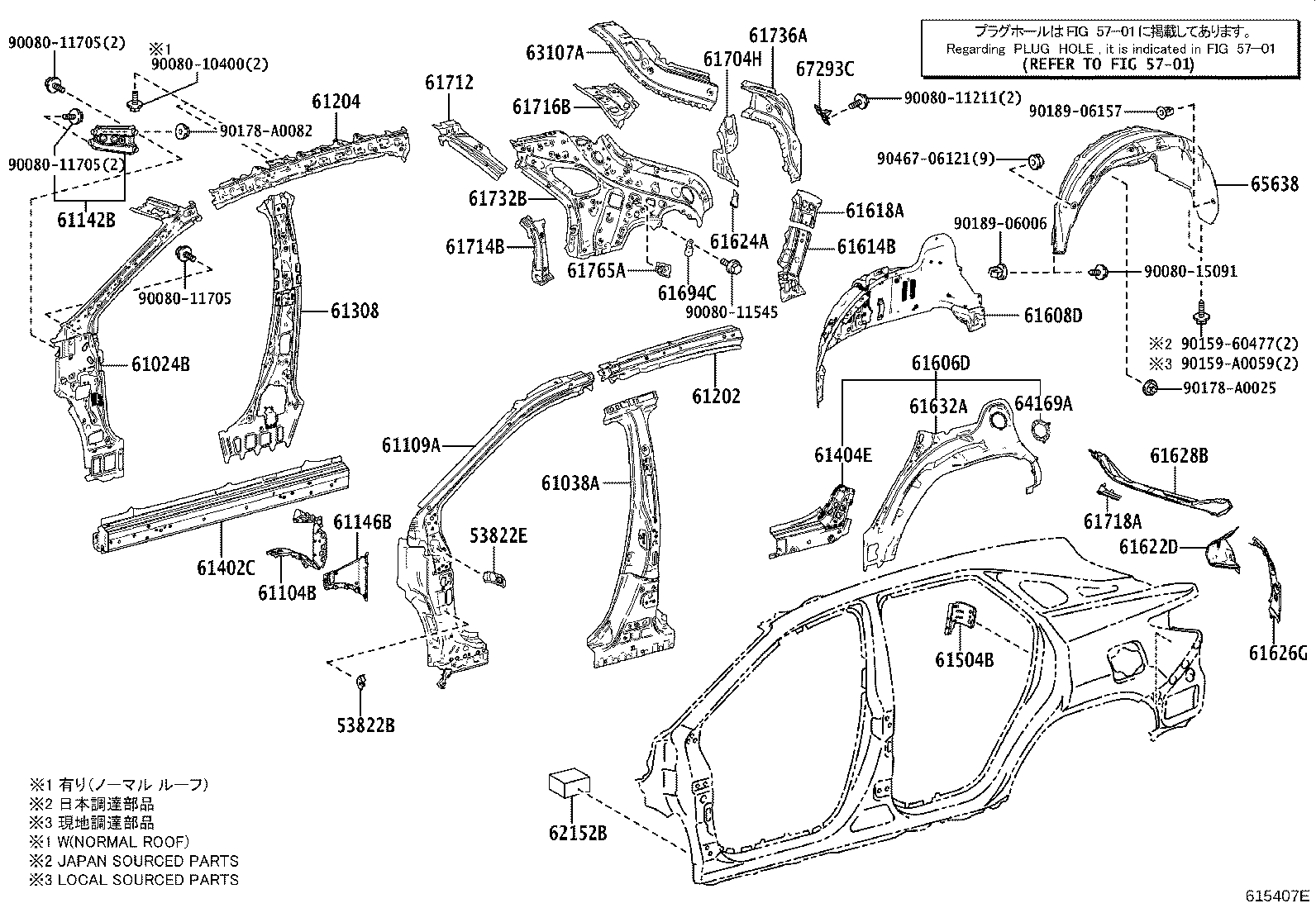

ILLUST NO. 2 OF 2(1510- )
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-0E020 |
GGL2#,GYL25 |
1 | ||
| 53822E - BRACKET, FRONT FENDER, REAR NO.2 LH | ||||
| 53821-0E080 |
GGL2#,GYL25 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0E070 |
GGL2#,GYL25 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0E904 |
GGL2#,GYL25 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-0E060 |
GGL2#,GYL25 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0E906 |
GGL2#,GYL25 |
1 | ||
| 61142B - GUSSET, FRONT BODY PILLAR, UPPER LH | ||||
| 61142-0E140 |
GGL2#,GYL25 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-0E070 |
GGL2#,GYL25 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-0E903 |
GGL2#,GYL25 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-0E070 |
GYL25 |
1 | ||
| 61204-0E060 |
GYL25 |
1 | ||
| 61204-0E070 |
GYL25 MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 61204-0E070 |
GYL25 MOON ROOF-WITH |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-0E070 |
GGL2#,GYL25 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-0E905 |
GGL2#,GYL25 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0E020 |
GGL2#,GYL2# |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-0E070 |
GGL2#,GYL25 |
1 | ||
| 61606D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-0E040 |
GGL2#,GYL2# |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0E070 |
GGL2#,GYL25 |
1 | ||
| 61614B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61614-0E070 |
GGL2#,GYL25 |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-0E030 |
GGL2#,GYL25 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-0E070 |
GGL2#,GYL25 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-0E040 |
GGL2#,GYL25 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-0E050 |
GGL2#,GYL25 |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-0E070 |
GGL2#,GYL25 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0E070 |
GGL2#,GYL2# |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-0E050 |
GGL2#,GYL25 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-0E070 |
GGL2#,GYL25 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-0E050 |
GGL2#,GYL25 |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61716-0E060 |
GGL2#,GYL25 |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-0E060 |
GGL2#,GYL25 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-0E070 |
GGL2#,GYL25 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-0E070 |
GGL2#,GYL25 |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61766-0E060 |
GGL2#,GYL25 |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-0E070 |
GGL2#,GYL25 |
2 | ||
| 63107A - GUIDE SUB-ASSY, ROOF HEADLINING, REAR LH | ||||
| 63107-0E040 |
GGL2#,GYL25 |
1 | ||
| 64169A - PROTECTOR, FUEL INLET | ||||
| 64169-0E010 |
GGL2#,GYL2# |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-0E060 |
GGL2#,GYL25 |
1 | ||
| 67293C - CUSHION, BACK DOOR STOPPER | ||||
| 67294-48010 |
GGL2#,GYL25 LH |
1 | ||
| 67293-48080 |
GGL2#,GYL25 RH |
1 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 90080-11211 | ||||
| 90080-11545 | ||||
| 90080-11705 | ||||
| 90080-15091 | ||||
| 90159-60477 | ||||
| 90159-A0059 | ||||
| 90178-A0025 | ||||
| 90178-A0082 | ||||
| 90189-06006 | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5701 | ||||
