GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

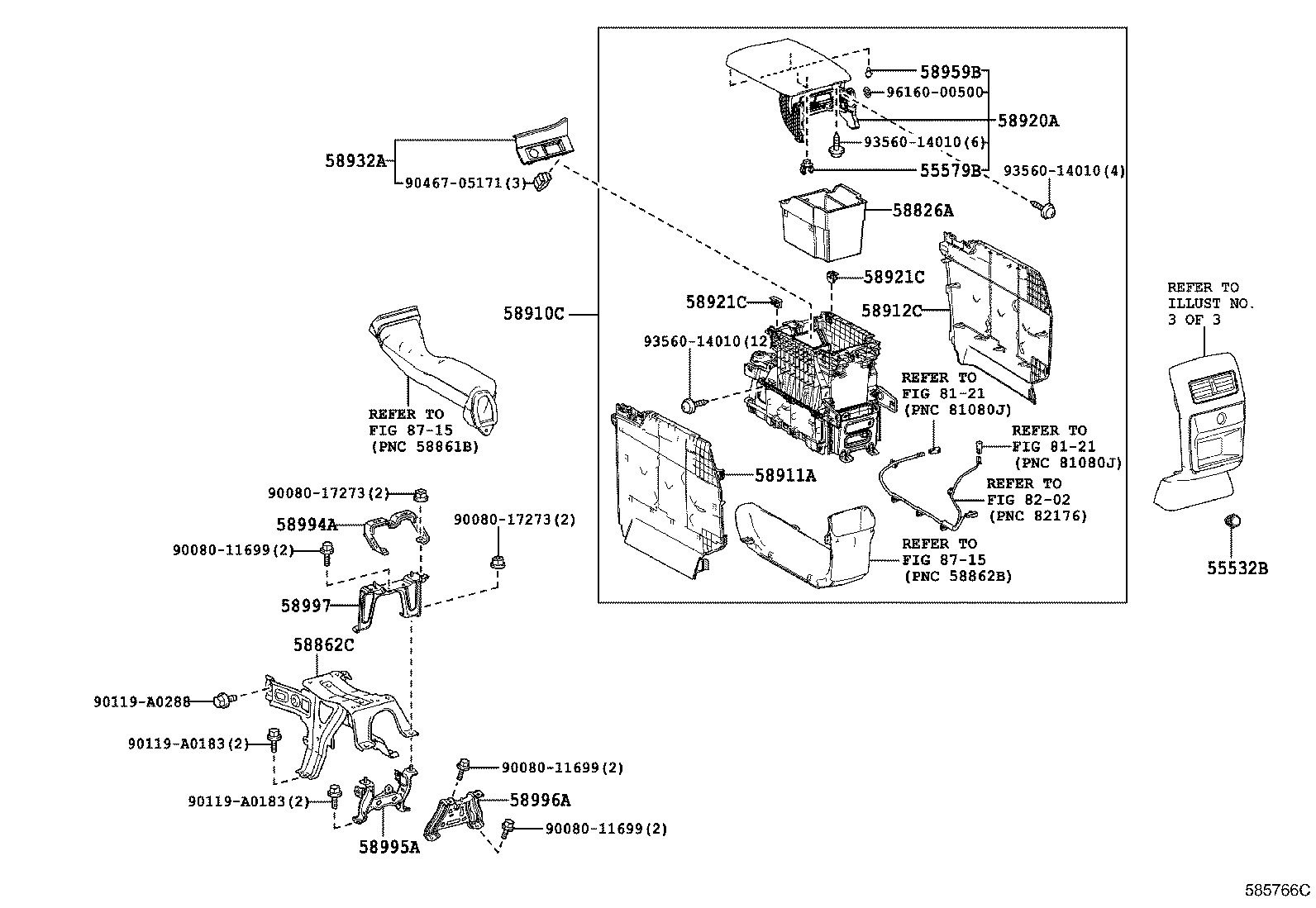

ILLUST NO. 2 OF 3(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-48010 |
GGL2#,GYL25 |
1 | ||
| 55579B - BAND, GLOVE COMPARTMENT BOX | ||||
| 55579-0E010 |
GGL2#,GYL25 |
2 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-0E020 |
GGL2#,GYL25 |
1 | ||
| 58862C - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58123-0E060 |
GGL2#,GYL25 |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0E300C6 |
GGL2#,GYL25 BLACK / MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 58910-0E300C5 |
GGL2#,GYL25 BLACK / NOBLE BROWN,TRIM4# |
1 | ||
| 58910-0E300C0 |
GGL2#,GYL25 BLACK / DK. ROSE,TRIM3# |
1 | ||
| 58910-0E300C7 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 58910-0E300E0 |
GGL2#,GYL25 BROWN,TRIM5# |
1 | ||
| 58910-0E300E1 |
GGL2#,GYL25 NOBLE BROWN / IVORY,TRIM0# |
1 | ||
| 58910-0E300C3 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-0E100E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58911-0E100C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-0E100C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58912-0E100E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-0E010C0 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 58920-0E010B1 |
GGL2#,GYL25 MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 58920-0E010A0 |
GGL2#,GYL25 IVORY,TRIM0# |
1 | ||
| 58920-0E010F0 |
GGL2#,GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 58920-0E010C2 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 58920-0E010E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 58920-0E010D0 |
GGL2#,GYL25 DK. ROSE,TRIM3# |
1 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-0E080 |
GGL2#,GYL25 |
2 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-0E080 |
GGL2#,GYL25 |
2 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-0E010 |
GGL2#,GYL25 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-48030 |
GGL2#,GYL25 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0E070 |
GGL2#,GYL25 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-0E090 |
GGL2#,GYL25 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-0E010 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17273 | ||||
| 90119-A0183 | ||||
| 90119-A0288 | ||||
| 90467-05171 | ||||
| 93560-14010 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8715 | ||||

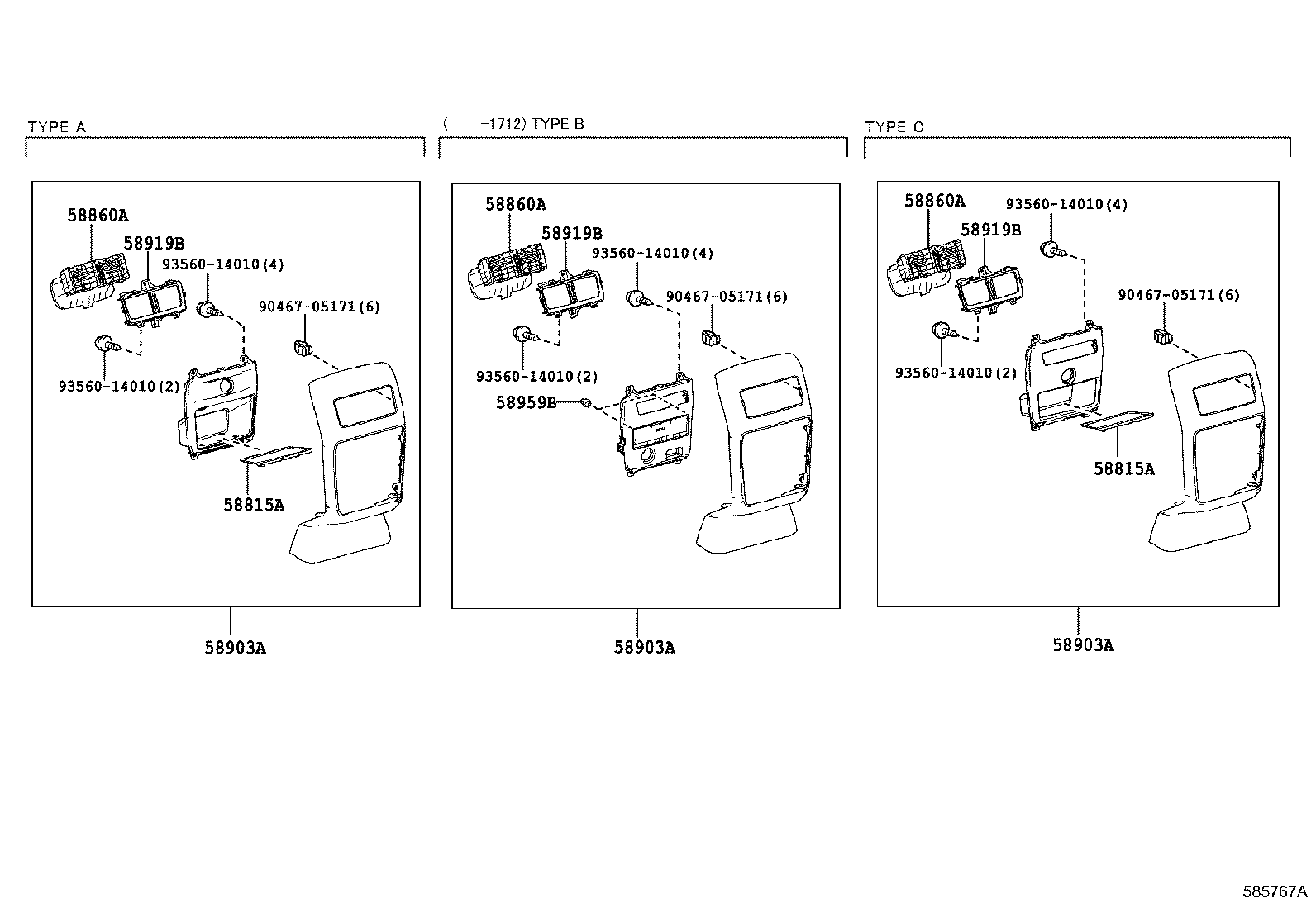

ILLUST NO. 3 OF 3(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-0E010 |
GGL2#,GYL25 |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-0E010 |
GGL2#,GYL25 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48060 |
GGL2#,GYL25 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48060 |
GGL2#,GYL25 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48060 |
GGL2#,GYL25 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-0E170C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E170E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E171C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E191E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E181E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E171E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E190C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E190E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E191C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180C0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E181C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-0E170C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E170E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E171C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E191E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E181E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E171E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E190C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E190E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E191C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180C0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E181C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-0E170C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E170E0 |
GGL2#,GYL2# NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E171C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E191E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E181E0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E171E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#,TYPE A:REFER ILLUST. |
1 | ||
| 58903-0E190C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),NOBLE BROWN,TRIM0#,5#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E190E0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E191C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
1 | ||
| 58903-0E180C0 |
GGL2#,GYL2# SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58903-0E181C0 |
GGL2#,GYL25 SEAT HEATER-WITH(FRONT & REAR)&TELEVISION & DVD PLAYER-WITH(*RSE),BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST. |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-0E041 |
GGL2#,GYL25 |
1 | ||
| 58919-0E040 |
GGL2#,GYL2# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-0E041 |
GGL2#,GYL25 |
1 | ||
| 58919-0E040 |
GGL2#,GYL2# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-0E041 |
GGL2#,GYL25 |
1 | ||
| 58919-0E040 |
GGL2#,GYL2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 93560-14010 | ||||

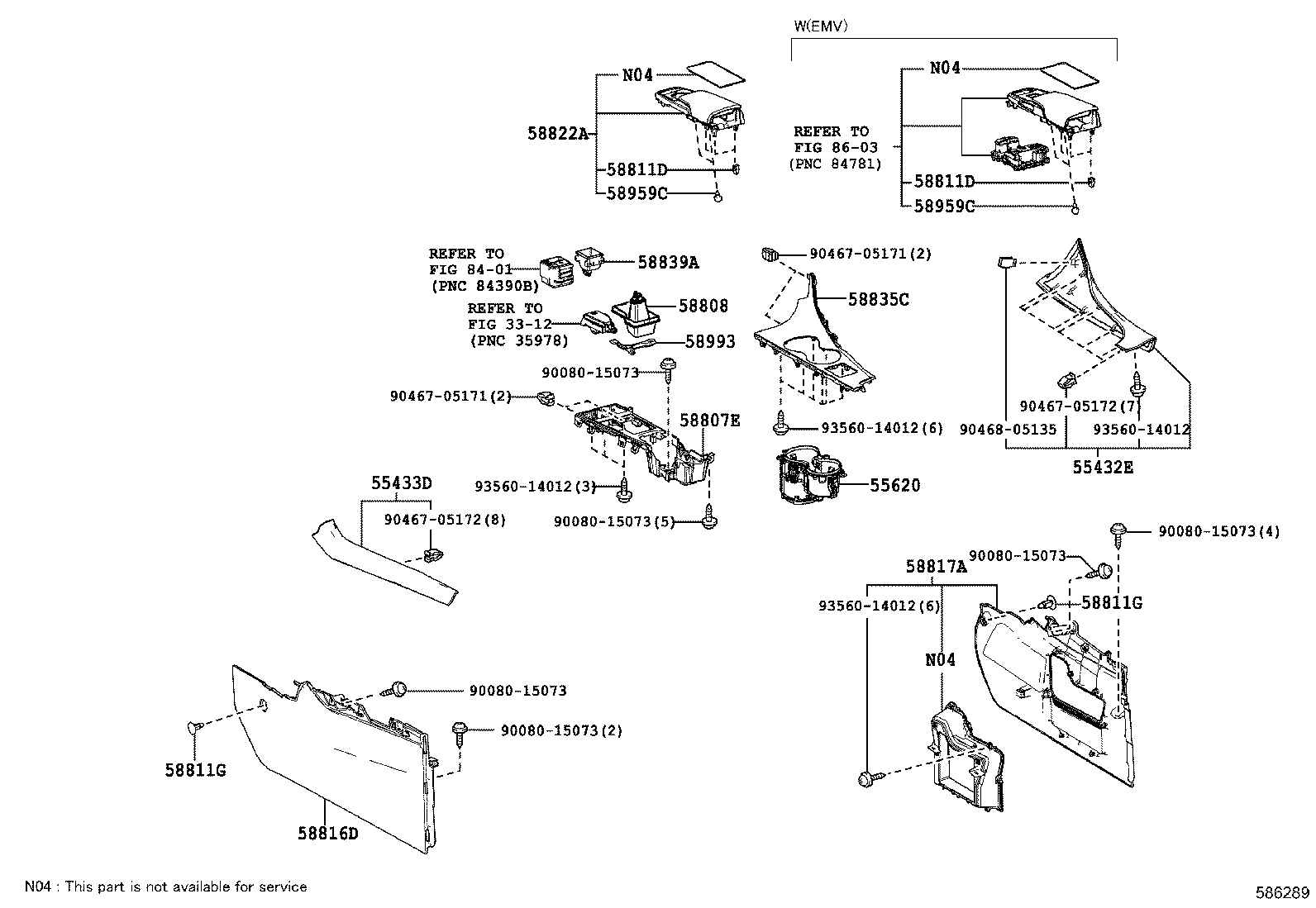

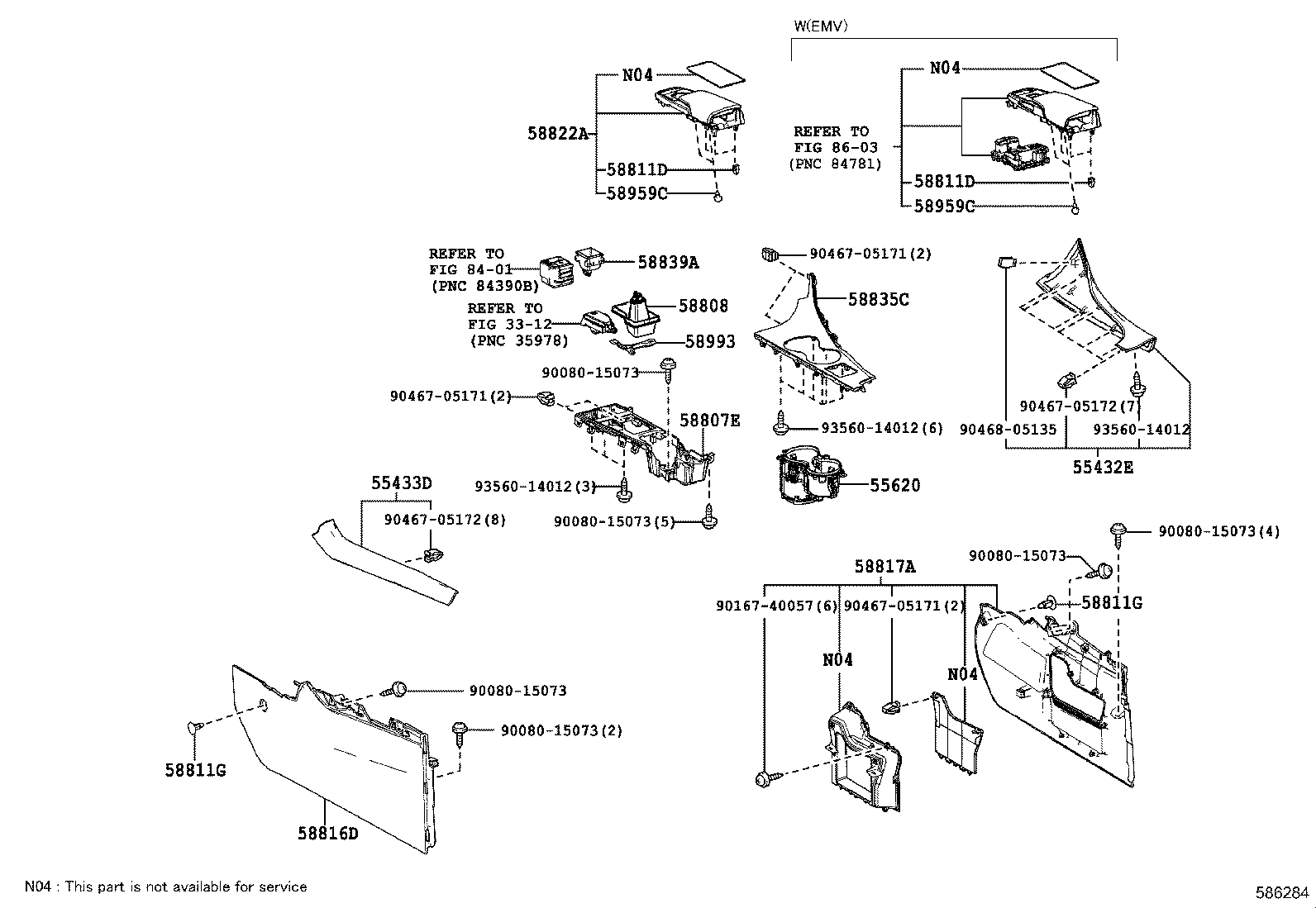

ILLUST NO. 1 OF 3(1510-1707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0E210B1 |
GGL2#,GYL25 MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 55432-0E210A0 |
GGL2#,GYL25 IVORY,TRIM0# |
1 | ||
| 55432-0E210C2 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 55432-0E210E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 55432-0E210C0 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 55432-0E210D0 |
GGL2#,GYL25 DK. ROSE,TRIM3# |
1 | ||
| 55432-0E210F0 |
GGL2#,GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55431-0E020B1 |
GGL2#,GYL25 MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 55431-0E020C2 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 55431-0E020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 55431-0E020A0 |
GGL2#,GYL25 IVORY,TRIM0# |
1 | ||
| 55431-0E020C0 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 55431-0E020D0 |
GGL2#,GYL25 DK. ROSE,TRIM3# |
1 | ||
| 55431-0E020F0 |
GGL2#,GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-0E120 |
GGL2#,GYL25 |
1 | ||
| 58807E - FRAME SUB-ASSY, SHIFTING HOLE | ||||
| 58807-0E010 |
GGL2#,GYL25 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-48010C0 |
GGL2#,GYL25 BLACK/CRIMSON,TRIM4# |
1 | ||
| 58808-48010E0 |
GGL2#,GYL25 NOBLE BROWN/IVORY,TRIM0#,5# |
1 | ||
| 58808-48010C1 |
GYL25 BLACK/LT.GRAY,TRIM1#,2#,3# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
GGL2#,GYL25 |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
GGL2#,GYL25 |
3 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 90467-06020L8 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 90467-06020L8 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-0E090C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58816-0E090E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-0E090E0 |
GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58817-0E090C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-48070D1 |
GYL25 DK.ROSE/BLACK,TRIM3# |
1 | ||
| 58822-48070B0 |
GYL25 MOON STONE/MD.GRAY,TRIM10,12,13,14 |
1 | ||
| 58822-48070C1 |
GYL25 BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58822-48070E1 |
GYL25 NOBLE BROWN/CRIMSON,TRIM4# |
1 | ||
| 58822-48070F1 |
GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 58822-48070C3 |
GYL25 BLACK/MD.GRAY,TRIM15 |
1 | ||
| 58822-48070A5 |
GYL25 IVORY/IVORY,TRIM0# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-0E040E1 |
GYL25 DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),DK.BROWN,TRIM4#,5# |
1 | ||
| 58835-0E070F0 |
GYL25 DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM0# |
1 | ||
| 58835-48210C0 |
GGL25,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 58835-0E090E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM4#,5# |
1 | ||
| 58835-48210C0 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 58835-0E030C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 58835-0E050B0 |
GGL25,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 58835-0E090E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM1#,2# |
1 | ||
| 58835-0E080E0 |
GYL25 DK.BROWN,TRIM1#,2# |
1 | ||
| 58835-0E090F0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM0# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-0E100 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58839-0E100 |
GYL25 |
1 | ||
| 58839-0E100 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58839-0E100 |
GYL25 SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 58839-0E100 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-0E010 |
GGL2#,GYL25 (L) |
1 | ||
| 58993-48020 |
GGL2#,GYL25 (J) |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90167-40057 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
| 8603 | ||||
ILLUST NO. 1 OF 3(1707-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0E210B1 |
GGL2#,GYL25 MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 55432-0E210A0 |
GGL2#,GYL25 IVORY,TRIM0# |
1 | ||
| 55432-0E210C2 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 55432-0E210E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 55432-0E210C0 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 55432-0E210D0 |
GGL2#,GYL25 DK. ROSE,TRIM3# |
1 | ||
| 55432-0E210F0 |
GGL2#,GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55431-0E020B1 |
GGL2#,GYL25 MOON STONE,TRIM10,11,12,13,14 |
1 | ||
| 55431-0E020C2 |
GGL2#,GYL25 BLACK,TRIM15 |
1 | ||
| 55431-0E020E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 55431-0E020A0 |
GGL2#,GYL25 IVORY,TRIM0# |
1 | ||
| 55431-0E020C0 |
GGL2#,GYL25 BLACK,TRIM2# |
1 | ||
| 55431-0E020D0 |
GGL2#,GYL25 DK. ROSE,TRIM3# |
1 | ||
| 55431-0E020F0 |
GGL2#,GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-0E120 |
GGL2#,GYL25 |
1 | ||
| 58807E - FRAME SUB-ASSY, SHIFTING HOLE | ||||
| 58807-0E010 |
GGL2#,GYL25 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-48010C0 |
GGL2#,GYL25 BLACK/CRIMSON,TRIM4# |
1 | ||
| 58808-48010E0 |
GGL2#,GYL25 NOBLE BROWN/IVORY,TRIM0#,5# |
1 | ||
| 58808-48010C1 |
GYL25 BLACK/LT.GRAY,TRIM1#,2#,3# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
GGL2#,GYL25 |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
GGL2#,GYL25 |
3 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 90467-06020L8 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-06020C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 90467-06020L8 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
2 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-0E090C0 |
GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58816-0E090E0 |
GGL2#,GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-0E090E0 |
GYL25 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 58817-0E090C0 |
GYL25 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-48070D1 |
GYL25 DK.ROSE/BLACK,TRIM3# |
1 | ||
| 58822-48070B0 |
GYL25 MOON STONE/MD.GRAY,TRIM10,12,13,14 |
1 | ||
| 58822-48070C1 |
GYL25 BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58822-48070E1 |
GYL25 NOBLE BROWN/CRIMSON,TRIM4# |
1 | ||
| 58822-48070F1 |
GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 58822-48070C3 |
GYL25 BLACK/MD.GRAY,TRIM15 |
1 | ||
| 58822-48070A5 |
GYL25 IVORY/IVORY,TRIM0# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-0E040E1 |
GYL25 DOOR TRIM-ENGIEERED WOOD & W/O(ILLUMINATION LAMP),DK.BROWN,TRIM4#,5# |
1 | ||
| 58835-0E070F0 |
GYL25 DOOR TRIM-BAMBOO WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM0# |
1 | ||
| 58835-48210C0 |
GGL25,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 58835-0E090E1 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM4#,5# |
1 | ||
| 58835-48210C0 |
GGL2#,GYL25 "VERSION L"*(L)&DOOR TRIM-ALUMINUM & WOOD & W(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 58835-0E030C0 |
GYL25 BLACK,TRIM1#,2# |
1 | ||
| 58835-0E050B0 |
GGL25,GYL25 "F SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),MD.SILVER ALUMINUM,TRIM1#,2#,3# |
1 | ||
| 58835-0E090E0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM1#,2# |
1 | ||
| 58835-0E080E0 |
GYL25 DK.BROWN,TRIM1#,2# |
1 | ||
| 58835-0E090F0 |
GGL2#,GYL25 PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM0# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-0E100 |
GYL25 PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58839-0E100 |
GYL25 |
1 | ||
| 58839-0E100 |
GYL25 "F SPORT"*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58839-0E100 |
GYL25 SEAT HEATER-WITH(FRONT ONLY) |
1 | ||
| 58839-0E100 |
GYL25 "VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR) |
1 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GGL2#,GYL25 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-0E010 |
GGL2#,GYL25 (L) |
1 | ||
| 58993-48020 |
GGL2#,GYL25 (J) |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
