GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510-1909)GYL2#

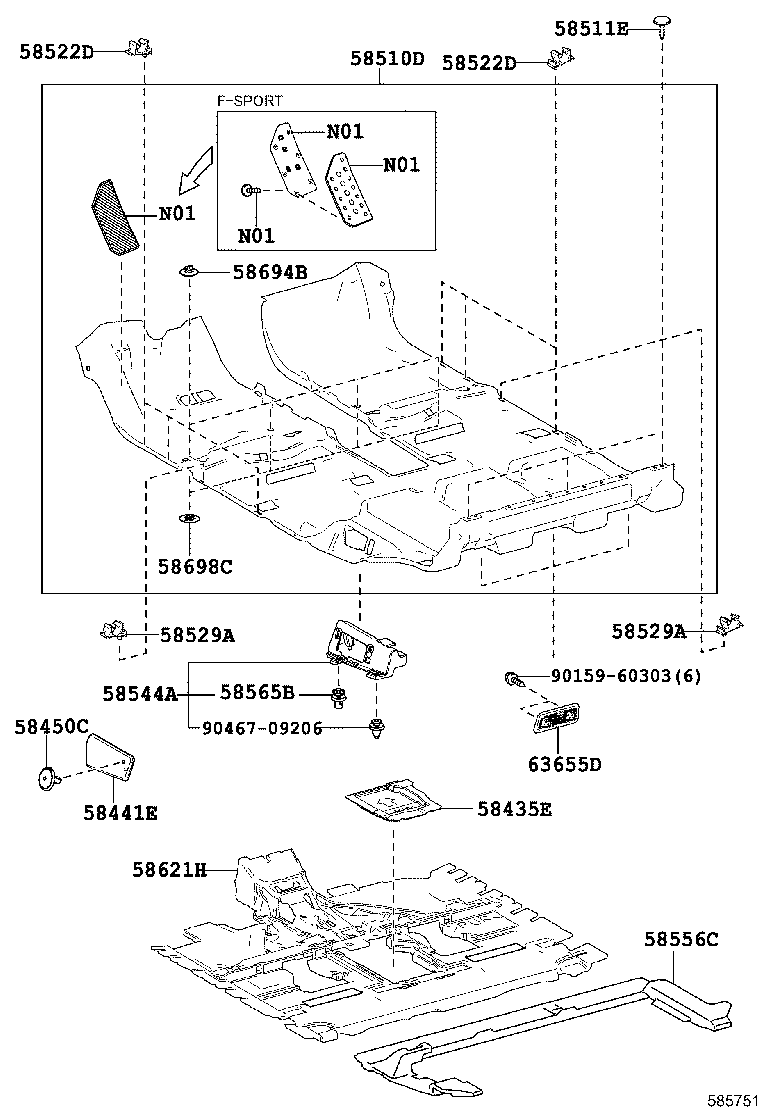

Click highlighted areas on diagram

diagram 58435E 58441E 58450C 58510D 58511E 58522D 58522D 58529A 58529A 58544A 58556C 58565B 58621H 58694B 58698C 63655D 9015960303 9046709206
Part # Description Qty Price
58435E - SILENCER, FRONT FLOOR, CENTER
58435-0E010

GGL2#,GYL25

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-0E030B1

GYL25

MOON STONE,TRIM10,11,12,13,14,15

 1
58441-0E030C2

GYL25

BLACK,TRIM14,15,2#,3#,4#

 1
58441-0E030E1

GYL25

NOBLE BROWN,TRIM0#,5#

 1
58450C - CLIP
90467-07206B0

GYL25

MOON STONE,TRIM10,12,13

 1
90467-07206E0

GYL25

NOBLE BROWN,TRIM0#,5#

 1
90467-07206C0

GYL25

BLACK,TRIM14,15,2#,3#,4#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0E320B1

GYL25

MOON STONE,TRIM1#

 1
58510-0E330C3

GYL25

"F SPORT"*(F),BLACK,TRIM1#,2#,3#

 1
58510-0E320C4

GYL25

BLACK,TRIM2#,4#

 1
58510-0E320E1

GYL25

NOBLE BROWN,TRIM0#,5#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07049C0

GGL25,GYL25

BLACK,TRIM1#,2#,3#,4#

 3
90467-0704923

GGL2#,GYL25

BLACK

 3
58522D - HOOK, FLOOR CARPET, NO.2
58522-48010

GGL2#,GYL25

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-48010

GGL2#,GYL25

 6
58529A - HOOK, FLOOR CARPET, NO.3
58524-48010

GGL2#,GYL25

 2
58529A - HOOK, FLOOR CARPET, NO.3
58524-48010

GGL2#,GYL25

 2
58544A - BRACKET, FLOOR CARPET, LH
58544-0E010

GYL25

 1
58556C - SILENCER, REAR FLOOR
58556-0E050

GYL25

 1
58565B - CLIP
90467-09239

GYL25

COLOR = BLUE

 1
58621H - PAD, FRONT FLOOR SILENCER
58621-0E060

GGL2#,GYL25

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

GGL2#,GYL25

 4
58698C - PLATE, MAT SET, LOWER
58698-78010

GGL2#,GYL25

 4
63655D - COVER, AIR INTAKE
63655-0E020E0

GYL25

NOBLE BROWN,TRIM0#,5#

 3
63655-0E020C0

GYL25

BLACK,TRIM14,15,2#,3#,4#

 3
63655-0E020B1

GYL25

MOON STONE,TRIM10,11,12,13,14,15

 3
Common parts
90159-60303
90467-09206
