GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

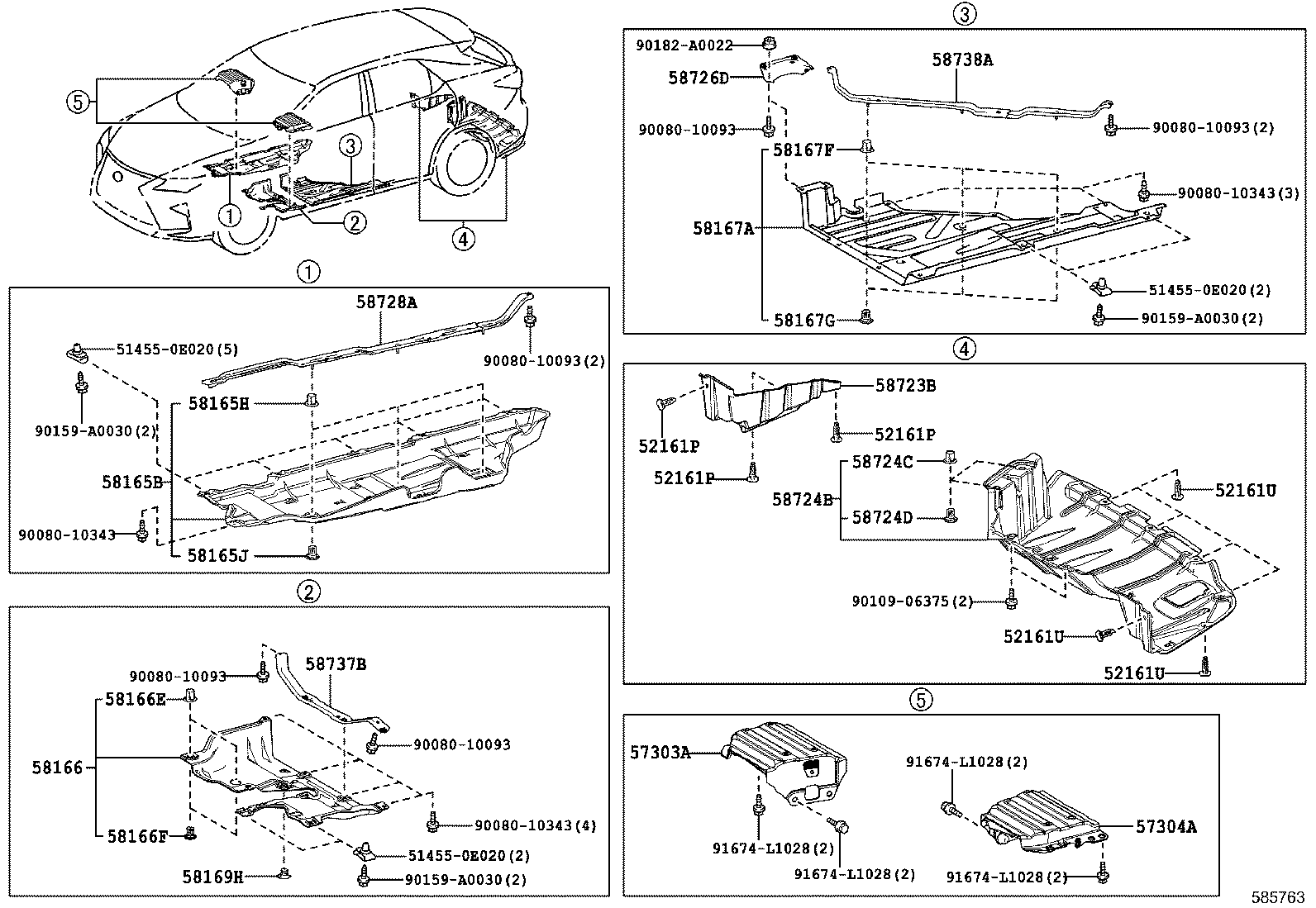

ILLUST NO. 2 OF 2(1510- )GYL2#
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
3 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
3 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
3 | ||
| 52161U - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
6 | ||
| 52161U - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
6 | ||
| 52161U - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GYL25 |
6 | ||
| 57303A - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-0E010 |
GGL2#,GYL25 |
1 | ||
| 57304A - OUTRIGGER SUB-ASSY, NO.2 LH | ||||
| 57304-0E010 |
GGL2#,GYL25 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 50819-0E020 |
GGL2#,GYL25 |
1 | ||
| 58165H - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-A0029A0 |
GGL2#,GYL25 SUPER WHITE 2 |
3 | ||
| 58165J - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-A0030C0 |
GGL2#,GYL25 BLACK |
3 | ||
| 90467-A0030C1 |
GGL2#,GYL25 BLACK |
3 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0E050 |
GGL2#,GYL25 |
1 | ||
| 58166E - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-A0029A0 |
GGL2#,GYL25 SUPER WHITE 2 |
2 | ||
| 58166F - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-A0030C0 |
GGL2#,GYL25 BLACK |
2 | ||
| 90467-A0030C1 |
GGL2#,GYL25 BLACK |
2 | ||
| 58167A - COVER, FRONT FLOOR, CENTER | ||||
| 58167-0E050 |
GYL25 |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
GYL25 SUPER WHITE 2 |
3 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C1 |
GYL25 BLACK |
3 | ||
| 90467-A0030C0 |
GYL25 BLACK |
3 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-0E010 |
GGL2#,GYL25 |
1 | ||
| 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-0E070 |
GYL25 |
1 | ||
| 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-0E090 |
GYL25 TOWING HITCH-TOWING RECEIVE HITCH & WIRE |
1 | ||
| 58724-0E080 |
GYL25 |
1 | ||
| 58724C - CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR, NO.1 | ||||
| 90467-A0029A0 |
GYL25 SUPER WHITE 2 |
2 | ||
| 58724D - CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR, NO.2 | ||||
| 90467-A0030C1 |
GYL25 BLACK |
2 | ||
| 90467-A0030C0 |
GYL25 BLACK |
2 | ||
| 58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH | ||||
| 58726-0E010 |
GGL2#,GYL25 |
1 | ||
| 58728A - PLATE, ENGINE SERVICE COVER, NO.2 | ||||
| 58728-0E010 |
GGL2#,GYL25 |
1 | ||
| 58737B - BRACKET, ENGINE SERVICE COVER | ||||
| 58737-0E010 |
GGL2#,GYL25 |
1 | ||
| 58738A - BRACKET, ENGINE SERVICE COVER, REAR | ||||
| 58738-0E010 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 51455-0E020 | ||||
| 90080-10093 | ||||
| 90080-10343 | ||||
| 90109-06375 | ||||
| 90159-A0030 | ||||
| 90182-A0022 | ||||
| 91674-L1028 | ||||

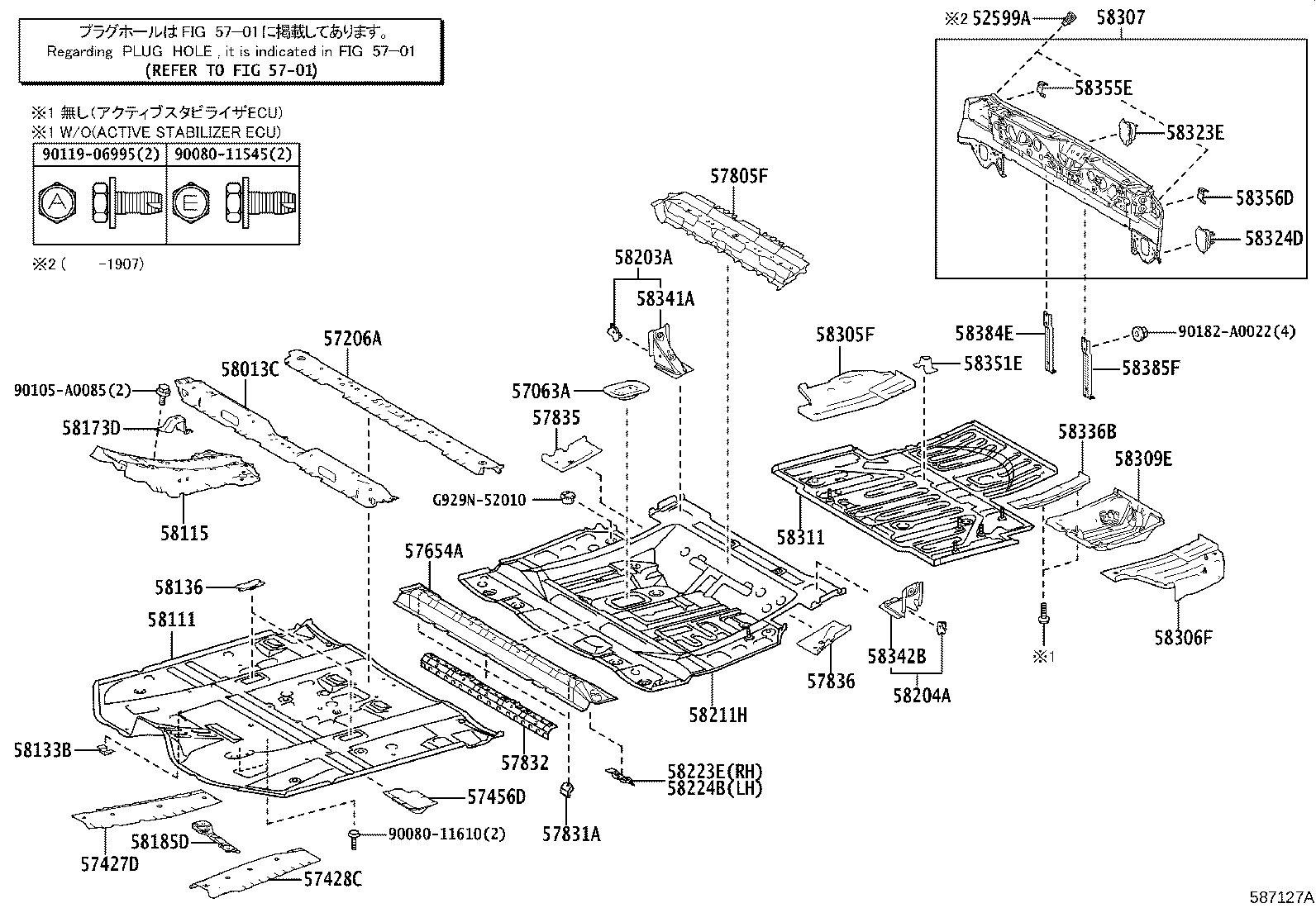

ILLUST NO. 1 OF 2(1510- )GYL2#
Click highlighted areas on diagram
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52599A - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-48050 |
GGL2#,GYL2# |
2 | ||
| 57063A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH | ||||
| 57063-0E010 |
GYL25 |
1 | ||
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-0E050 |
GGL2#,GYL25 |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-0E011 |
GGL2#,GYL25 |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-0E060 |
GGL2#,GYL25 |
1 | ||
| 57456D - PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH | ||||
| 57456-0E010 |
GYL25 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-0E050 |
GYL25 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-0E020 |
GYL25 |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-0E010 |
GGL2#,GYL25 |
2 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-0E050 |
GYL25 |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-0E020 |
GGL2#,GYL25 |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-0E020 |
GGL2#,GYL25 |
1 | ||
| 58013C - SUPPORT SUB-ASSY, SHIFT & SELECT LEVER | ||||
| 58013-0E022 |
GGL2#,GYL25 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-0E070 |
GGL2#,GYL25 |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-0E020 |
GGL2#,GYL25 |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-0E010 |
GGL2#,GYL25 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-0E010 |
GGL2#,GYL25 |
2 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-0E010 |
GGL2#,GYL25 |
1 | ||
| 58185D - PLATE, ACCELERATOR PEDAL MOUNTING | ||||
| 58185-0E010 |
GGL2#,GYL25 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-0E010 |
GGL2#,GYL25 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-0E020 |
GGL2#,GYL25 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-0E080 |
GYL25 |
1 | ||
| 58223E - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-0E020 |
GYL25 |
1 | ||
| 58224B - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-0E020 |
GYL25 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-0E020 |
GGL2#,GYL25 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-0E020 |
GGL2#,GYL25 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0E070 |
GGL2#,GYL25 |
1 | ||
| 58309E - PLATE SUB-ASSY, REAR FLOOR | ||||
| 58309-0E050 |
GYL25 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0E080 |
GYL25 |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-0E010 |
GGL2#,GYL25 |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-0E010 |
GGL2#,GYL25 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-0E080 |
GYL25 |
1 | ||
| 58341A - BRACKET, REAR ABSORBER MOUNTING, RH | ||||
| 58341-0E030 |
GGL2#,GYL25 |
1 | ||
| 58342B - BRACKET, REAR ABSORBER MOUNTING, LH | ||||
| 58342-0E030 |
GGL2#,GYL25 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-0E010 |
GGL2#,GYL25 |
1 | ||
| 58355E - BRACKET, REAR BUMPER ARM, RH | ||||
| 58355-0E060 |
GGL2#,GYL25 |
1 | ||
| 58356D - BRACKET, REAR BUMPER ARM, LH | ||||
| 58355-0E060 |
GGL2#,GYL25 |
1 | ||
| 58384E - GUSSET, LOWER BACK PANEL, NO.1 RH | ||||
| 58384-0E010 |
GGL2#,GYL25 |
1 | ||
| 58385F - GUSSET, LOWER BACK PANEL, NO.1 LH | ||||
| 58384-0E010 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11610 | ||||
| 90105-A0085 | ||||
| 90119-06995 | ||||
| 90182-A0022 | ||||
| G929N-52010 | ||||
| Linked diagrams | ||||
| 5701 | ||||
