GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

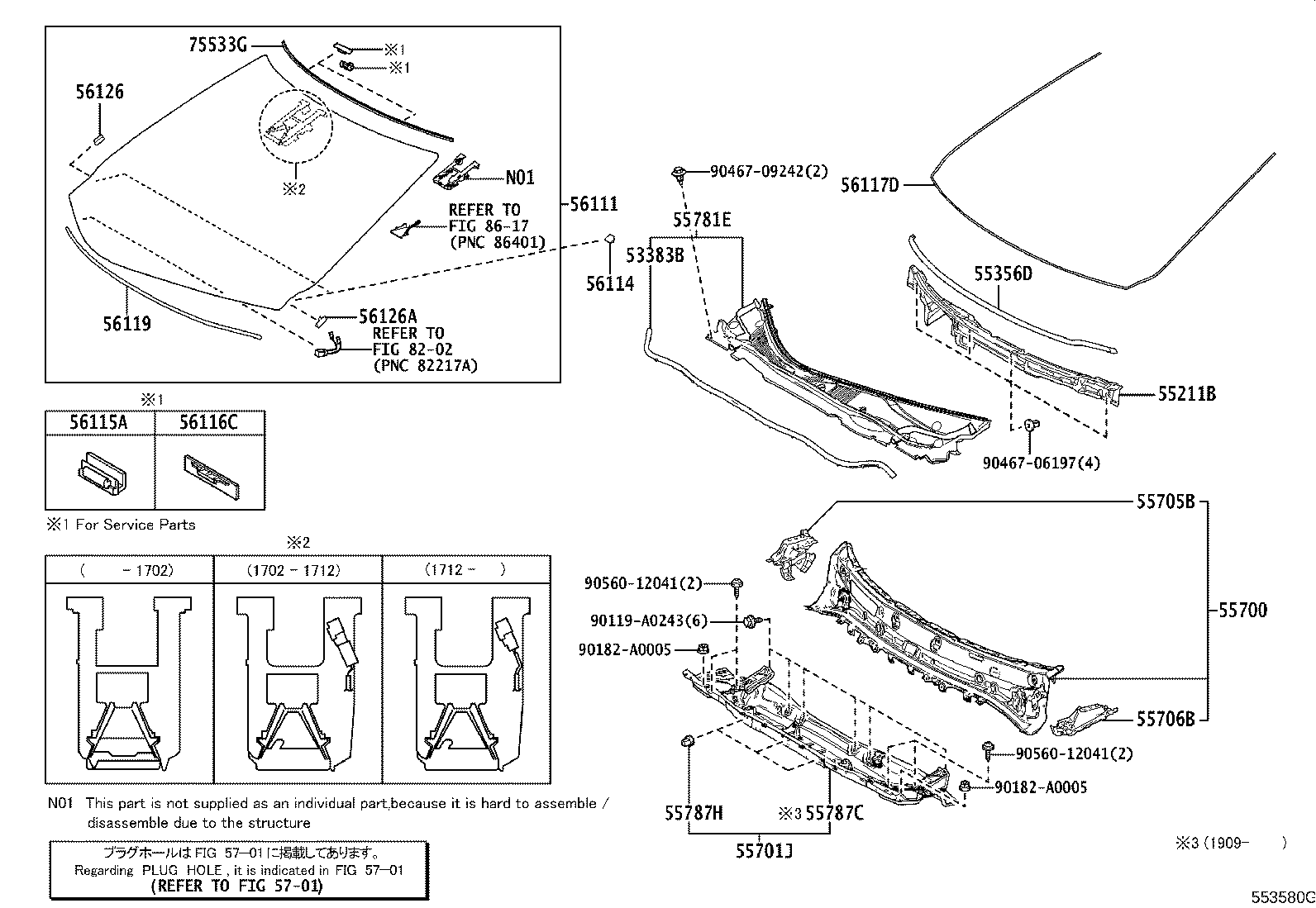

Click highlighted areas on diagram

diagram 53383B 55211B 55356D 55700 55701J 55705B 55706B 55781E 55787C 55787H 56111 56114 56115A 56116C 56117D 56119 56126 56126A 5701 75533G 8202 8617 90119A0243 90182A0005 90182A0005 9046706197 9046709242 9056012041 9056012041
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-0E070

GGL2#,GYL25

 1
55211B - SILENCER, FRONT PANEL
55211-0E020

GGL2#,GYL25

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-0E070

GGL2#,GYL25

 2
55700 - PANEL ASSY, FRONT
55700-0E100

GGL2#,GYL25

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-0E110

GGL2#,GYL25

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0E070

GGL2#,GYL25

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0E070

GGL2#,GYL25

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0E110

GGL2#,GYL25

COLD AREA SPEC

 1
55708-0E100

GGL2#,GYL25

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-0E030

GGL2#,GYL2#

 1
55787H - CLIP, COWL TOP PANEL INSULATOR
90467-06158C0

GGL2#,GYL2#

BLACK

 6
56111 - GLASS, WINDSHIELD
56101-0E460

GGL2#,GYL25

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56101-0E390

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56101-0E440

GGL2#,GYL25

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56101-0E410

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56101-0E510

GYL25

 1
56101-0E540

GGL2#,GYL25

COLD AREA SPEC

 1
56101-0E500

GGL2#,GYL25

HEAD UP DISPLAY-WITH

 1
56101-0E530

GGL2#,GYL25

COLD AREA SPEC&HEAD UP DISPLAY-WITH

 1
56101-0E411

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56101-0E391

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56101-0E441

GGL2#,GYL25

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56101-0E392

GYL25

HEAD UP DISPLAY-WITH

 1
56101-0E461

GGL2#,GYL25

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56101-0E442

GYL25

COLD AREA SPEC&HEAD UP DISPLAY-WITH

 1
56101-0E462

GYL25

COLD AREA SPEC

 1
56101-0E412

GYL25

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-48010

GGL2#,GYL25

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-22010

GGL2#,GYL25

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

GGL2#,GYL25

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-0E080

GGL2#,GYL25

L=3143,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56117-0E080

GGL2#,GYL25

L=3143,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&HEAD UP DISPLAY-WITH

 1
56117-0E080

GGL2#,GYL25

L=3143,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56117-0E080

GGL2#,GYL25

L=3143,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
56117-0E080

GGL2#,GYL25

L=3143

 1
56117-0E080

GYL25

L=3143,HEAD UP DISPLAY-WITH

 1
56117-0E080

GYL25

L=3143,COLD AREA SPEC&HEAD UP DISPLAY-WITH

 1
56117-0E080

GYL25

L=3143,COLD AREA SPEC

 1
56119 - SEAL, WINDSHIELD GLASS
56119-0E040

GGL2#,GYL25

 1
56126 - SPACER, WINDSHIELD GLASS, NO.2
56126-48010

GGL2#,GYL25

 1
56126A - SPACER, WINDSHIELD GLASS, NO.1
56127-48010

GGL2#,GYL25

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-0E040

GGL2#,GYL25

 1
Common parts
90119-A0243
90182-A0005
90467-06197
90467-09242
90560-12041
Linked diagrams
5701
8202
8617
