GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

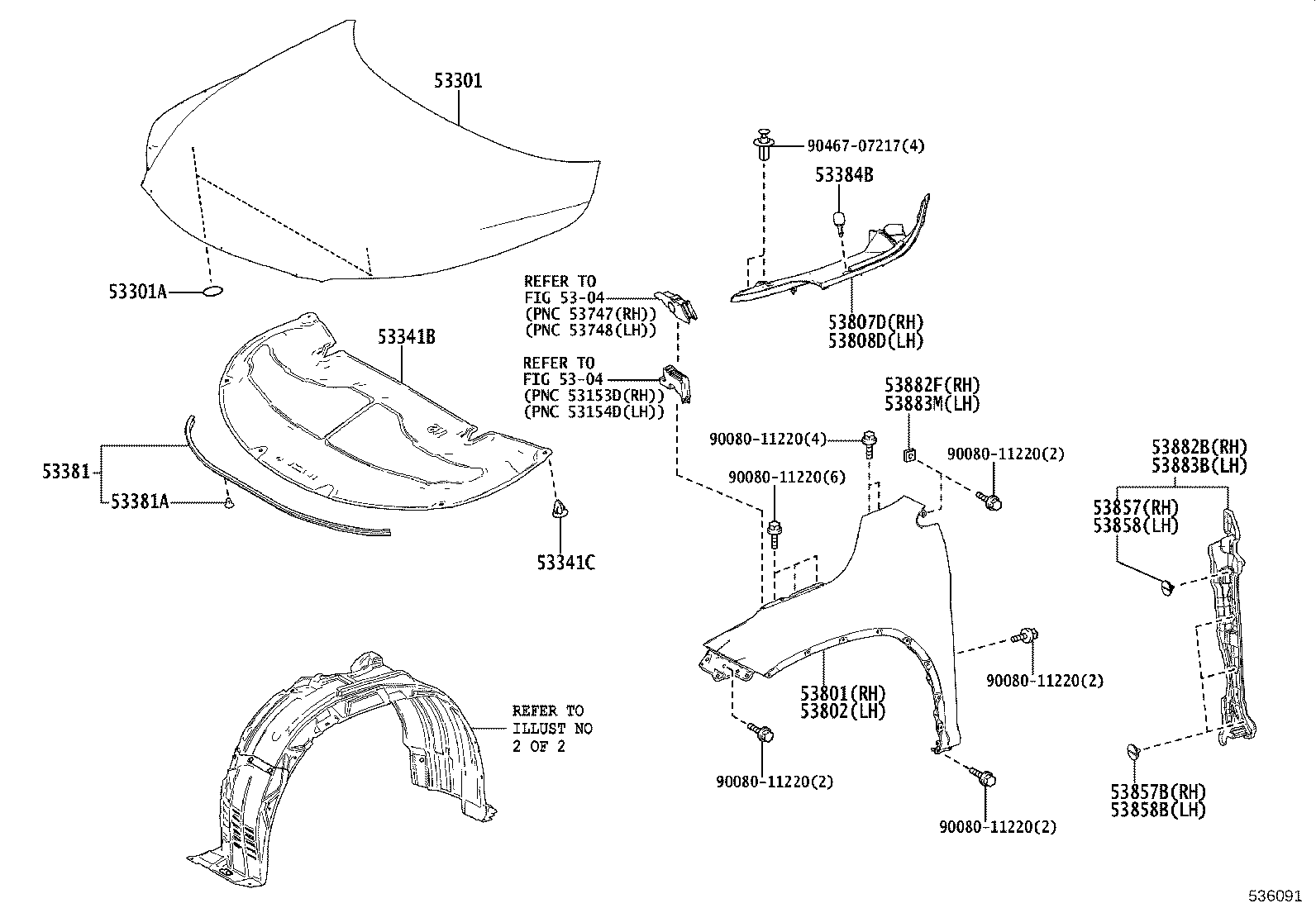

ILLUST NO. 1 OF 2(1510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0E160 |
GGL2#,GYL2# |
1 | ||
| 53301-0E150 |
GGL2#,GYL25 |
1 | ||
| 53301A - PLUG, HOLE(FOR HOOD) | ||||
| 90950-06096 |
GGL2#,GYL25 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0E110 |
GGL2#,GYL25 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
GGL2#,GYL25 |
8 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0E090 |
GGL2#,GYL25 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
GGL2#,GYL25 |
10 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL2#,GYL25 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-0E020 |
GGL2#,GYL25 |
1 | ||
| 53801-0E150 |
GGL2#,GYL2# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-0E020 |
GGL2#,GYL25 |
1 | ||
| 53802-0E060 |
GGL2#,GYL2# |
1 | ||
| 53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-0E080 |
GGL2#,GYL25 |
1 | ||
| 53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-0E080 |
GGL2#,GYL25 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
GGL2#,GYL25 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
GGL2#,GYL25 |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
GGL2#,GYL25 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
GGL2#,GYL25 |
3 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-0E070 |
GGL2#,GYL2# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
GGL2#,GYL2# |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-0E060 |
GGL2#,GYL2# |
1 | ||
| 53883M - SEAL, FRONT FENDER | ||||
| 53882-33060 |
GGL2#,GYL2# |
1 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90467-07217 | ||||
| Linked diagrams | ||||
| 5304 | ||||

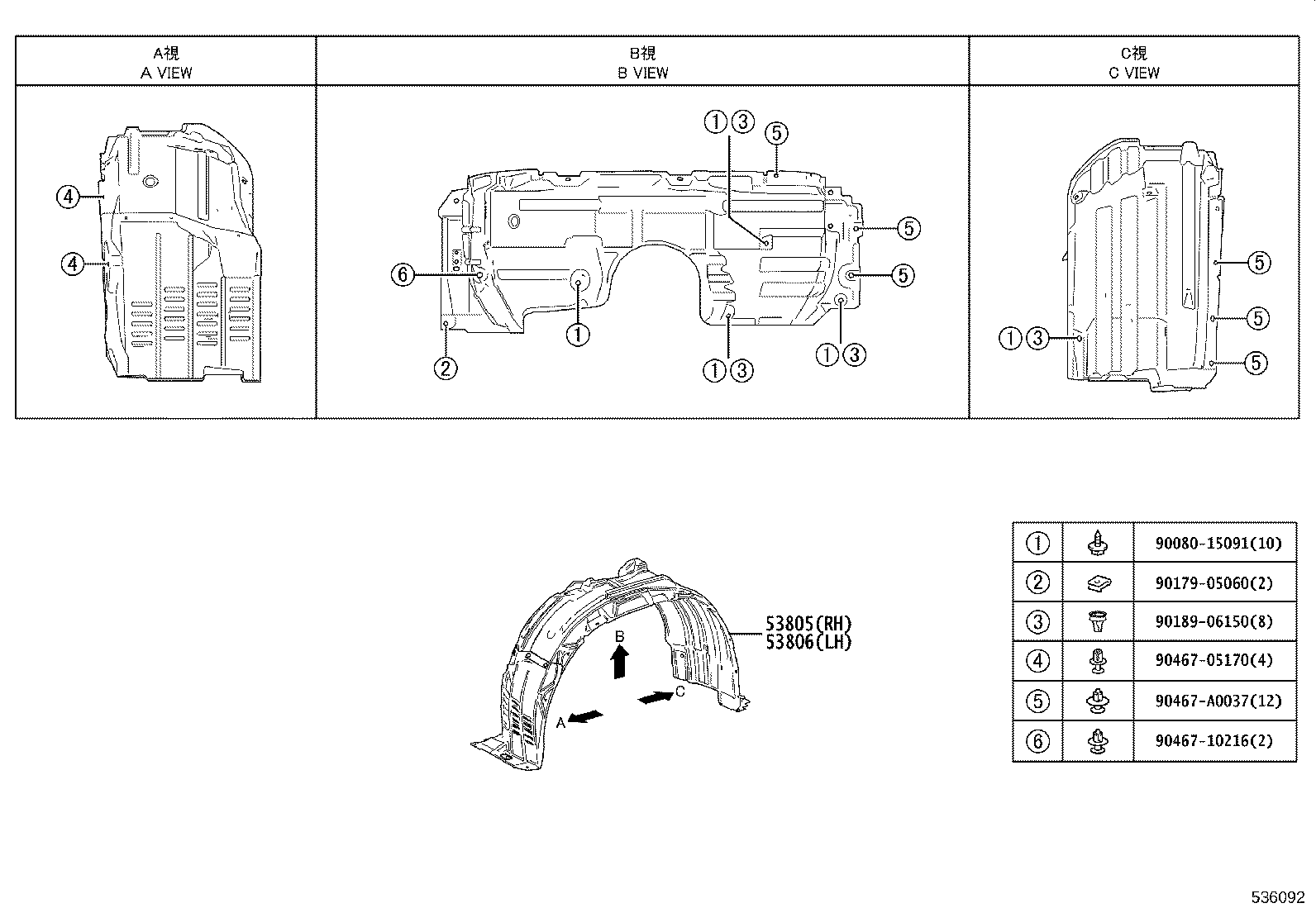

ILLUST NO. 2 OF 2(1510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-0E070 |
GGL2#,GYL25 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-0E160 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-15091 | ||||
| 90179-05060 | ||||
| 90189-06150 | ||||
| 90467-05170 | ||||
| 90467-10216 | ||||
| 90467-A0037 | ||||
