GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510-1909)GYL2#

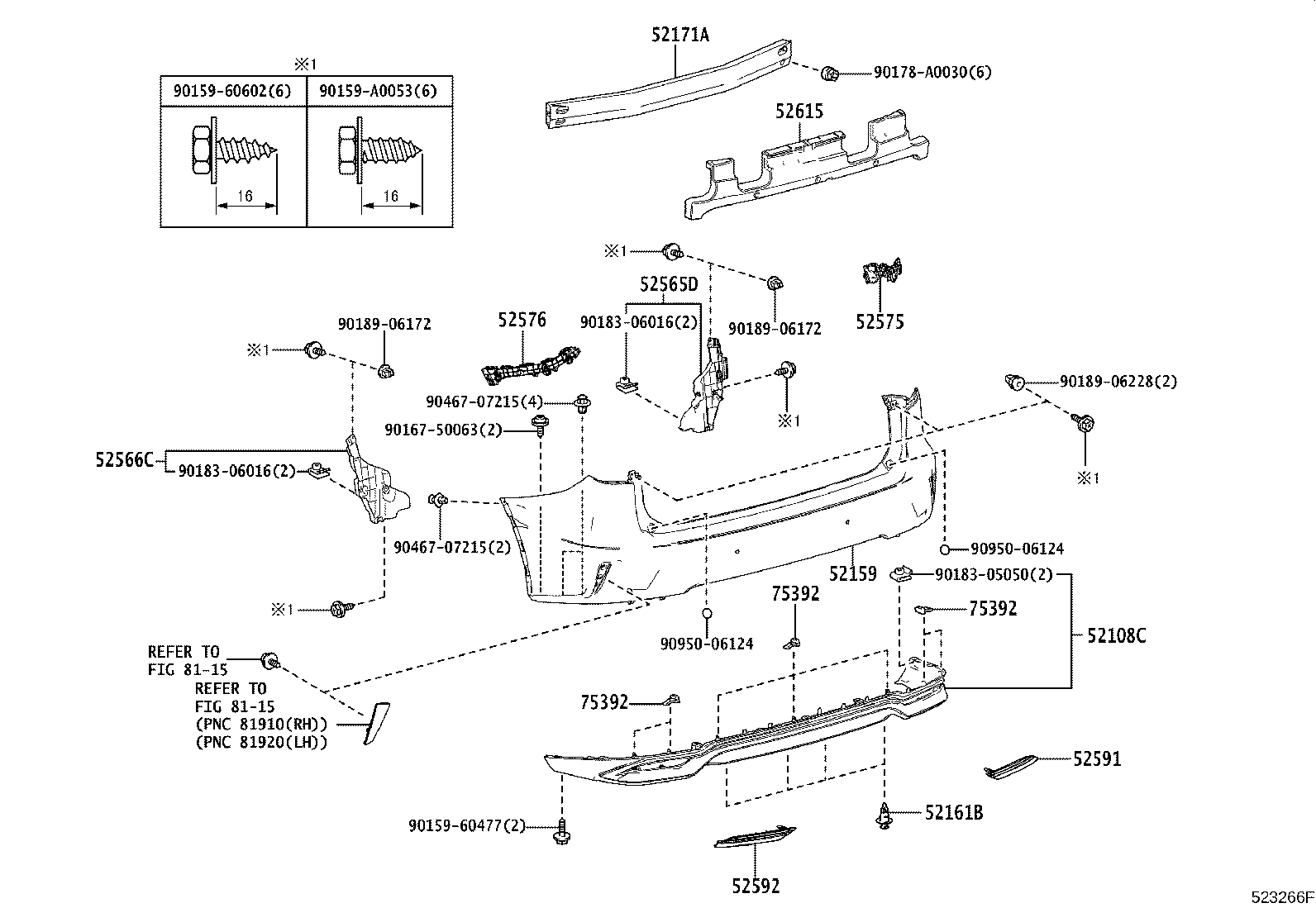

Click highlighted areas on diagram

HYBRID VEHICLE

diagram 52108C 52159 52161B 52171A 52565D 52566C 52575 52576 52591 52592 52615 75392 75392 75392 8115 8115 9015960477 9015960602 90159A0053 9016750063 90178A0030 9018305050 9018306016 9018306016 9018906172 9018906172 9018906228 9046707215 9046707215 9095006124 9095006124
Part # Description Qty Price
52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER
52108-0E060

GYL25

NO PAINT REQ.,TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
52108-0E050

GYL25

NO PAINT REQ.

 1
52108-0E060

GYL25

NO PAINT REQ.,TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE

 1
52108-0E060

GYL25

NO PAINT REQ.,TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)

 1
52159 - COVER, REAR BUMPER
52159-0E915

GYL2#

EXCEPT USA

 1
52159-0E915

GYL25

 1
52159-0E914

GYL25

PAINT REQ.

 1
52159-0E915

GGL2#,GYL25

CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)

 1
52159-0E915

GYL25

TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
52159-0E917

GYL2#

EXCEPT CANADA SPEC

 1
52159-0E915

GYL25

CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
52159-0E915

GGL2#,GYL25

TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)

 1
52161B - PIECE, REAR BUMPER
52161-02020

GGL2#,GYL25

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-0E120

GGL2#,GYL25

 1
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-0E030

GGL2#,GYL25

 1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-0E030

GGL2#,GYL25

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0E050

GGL2#,GYL25

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0E050

GGL2#,GYL25

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0E080

GYL25

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0E040

GYL25

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-0E100

GGL2#,GYL25

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

GGL2#,GYL25

 7
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

GGL2#,GYL25

 7
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

GGL2#,GYL25

 7
Common parts
90159-60477
90159-60602
90159-A0053
90167-50063
90178-A0030
90183-05050
90183-06016
90189-06172
90189-06228
90467-07215
90950-06124
Linked diagrams
8115
