GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

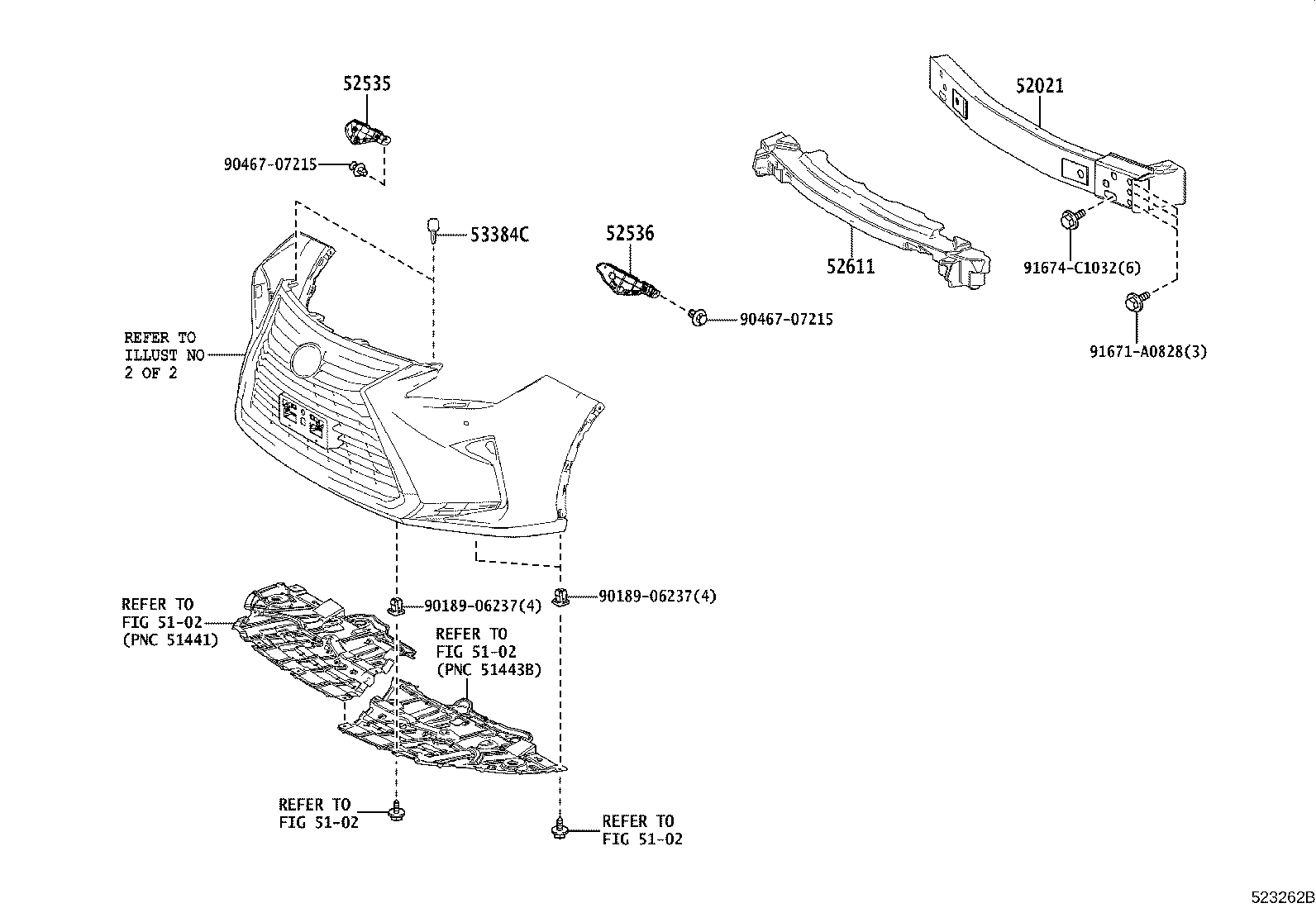

ILLUST NO. 1 OF 2(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0E080 |
GGL2#,GYL2# |
1 | ||
| 52021-0E070 |
GGL2#,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0E070 |
GGL2#,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0E060 |
GGL2#,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E110 |
GGL2#,GYL25 |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91671-A0828 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||

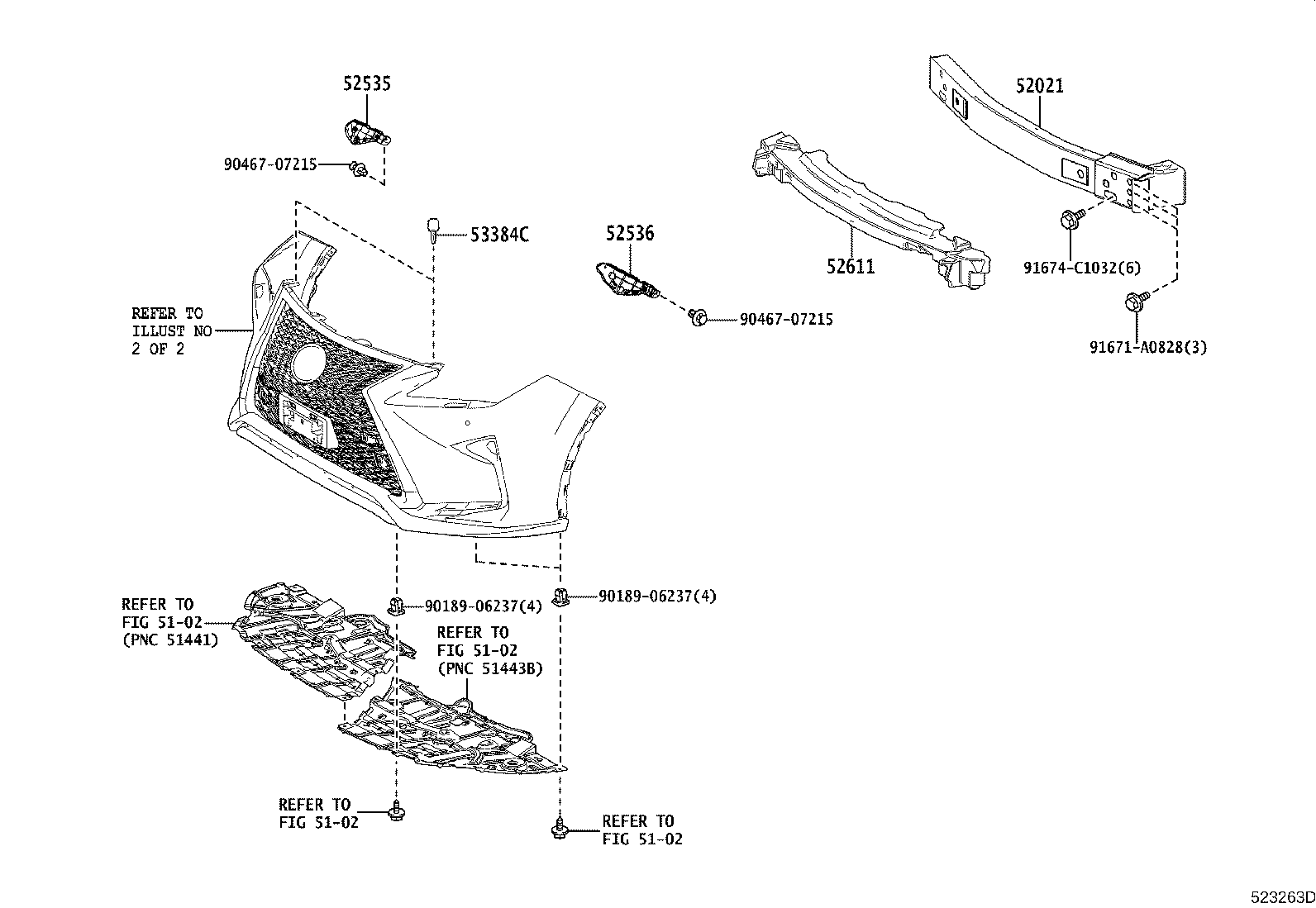

ILLUST NO. 1 OF 2(1510-1909)GGL25,GYL25 ; (1608-1909)GGL20
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0E080 |
GGL2#,GYL2# |
1 | ||
| 52021-0E070 |
GGL2#,GYL25 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0E070 |
GGL2#,GYL25 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0E060 |
GGL2#,GYL25 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0E110 |
GGL2#,GYL25 |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
GGL2#,GYL25 |
2 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-07215 | ||||
| 91671-A0828 | ||||
| 91674-C1032 | ||||
| Linked diagrams | ||||
| 5102 | ||||

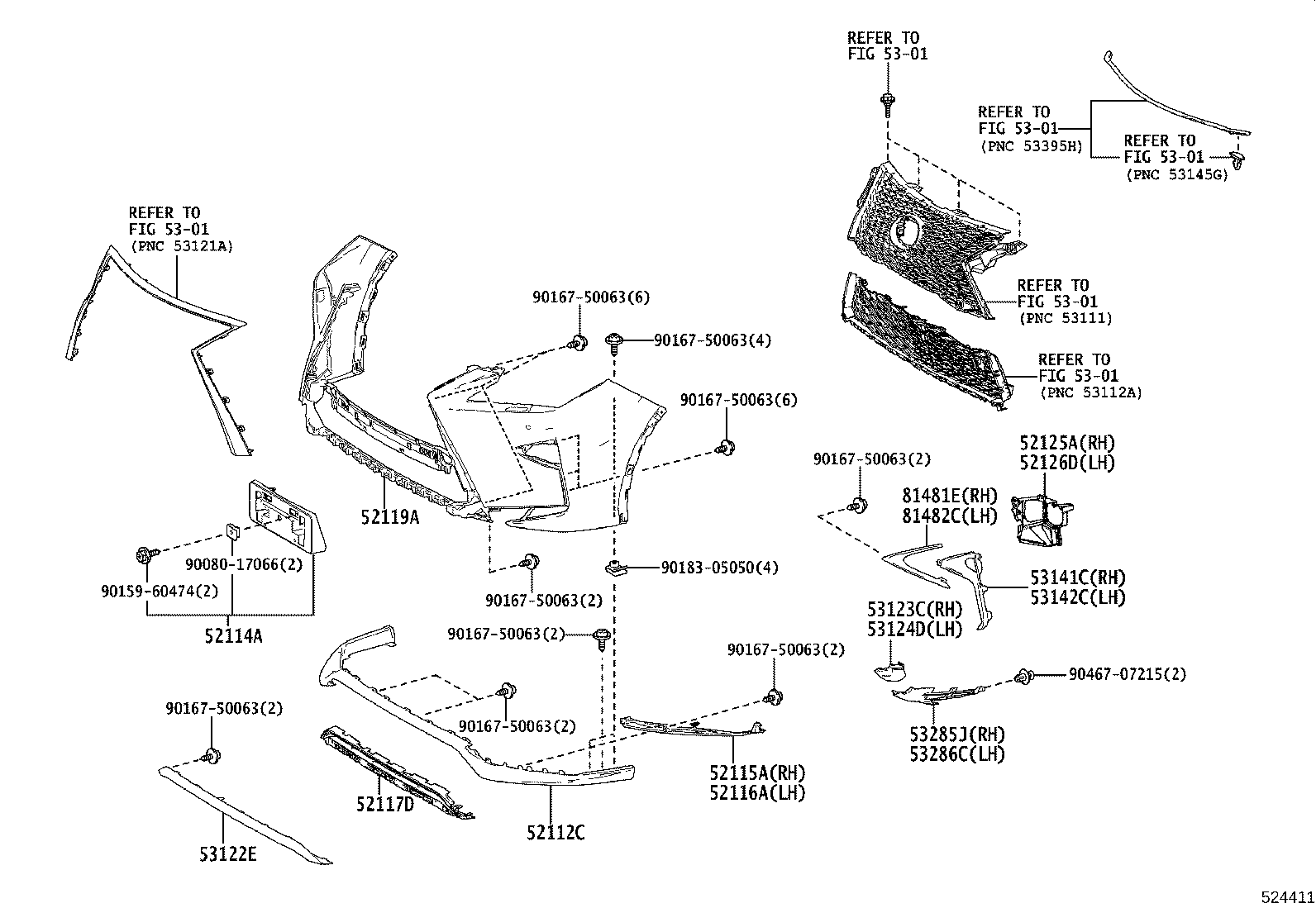

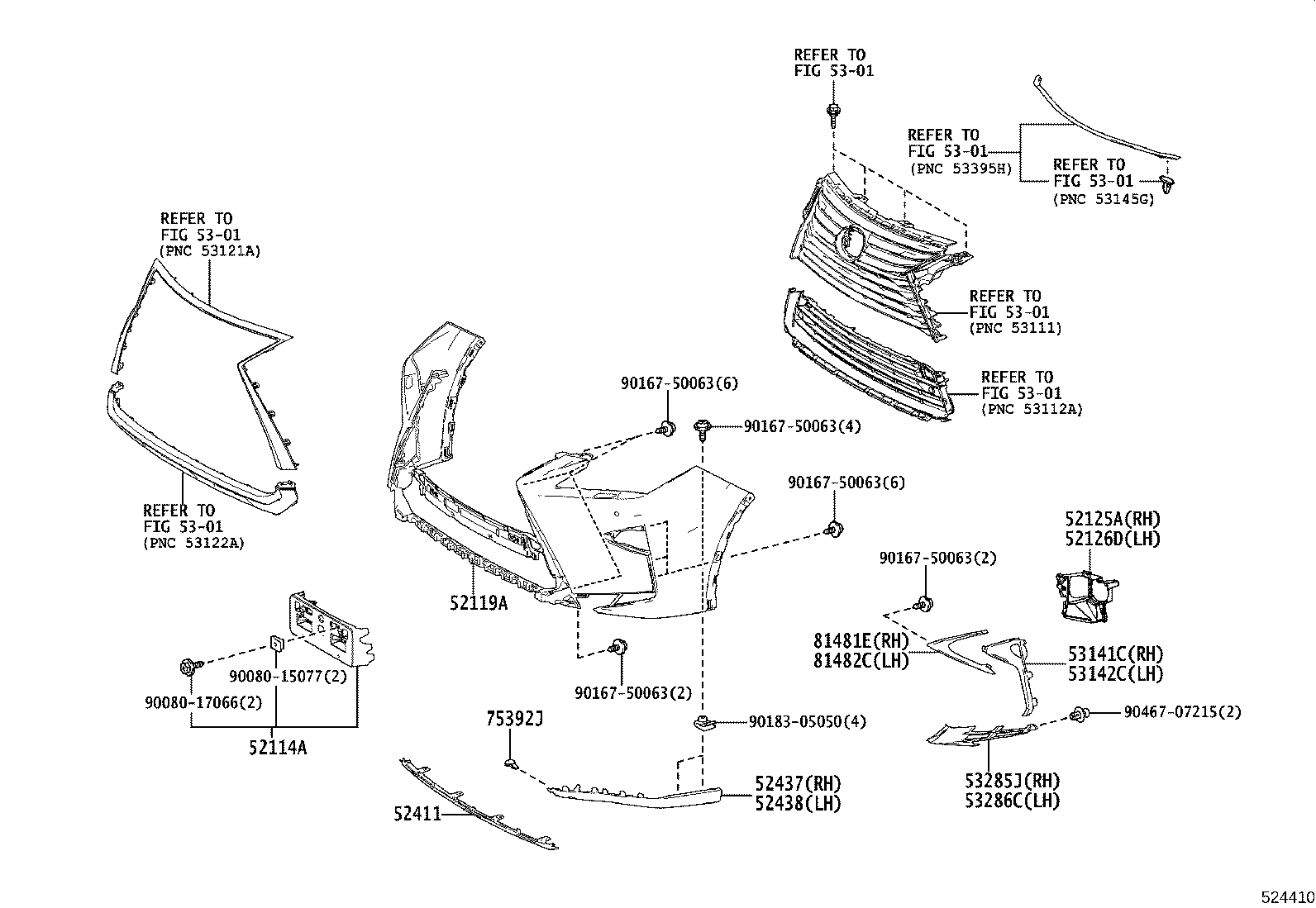

ILLUST NO. 2 OF 2(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-0E111 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52114-0E100 |
GGL2#,GYL25 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ. |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E934 |
GGL2#,GYL25 PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E933 |
GYL25 PAINT REQ. |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-0E041 |
GGL2#,GYL25 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-0E041 |
GGL2#,GYL25 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-0E020 |
GGL2#,GYL25 |
1 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-0E010 |
GGL2#,GYL25 |
1 | ||
| 52438 - COVER, FRONT BUMPER GUARD, LH | ||||
| 52438-0E010 |
GGL2#,GYL25 |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E050 |
GGL2#,GYL25 |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E010 |
GGL2#,GYL25 |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 53285-0E010 |
GGL2#,GYL25 |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53286-0E010 |
GYL25 |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GGL2#,GYL25 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0E080 |
GGL2#,GYL25 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E180 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-17066 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
ILLUST NO. 2 OF 2(1510-1909)GGL25,GYL25 ; (1608-1909)GGL20
SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52112-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52112-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-0E111 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52114-0E100 |
GGL2#,GYL25 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52115-0E080 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52115-0E080 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52116-0E060 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52116-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117D - SUPPORT, FRONT BUMPER SIDE, LOWER | ||||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 52117-0E010 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52117-0E010 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ. |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E934 |
GGL2#,GYL25 PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E933 |
GYL25 PAINT REQ. |
1 | ||
| 52119-0E934 |
GYL25 PAINT REQ.,"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E935 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GGL2#,GYL25 PAINT REQ.,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52119-0E936 |
GYL25 PAINT REQ.,"F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-0E041 |
GGL2#,GYL25 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-0E041 |
GGL2#,GYL25 |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53122-0E070 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53122-0E070 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53123C - MOULDING, RADIATOR GRILLE, LOWER RH | ||||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53123-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53123-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53124D - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53124-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53124-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53141-0E050 |
GGL2#,GYL25 |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-0E060 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53141-0E060 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53142-0E010 |
GGL2#,GYL25 |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53142-0E020 |
GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GGL2#,GYL25 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 53285-0E010 |
GGL2#,GYL25 |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-0E020 |
GGL25,GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53285-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC |
1 | ||
| 53286-0E010 |
GYL25 |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE& BACK SONAR-WITH(*ICS & *RCTB) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53286-0E020 |
GYL25 "F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0E080 |
GGL2#,GYL25 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0E180 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-17066 | ||||
| 90159-60474 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
