Toyota Lexus rx450h/350(nap GYL25 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51023-0E010	GGL2#,GYL25	10/2015 - 09/2019	1
51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51024-0E011	GGL2#,GYL25	10/2015 - 09/2019	1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
51100G - FRAME ASSY, FRONT
51100-0E071	GGL2#,GYL25	10/2015 - 09/2019	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-0E081	GYL2#	10/2015 - 07/2019	1
51206-0E082	GYL25	07/2019 - 09/2019	1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-48161	GGL20,GYL25	10/2015 - 09/2019	1
51228F - PLATE, FRONT SUSPENSION MEMBER DUMPER
51228-0E021	GGL20,GYL25	10/2015 - 09/2019	1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-0E040	GGL2#,GYL25	10/2015 - 09/2019	1
52212C - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT L
52212-0E010	GGL2#,GYL25	10/2015 - 09/2019	1
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-0E040	GGL2#,GYL25	10/2015 - 09/2019	2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-0E030	GGL2#,GYL25	10/2015 - 09/2019	1
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52217-0E040	GGL2#,GYL25	10/2015 - 09/2019	1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-0E010	GYL2#	10/2015 - 12/2015	1
52273-48010	GYL25	01/2016 - 09/2019	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-0E010	GYL2#	10/2015 - 12/2015	1
52273-48010	GYL25	01/2016 - 09/2019	1
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-0E021	GGL2#,GYL25	10/2015 - 09/2019	1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-0E011	GGL2#,GYL25	10/2015 - 09/2019	1
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-0E030	GGL2#,GYL25	10/2015 - 09/2019	2
53653B - BRACE, REAR SUSPENSION, LOWER
53653-0E010	GGL2#,GYL25	10/2015 - 09/2019	2
53653B - BRACE, REAR SUSPENSION, LOWER
53653-0E010	GGL2#,GYL25	10/2015 - 09/2019	2
Common parts
90080-11470
90080-17262
90119-A0397
90182-06007
91671-A0818

Part #	Description	Period	Qty
51441 - COVER, ENGINE UNDER, NO.1
51441-0E120	GGL2#,GYL25	10/2015 - 09/2019	1
51442 - COVER, ENGINE UNDER, NO.2
51442-0E050	GGL2#,GYL25	10/2015 - 09/2019	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07215	GGL2#,GYL25	10/2015 - 09/2019	3
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07215	GGL2#,GYL25	10/2015 - 09/2019	3
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07215	GGL2#,GYL25	10/2015 - 09/2019	3
51443B - COVER, ENGINE UNDER, NO.3
51443-0E030	GGL2#,GYL25	10/2015 - 09/2019	1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-0E010	GGL2#,GYL25	10/2015 - 09/2019	1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E050	GGL2#,GYL25	10/2015 - 09/2019	2
53851M - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0E070	GGL2#,GYL25	10/2015 - 09/2019	1
53852K - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0E050	GGL2#,GYL25	10/2015 - 09/2019	1
Common parts
90119-A0243
90159-60477
90159-A0030
90950-01901

GYL25L-CWXGBA (2015)

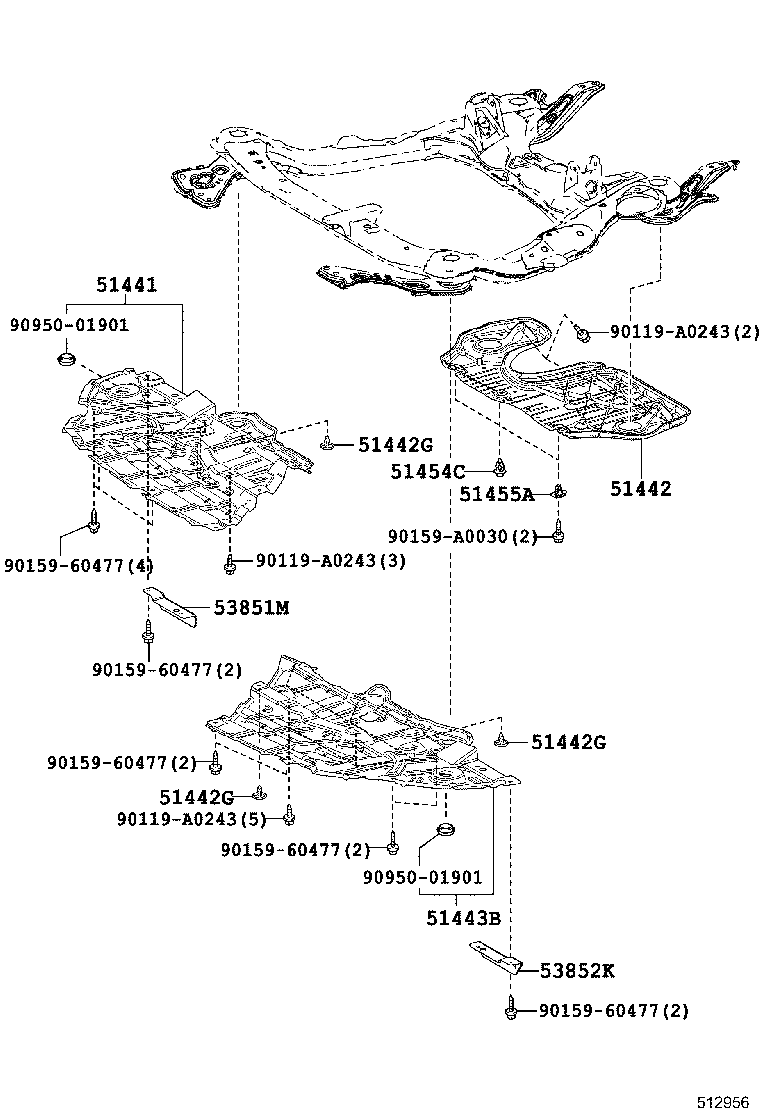

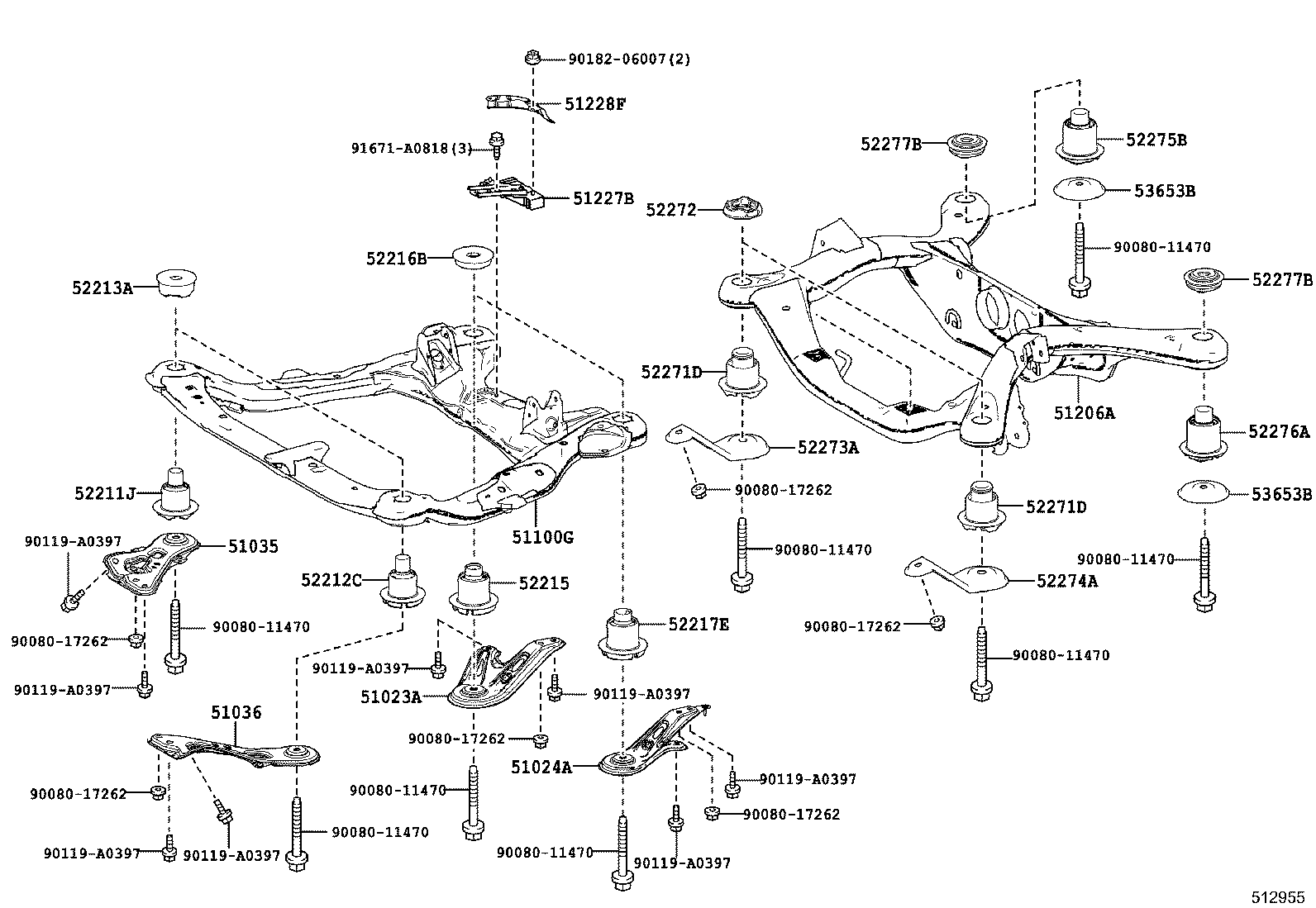

ILLUST NO. 1 OF 2(1510-1909)GYL2#

ILLUST NO. 2 OF 2(1510-1909)
