GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-0E080 |
GGL2#,GYL25 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-0E080 |
GGL2#,GYL25 |
1 | ||
| 48048A - SEAT SUB-ASSY, SPRING, RH | ||||
| 48048-0E040 |
GGL2#,GYL25 |
1 | ||
| 48048-0E011 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 48049A - SEAT SUB-ASSY, SPRING, LH | ||||
| 48049-0E040 |
GGL2#,GYL25 |
1 | ||
| 48049-0E011 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-48010 |
GGL2#,GYL25 |
2 | ||
| 48198-0E020 |
GGL2#,GYL25 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-0E280 |
GYL25 |
1 | ||
| 48231-0E310 |
GYL25 "F SPORT"*(F) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-0E310 |
GYL25 "F SPORT"*(F) |
1 | ||
| 48231-0E280 |
GYL25 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-48010 |
GGL2#,GYL25 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0E050 |
GGL2#,GYL25 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0E050 |
GGL2#,GYL25 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-48010 |
GGL2#,GYL25 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-0E020 |
GGL2#,GYL25 |
2 | ||
| 48507A - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH | ||||
| 48507-0E010 |
GGL2#,GYL25 |
1 | ||
| 48508 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH | ||||
| 48508-0E010 |
GGL2#,GYL25 |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-0E010 |
GGL2#,GYL25 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48517-0E010 |
GGL2#,GYL25 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-0E211 |
GYL25 MARK 48531-0E211 |
1 | ||
| 48530-48392 |
GGL25,GYL25 MARK 48530-48392,"F SPORT"*(F) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-0E211 |
GYL25 MARK 48531-0E211 |
1 | ||
| 48540-48392 |
GGL25,GYL25 MARK 48540-48392,"F SPORT"*(F) |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-0E080 |
GGL2#,GYL25 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-0E080 |
GGL2#,GYL25 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-0E050 |
GGL2#,GYL25 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-0E010 |
GGL2#,GYL25 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-0E010 |
GGL2#,GYL25 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-0E050 |
GGL2#,GYL25 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-0E010 |
GGL2#,GYL25 |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-0E010 |
GGL2#,GYL25 |
1 | ||
| 48759 - PIN, LOWER CONTROL ARM | ||||
| 48759-48010 |
GGL2#,GYL25 |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-0E051 |
GGL2#,GYL25 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-48010 |
GGL2#,GYL25 |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-0E061 |
GGL2#,GYL25 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-48010 |
GGL2#,GYL25 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-0E090 |
GGL2#,GYL25 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-0E090 |
GGL2#,GYL25 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48802-0E010 |
GGL2#,GYL25 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-48070 |
GGL2#,GYL25 |
2 | ||
| 48835 - BRACKET, REAR STABILIZER, LOWER | ||||
| 48835-0E010 |
GGL2#,GYL25 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48803-0E010 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-17208 | ||||
| 90080-17221 | ||||
| 90080-17223 | ||||
| 90105-A0232 | ||||
| 90105-A0238 | ||||
| 90119-A0264 | ||||
| 90119-A0308 | ||||
| 90119-A0313 | ||||
| 90119-A0321 | ||||
| 90119-A0322 | ||||
| 90119-A0376 | ||||
| 90119-A0395 | ||||
| 90178-10034 | ||||
| 90178-12009 | ||||
| 90178-12023 | ||||
| 90178-A0001 | ||||
| 90178-A0080 | ||||
| 90560-14031 | ||||
| 90948-A2002 | ||||
| 91552-K1260 | ||||
| 91672-L1275 | ||||
(1510- )

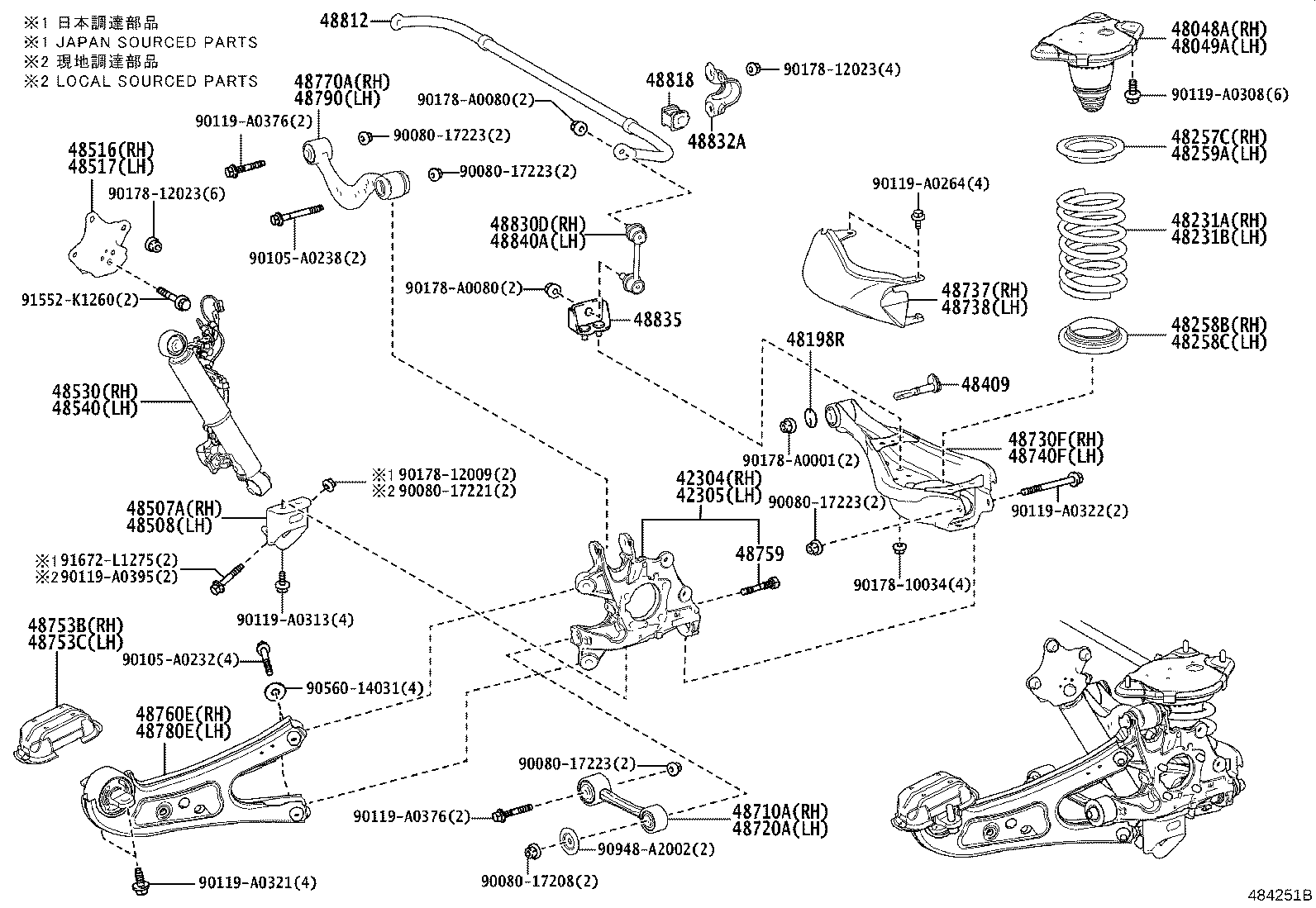

F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-0E080 |
GGL2#,GYL25 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-0E080 |
GGL2#,GYL25 |
1 | ||
| 48048A - SEAT SUB-ASSY, SPRING, RH | ||||
| 48048-0E040 |
GGL2#,GYL25 |
1 | ||
| 48048-0E011 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 48049A - SEAT SUB-ASSY, SPRING, LH | ||||
| 48049-0E040 |
GGL2#,GYL25 |
1 | ||
| 48049-0E011 |
GGL25,GYL25 "F SPORT"*(F) |
1 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-48010 |
GGL2#,GYL25 |
2 | ||
| 48198-0E020 |
GGL2#,GYL25 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-0E280 |
GYL25 |
1 | ||
| 48231-0E310 |
GYL25 "F SPORT"*(F) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-0E310 |
GYL25 "F SPORT"*(F) |
1 | ||
| 48231-0E280 |
GYL25 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-48010 |
GGL2#,GYL25 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0E050 |
GGL2#,GYL25 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0E050 |
GGL2#,GYL25 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-48010 |
GGL2#,GYL25 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-0E020 |
GGL2#,GYL25 |
2 | ||
| 48507A - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH | ||||
| 48507-0E010 |
GGL2#,GYL25 |
1 | ||
| 48508 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH | ||||
| 48508-0E010 |
GGL2#,GYL25 |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-0E010 |
GGL2#,GYL25 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48517-0E010 |
GGL2#,GYL25 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-0E211 |
GYL25 MARK 48531-0E211 |
1 | ||
| 48530-48392 |
GGL25,GYL25 MARK 48530-48392,"F SPORT"*(F) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-0E211 |
GYL25 MARK 48531-0E211 |
1 | ||
| 48540-48392 |
GGL25,GYL25 MARK 48540-48392,"F SPORT"*(F) |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-0E080 |
GGL2#,GYL25 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-0E080 |
GGL2#,GYL25 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-0E050 |
GGL2#,GYL25 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-0E010 |
GGL2#,GYL25 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-0E010 |
GGL2#,GYL25 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-0E050 |
GGL2#,GYL25 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-0E010 |
GGL2#,GYL25 |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-0E010 |
GGL2#,GYL25 |
1 | ||
| 48759 - PIN, LOWER CONTROL ARM | ||||
| 48759-48010 |
GGL2#,GYL25 |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-0E051 |
GGL2#,GYL25 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-48010 |
GGL2#,GYL25 |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-0E061 |
GGL2#,GYL25 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-48010 |
GGL2#,GYL25 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-0E090 |
GGL2#,GYL25 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-0E090 |
GGL2#,GYL25 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48802-0E010 |
GGL2#,GYL25 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-48070 |
GGL2#,GYL25 |
2 | ||
| 48835 - BRACKET, REAR STABILIZER, LOWER | ||||
| 48835-0E010 |
GGL2#,GYL25 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48803-0E010 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-17208 | ||||
| 90080-17221 | ||||
| 90080-17223 | ||||
| 90105-A0232 | ||||
| 90105-A0238 | ||||
| 90119-A0264 | ||||
| 90119-A0308 | ||||
| 90119-A0313 | ||||
| 90119-A0321 | ||||
| 90119-A0322 | ||||
| 90119-A0376 | ||||
| 90119-A0395 | ||||
| 90178-10034 | ||||
| 90178-12009 | ||||
| 90178-12023 | ||||
| 90178-A0001 | ||||
| 90178-A0080 | ||||
| 90560-14031 | ||||
| 90948-A2002 | ||||
| 91552-K1260 | ||||
| 91672-L1275 | ||||
