GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

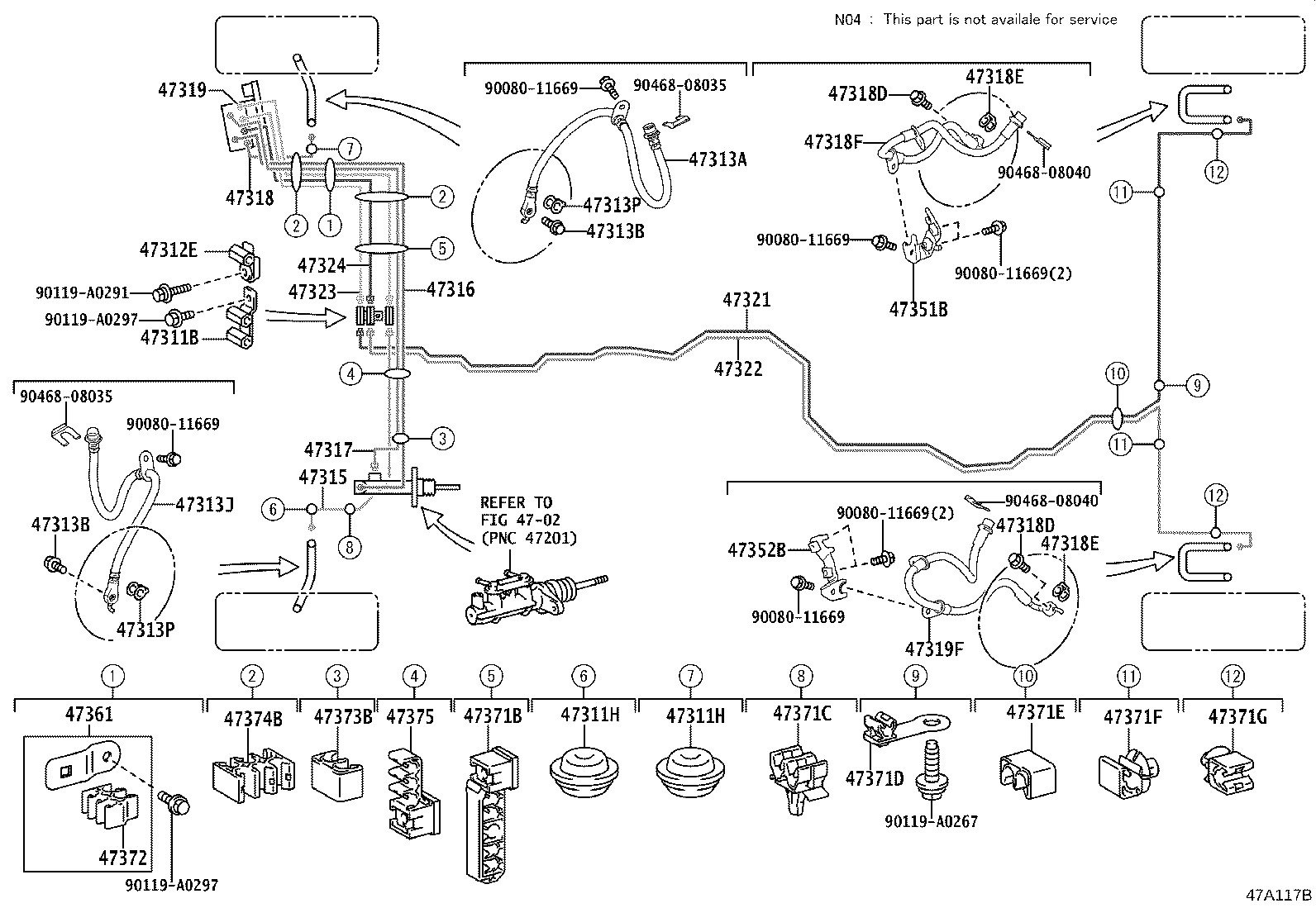

ILLUST NO. 1 OF 2(1510- )GYL2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10293 |
GYL25 |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-25033 |
GGL2#,GYL25 |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-25033 |
GGL2#,GYL25 |
2 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10304 |
GYL25 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2093 |
GGL2#,GYL25 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGL2#,GYL25 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGL2#,GYL25 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2094 |
GGL2#,GYL25 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGL2#,GYL25 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGL2#,GYL25 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0E130 |
GYL25 |
1 | ||
| 47315-0E131 |
GYL25 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0E120 |
GYL25 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0E120 |
GYL25 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0E121 |
GYL25 |
1 | ||
| 47318-0E120 |
GYL25 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGL2#,GYL25 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GGL2#,GYL25 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GGL2#,GYL25 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GGL2#,GYL25 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2099 |
GGL2#,GYL25 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-0E140 |
GYL25 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2100 |
GGL2#,GYL25 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0E110 |
GYL25 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0E110 |
GYL25 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0E140 |
GYL25 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0E140 |
GYL25 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-48020 |
GGL2#,GYL25 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-48020 |
GGL2#,GYL25 |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 47371-48150 |
GYL25 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D37 |
GYL25 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C00 |
GGL2#,GYL25 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-48170 |
GYL25 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90464-00904 |
GYL25 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
GYL25 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E01 |
GYL25 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C51 |
GYL25 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00904 |
GYL25 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-A0002 |
GYL25 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D21 |
GYL25 |
1 | ||
| Common parts | ||||
| 90080-11669 | ||||
| 90119-A0267 | ||||
| 90119-A0291 | ||||
| 90119-A0297 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||

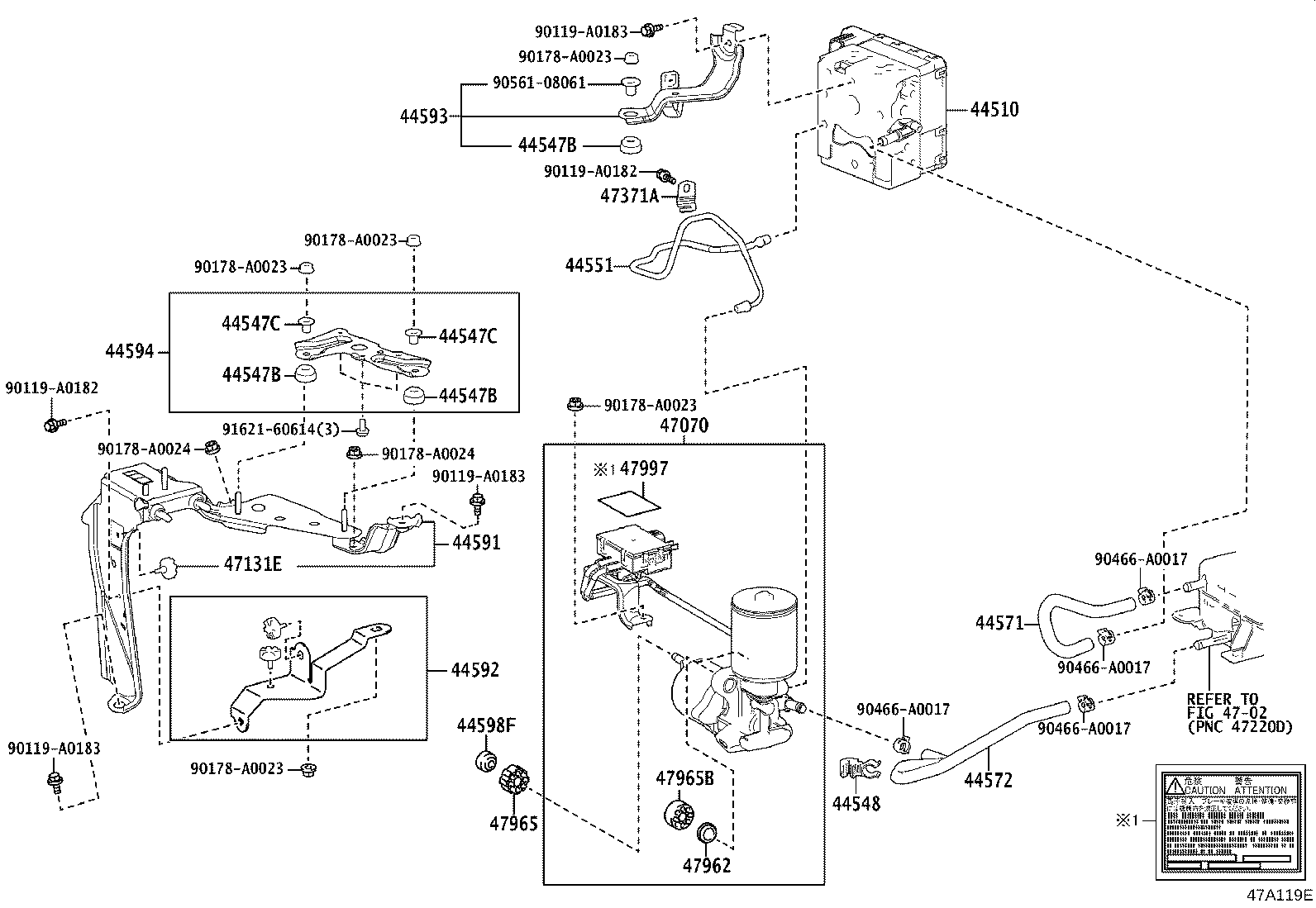

ILLUST NO. 2 OF 2(1510- )GYL2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-48320 |
GYL25 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GYL25 |
2 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GYL25 |
2 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GYL25 |
2 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
GYL25 |
2 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
GYL25 |
2 | ||
| 44548 - CLAMP(FOR BRAKE ACTUATOR) | ||||
| 44587-48020 |
GYL25 |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-0E010 |
GYL25 |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-0E010 |
GYL25 |
1 | ||
| 44572 - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-0E010 |
GYL25 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-0E080 |
GYL25 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44590-0E090 |
GYL25 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44590-0E070 |
GYL25 |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44590-48240 |
GYL25 |
1 | ||
| 44598F - CLAMP, BRAKE ACTUATOR BRACKET | ||||
| 44598-50010 |
GYL25 |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-48080 |
GYL25 |
1 | ||
| 47131E - CUSHION, BRAKE ACTUATOR BRACKET, NO.2 | ||||
| 47131-47070 |
GYL25 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-47060 |
GYL25 |
1 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
GYL25 |
2 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
GYL25 |
1 | ||
| 47965B - BUSH, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47965-24010 |
GYL25 |
2 | ||
| 47997 - LABEL, BRAKE BOOSTER ACCUMLATOR CAUTION, NO.1 | ||||
| 47997-48020 |
GYL25 |
1 | ||
| Common parts | ||||
| 90119-A0182 | ||||
| 90119-A0183 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90466-A0017 | ||||
| 90561-08061 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
