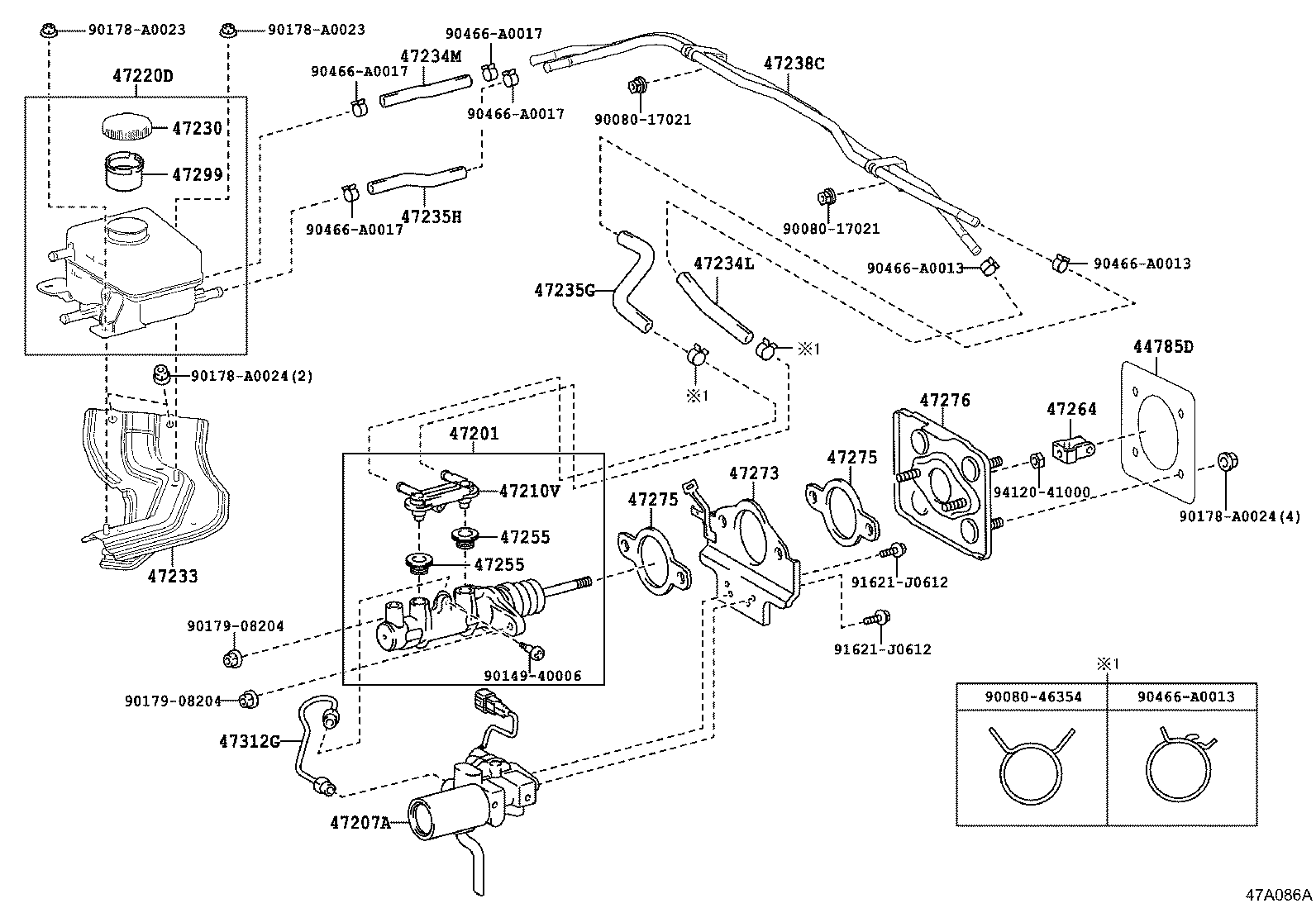

Toyota Lexus rx450h/350(nap GYL25 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
44785D - GASKET, BRAKE MASTER CYLINDER
44785-47010	GYL25	10/2015 - 09/2019	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-48210	GYL25	10/2015 - 09/2019	1
47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47207-48070	GYL25	10/2015 - 09/2019	1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90015-AM003	GYL25	10/2015 - 09/2019	1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-48270	GYL25	10/2015 - 11/2017	1
47220-48271	GYL25	12/2017 - 09/2019	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-11010	GYL25	04/2017 - 09/2019	1
47230-47090	GYL25	12/2016 - 04/2017	1
47230-58010	GGL2#,GYL25	10/2015 - 12/2016	1
47233 - BRACKET, RESERVOIR
47233-0E090	GYL2#	10/2015 - 02/2016	1
47233-48190	GYL25	02/2016 - 09/2019	1
47234L - HOSE, RESERVOIR, NO.1
47234-48140	GYL25	10/2015 - 09/2019	1
47234M - HOSE, RESERVOIR, NO.1
47234-0E080	GYL25	10/2015 - 09/2019	1
47235G - HOSE, RESERVOIR, NO.2
47235-48160	GYL25	10/2015 - 09/2019	1
47235H - HOSE, RESERVOIR, NO.2
47235-0E010	GYL25	10/2015 - 09/2019	1
47238C - TUBE, RESERVOIR
47238-0E020	GYL25	10/2015 - 09/2019	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GYL25	10/2015 - 09/2019	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GYL25	10/2015 - 09/2019	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-63020	GYL25	10/2015 - 09/2019	1
47273 - BRACKET, BRAKE STROKE SIMULATOR
47273-48010	GYL25	10/2015 - 09/2019	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-48010	GYL25	10/2015 - 09/2019	2
47275 - GASKET, BRAKE MASTER CYLINDER
47275-48010	GYL25	10/2015 - 09/2019	2
47276 - BRACKET, BRAKE MASTER CYLINDER
47276-30040	GYL25	10/2015 - 09/2019	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-30190	GYL25	10/2015 - 09/2019	1
47312G - TUBE, BRAKE STROKE SIMULATOR
44255-48070	GYL25	10/2015 - 09/2019	1
Common parts
90080-17021
90080-46354
90149-40006
90178-A0023
90178-A0024
90179-08204
90466-A0013
90466-A0017
91621-J0612
94120-41000

GYL25L-CWXGBA (2015)

(1510-1909)GYL2#
