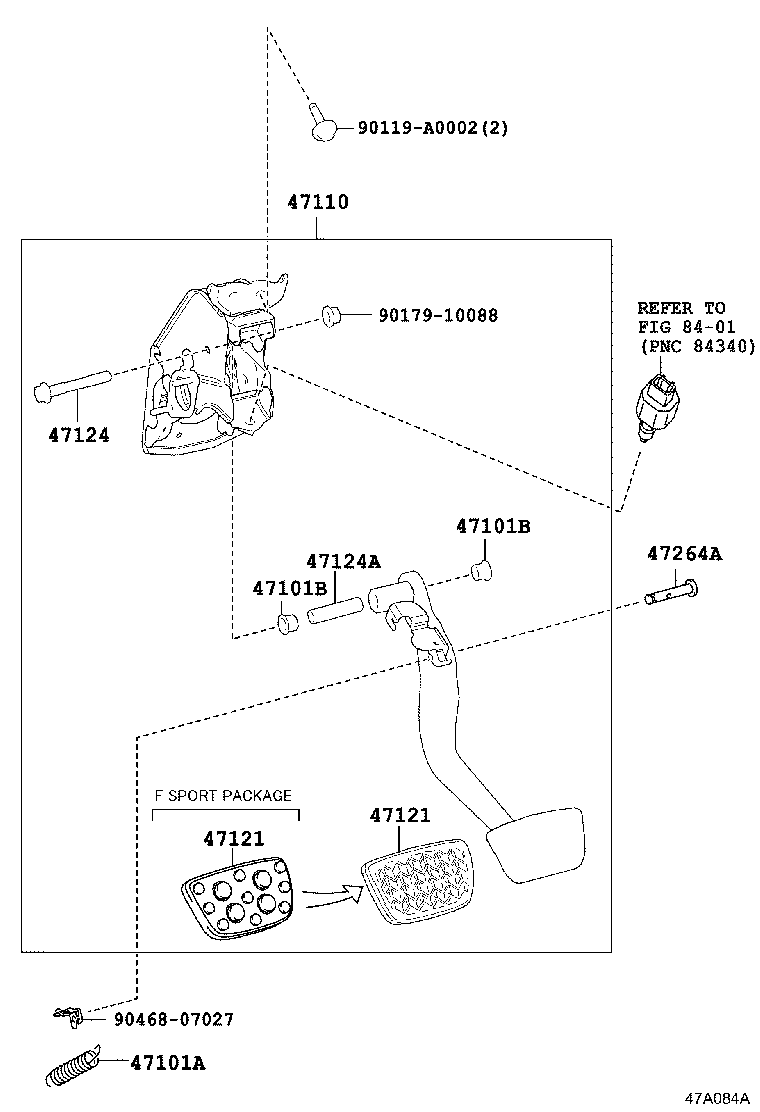

Toyota Lexus rx450h/350(nap GYL25 BRAKE PEDAL & BRACKET

Part #	Description	Period	Qty
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15008	GYL25	10/2015 - 09/2019	1
47101B - BUSH(FOR BRAKE PEDAL)
90080-38144	GGL2#,GYL25	10/2015 - 09/2019	2
47101B - BUSH(FOR BRAKE PEDAL)
90080-38144	GGL2#,GYL25	10/2015 - 09/2019	2
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0E130	GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
47110-0E120	GYL25	10/2015 - 09/2019	1
47121 - PAD, BRAKE PEDAL
47121-48020	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
47121-48010	GGL2#,GYL25	10/2015 - 09/2019	1
47121 - PAD, BRAKE PEDAL
47121-48020	GGL25,GYL25 "F SPORT"*(F)	10/2015 - 09/2019	1
47121-48010	GGL2#,GYL25	10/2015 - 09/2019	1
47124 - SHAFT, BRAKE PEDAL
90105-10563	GYL25	10/2015 - 09/2019	1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10105	GYL25	10/2015 - 09/2019	1
47264A - PIN(FOR PUSH ROD)
90249-08051	GYL25	10/2015 - 09/2019	1
Common parts
90119-A0002
90179-10088
90468-07027
Linked diagrams
8401

GYL25L-CWXGBA (2015)
