Toyota Lexus rx450h/350(nap GYL25 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0E060	GGL2#,GYL25	10/2015 - 09/2019	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0E080	GGL2#,GYL25	10/2015 - 09/2019	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0E110	GGL2#,GYL25	10/2015 - 09/2019	1
45253 - COVER, STEERING COLUMN HOLE
45253-0E020	GGL2#,GYL25	10/2015 - 09/2019	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-0E080	GGL2#,GYL25	10/2015 - 09/2019	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	GGL2#,GYL25	10/2015 - 09/2019	1
45286B - COVER, STEERING COLUMN, UPR
45286-0E070E0	GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#	10/2015 - 09/2019	1
45286-0E070C0	GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#	10/2015 - 09/2019	1
45287 - COVER, STEERING COLUMN, LWR
45287-0E110E0	GGL2#,GYL25 NOBLE BROWN,TRIM0#,5#	10/2015 - 09/2019	1
45287-0E110C0	GGL2#,GYL25 BLACK,TRIM1#,2#,3#,4#	10/2015 - 09/2019	1
45897 - BOLT, STEERING LOCK SET
45897-12020	GGL2#,GYL25	10/2015 - 09/2019	2
45897 - BOLT, STEERING LOCK SET
45897-12020	GGL2#,GYL25	10/2015 - 09/2019	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10985	GGL2#,GYL25	10/2015 - 09/2019	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10985	GGL2#,GYL25	10/2015 - 09/2019	2
Common parts
90080-11677
90080-16106
90080-18071
90119-10981
90119-A0362
90178-10027
90178-A0116
90460-81004
91511-B0825

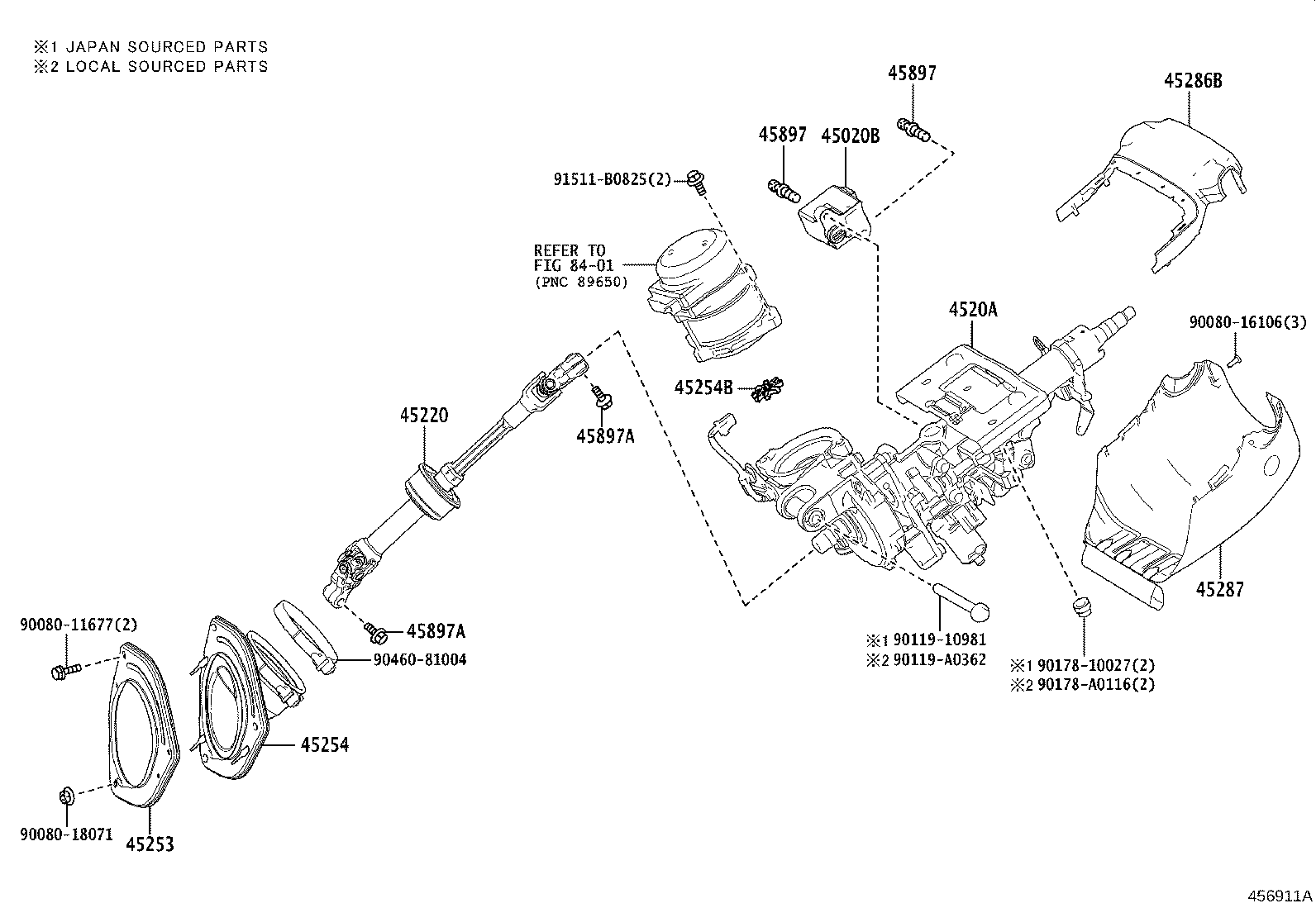

Linked diagrams
8401

GYL25L-CWXGBA (2015)
