GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )GYL2#

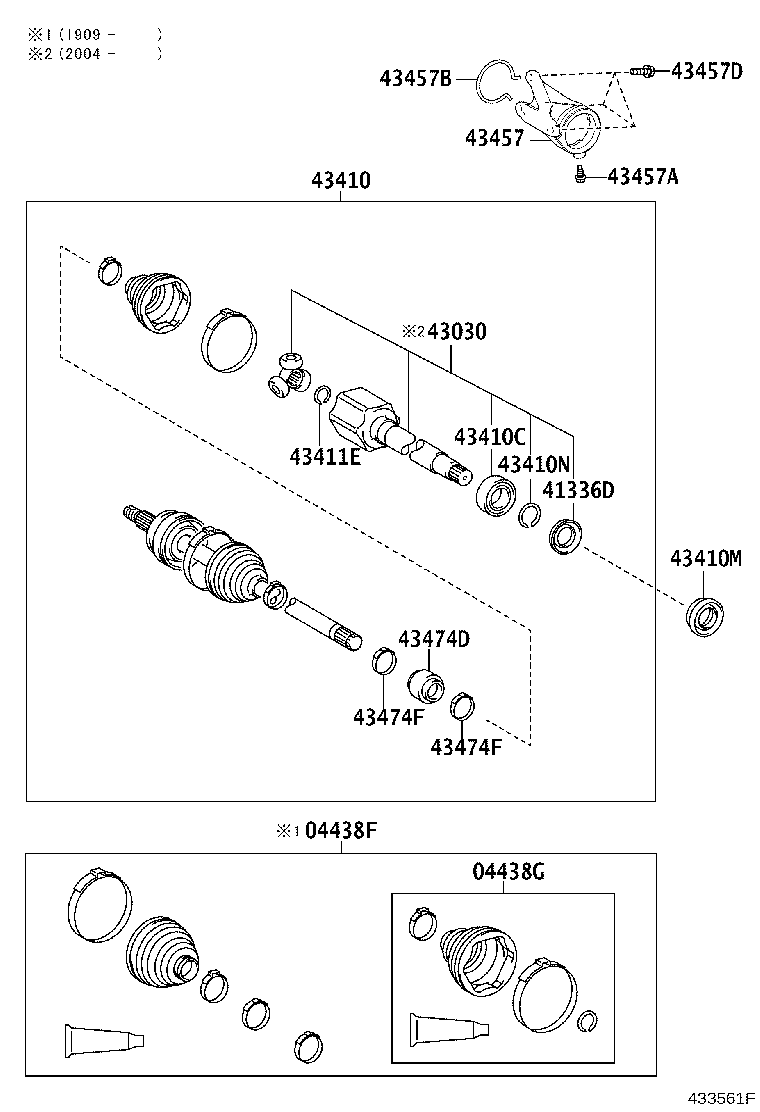

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43410 43410C 43410M 43410N 43411E 43457 43457A 43457B 43457D 43474D 43474F 43474F
Part # Description Qty Price
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04439-0T041

GGL2#,GYL2#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0E100

GGL20,GYL2#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0E180

GYL2#

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-A0016

GGL20,GYL2#

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40039

GYL25

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-0E200

GGL20,GYL2#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0E190

GGL2#,GYL2#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-07010

GGL20,GYL2#

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

GGL20,GYL2#

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

GGL20,GYL2#

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10087

GGL20,GYL2#

 3
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0E090

GGL20,GYL2#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-0E270

GGL20,GYL2#

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-0E270

GGL20,GYL2#

 2

(1510- )

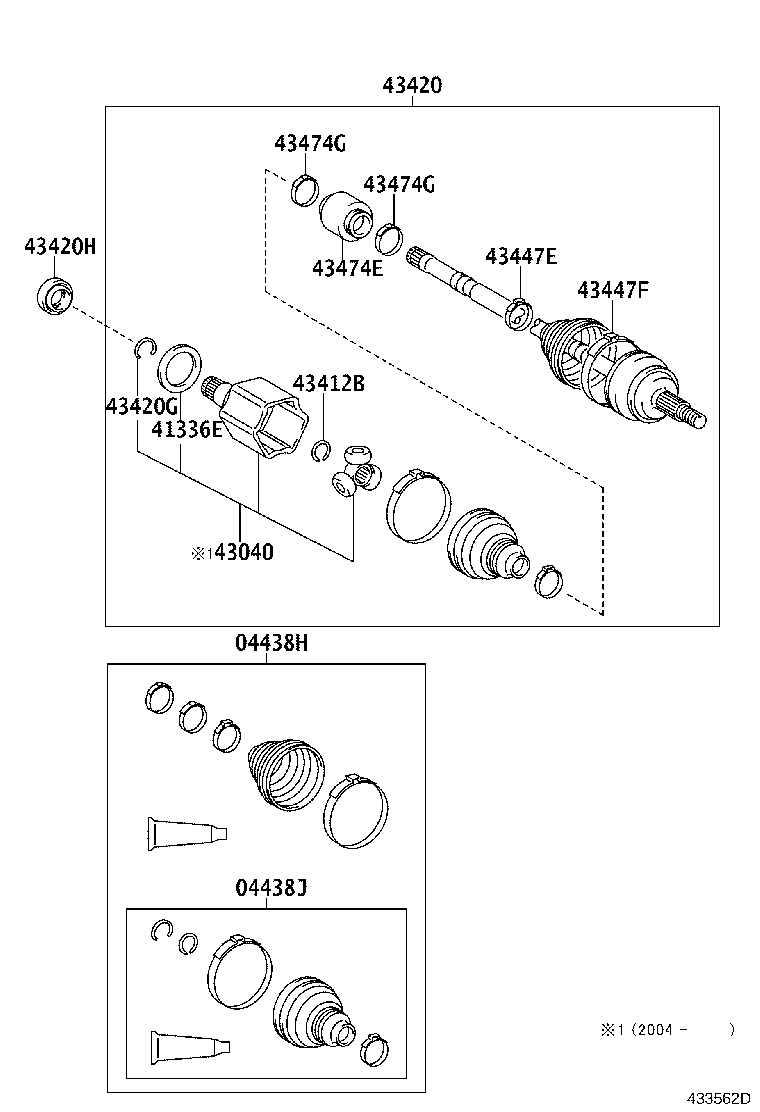

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-0E110

GGL2#,GYL2#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-0E090

GGL2#,GYL2#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-0E120

GYL2#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0E190

GGL2#,GYL2#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0E130

GYL2#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-0E230

GGL2#,GYL2#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50063

GYL25

 1
90311-50053

GYL25

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0E240

GGL2#,GYL2#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0E250

GGL2#,GYL2#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-0E110

GYL2#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-0E280

GGL2#,GYL2#

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-0E280

GGL2#,GYL2#

 2
