GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

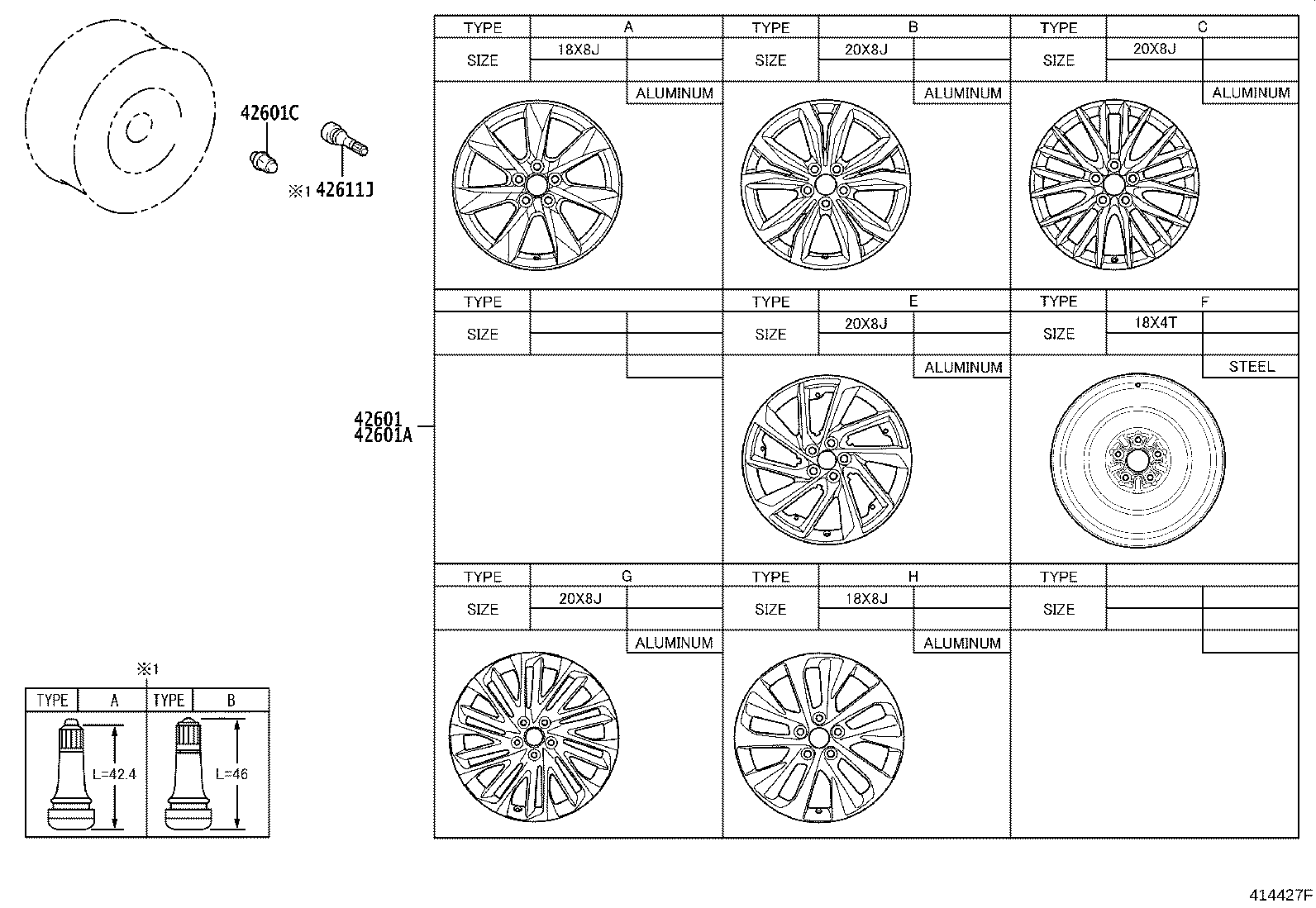

ILLUST NO. 1 OF 2(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0E240 |
GGL2#,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0E250 |
GGL25,GYL25 18X8J,#,CANADA SPEC,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0E380 |
GGL2#,GYL25 20X8J,#,TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42611-0E430 |
GGL25,GYL25 20X8J,#,CANADA SPEC&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE E:REFER ILLUST. |
4 | ||
| 4261A-0E160 |
GGL2#,GYL25 18X8J,#,TYPE A:REFER ILLUST. |
4 | ||
| 4261A-0E120 |
GGL25,GYL25 20X8J,#,CANADA SPEC&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE (F SPORT),TYPE C:REFER ILLUST. |
4 | ||
| 42611-0E420 |
GGL2#,GYL25 20X8J,#,TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0E360 |
GGL2#,GYL25 20X8J,#,TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 4261A-0E110 |
GGL25,GYL25 20X8J,#,TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE (F SPORT),TYPE C:REFER ILLUST. |
4 | ||
| 42611-0E390 |
GGL25,GYL25 20X8J,#,CANADA SPEC&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 4261A-0E170 |
GGL25,GYL25 18X8J,#,CANADA SPEC,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0E370 |
GGL25,GYL25 20X8J,#,CANADA SPEC&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0T030 |
GGL2#,GYL2# 18X4T,TYPE F:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90084-94001 |
GGL2#,GYL25 WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL |
16 | ||
| 90084-94001 |
GGL2#,GYL25 WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE |
16 | ||
| 90084-94001 |
GGL25,GYL25 "F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING |
16 | ||
| 90084-94001 |
GGL2#,GYL25 WHEEL LOCKS-WITH |
16 | ||
| 90084-94001 |
GGL2#,GYL25 WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING |
16 | ||
| 90084-94001 |
GGL25,GYL25 "F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE (F SPORT) |
16 | ||
| 90084-94001 |
GGL25,GYL25 "F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE |
16 | ||
| 90084-94001 |
GGL25,GYL25 "F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL |
16 | ||
| 90084-94001 |
GGL2#,GYL25 |
20 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
GGL2#,GYL25 TYPE B:REFER ILLUST. |
1 | ||
| 90080-45001 |
GGL2#,GYL25 TYPE A:REFER ILLUST. |
1 | ||

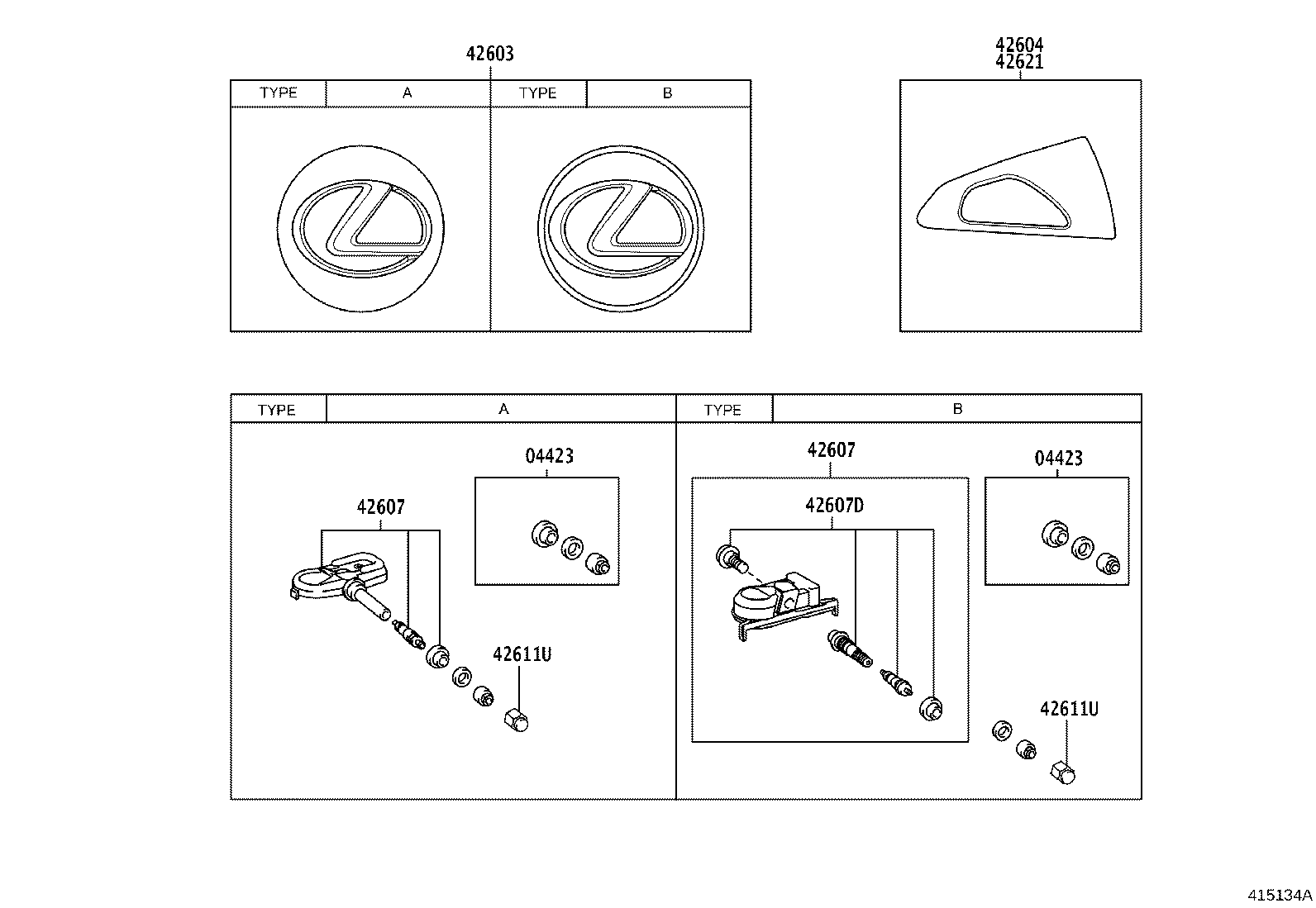

ILLUST NO. 2 OF 2(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0E010 |
GGL2#,GYL25 |
4 | ||
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0E010 |
GGL2#,GYL25 |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-30550 |
GGL2#,GYL2# *CHR,WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42603-0E010 |
GGL2#,GYL2# *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL2#,GYL2# *CHR,WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL2#,GYL2# *CHR,WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL2#,GYL2# *CHR,TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE (F SPORT),TYPE B:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL2#,GYL2# *CHR,TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE (F SPORT),TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTORBULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-53110 |
GGL25,GYL25 *ALU,"F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE B:REFER ILLUST. |
4 | ||
| 42603-50380 |
GGL2#,GYL25 *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-30550 |
GGL2#,GYL2# *CHR,TIRE & DISK WHEEL-235/55R20 MUD&SNOW TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42604 - WHEEL CAP SET | ||||
| 42604-48060 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(AMBER) |
1 | ||
| 42604-48070 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(WHITE)(F SPORT) |
1 | ||
| 42604-48070 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(WHITE) |
1 | ||
| 42604-48060 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(AMBER)(F SPORT) |
1 | ||
| 42604-48040 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(TITANIUM)(F SPORT) |
1 | ||
| 42604-48040 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(TITANIUM) |
1 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-0E020 |
GGL2#,GYL2# TYPE A:REFER ILLUST. |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-0E020 |
GGL2#,GYL2# TYPE A:REFER ILLUST. |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5006 |
GGL2#,GYL25 |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5006 |
GGL2#,GYL25 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-48030 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(TITANIUM)(F SPORT) |
20 | ||
| 42602-48050 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(AMBER) |
20 | ||
| 42602-48050 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(AMBER)(F SPORT) |
20 | ||
| 42602-48060 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(WHITE) |
20 | ||
| 42602-48060 |
GGL25,GYL25 "F SPORT"*(F)&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTERORNAMENT&TRIM(WHITE)(F SPORT) |
20 | ||
| 42602-0E010 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL |
20 | ||
| 42602-0E010 |
GGL25,GYL25 CANADA SPEC&TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL |
20 | ||
| 42602-48030 |
GGL2#,GYL25 TIRE & DISK WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLOR TRIM(TITANIUM) |
20 | ||
