GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

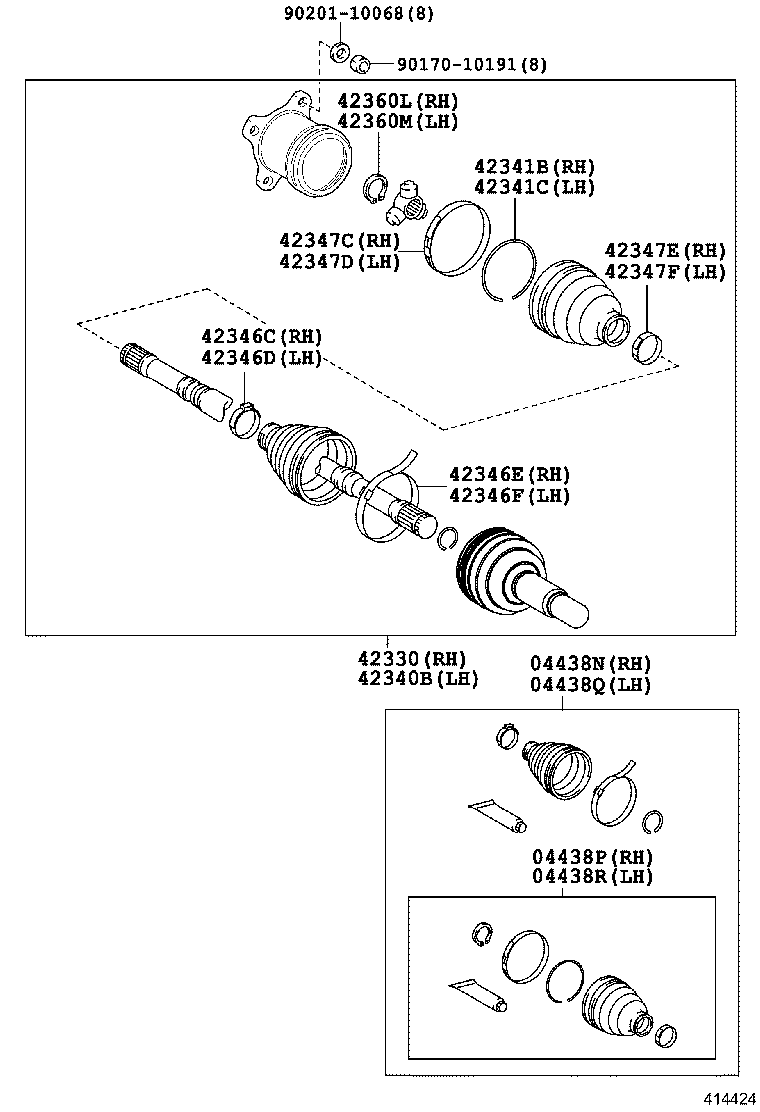

ILLUST NO. 2 OF 2(1510- )GYL25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-0T023 |
GYL25 |
1 | ||
| 04429-0T021 |
GYL25 |
1 | ||
| 04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH | ||||
| 04439-0T011 |
GYL25 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-0T023 |
GYL25 |
1 | ||
| 04429-0T021 |
GYL25 |
1 | ||
| 04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH | ||||
| 04439-0T011 |
GYL25 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-0E070 |
GYL25 |
1 | ||
| 42340-0E071 |
GYL25 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-0E071 |
GYL25 |
1 | ||
| 42340-0E070 |
GYL25 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-0T030 |
GYL25 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-0T030 |
GYL25 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-0E370 |
GYL25 |
1 | ||
| 42345-0T040 |
GYL25 ID=29.0 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-0T040 |
GYL25 ID=29.0 |
1 | ||
| 42345-0E370 |
GYL25 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-0T030 |
GYL25 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-0T030 |
GYL25 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-0T010 |
GYL25 ID=74.9 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-0T010 |
GYL25 ID=74.9 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-0T020 |
GYL25 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-0T020 |
GYL25 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 43425-0T020 |
GYL25 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 43425-0T020 |
GYL25 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||

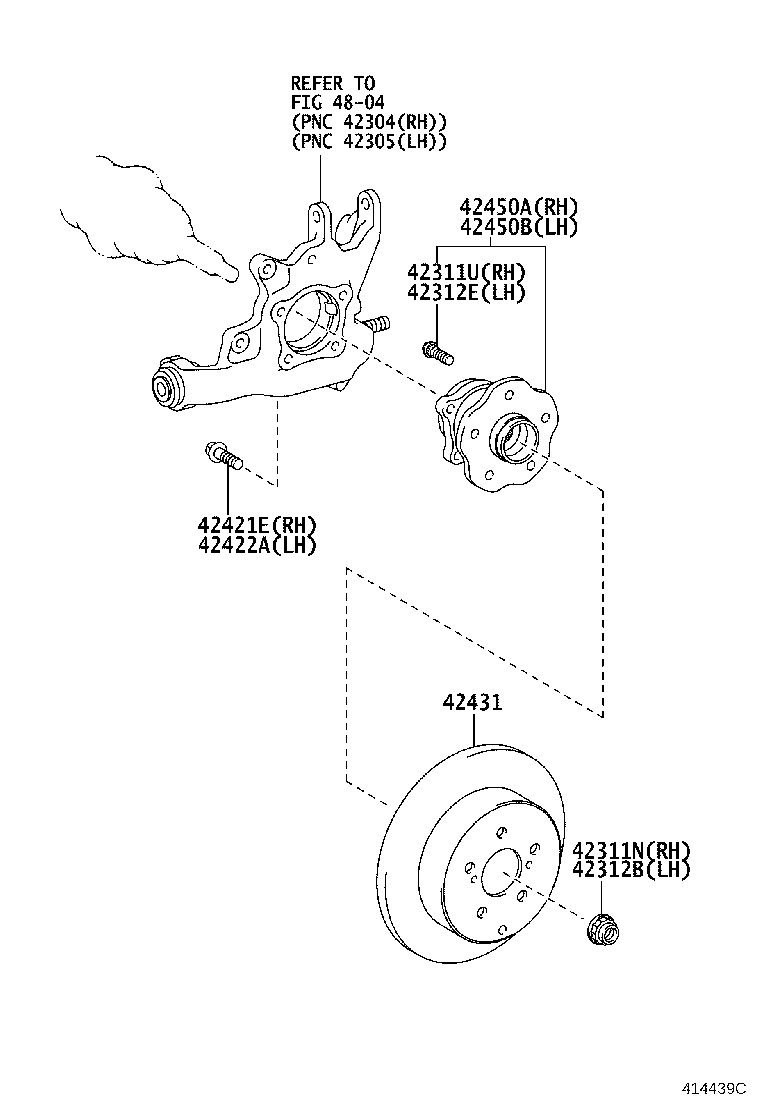

ILLUST NO. 1 OF 2(1510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90080-17238 |
GGL25,GYL25 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
GGL2#,GYL25 |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90080-17238 |
GGL25,GYL25 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
GGL2#,GYL25 |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-14097 |
GGL2#,GYL25 |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-14097 |
GGL2#,GYL25 |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-0E060 |
GGL2#,GYL25 |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-0E070 |
GGL25,GYL25 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-0E070 |
GGL25,GYL25 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
