GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFXS

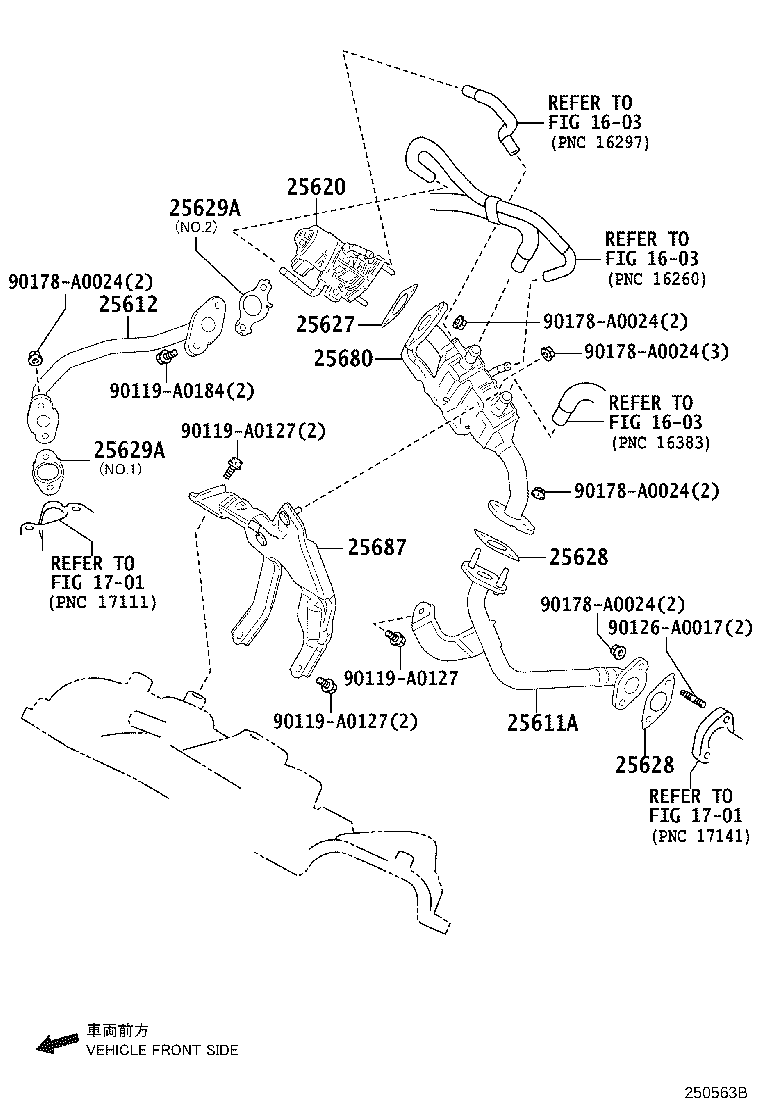

Click highlighted areas on diagram

diagram 1603 1603 1603 1701 1701 25611A 25612 25620 25627 25628 25628 25629A 25629A 25680 25687 90119A0127 90119A0127 90119A0127 90119A0184 90126A0017 90178A0024 90178A0024 90178A0024 90178A0024 90178A0024
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-31060

2GRFXS..GYL25

 1
25612 - PIPE, EGR, NO.2
25612-31040

2GRFXS..GYL25

 1
25620 - VALVE ASSY, EGR
25620-31080

2GRFXS..GYL25

 1
25627 - GASKET, EGR VALVE
25627-31040

2GRFXS..GYL25

 1
25628 - GASKET, EGR INLET
25628-31030

2GRFXS..GYL25

 2
25628 - GASKET, EGR INLET
25628-31030

2GRFXS..GYL25

 2
25629A - GASKET, EGR PIPE, NO.2
25629-31040

2GRFXS..GYL25

NO.1

 1
25629-36020

2GRFXS..GYL25

NO.2

 1
25629A - GASKET, EGR PIPE, NO.2
25629-31040

2GRFXS..GYL25

NO.1

 1
25629-36020

2GRFXS..GYL25

NO.2

 1
25680 - COOLER ASSY, EGR
25680-31050

2GRFXS..GYL25

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-31020

2GRFXS..GYL25

 1
Common parts
90119-A0127
90119-A0184
90126-A0017
90178-A0024
Linked diagrams
1603
1701
