GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

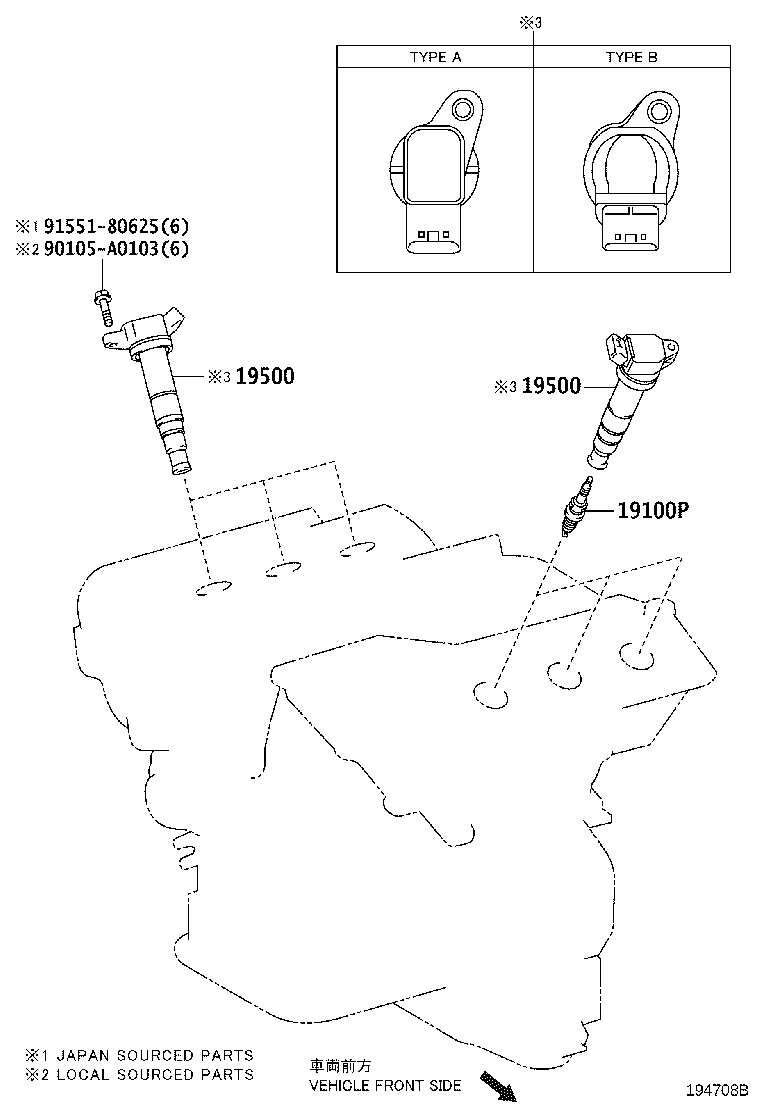

Click highlighted areas on diagram

diagram 19100P 19500 19500 90105A0103 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01263

2GR#..GGL2#,GYL25

FK20HBR8

 6
19500 - COIL ASSY, IGNITION
90919-02273

2GR#..GGL2#,GYL25

(J),TYPE A:REF ILL.

 6
90919-02280

2GR#..GGL2#,GYL25

(J),TYPE B:REF ILL.

 6
19500 - COIL ASSY, IGNITION
90919-02273

2GR#..GGL2#,GYL25

(J),TYPE A:REF ILL.

 6
90919-02280

2GR#..GGL2#,GYL25

(J),TYPE B:REF ILL.

 6
Common parts
90105-A0103
91551-80625
