GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFXS

Click highlighted areas on diagram

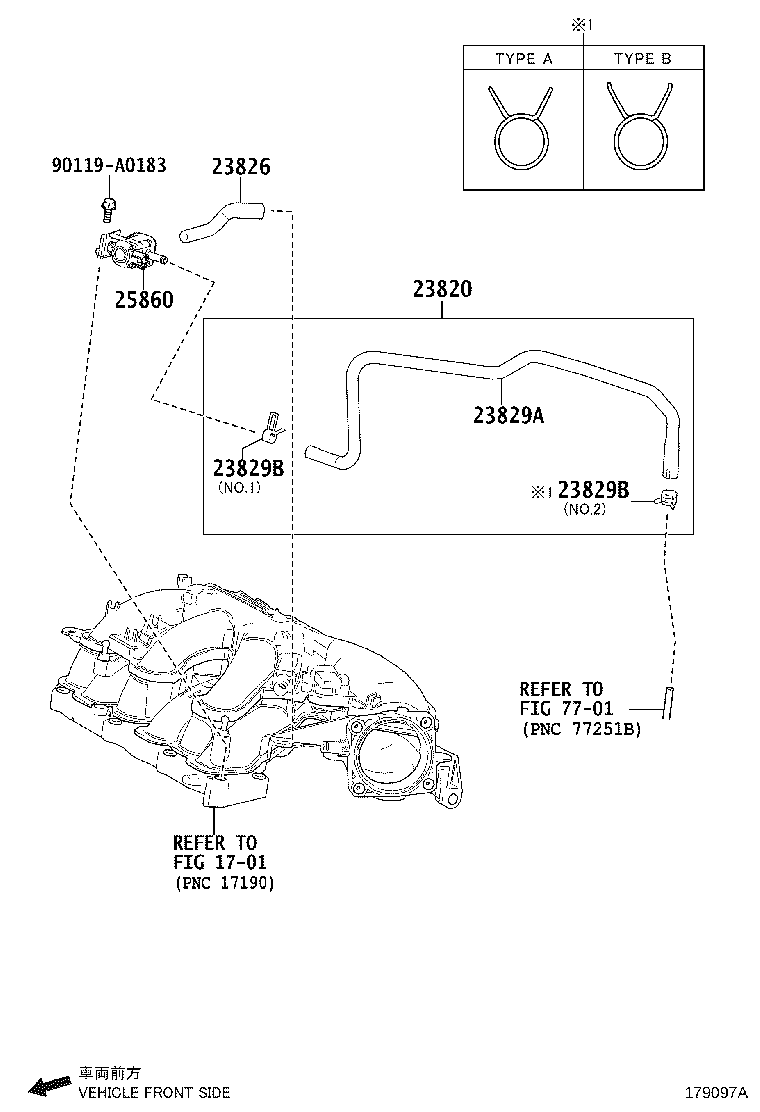

diagram 1701 23820 23826 23829A 23829B 23829B 25860 7701 90119A0183
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0P210

2GRFXS..GYL25

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P230

2GRFXS..GYL25

 1
23829A - HOSE, FUEL VAPOR FEED
23829-0P240

2GRFXS..GYL25

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-13005

2GRFXS..GYL2#

NO.2,TYPE B:REF ILL.

 1
96132-51100

2GRFXS..GYL2#

NO.1

 1
90466-13004

2GRFXS..GYL2#

NO.2,TYPE A:REF ILL.

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-13005

2GRFXS..GYL2#

NO.2,TYPE B:REF ILL.

 1
96132-51100

2GRFXS..GYL2#

NO.1

 1
90466-13004

2GRFXS..GYL2#

NO.2,TYPE A:REF ILL.

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31090

2GRFXS..GYL25

 1
Common parts
90119-A0183
Linked diagrams
1701
7701
