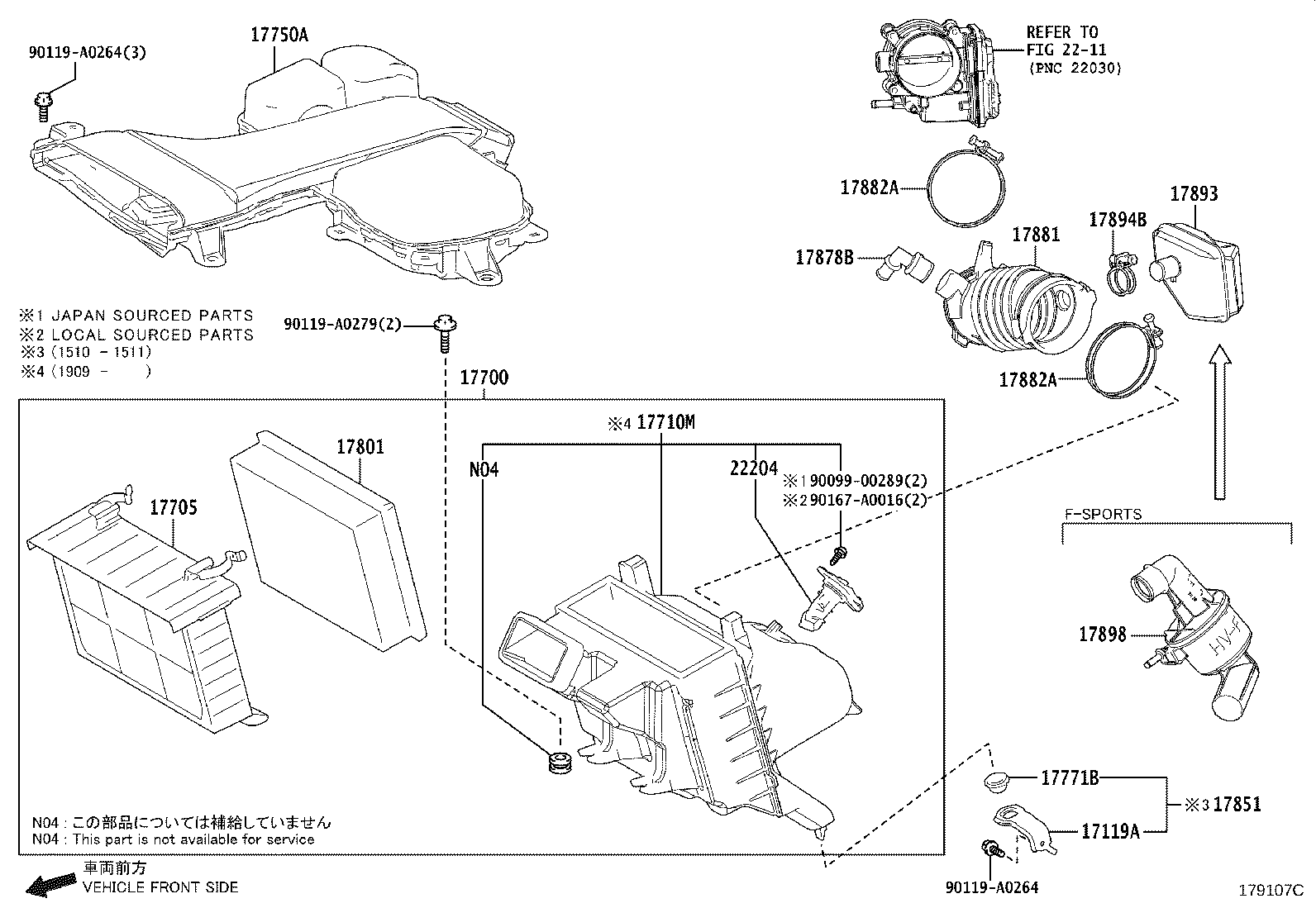

Toyota Lexus rx450h/350(nap GYL25 AIR CLEANER

Part #	Description	Period	Qty
17119A - BRACKET, AIR CLEANER
17119-0P170	2GRFXS..GYL2#	10/2015 - 11/2015	1
17119-31130	2GRFXS..GYL25	11/2015 - 09/2019	1
17700 - CLEANER ASSY, AIR
17700-0P250	2GRFXS..GYL25	10/2015 - 09/2019	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P240	2GRFXS..GYL25	10/2015 - 09/2019	1
17750A - INLET ASSY, AIR CLEANER
17750-0P070	2GRFXS..GYL25	10/2015 - 09/2019	1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90480-18006	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0P090	2GRFXS..GYL25 (L)	10/2015 - 09/2019	1
17801-45031	2GRFXS..GYL25 (J)	10/2015 - 09/2019	1
17851 - BRACKET, AIR CLEANER SUPPORT
17850-0P030	2GRFXS..GYL2#	10/2015 - 11/2015	1
17878B - TUBE, VENTILATION
17878-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P200	2GRFXS..GYL25	10/2015 - 09/2019	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
17893 - RESONATOR, INTAKE AIR
17893-0P160	2GRFXS..GYL25	10/2015 - 09/2019	1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10330	2GRFXS..GYL25	10/2015 - 09/2019	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
Common parts
90099-00289
90119-A0264
90119-A0279
90167-A0016
Linked diagrams
2211

GYL25L-CWXGBA (2015)
