GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFXS

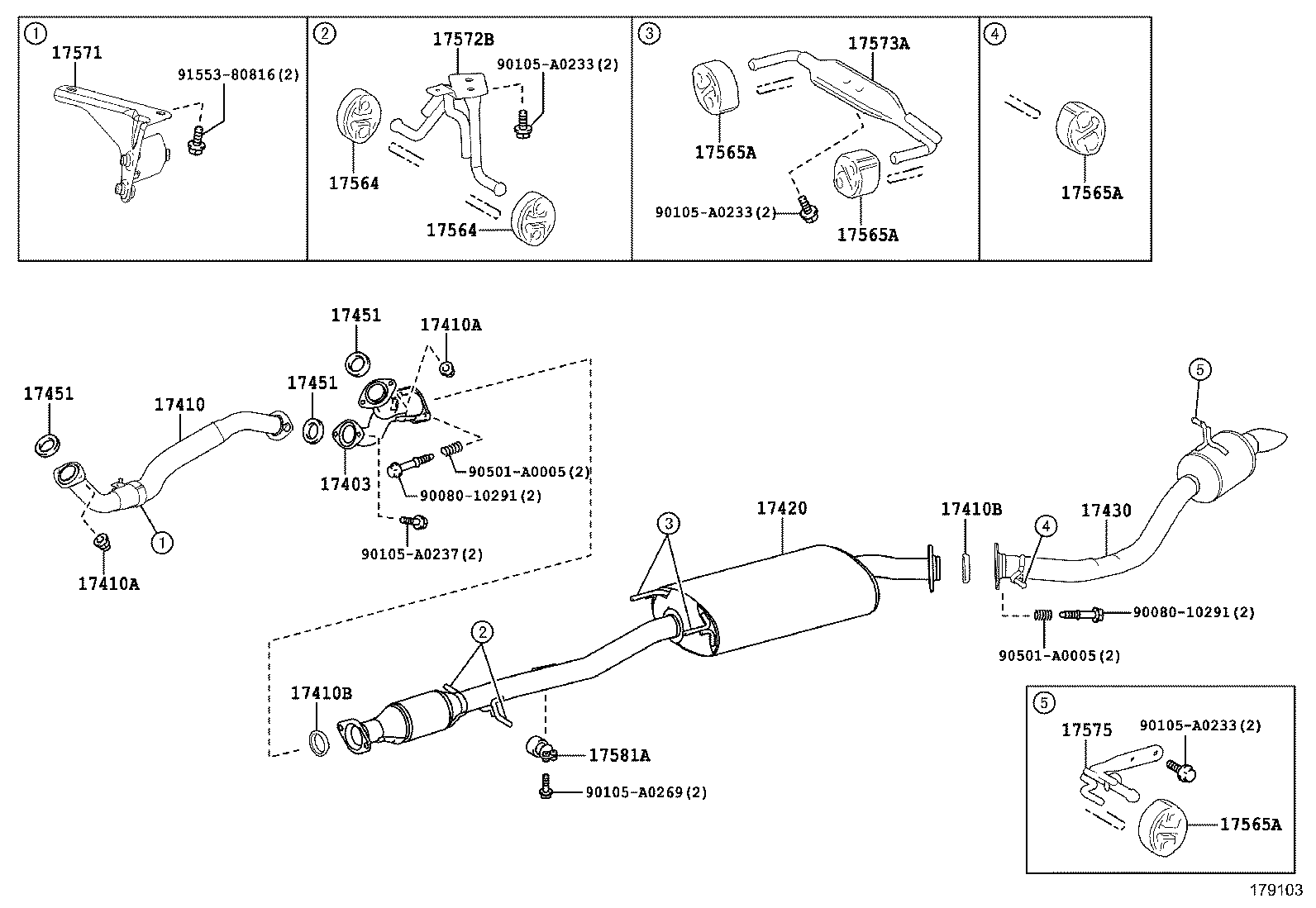

Click highlighted areas on diagram

diagram 17403 17410 17410A 17410A 17410B 17410B 17420 17430 17451 17451 17451 17564 17564 17565A 17565A 17565A 17565A 17571 17572B 17573A 17575 17581A 9008010291 9008010291 90105A0233 90105A0233 90105A0233 90105A0237 90105A0269 90501A0005 90501A0005 9155380816
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-31180

2GRFXS..GYL25

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31K60

2GRFXS..GYL25

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90080-17187

2GR#..GGL2#,GYL25

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90080-17187

2GR#..GGL2#,GYL25

 4
17410B - GASKET, EXHAUST PIPE
17451-0D140

2GRFXS..GYL25

 2
17410B - GASKET, EXHAUST PIPE
17451-0D140

2GRFXS..GYL25

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-31580

2GRFXS..GYL25

*114=TOYOTA/UG1/Y

 1
17420-31650

2GRFXS..GYL25

*114=TOYOTA/UG1/Y

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31E00

2GRFXS..GYL25

 1
17430-31E01

2GRFXS..GYL25

 1
17451 - GASKET, EXHAUST PIPE
90080-43036

2GR#..GGL2#,GYL25

 3
17451 - GASKET, EXHAUST PIPE
90080-43036

2GR#..GGL2#,GYL25

 3
17451 - GASKET, EXHAUST PIPE
90080-43036

2GR#..GGL2#,GYL25

 3
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0P031

2GR#..GGL2#,GYL25

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0P031

2GR#..GGL2#,GYL25

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

2GRFXS..GYL25

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

2GRFXS..GYL25

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

2GRFXS..GYL25

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

2GRFXS..GYL25

 4
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31310

2GRFXS..GYL25

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-31100

2GRFXS..GYL25

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-31040

2GRFXS..GYL25

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-31120

2GRFXS..GYL25

 1
17581A - DAMPER, EXHAUST PIPE
17581-31050

2GRFXS..GYL25

 1
Common parts
90080-10291
90105-A0233
90105-A0237
90105-A0269
90501-A0005
91553-80816
