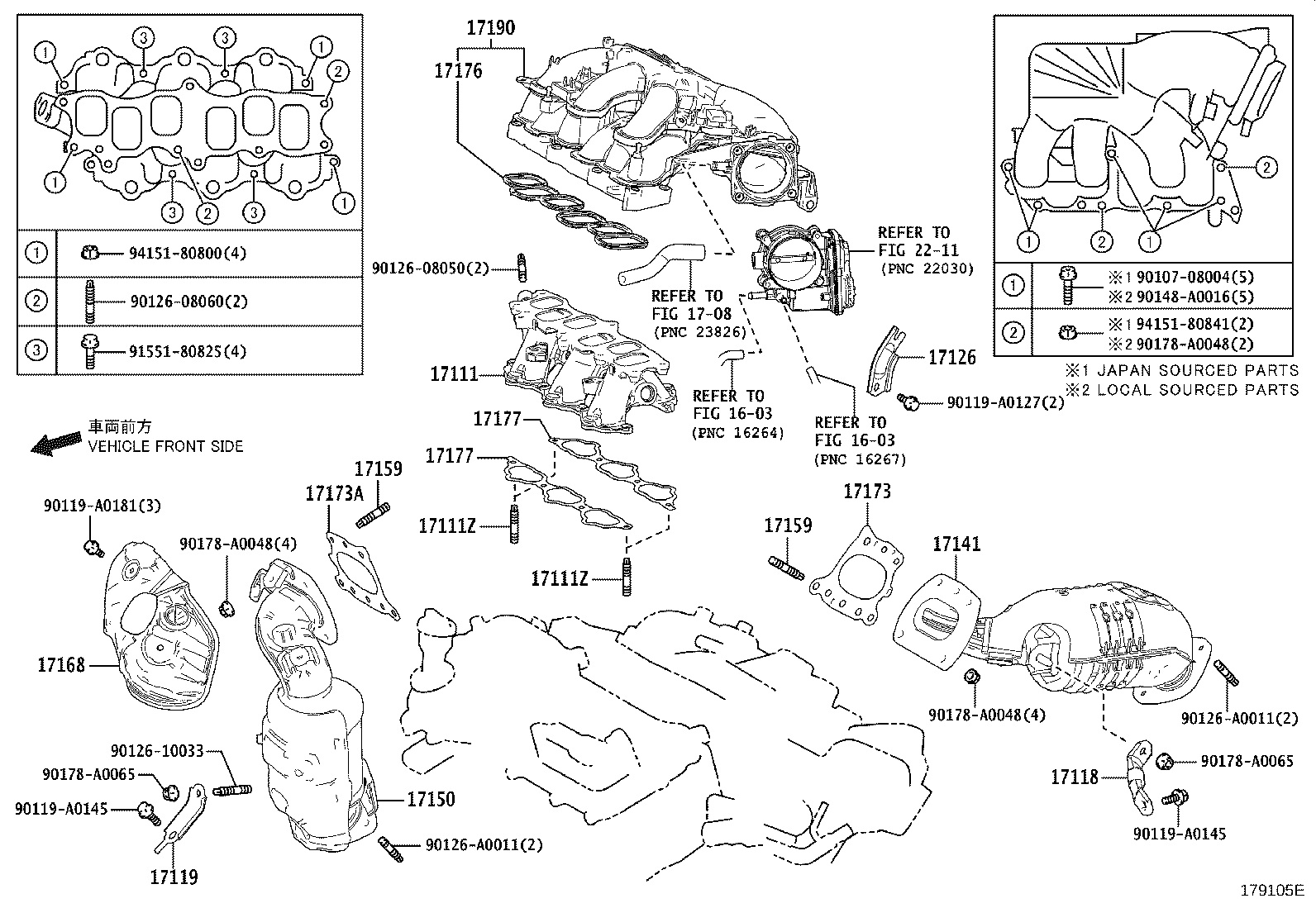

Toyota Lexus rx450h/350(nap GYL25 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-31070	2GRFXS..GYL25	10/2015 - 09/2019	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	4
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	4
17118 - STAY, MANIFOLD
17118-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17119 - STAY, MANIFOLD, NO.2
17119-0P180	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17126 - STAY, SURGE TANK, NO.2
17126-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17141 - MANIFOLD, EXHAUST
17140-31390	2GRFXS..GYL25 *114=TOYOTA/R31390/Y	10/2015 - 09/2019	1
17150 - MANIFOLD ASSY, EXHAUST, LH
17150-0P400	2GRFXS..GYL25	08/2019 - 09/2019	1
17150-0P330	2GRFXS..GYL25	10/2015 - 07/2019	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	8
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-0P040	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31130	2GR#..GGL2#,GYL25	10/2015 - 09/2019	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31280	2GRFXS..GYL25	10/2015 - 09/2019	1
Common parts
90107-08004
90119-A0127
90119-A0145
90119-A0181
90126-08050
90126-08060
90126-10033
90126-A0011
90148-A0016
90178-A0048
90178-A0065
91551-80825
94151-80800
94151-80841
Linked diagrams
1603
1708
2211

GYL25L-CWXGBA (2015)

(1510- )2GRFXS
