GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

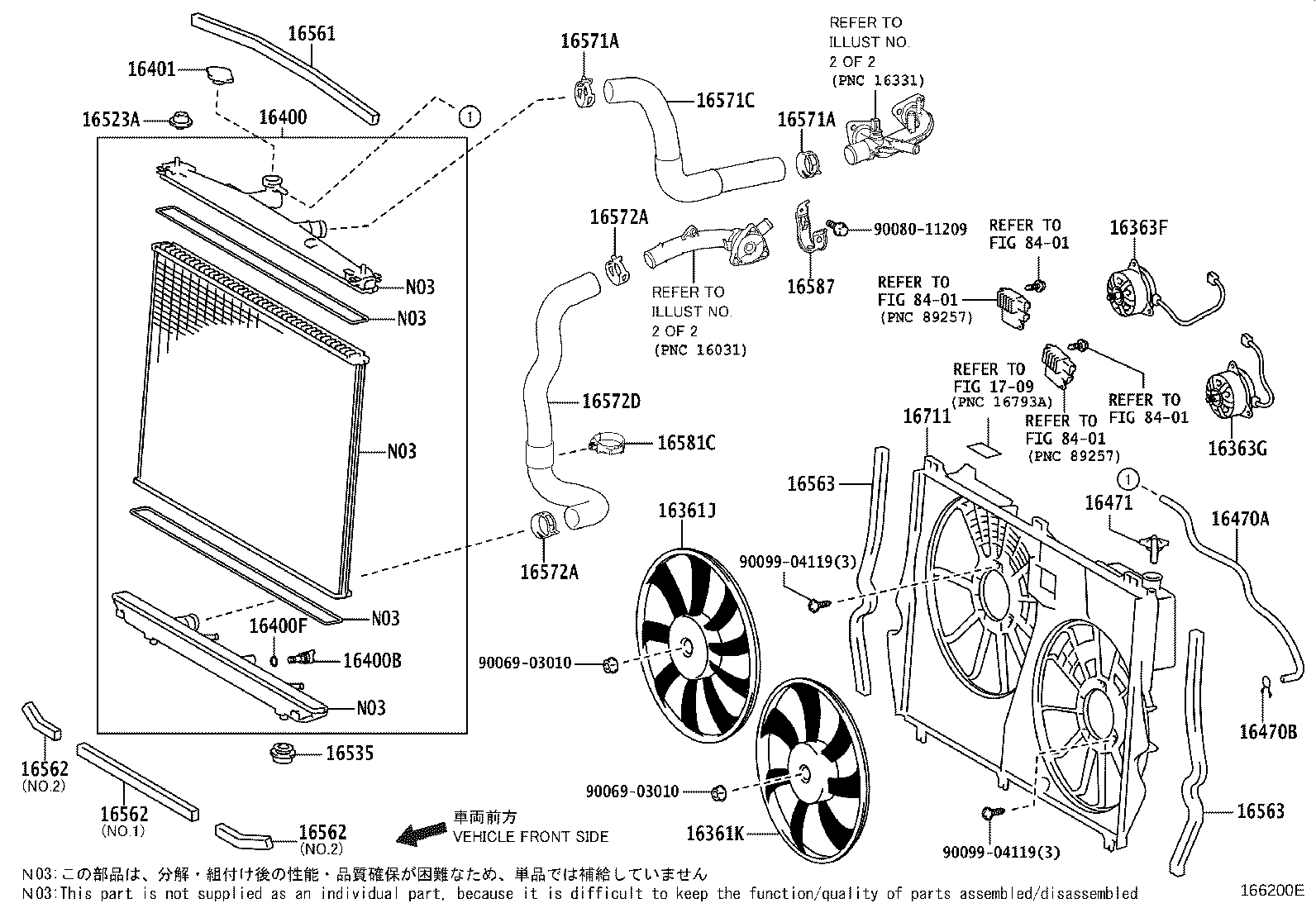

ILLUST NO. 1 OF 2(1510- )2GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361J - FAN, RH | ||||
| 16361-0P410 |
2GRFXS..GYL25 |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-0P330 |
2GRFXS..GYL25 |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-31200 |
2GRFXS..GYL25 |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-36090 |
2GRFXS..GYL25 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P510 |
2GRFXS..GYL25 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
2GRFXS..GYL25 |
1 | ||
| 16401-36020 |
2GRFXS..GYL25 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0P230 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P140 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-AD010 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A090 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0P130 |
2GRFXS..GYL25 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-0P100 |
2GRFXS..GYL25 NO.1 |
1 | ||
| 16562-0P110 |
2GRFXS..GYL25 NO.2 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-0P100 |
2GRFXS..GYL25 NO.1 |
1 | ||
| 16562-0P110 |
2GRFXS..GYL25 NO.2 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-0P100 |
2GRFXS..GYL25 NO.1 |
1 | ||
| 16562-0P110 |
2GRFXS..GYL25 NO.2 |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-0P060 |
2GRFXS..GYL25 |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-0P060 |
2GRFXS..GYL25 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P350 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-A0020 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-A0020 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P360 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-28070 |
2GR#..GGL2#,GYL2# |
1 | ||
| 16587 - CLAMP, RADIATOR PIPE | ||||
| 16587-31040 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P350 |
2GRFXS..GYL25 |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90080-11209 | ||||
| 90099-04119 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

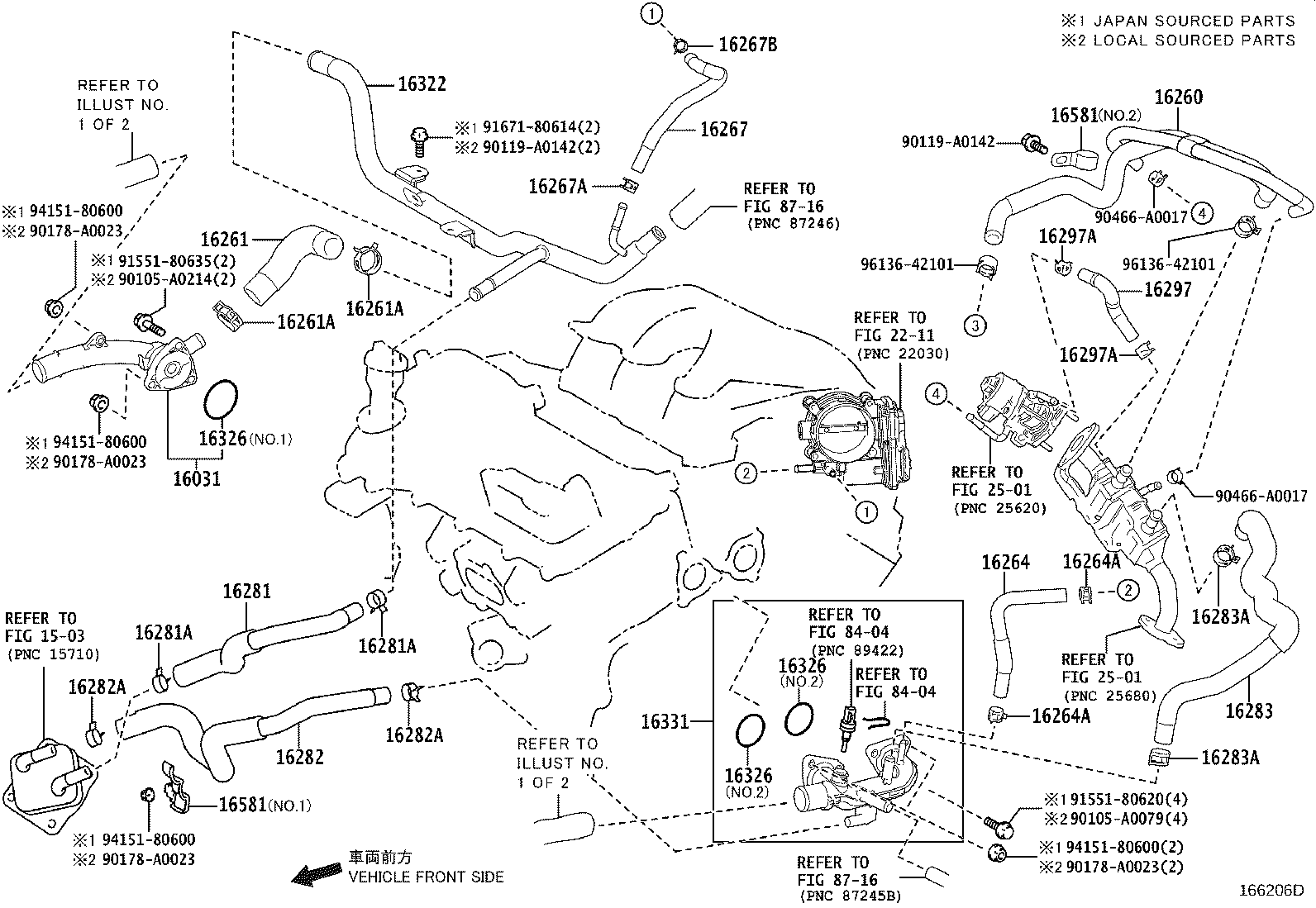

ILLUST NO. 2 OF 2(1510- )2GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31040 |
2GRFXS..GYL25 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-31060 |
2GRFXS..GYL25 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31060 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 16261-31060 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16261-31061 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16261-31061 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-27001 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-27001 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31160 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16264-31160 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
1 | ||
| 96137-41501 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
1 | ||
| 96137-41501 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P050 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-A0017 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0017 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31040 |
2GRFXS..GYL25 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2GRFXS..GYL25 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2GRFXS..GYL25 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31060 |
2GRFXS..GYL25 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31100 |
2GRFXS..GYL25 (J) |
1 | ||
| 16322-31110 |
2GRFXS..GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31250 |
2GRFXS..GYL25 |
1 | ||
| 16331-31240 |
2GRFXS..GYL25 TOWING PACKAGE-3500LBS |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31080 |
2GRFXS..GYL25 NO.2 |
1 | ||
| 16581-31100 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| Common parts | ||||
| 90105-A0079 | ||||
| 90105-A0214 | ||||
| 90119-A0142 | ||||
| 90178-A0023 | ||||
| 90466-A0017 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
| 8716 | ||||

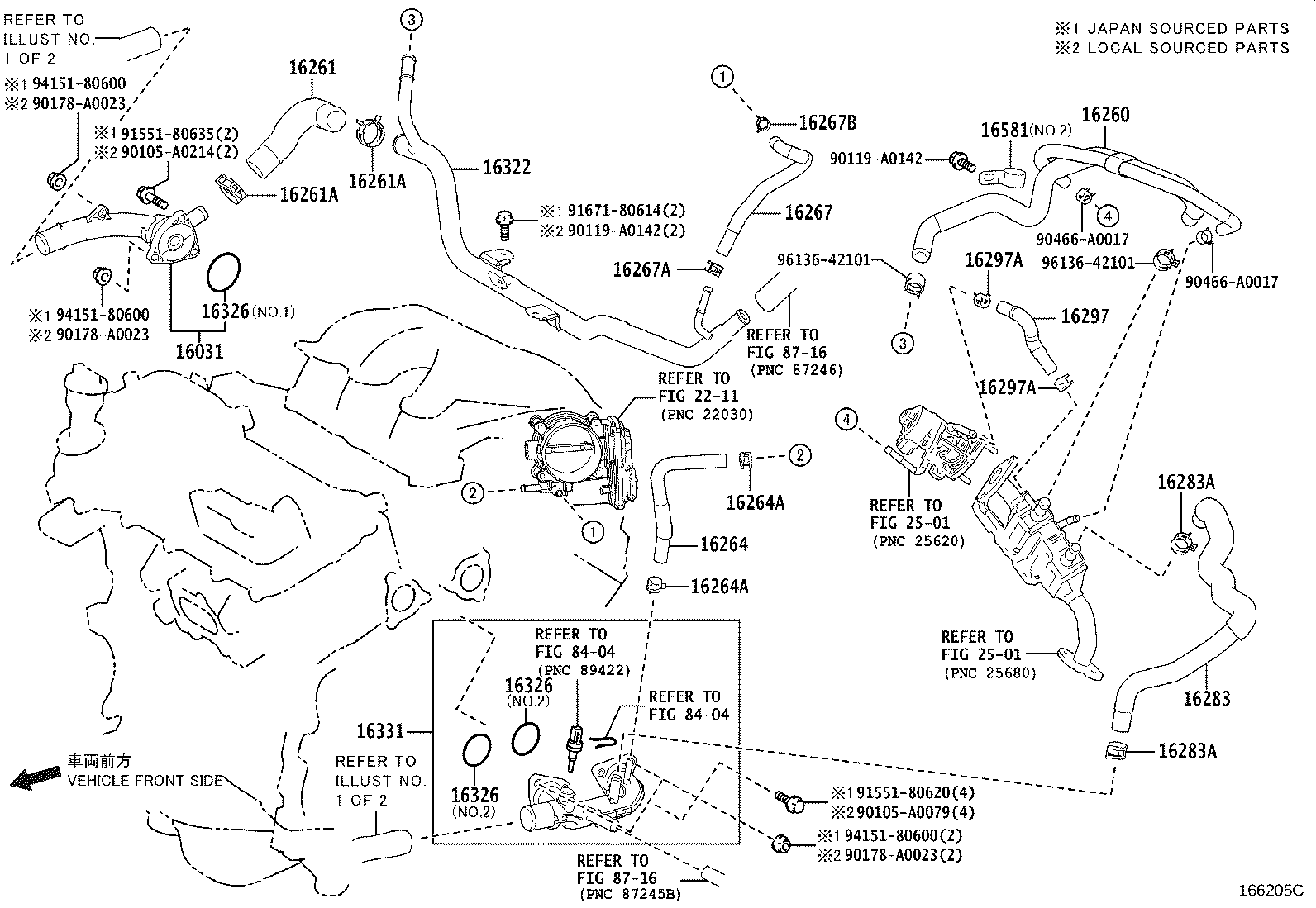

ILLUST NO. 2 OF 2(1510- )2GRFXS
TOWING PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31040 |
2GRFXS..GYL25 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-31060 |
2GRFXS..GYL25 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31060 |
2GR#..GGL2#,GYL2# (J) |
1 | ||
| 16261-31060 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16261-31061 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16261-31061 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-27001 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-27001 |
2GR#..GGL2#,GYL25 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31160 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16264-31160 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
1 | ||
| 96137-41501 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
1 | ||
| 96137-41501 |
2GR#..GGL2#,GYL25 (J) |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P050 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-A0017 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0017 |
2GR#..GGL2#,GYL25 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31100 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-31060 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31040 |
2GRFXS..GYL25 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2GRFXS..GYL25 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2GRFXS..GYL25 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31060 |
2GRFXS..GYL25 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-A0017 |
2GRFXS..GYL25 |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31100 |
2GRFXS..GYL25 (J) |
1 | ||
| 16322-31110 |
2GRFXS..GYL25 TOWING PACKAGE-3500LBS,(J) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
2GR#..GGL2#,GYL25 NO.1 |
1 | ||
| 16326-31040 |
2GR#..GGL2#,GYL25 NO.2 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31250 |
2GRFXS..GYL25 |
1 | ||
| 16331-31240 |
2GRFXS..GYL25 TOWING PACKAGE-3500LBS |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31080 |
2GRFXS..GYL25 NO.2 |
1 | ||
| 16581-31100 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31080 |
2GRFXS..GYL25 NO.2 |
1 | ||
| 16581-31100 |
2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,NO.1 |
1 | ||
| Common parts | ||||
| 90105-A0079 | ||||
| 90105-A0214 | ||||
| 90119-A0142 | ||||
| 90178-A0023 | ||||
| 90466-A0017 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
