GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFXS

Click highlighted areas on diagram

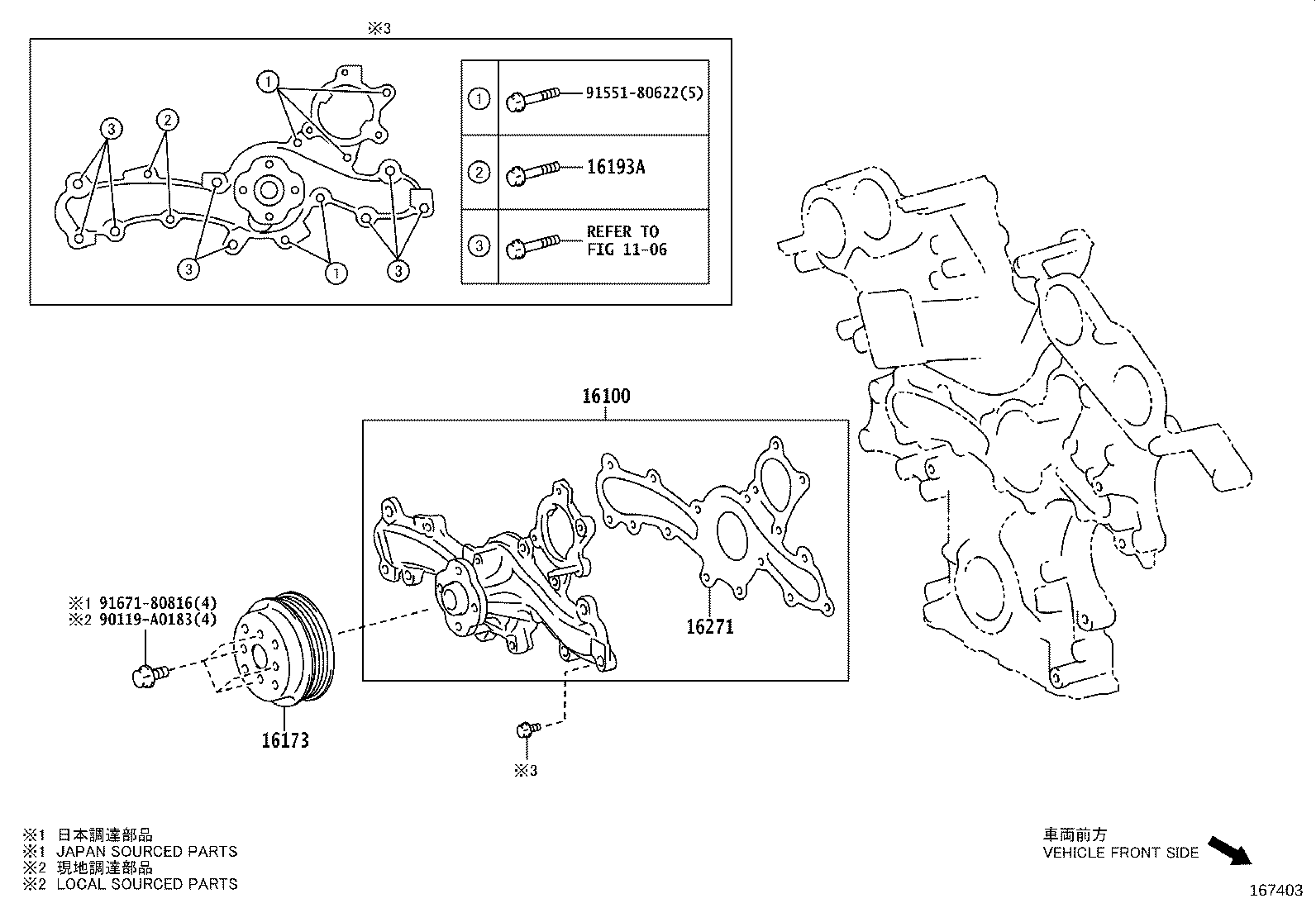

diagram 1106 16100 16173 16193A 16271 90119A0183 9155180622 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39615

2GR#..GGL2#,GYL2#

(J)

 1
16173 - PULLEY, WATER PUMP
16173-31040

2GRFXS..GYL25

(J)

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

2GR#..GGL2#,GYL25

 2
16271 - GASKET, WATER PUMP
16271-31050

2GR#..GGL2#,GYL25

(J)

 1
Common parts
90119-A0183
91551-80622
91671-80816
Linked diagrams
1106
