Toyota Lexus rx450h/350(nap GYL25 ENGINE OIL COOLER

Part #	Description	Period	Qty
11496B - GASKET, OIL HOLE COVER
11496-31020	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
15710 - COOLER ASSY, OIL
15710-31060	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
15710B - RING, O(FOR OIL COOLER)
15785-31050	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS	06/2018 - 09/2019	2
96723-35035	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS	10/2015 - 05/2018	2
15710B - RING, O(FOR OIL COOLER)
15785-31050	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS	06/2018 - 09/2019	2
96723-35035	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS	10/2015 - 05/2018	2
15767 - PIPE, OIL COOLER
15767-31031	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2018 - 09/2019	1
15767-31030	2GRFXS..GYL25 TOWING PACKAGE-3500LBS	10/2015 - 09/2018	1
15781 - BRACKET, OIL COOLER, NO.1
15781-31020	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
15785 - GASKET, OIL COOLER
15785-31040	2GR#..GGL2#,GYL25 TOWING PACKAGE-3500LBS,(J)	10/2015 - 09/2019	1
Common parts
90105-A0068
90105-A0128
90119-A0127
90126-08038
90126-08050
90126-08052
90126-A0017
90126-A0019
90178-A0024
91551-80820
91551-80830
91671-80820
94151-80800

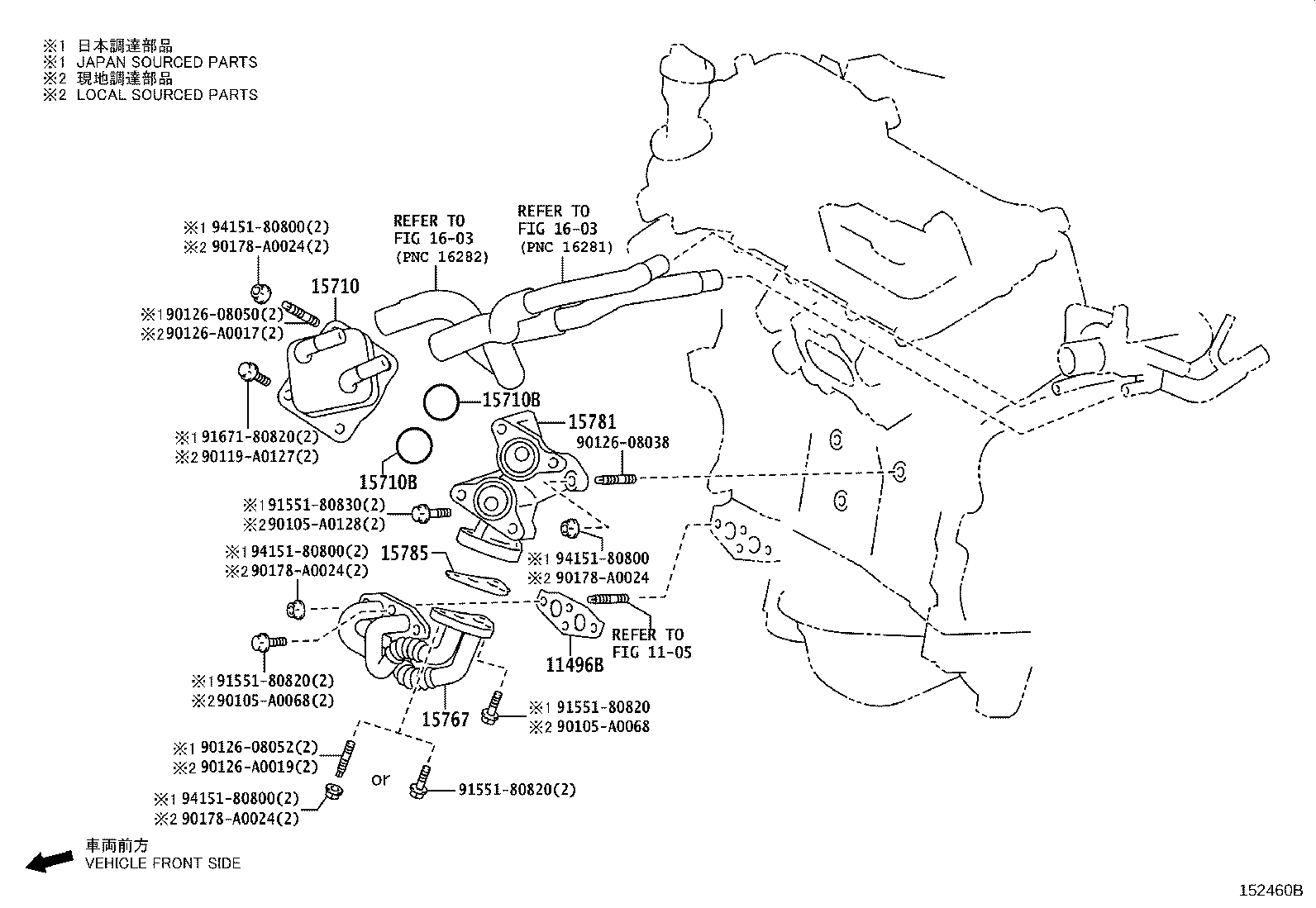

Linked diagrams
1105
1603

GYL25L-CWXGBA (2015)
