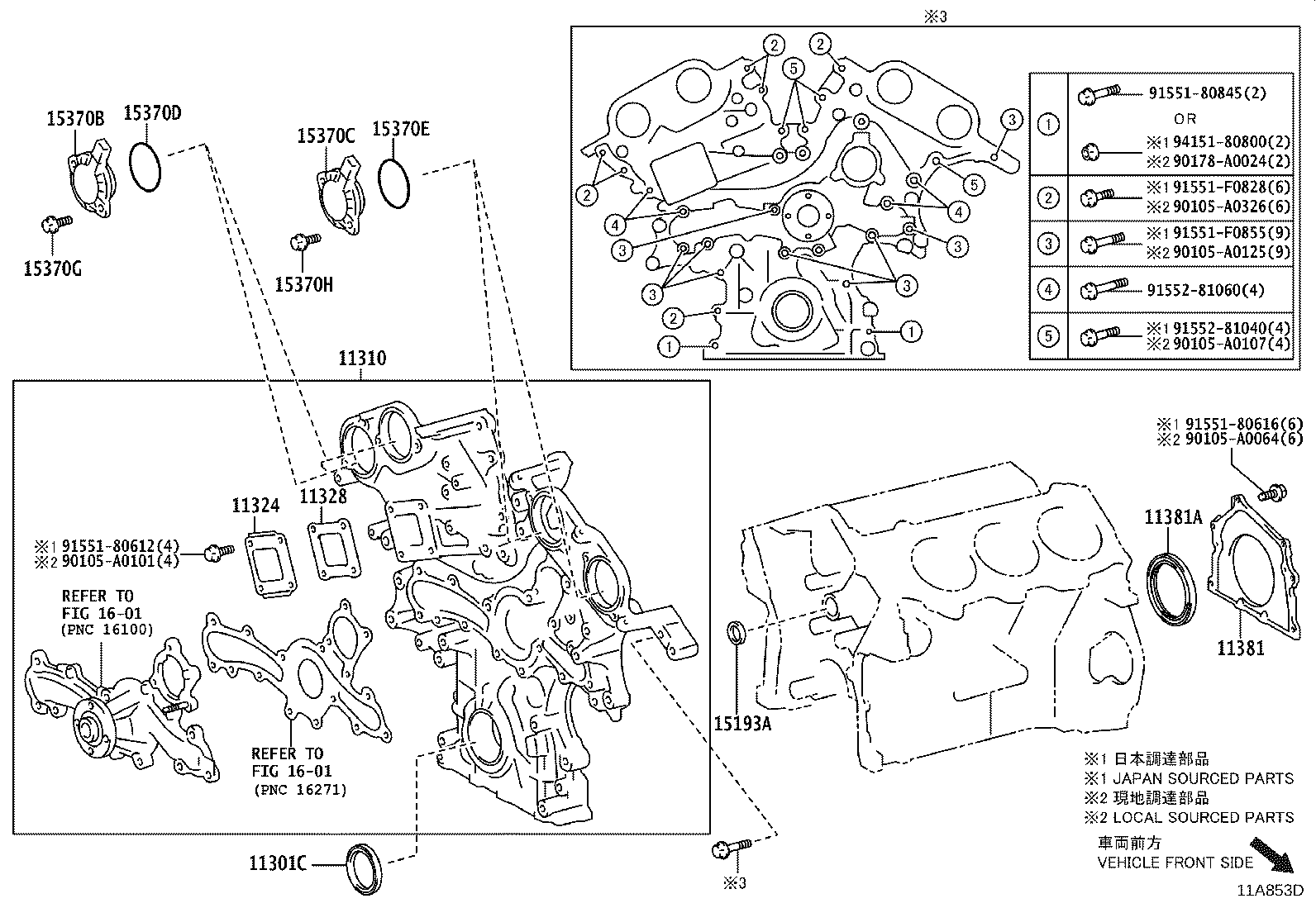

Toyota Lexus rx450h/350(nap GYL25 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42052	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11310 - COVER ASSY, TIMING CHAIN
11310-31060	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11324 - PLATE, TIMING CHAIN COVER
11324-31020	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31030	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
11381A - SEAL, ENGINE REAR OIL
90311-92011	2GR#..GGL2#,GYL25 251 OR 252	10/2015 - 09/2019	1
15193A - GASKET, OIL PUMP
15193-31020	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	1
15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370-31010	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	2
15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90301-50003	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90301-50003	2GR#..GGL2#,GYL25	10/2015 - 09/2019	2
15370G - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)
91551-80616	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	4
15370H - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)
91551-80616	2GR#..GGL2#,GYL25 (J)	10/2015 - 09/2019	4
Common parts
90105-A0064
90105-A0101
90105-A0107
90105-A0125
90105-A0326
90178-A0024
91551-80612
91551-80616
91551-80845
91551-F0828
91551-F0855
91552-81040
91552-81060
94151-80800
Linked diagrams
1601

GYL25L-CWXGBA (2015)
